The van is a 2006 Dodge T1N 158" Wheelbase High Roof 2500.
Currently has 240,000 miles on what I believe is the original engine.
Originally white, the van was painted last year Toyota Quicksand and the bottom rocker panels and bumpers Rhino Lined.:
Recently updated the suspension with Bilstein front struts and Sumo spring rear bumpstop dampeners.
Bf Goodrich K02 Tires 245/75/16 on Aluminum Vision Warrior Wheels.
Curt Class 4 Hitch.
Van Tech Roof racks and rear ladder.
Interior:
Fully Insulated Poli Iso Foam r10 walls and roof and r8 floor. Thinsulate used in curved roof areas and doors.
Butyl sound deadening strips on all large metal panels, floor, roof, walls, and wheel wells.
Custom window insulation covers made with thinsulate for all cabin windows.
custom thinsulate insulated snap in privacy barrier separating the rear cabin from front cab.
Full custom cabinetry built of 3/4 maple ply. All dampened or soft close hinges, with mechanical
door struts on upper cabinetry.

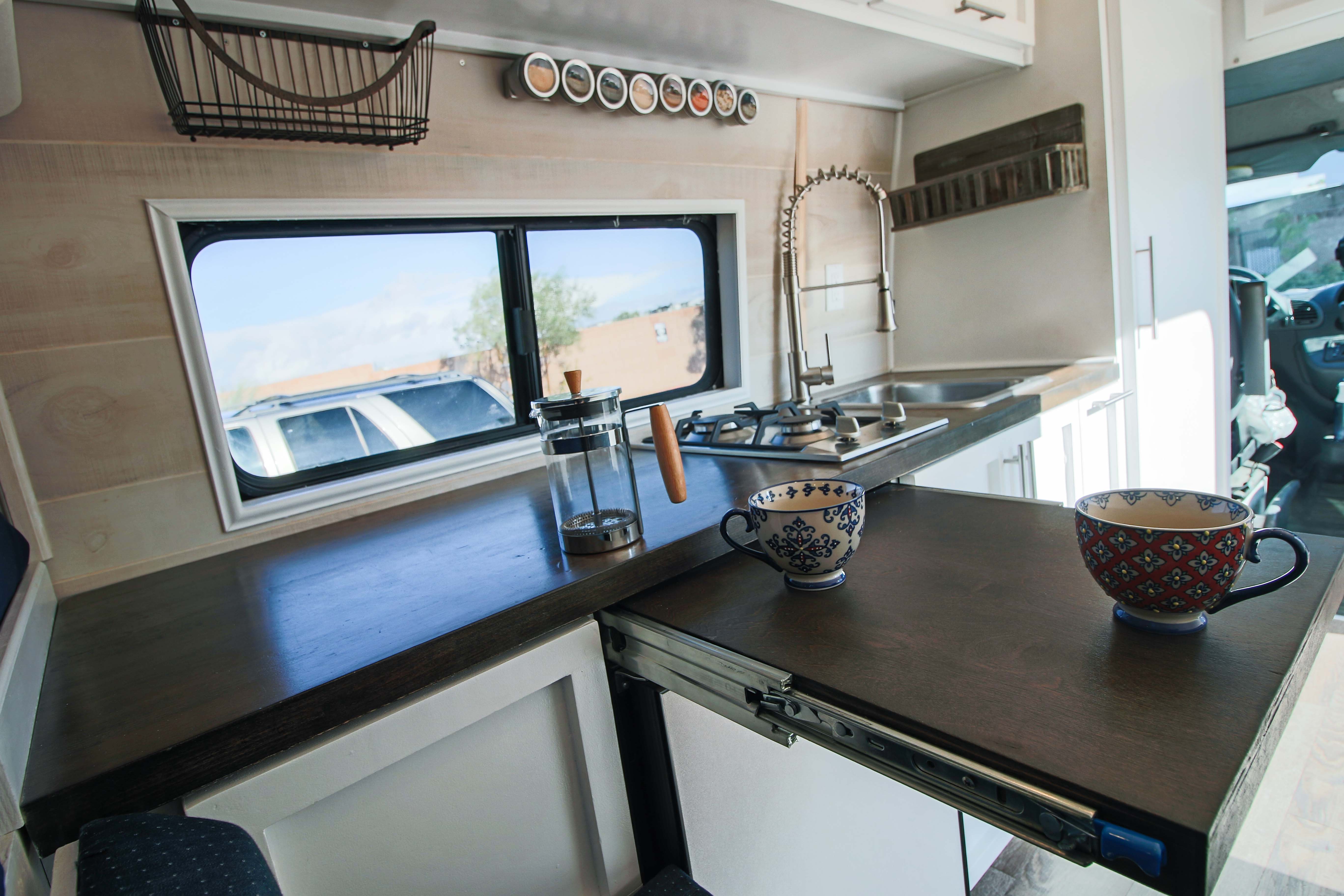

Sliding table above refrigerator that slides out on locking drawer slides.
The countertop is Maple veneered laminate composite with 3 coats of Polycrylic.
Cl Lawrence sliding window installed behind the galley.
Ikea built in dual sliding trash cans.
Nova Kool R3800 Dc Refrigerator.
Ramblewood Dual cooktop burner.
Marine 14" Stainless sink with hot and cold faucet.
Propex Hs2000 furnace with remote thermostat.
Plumbing:
25 Gallon Fresh water tank.
Shore water hookup.
16 Gallon Grey water waste tank for shower.
Marine Galley Kitchen Sink and Faucet with 6 gallon waste tank and optional valve for through floor draining.
Tankless on demand water heater for sink and shower.
24”x36” Custom Shower Enclosure.
Removable Natures Head composting toilet.
Sealed and vented propane locker.
Electrical:
Boss flip out Radio with backup camera and bluetooth. 6.5" Pioneer speakers.
Remote power locks.
Fully isolated solar setup and battery system.
2x 275 watt Lg Solar panels mounted to Vantech roof racks.
200 Amp Hour AGM battery bank.
Victron 100/30 Solar Controller
Aims 1800/2400 watt Pure Sine Wave Inverter w/ Automatic Transfer Switch
Blue Seas Ac breakers.
2 Zone Dimmable led lighting.
Maxxair fan w/ rain sensor and thermostat remote mounted over bed.
Ventline rv shower vent in shower.
Bed:
6" Zinus memory foam mattress with 2" gel foam topper.
Rear bench seat has locking hinges to add additional 14" length to sleeping area.

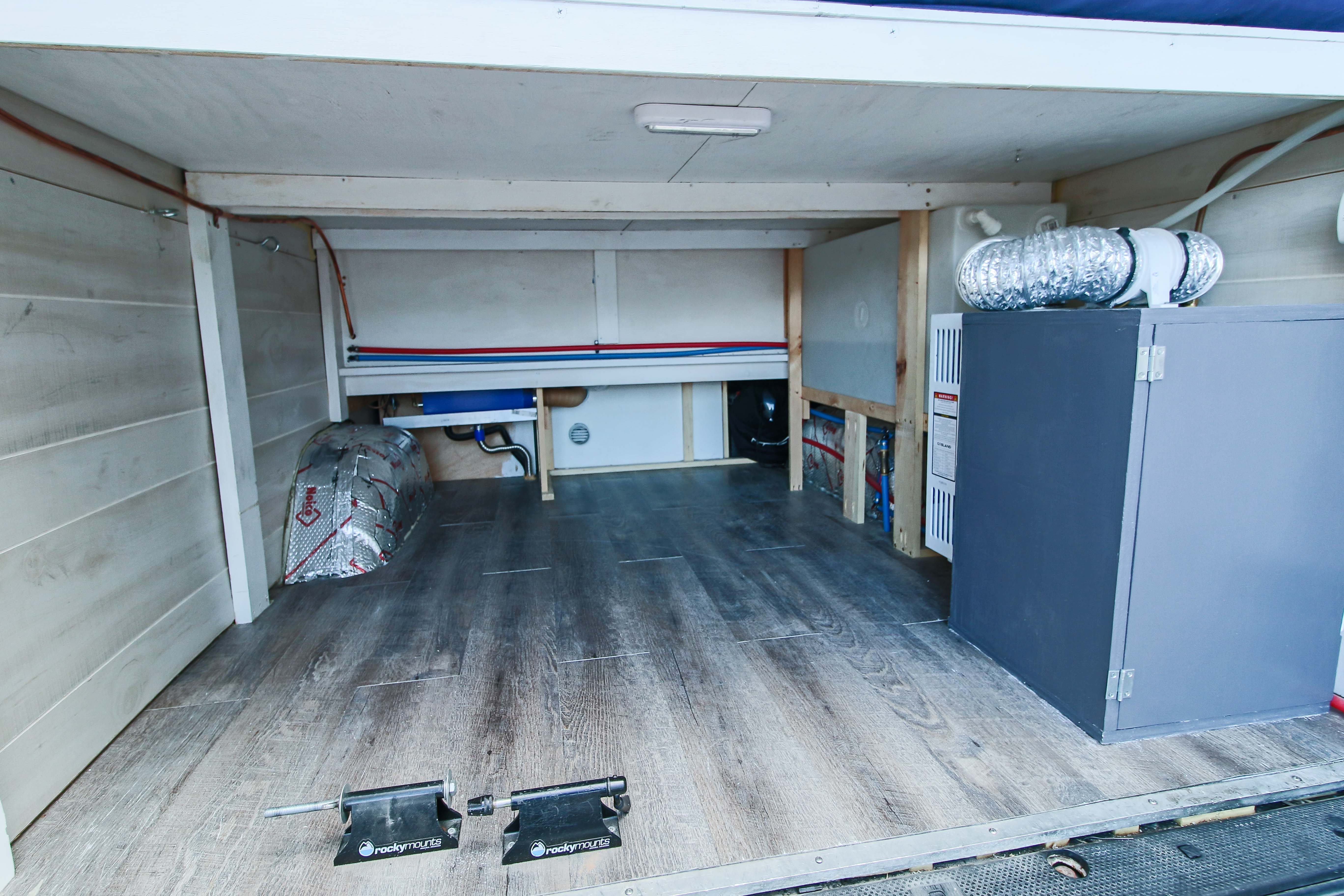

Rear Garage:
High bed designed for storing 2 mountain bikes on Rocky Mounts fork mounts.
Rear accessory hot water shower which can be used to also wash off bikes or gear.
Tons of space for camping, climbing, or any other gear.
Build here are some of the recent maintenance and mechanical upgrades
BF Goodrich all terrain K02 tires mounted on Vision Warrior Wheels. ~20k miles
New brakes and rotors all around. ~5k miles
Bilstein Front Struts and Sumo Springs rear. ~10k miles
New EGR valve. ~5k miles
New a/c compressor, condenser, dryer, expansion valve, serpentine belt, and idler pulley. ~12k miles
Upgraded Dual electric auxiliary fans infront of condenser. ~10k miles
New thermostat and full coolant flush. ~30k miles
Oil change and transmission fluid flush. ~200 miles.
Aluminum Turbo Resonator Bypass Pipe. ~ 35k miles
Been asking 39k on craigslist but I am willing to take a little off for ExPo members as thanks for the invaluable information I have obtained from here over the years.
Feel free to email me at Johnsheehan11772@gmail.com
or call or text 631-312-4341
