For Sale: 2018 4X4 Ford Transit, 148 Wheel Base, High Top Regular Body
Current Location: Colorado/Arizona (we will be at Overland Expo West in Flagstaff, AZ Sept 24-26, 2021)

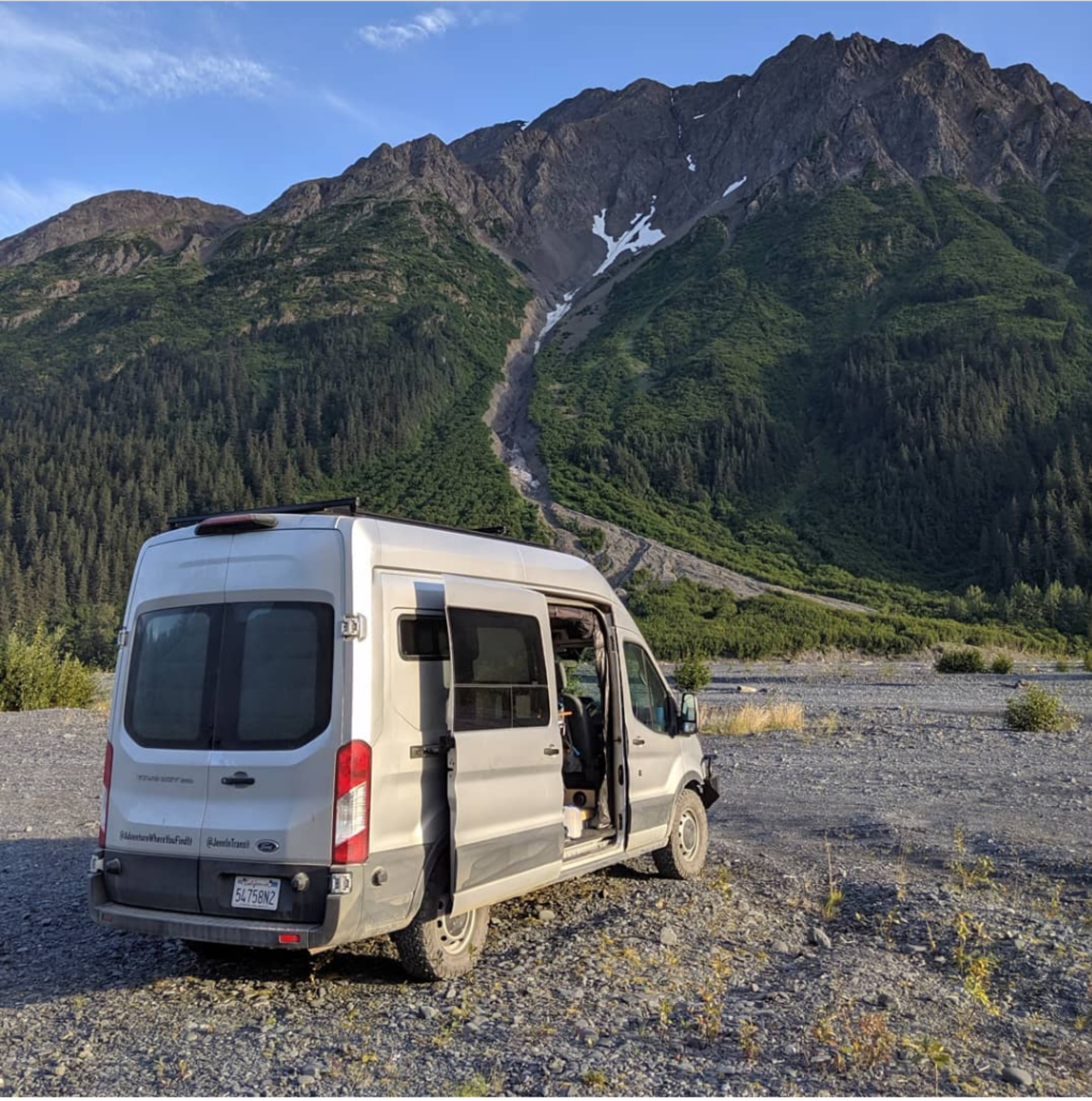

Our 2018 Ford Transit build was created for off-road and off-grid living. All electric, with no propane, a 360 watt solar panel, 200 Amp hours of lithium batteries, a 3,000 watt inverter, and an induction cooktop. We have never needed the included shore power hook up. With the real 4x4 installed by Quad Van (and maintaining the Ford warranty) the van has a high and low transfer case that has allowed us to travel to some remote places in Alaska, Canada and the western continental U.S.
Driving the Transit is comfortable for long highway drives and the van has proven to be very capable off road. There is nothing like pulling up to a remote campsite, shutting off the motor, swiveling the passenger seat around and camp is done, rain or shine!
Build specifics:
Quadvan 4x4 Conversion: http://quadvan.com/
4W High and 4W low transfer case (uses stock Ford transfer case. Quadvan is a certified Ford upfitter in Portland, Oregon, and retains factory warranty)
Eaton TrueTrack Lockers Front
Eaton TrueTrack Lockers Rear
Bilstein B6 front shocks
Bilstein Rear shocks
Rear Shock Mount riser (Quadvan)
Van Compass Rear Leaf spring pack/lift (Installed by Quadvan)
Quadvan Full aluminum skid plates (front, transmission, gas tank)
Aluminess Rear bumper, recovery point with tire swing out and deluxe aluminum storage box. (Installed by Quadvan)
Full Deep Water vents/breathers
Tires:
5 off road BFG K02, LT255/70R16 E (will fit next size up)
Wheel wells have been professionally adjusted by Quad Van
Solar system Tiny Watts Solar Install: https://www.tinywattssolar.com/
360-Watt roof top solar panel
2- 100ah lithium batteries (room for 1 more 100ah battery)
3,000 watt inverter
Shore Power hook up
Battery Isolator/charge from van alternator system
Full breakers
VanCo Northern California: https://www.vanconorcal.com/

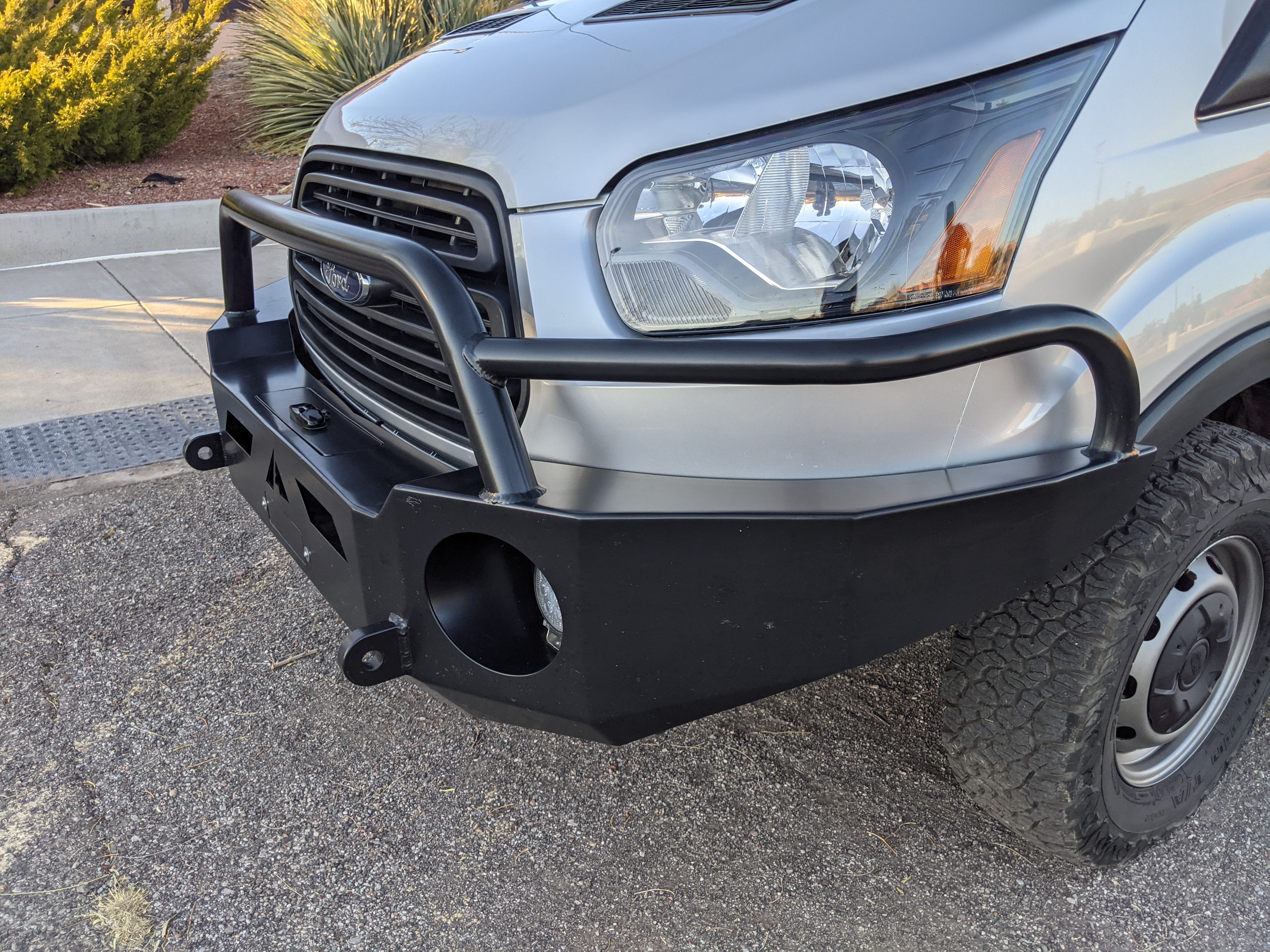

Aluminess front bumper, two recovery points and winch ready (winch not included)
MaxAir fan with remote control
CR Lawrence windows
Interior Build:
All custom fabricated by owner (professional carpenter)
2 Dometic Fridges (each can be used as refrigerator or freezer) CFX35 & CFX28 Total of 63 liters of fridge/freezer options.
33 Gallon fresh water tank
Insulation-(wool) https://havelockwool.com/van-insulation-products/#
SureFlow water pump
Berkey Water Filter https://www.berkeyfilters.com/
Induction Cooktop
C-Head Composting Toilet https://www.c-head.com/
Lagun Table support
Stainless Steel sink
Stainless Steel Faucet
LED lighting throughout (most with dimmers)
4 - USB charging stations (Each station has two USB ports for 8 total)
3 – 110 V “house” electrical plugs

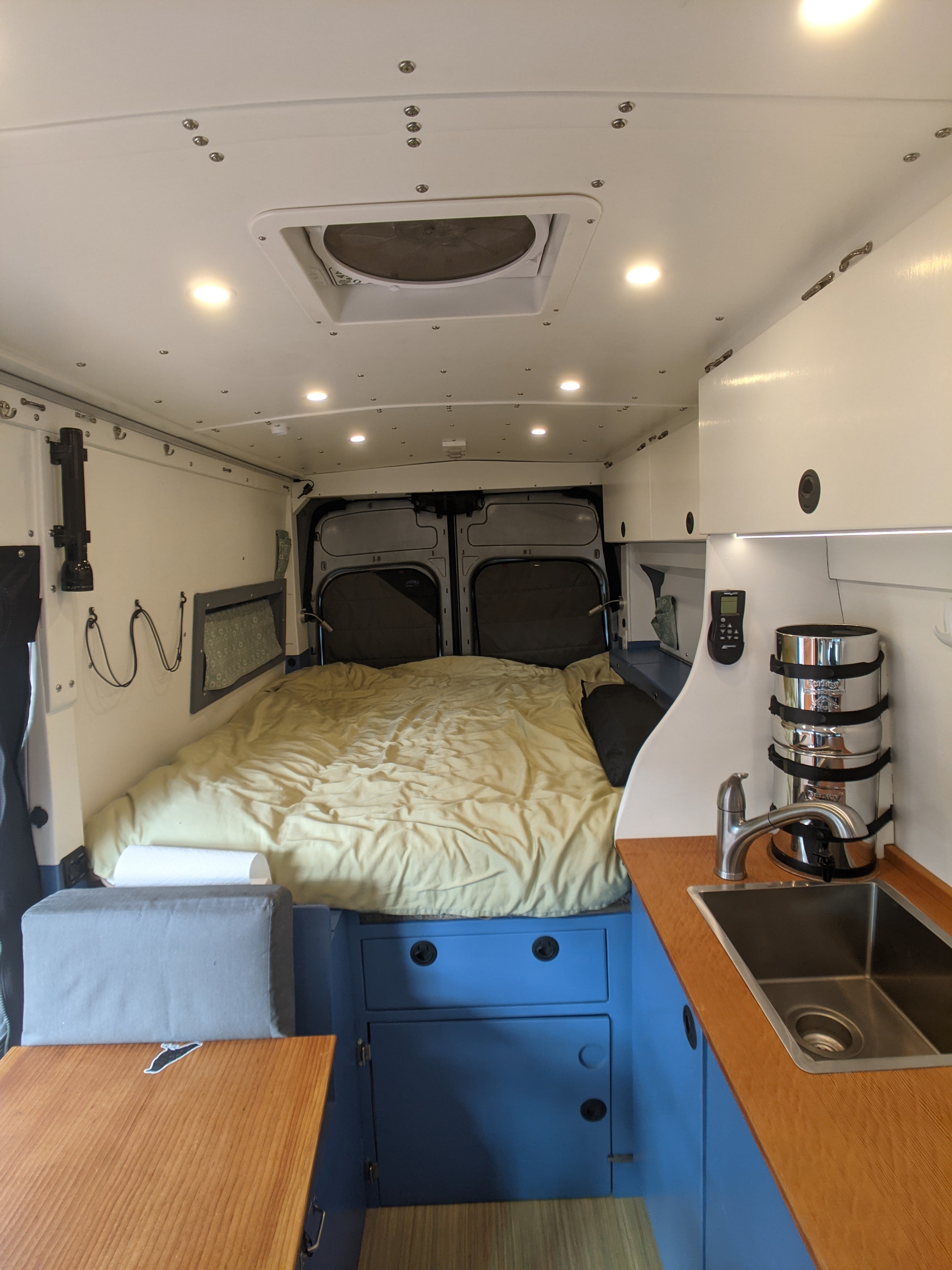

“Garage” storage under bed with 38X44 inch full extension, 500lb slide out drawer for easy access to gear
60X69 inch foam mattress
Window covers: windshield, DS front, PS front, 2 rear
Only Low VOC Paint used
Plywood sealed for zero off gassing
Recovery Gear Included:
VIAIR air compressor
ARB tire deflator
ARB tire repair kit
2 shackles
2 traction/recovery boards
Miscellaneous:
Leveling blocks
Fresh water hose
6' cable lock keyed to vehicle ignition key
The less than ideal:
One small dent in the sliding door on the passenger side of the vehicle.
One dent at the top of the van on the driver's side. (I have a repair estimate of $2,500 and will reduce the sales price by that amount)
Two tires have low tread. (The tires have been ordered and if they do not arrive by the time the new owner takes possession I will credit the buyer with the value of the two tires)
Living Space:

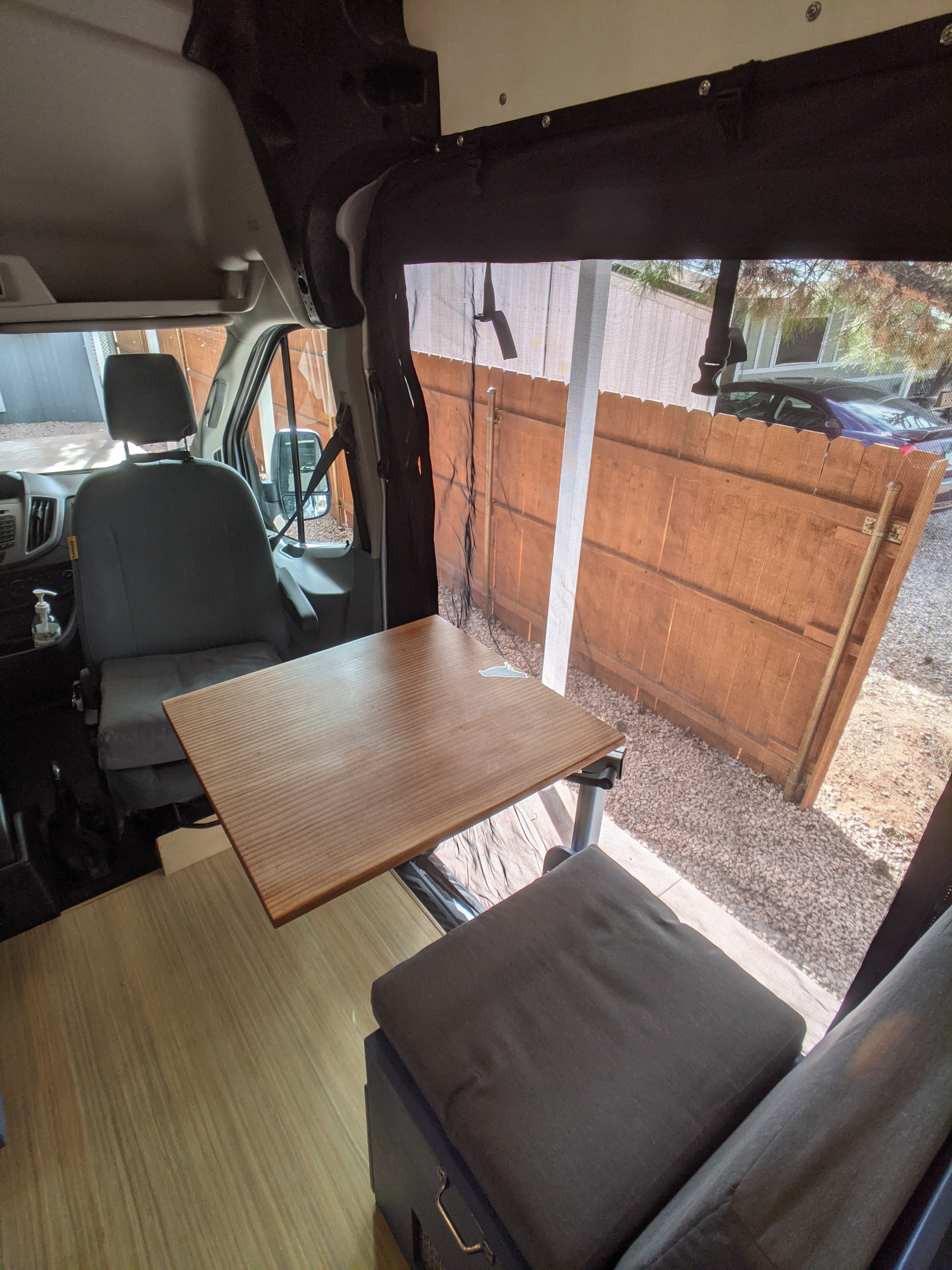

The passenger seat swivels 180 degrees (swivel from Scopema) to face the interior and to complete the two person dinette. Look out the large slider door window while you eat your meals. Front seats are cloth and have always been covered with Ranger Design cordura seat covers. Kitchen cabinets are made of birch plywood, countertop and table top are Douglas Fir sealed with natural sealer. Flooring is Marmoleum by Forbo. All paint is Zero VOC from Lowe's, polyurethane is by SafeCoat, and all adhesive is SafeCoat Almighty Adhesive (www.greenbuildingsupply.com). Havelock wool (Reno, Nevada) insulates the ceiling and walls. Lots of storage for clothes, food, outdooor gear, etc. This van is built for safe, comfortable, and self-sustaining off-road adventure.
We are currently traveling in Colorado and will be at Overland Expo in Flagstaff September 24-26, 2021 to show the van. We are happy to meet up with interested parties to show the van in Southern Colorado until Sept 17 or in Sedona or Overland Expo.
