Feeler:Warn Portable winch XD9000i with cables & ARB Bumper front receiver hitch
Everything is SOLD

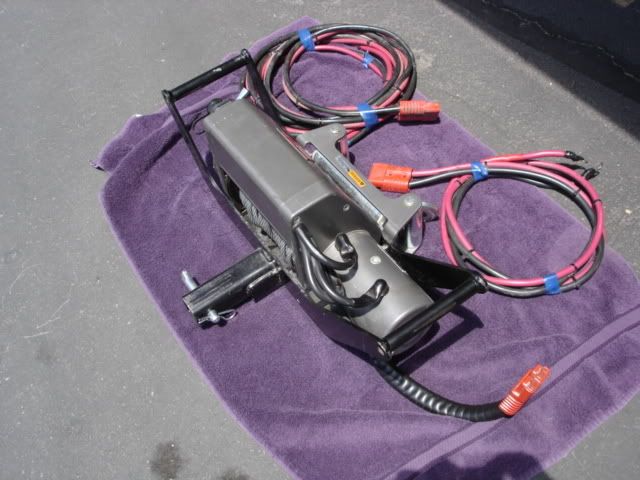

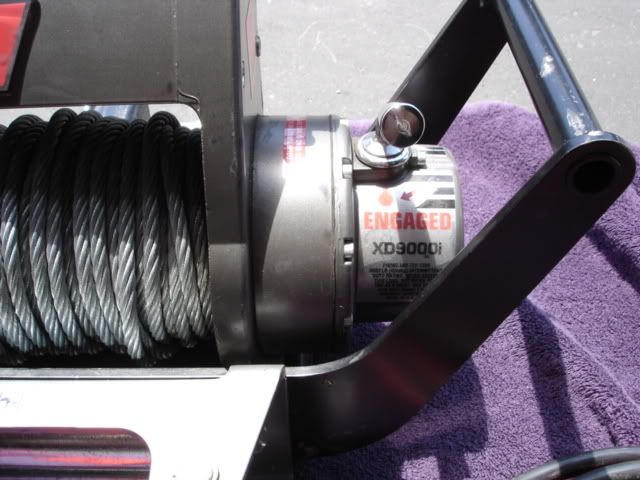

I'm selling my Warn Portable winch XD9000i with front 6' and rear 20' Warn cables. Just got a trailer and their is no need for this setup any more. Going to buy a M8000 Warn when this sell. Getting back to topic.....This winch makes it possible to winch from the front and rear of the truck using receiver hitchs. The wire rope is in great cond. This winch has only been used 2 times. They were very lite pulls getting out of the snow. The winch is in great shape...like new! Comes with roller fairlead and 125' of wire rope and Remote Control.
This winch retails for around $900 plus $100 cables and tax and shipping. Total new is around $1100 out the door.
Asking $775 OBO Plus shipping
PM me if interested
Also forsale is a custom ARB front receiver hitch that i welded up myself. With all the materials and shop cost retails around $400...Asking $200 OBO
Will do a package deal if interested in all.
Infor. from Warn:
http://www.gowarn.com/xd9000i-multi-mount-winch.asp
All the power and reliability of the XD9000i in a portable package. No-load retrieval line speed is fast-38 feet/minute. Integrated control pack protects the winch's electrical components, and the 4.6hp Series Wound motor delivers big torque and power. Plugs into any standard 2" Class III receiver hitch and gives you the ability to move the winch from the front or back of your rig. Power is supplied through quick connect plugs. A good choice for full-size rigs and heavier recovery situations.
XD9000i Multi-Mount Winch Specifications
Part Number: 37441
Rated Line Pull: 9000 lbs. single-line
Motor: 12V 4.6hp, Series Wound
Remote Control: Remote switch, 12' lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0"
Weight: 104 lbs.
Wire Rope: 125', 5/16" diameter
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: Front heavy-duty 7.5' with quick connect plug
Finish: Argent Powder Coat
12V DC PERFORMANCE SPECS
Line Pull Lbs. Line Speed FT./min Motor Current Pull by layer layer/Lbs.
0 38 70 amps 1/9000
2000 14.4 180 amps 2/8190
4000 11 255 amps 3/7500
6000 8.67 330 amps 4/7010
8000 6.88 415 amps 5/6570
9000 6.38 460 amps
Above performance specs are based on first layer of drum
$994.95
Thanks for looking
Everything is SOLD
I'm selling my Warn Portable winch XD9000i with front 6' and rear 20' Warn cables. Just got a trailer and their is no need for this setup any more. Going to buy a M8000 Warn when this sell. Getting back to topic.....This winch makes it possible to winch from the front and rear of the truck using receiver hitchs. The wire rope is in great cond. This winch has only been used 2 times. They were very lite pulls getting out of the snow. The winch is in great shape...like new! Comes with roller fairlead and 125' of wire rope and Remote Control.
This winch retails for around $900 plus $100 cables and tax and shipping. Total new is around $1100 out the door.
Asking $775 OBO Plus shipping
PM me if interested
Also forsale is a custom ARB front receiver hitch that i welded up myself. With all the materials and shop cost retails around $400...Asking $200 OBO
Will do a package deal if interested in all.
Infor. from Warn:
http://www.gowarn.com/xd9000i-multi-mount-winch.asp
All the power and reliability of the XD9000i in a portable package. No-load retrieval line speed is fast-38 feet/minute. Integrated control pack protects the winch's electrical components, and the 4.6hp Series Wound motor delivers big torque and power. Plugs into any standard 2" Class III receiver hitch and gives you the ability to move the winch from the front or back of your rig. Power is supplied through quick connect plugs. A good choice for full-size rigs and heavier recovery situations.
XD9000i Multi-Mount Winch Specifications
Part Number: 37441
Rated Line Pull: 9000 lbs. single-line
Motor: 12V 4.6hp, Series Wound
Remote Control: Remote switch, 12' lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0"
Weight: 104 lbs.
Wire Rope: 125', 5/16" diameter
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: Front heavy-duty 7.5' with quick connect plug
Finish: Argent Powder Coat
12V DC PERFORMANCE SPECS
Line Pull Lbs. Line Speed FT./min Motor Current Pull by layer layer/Lbs.
0 38 70 amps 1/9000
2000 14.4 180 amps 2/8190
4000 11 255 amps 3/7500
6000 8.67 330 amps 4/7010
8000 6.88 415 amps 5/6570
9000 6.38 460 amps
Above performance specs are based on first layer of drum
$994.95
Thanks for looking
