Going to be parting with our Gen 3 Montero for a new project, and so I figured I'd offer our overland "build" here first.
Overview

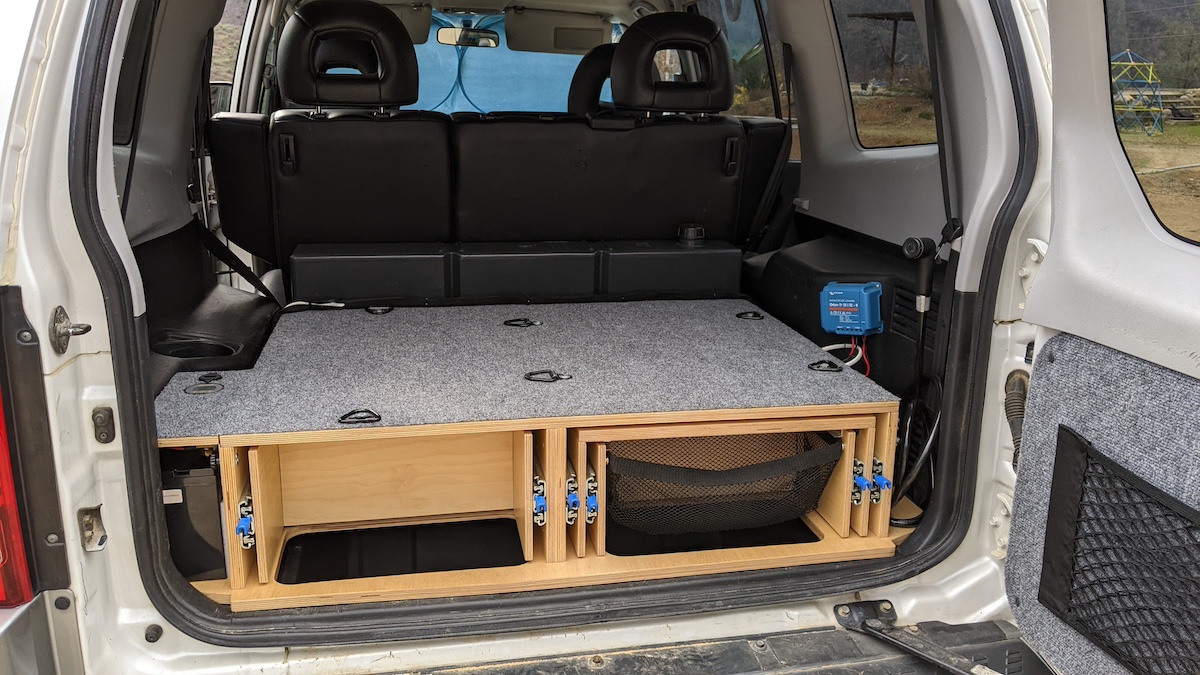

- Bolts into the back of a Gen3 Montero using the factory tie down mounting points (4)
- 2 drawers, using (3 sets) 28" Ryadon 3600 500lb lock-in/lock-out sliders (double slider on the right for extra table area)

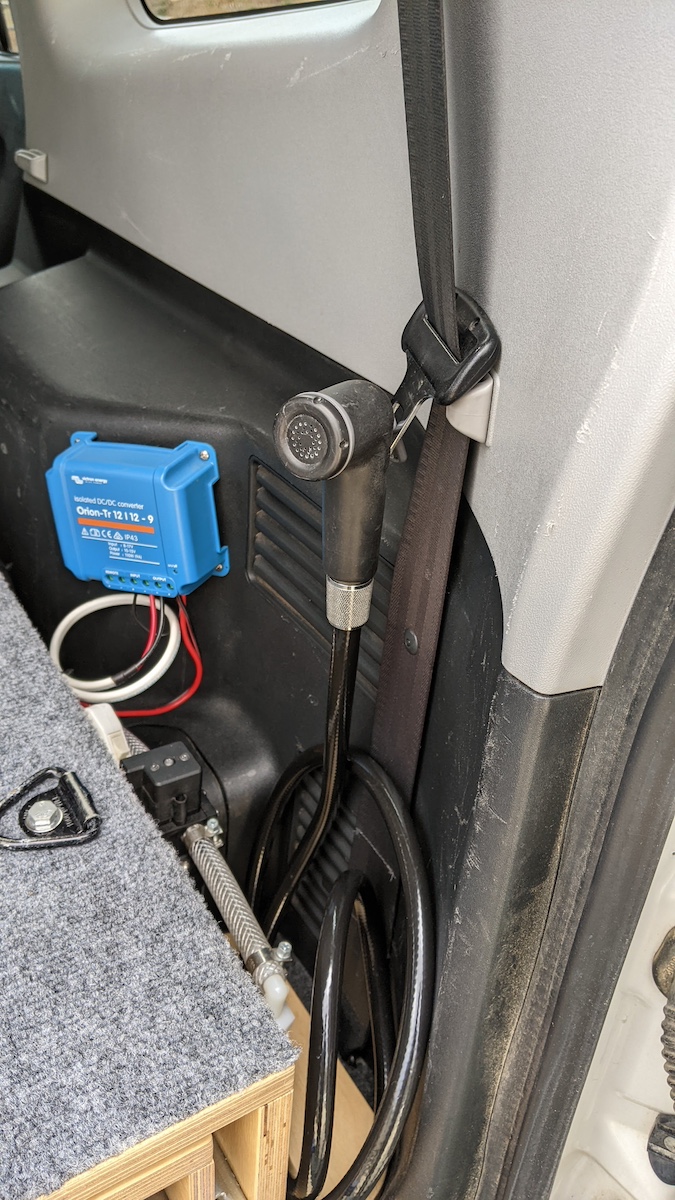

- Victron DC-DC charger (9a) installed where factory 3rd row 12v socket is, charges aux battery when key is on.
- 30ah LifePo4 battery for powering fridge (prewired for ARB/etc), water pump, usb charger etc.

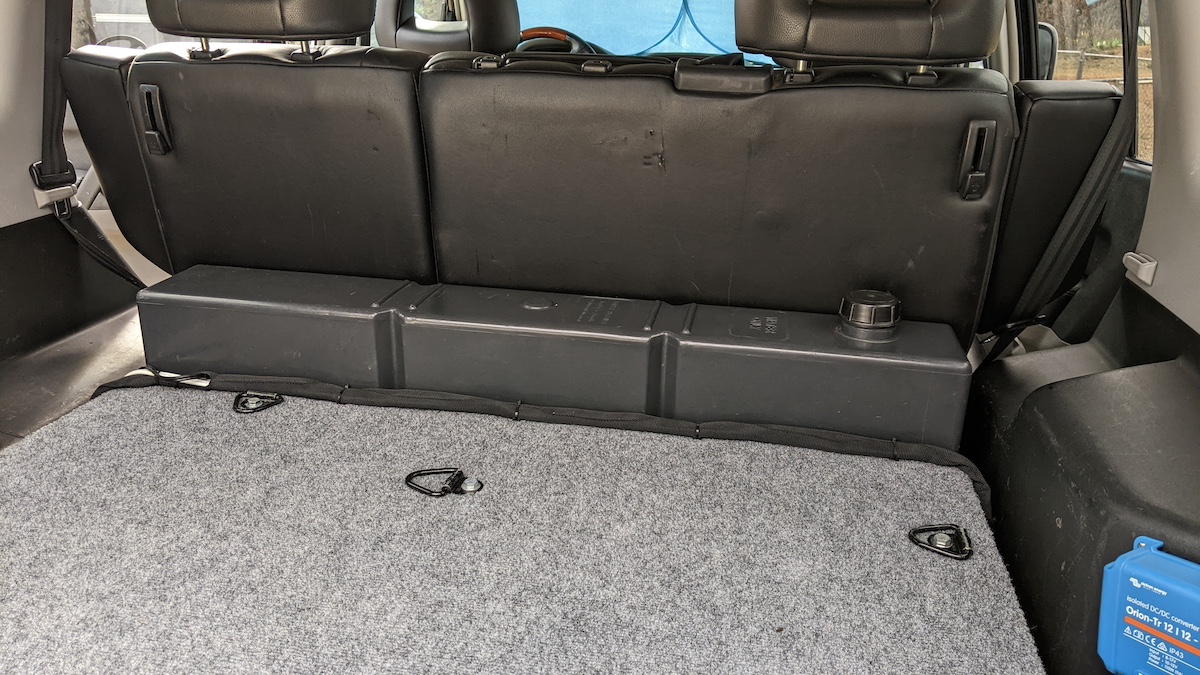

- 13.2 gallon (50l) water tank, pump and sprayer
- 3/4 (18mm) and 1/2 (12mm) baltic birch construction, t-nuts for tie downs, etc
- Allows access to "sub-trunk" area where 3rd row would normally be stored
- Blue Seas duplex marine wire, nylon protective sheathing and aux fuse box for each circuit (fridge, pump, usb charger) with space for expansion.
Looking to get $1500 OBO for it, everything included (water tank, battery, pump, sprayer, fuse panel, dc-dc charger, etc...). Located in Redding, CA.
Thanks for checking it out!
Overview
- Bolts into the back of a Gen3 Montero using the factory tie down mounting points (4)
- 2 drawers, using (3 sets) 28" Ryadon 3600 500lb lock-in/lock-out sliders (double slider on the right for extra table area)
- Victron DC-DC charger (9a) installed where factory 3rd row 12v socket is, charges aux battery when key is on.
- 30ah LifePo4 battery for powering fridge (prewired for ARB/etc), water pump, usb charger etc.
- 13.2 gallon (50l) water tank, pump and sprayer
- 3/4 (18mm) and 1/2 (12mm) baltic birch construction, t-nuts for tie downs, etc
- Allows access to "sub-trunk" area where 3rd row would normally be stored
- Blue Seas duplex marine wire, nylon protective sheathing and aux fuse box for each circuit (fridge, pump, usb charger) with space for expansion.
Looking to get $1500 OBO for it, everything included (water tank, battery, pump, sprayer, fuse panel, dc-dc charger, etc...). Located in Redding, CA.
Thanks for checking it out!
