Measurements needed: TJ Tailgate hinges

matthewp

Combat Truck Monkey
Folks,
.
I have decided to use TJ tailgate hinges for the rear hatch of my trailer I'm building. What I need from you fine folks is the overall dimensions of the hinge itself, and the measurements of the location of the bolt holes. I attached a pic below to hopefully give you an idea of what measurements I need.

Last edited:

jscherb

Expedition Leader

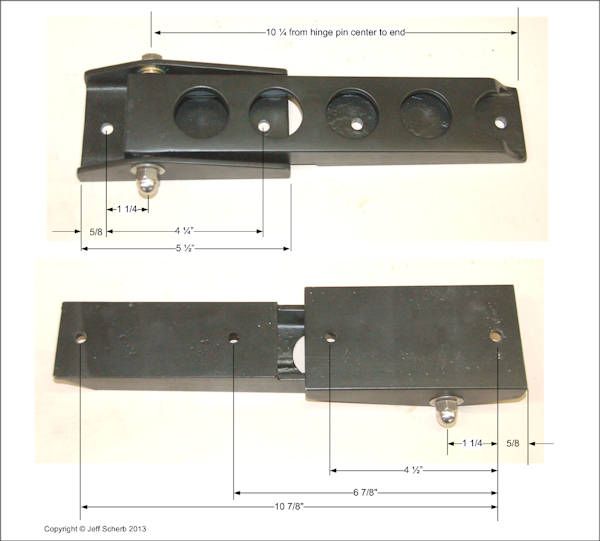

A while back I designed and built TJ replacement hinges, here's are some photos of them along with the key dimensions. I don't think every factory hinge dimension you're looking for is in this drawing, but maybe it will give you enough info.
