Offroad tear drop camper trailer build

toyota21

Observer

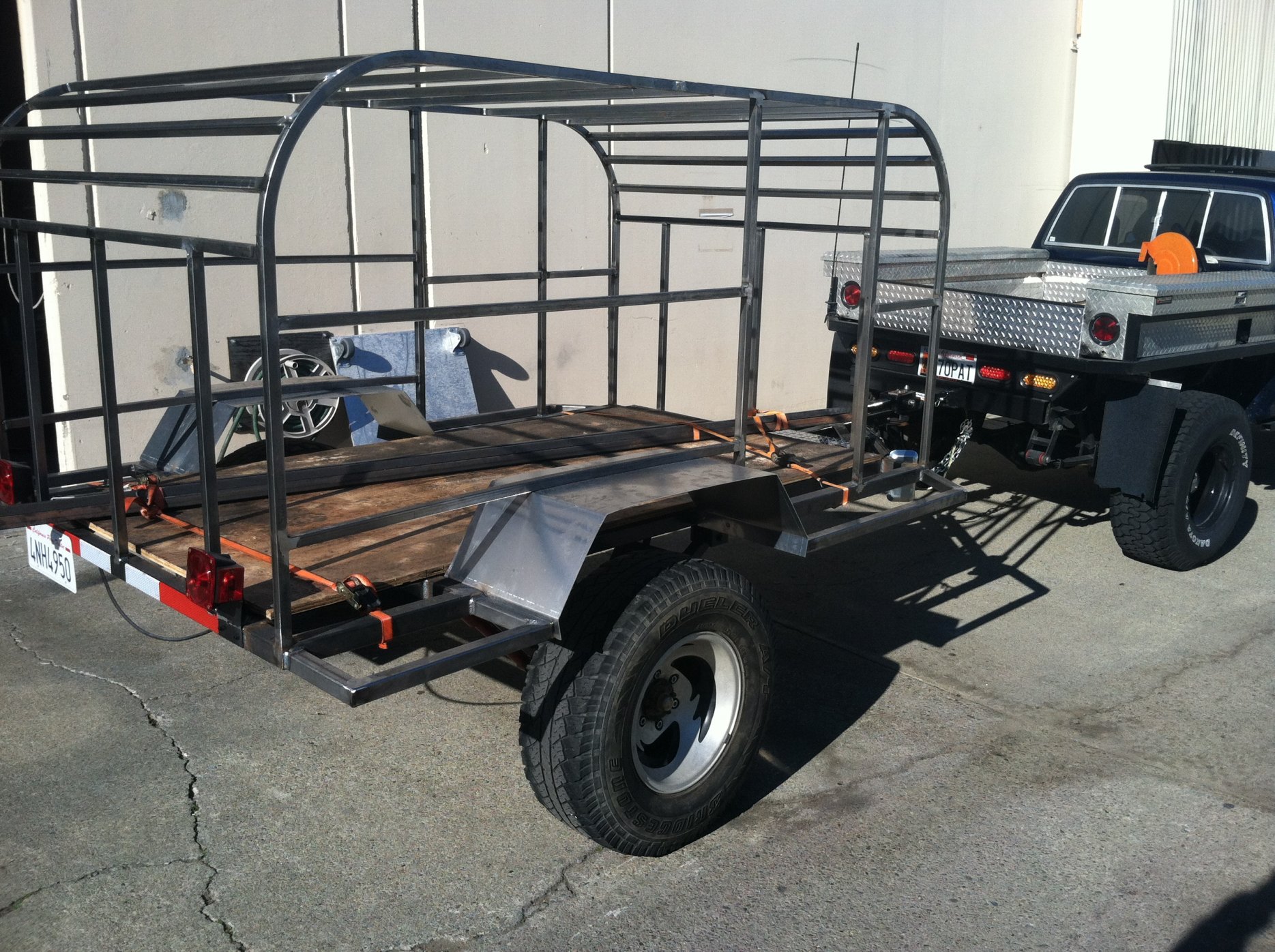

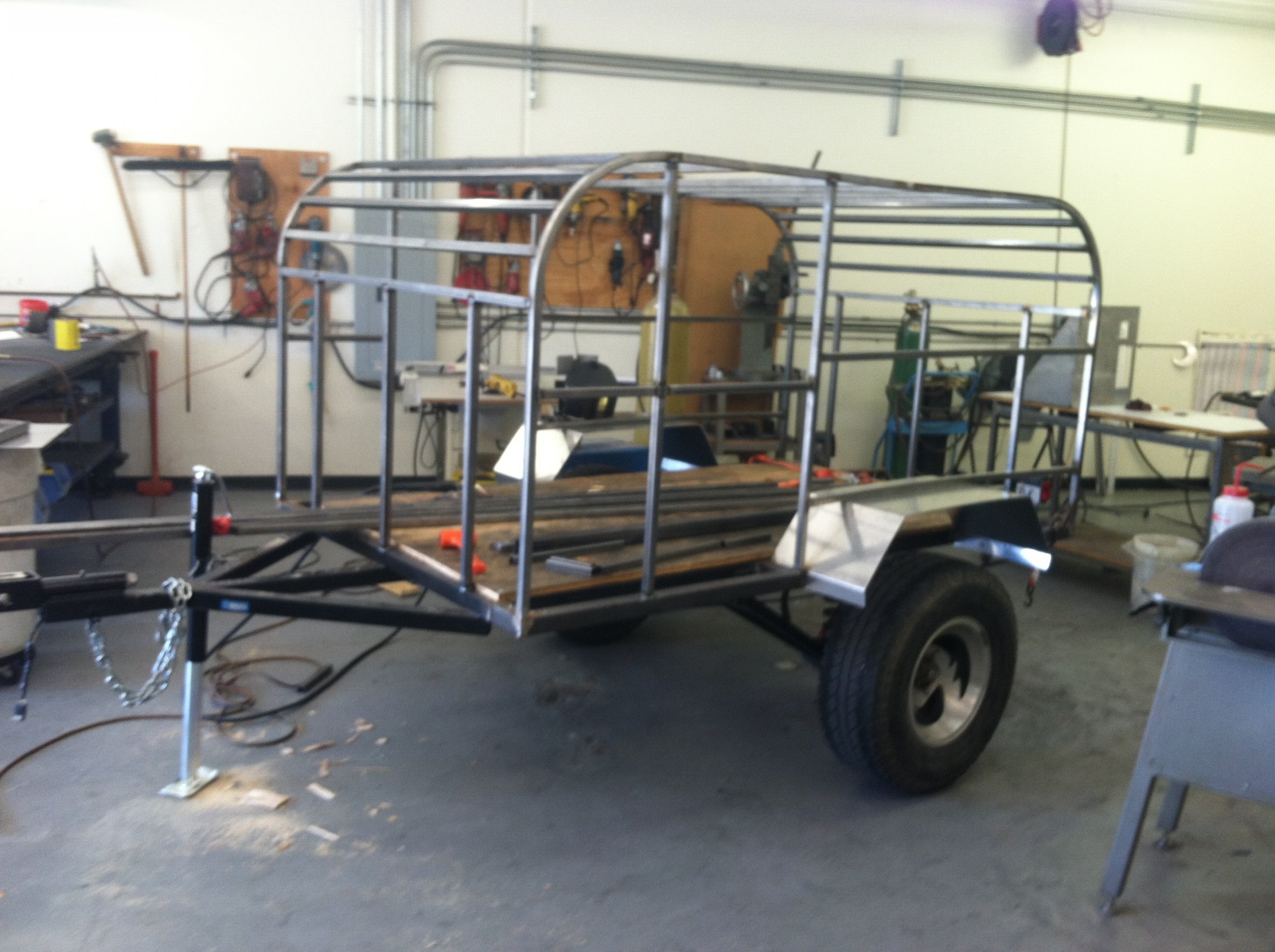

I built this trailer from scratch. Its an off road Tear drop trailer frame fully completed, just needs siding and floor.

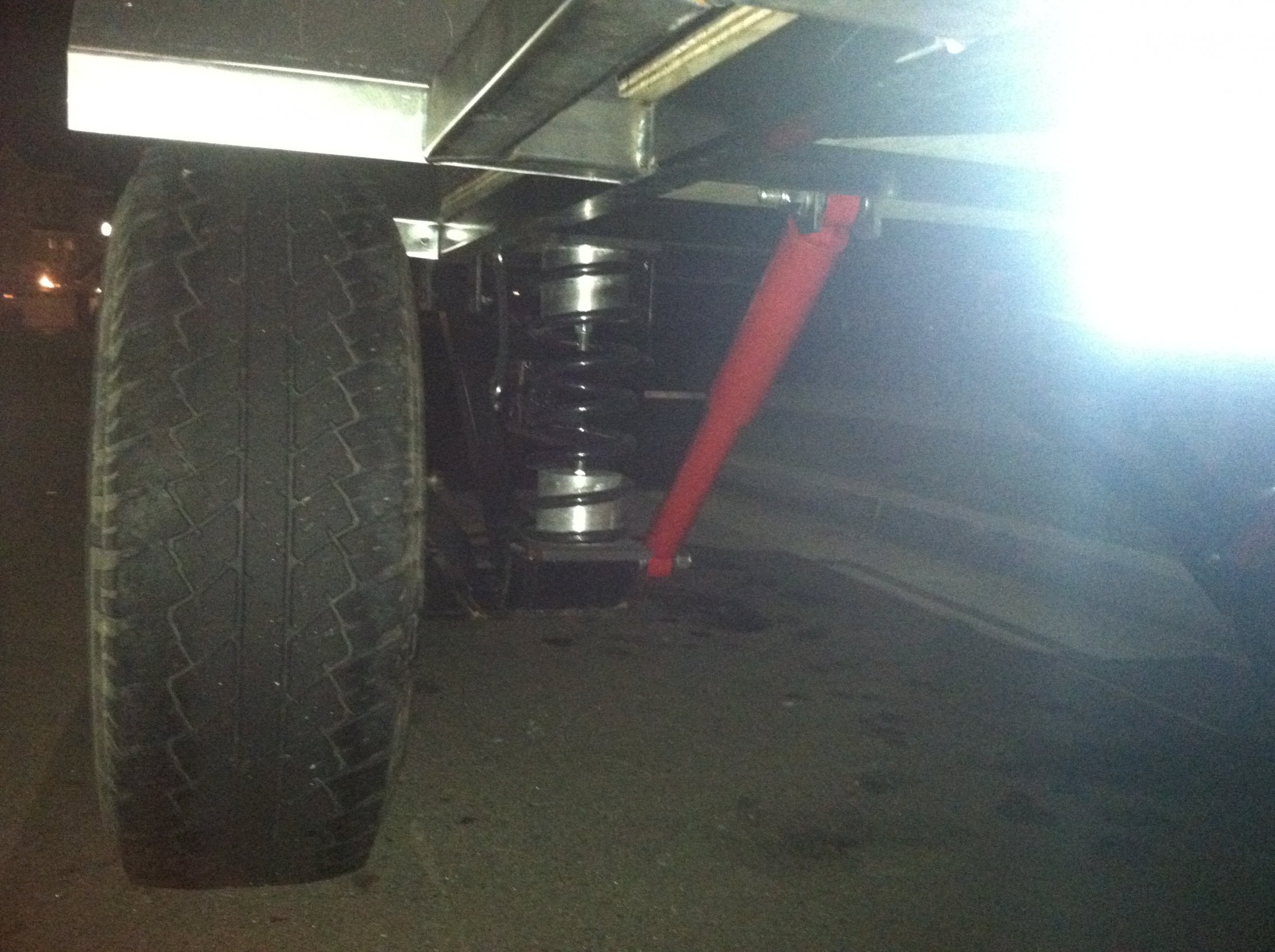

The trailer suspension is custom, independent trailing arms with coil springs and shocks,similar to the Australian off road camper trailers. This trailer will ride awesome when fully built and very smooth. It tows great now.

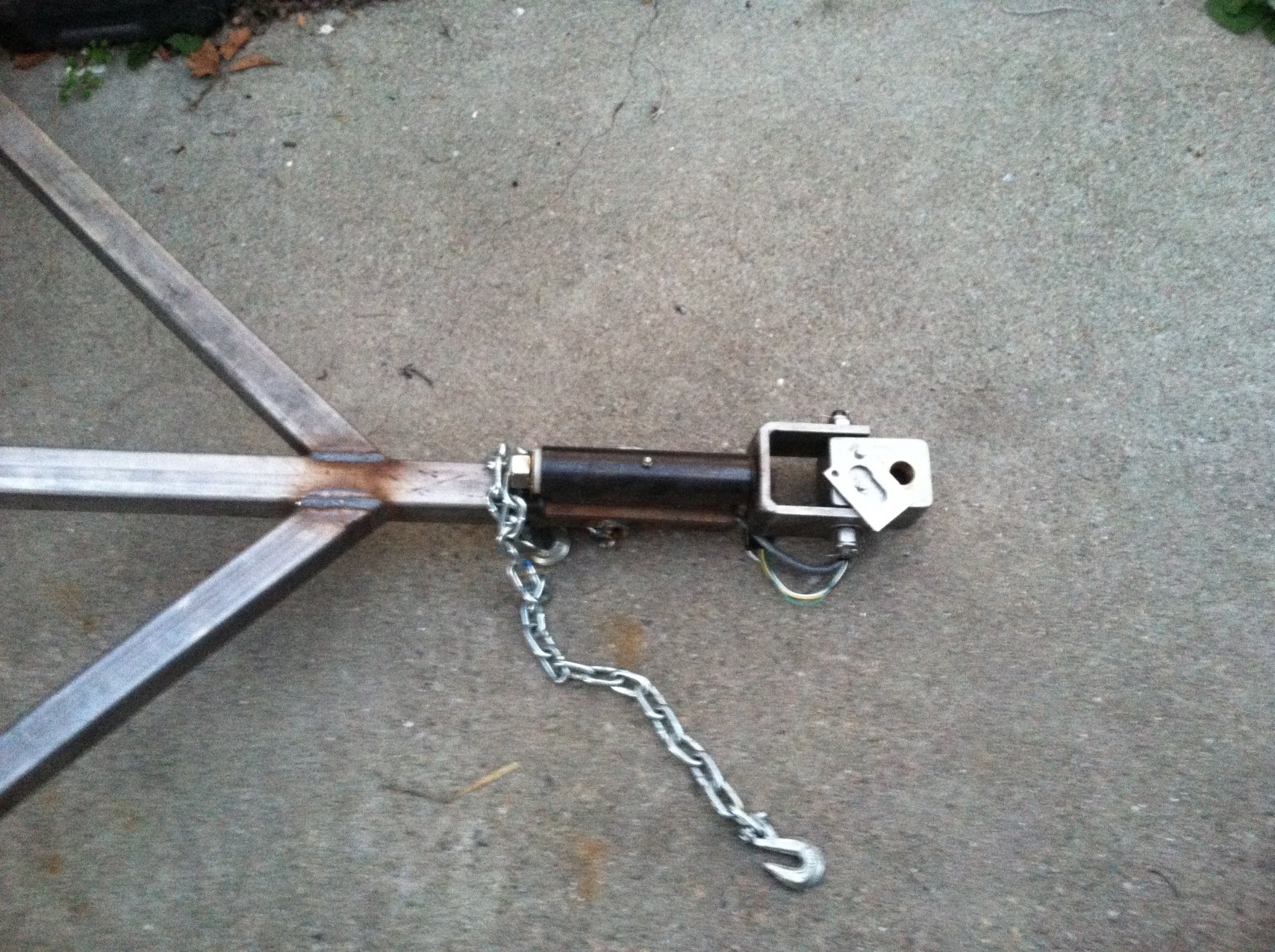

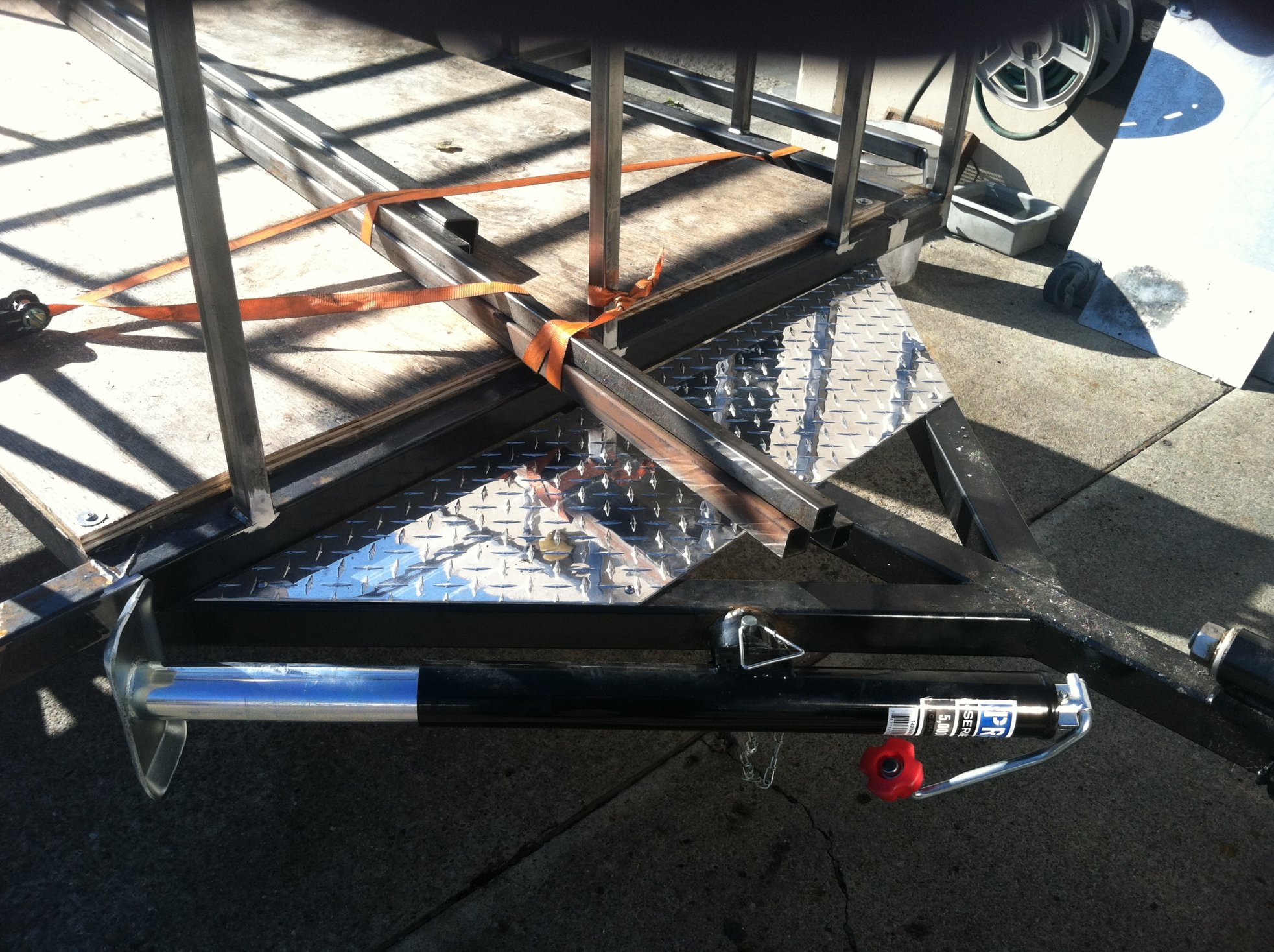

Trailer has a custom high articulation coupler for off road and on road use so there is no restriction of a regular tow ball. Trailer main frame is stainless steel and cabin frame is regular steel. Spindles are off a 90 toyota pickup truck 4x4 so it has a 6 lug toyota/chevy bolt pattern. It has lights wired up so it is street legal, however I do have four super nice flush mount led tail lights for final assembly. Trailer was taken down to dmv and i had a vin number assigned and registered it. It has a clean title and I have pink slip in hand.

All the trailer needs is exterior siding and interior paneling. I also have four windows for it i was going to use.
Have to pay for school, and dont really have the time to finish, so i figured id put it up for sale and see what happens.
$1300 make me an offer if your interested and we can go from there. IMG_4876.jpgIMG_4841.jpgIMG_4746.jpgIMG_4872.jpgIMG_4881.jpg

Last edited:

toyota21

Observer
Main cabin is 5' wide, 8' long and 4' tall. trailer tire width matched to my Toyota so it tracks in the same tire path as the truck.


fjefman

Member
I am very interested, and would absolutely buy it, but live on the other side of the country. Anybody have any thoughts on how to get this trailer to Atlanta, GA?

Jeff


tgreening

Expedition Leader
I am very interested, and would absolutely buy it, but live on the other side of the country. Anybody have any thoughts on how to get this trailer to Atlanta, GA?

Jeff


Road trip?
U-ship.com
Magic Fairies?
Somebody already headed your way willing to tow next to nothing for some gas money and a case or two of their favorite beverage?

All I got.


toyota21

Observer
Surprisingly it's not super heavy. I haven't weighed it tho. The cabin tubing is 3/4" .060wall so it's not super heavy. I pick up the tonge and move it around easily. And ya just needs siding and paneling inside really.
