Snatch Blocks

Brian McVickers

Administrator
Staff member
For those of you who have snatch blocks in your revovery kit
Which one are you using? Which one would you suggest?
...to be used with wire rope...for a 6000lb vehicle...


Scott Brady

Founder
This is my favorite pulley block:
http://www.extremeoutback.com/index.cgi?cart_id=2014938.20774&pid=51

It can be disassembled and greased for less resistance. The capacity is 17,500 lbs. (WLL)

When running pulleys in a double line or triple line pull, typically you must factor in a 10% reduction with each pulley due to parasitic loss. I would say the greased pulley reduces that factor somewhat (though I have not tested two units to determine)

I have the Warn unit as well, which is also good, but lacks the ability to disassemble or grease.


pangaea

Adventurer
Scotts is definitely a good one. I'll also add the ARB snatch block into the mix, which is also greasable/servicable.


cruiseroutfit

Well-known member
pangaea said:
...I'll also add the ARB snatch block into the mix, which is also greasable/servicable.

Ditto & a 30k capacity to boot... I have some pretty hard pulls on mine (enough to break some planetaries ;)), good as new. :cool:


madizell

Explorer
expeditionswest said:
This is my favorite pulley block:
http://www.extremeoutback.com/index.cgi?cart_id=2014938.20774&pid=51

It can be disassembled and greased for less resistance. The capacity is 17,500 lbs. (WLL)
I have the Warn unit as well, which is also good, but lacks the ability to disassemble or grease.


The Black Rat unit should be considered a light duty block. At only 17,500 it is already right at the limit when used with an 8,000 winch. I believe the Black Rat block is intended to be used with a hand-operated winch such as the Black Rat hand winch, but in any case, I would not suggest using a 17,500 pound block with an 8,000 pound winch unless the line angle through the block is substantially less and than 180 degrees.


Scott Brady

Founder
It is important to balance WLL, weight, etc. Weight robs performance, so outside of the rigors of Alaska and competitive winching the black rat is more than appropriate for the typical 8,000lb winch / smaller vehicle.

bigger is not necessarily better IMO


Willman

Active member

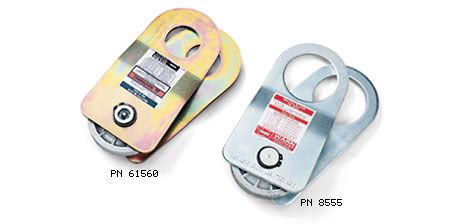

I have the warn 61560 which is 19,000 lbs!!!!



p1michaud

Expedition Leader
ARB for me!

pangaea said:
Scotts is definitely a good one. I'll also add the ARB snatch block into the mix, which is also greasable/servicable.

cruiseroutfit said:
Ditto & a 30k capacity to boot... I have some pretty hard pulls on mine (enough to break some planetaries ;)), good as new. :cool:

x 3
I'm also using the ARB unit and it's strong. I've stalled my Warn
8000 winch on the first layer of rope on the drum with the snatch block last weekend. No ill effects.

Cheers :beer:,
P


p1michaud

Expedition Leader
New ARB Snatch Block

Digging up and old thread, but it's worth the update.

ARB has re-designed their Snatch Block and call it the Snatch Block 9000 clicky...

Cheers :beer:,
P


smbisig

Adventurer
p1michaud said:
Digging up and old thread, but it's worth the update.

ARB has re-designed their Snatch Block and call it the Snatch Block 9000 clicky...

Cheers :beer:,
P

not a redesign, just a premium block that will be offered by ARB. the older block which has proved very reliable, will still be available.


p1michaud

Expedition Leader
Snatch block

smbisig said:
not a redesign, just a premium block that will be offered by ARB. the older block which has proved very reliable, will still be available.

Thanks for the clarification!
Cheers,
P


OverlandZJ

Expedition Leader
Recently picked up an ARB recovery kit for a Jeep being raffled off next Oct in Moab by NAXJA.

When i was shopping i was informed that the Warn block was not compatable with synthetic winch lines, whereas the ARB was. Any truth to this?
