Turtleback Expedition Off Road Overland Expedition Camper, nearly new!
If you’re reading this then you’re no doubt already aware of the reputation of these trailers. They’ll go anywhere your vehicle can go, trailing arm suspension, built like a tank, with an awesome kitchen and sleeping room for 4 up top.
This exact trailer is to be featured this fall in the Overland Journal, they took it out to review it before we took delivery. This is Turtleback’s top of the line, fully loaded completely optioned trailer. Turtleback has a 6+ month wait list - so skip the line, save some money and get yours now! This thing is barely broken in.
Trailer has only been used on one trip with our family of 4 after we purchased it earlier this summer. We discovered on the trip that our kids (infant and 3 y/o) are just a little too young for overland / expedition travel still. It has not even been off-road. Rather than let this trailer sit for a few years, it should go to good use. We paid over $40,000 all told with the tent and all the add-on’s. Listed for $35,000. I have plenty of pictures, if you have any questions email me at scoobiedubes@gmail.com. Trailer is located in Phoenix, AZ - Turtleback's home base. So, if you want to make any modifications, you could probably have them do it after you pick it up. I might be willing to deliver within ~500 miles or so.
Description from Turtleback:
The Expedition Trailer, the largest in the Turtleback Trailer family, is our flagship camper. It is the ultimate off-road trailer for a family-sized group. Customize your pop-up trailer to enjoy a wide-range of home amenities on your next adventure.
Build Sheet:
If you’re reading this then you’re no doubt already aware of the reputation of these trailers. They’ll go anywhere your vehicle can go, trailing arm suspension, built like a tank, with an awesome kitchen and sleeping room for 4 up top.
This exact trailer is to be featured this fall in the Overland Journal, they took it out to review it before we took delivery. This is Turtleback’s top of the line, fully loaded completely optioned trailer. Turtleback has a 6+ month wait list - so skip the line, save some money and get yours now! This thing is barely broken in.
Trailer has only been used on one trip with our family of 4 after we purchased it earlier this summer. We discovered on the trip that our kids (infant and 3 y/o) are just a little too young for overland / expedition travel still. It has not even been off-road. Rather than let this trailer sit for a few years, it should go to good use. We paid over $40,000 all told with the tent and all the add-on’s. Listed for $35,000. I have plenty of pictures, if you have any questions email me at scoobiedubes@gmail.com. Trailer is located in Phoenix, AZ - Turtleback's home base. So, if you want to make any modifications, you could probably have them do it after you pick it up. I might be willing to deliver within ~500 miles or so.
Description from Turtleback:
The Expedition Trailer, the largest in the Turtleback Trailer family, is our flagship camper. It is the ultimate off-road trailer for a family-sized group. Customize your pop-up trailer to enjoy a wide-range of home amenities on your next adventure.
Build Sheet:

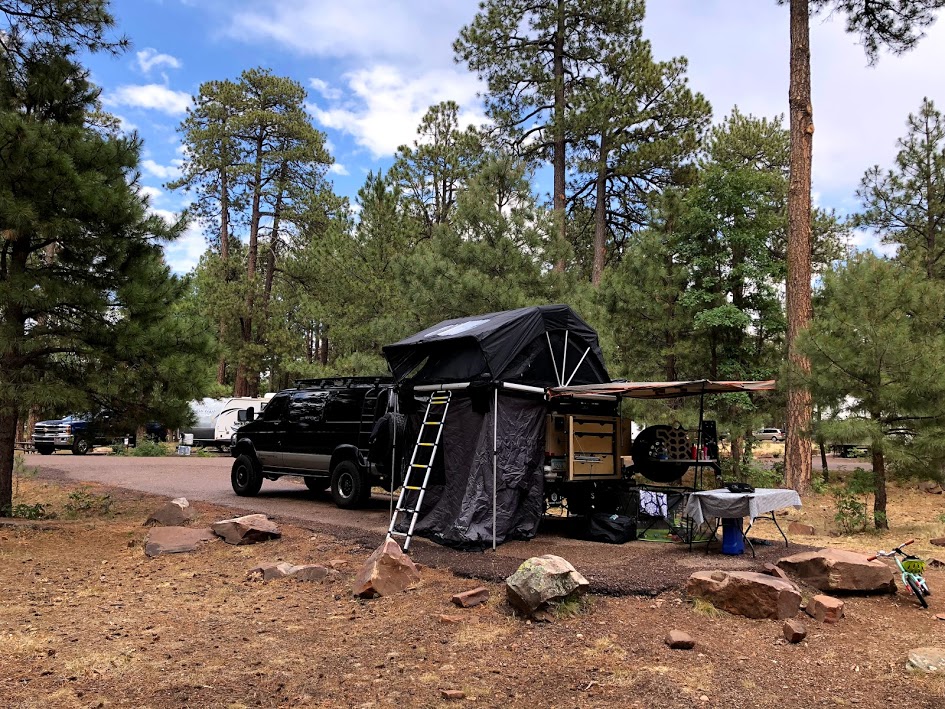

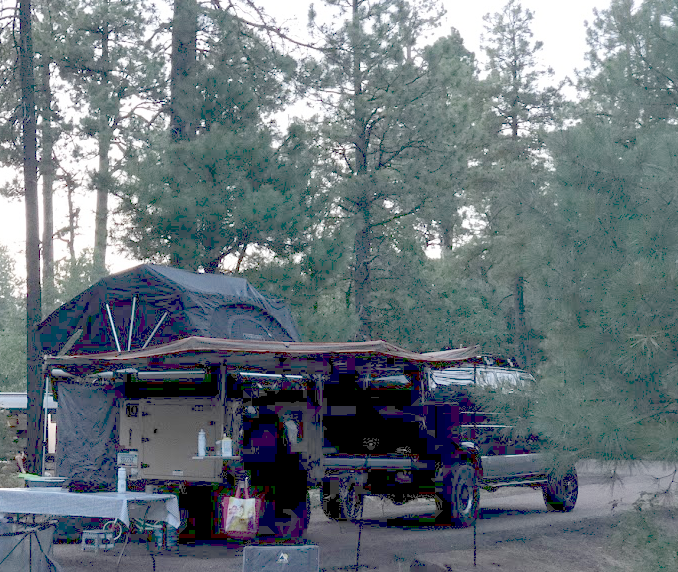

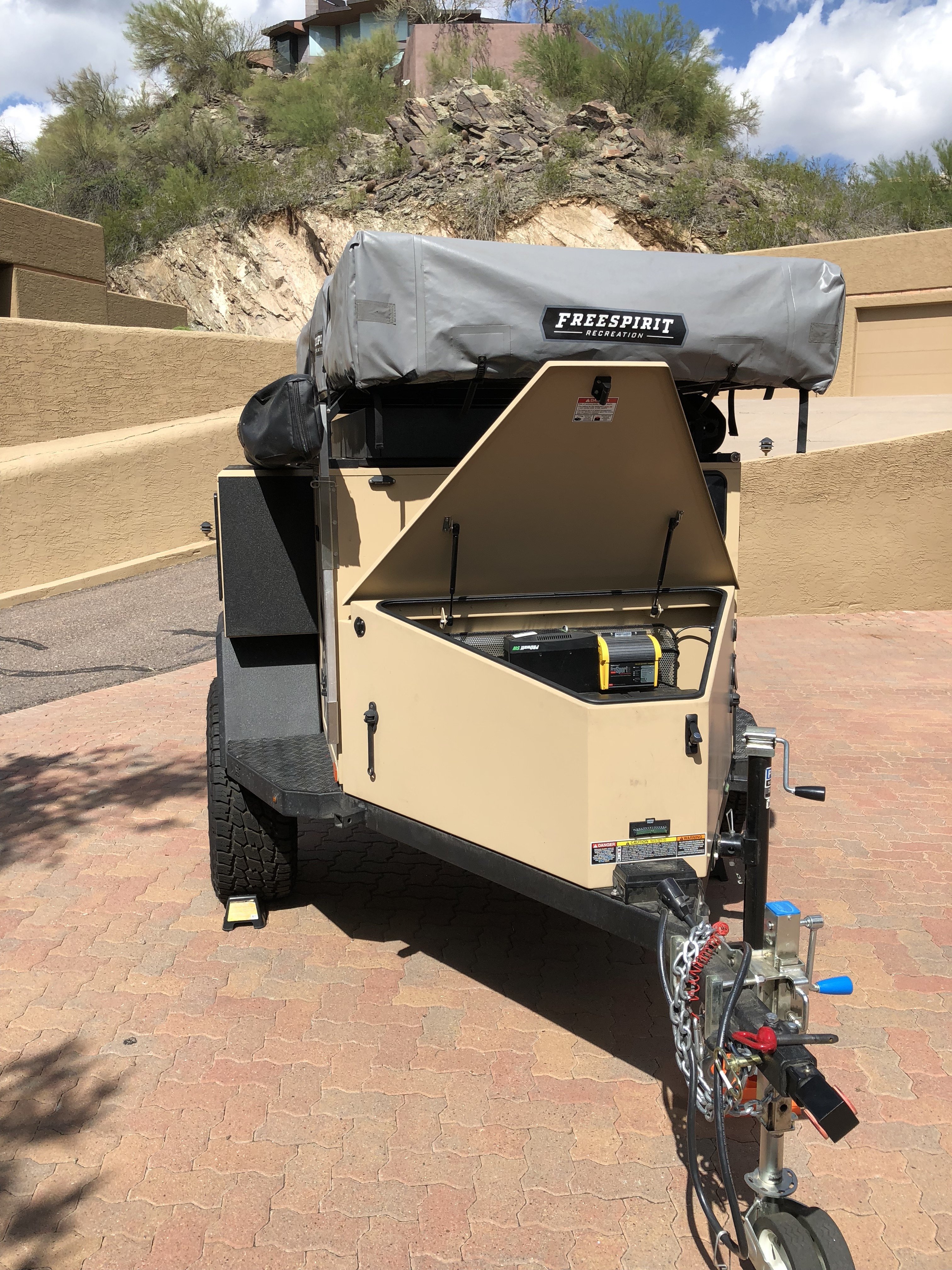

- Freespirit High Country Tri-Layer 4 person roof top tent. Huge tent with a thick blackout material that sets up much easier than the CVT/Tepui type tents on the market, and built with much better materials as well.

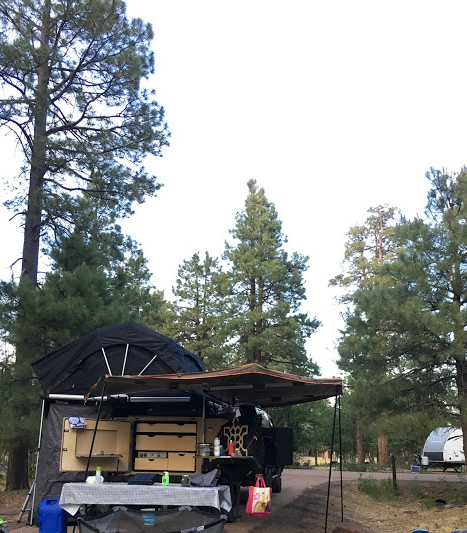

- Darche 270 degree double swing-out awning with turtlebrack brand adjustable height stainless brackets. Self supporting awning but includes support posts as well.
- Darche awning single wall kit

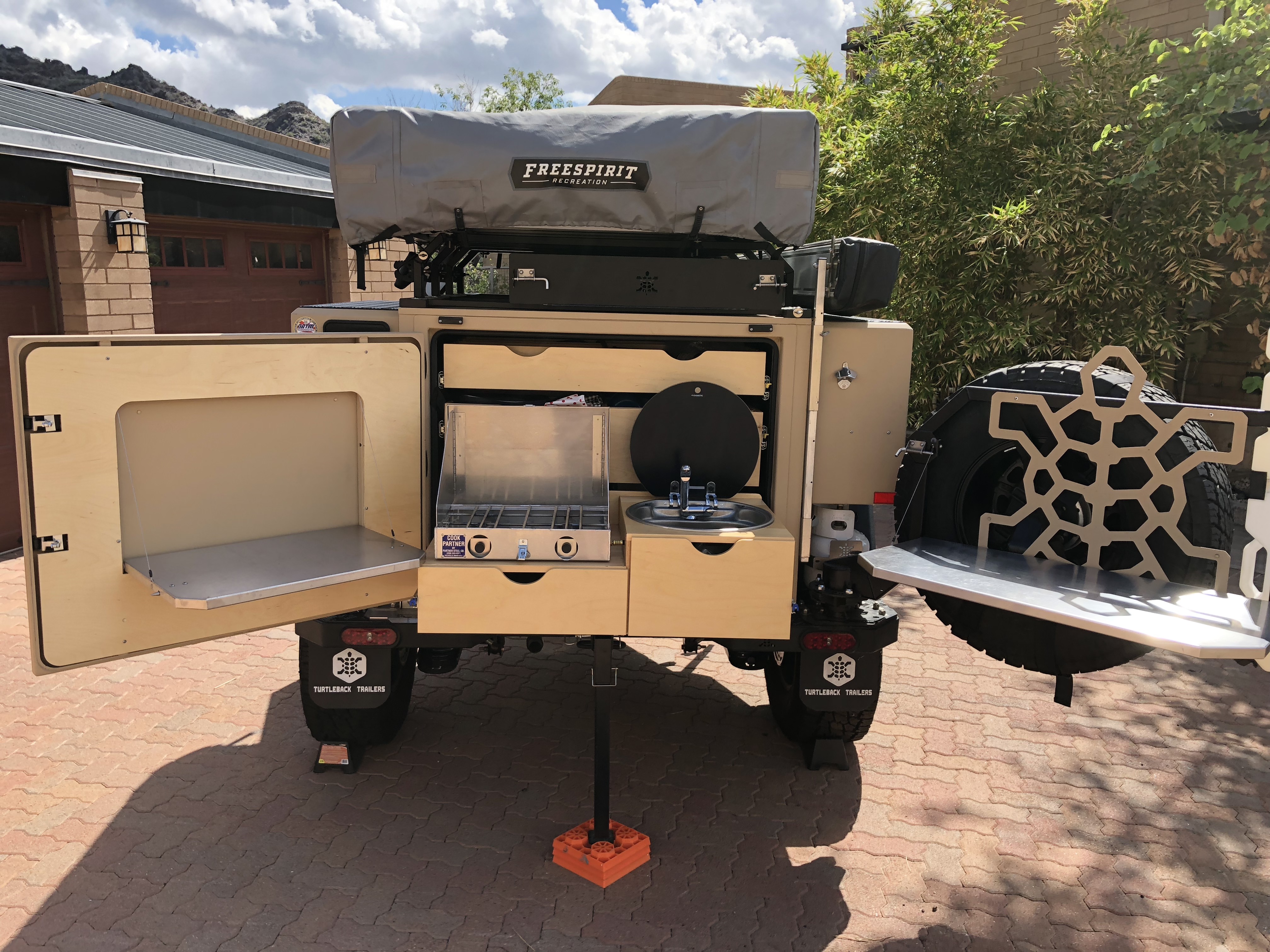

- Best kitchen on the market. Baltic birch wood cabinetry, slide out kitchen with 2 built-in drawers, upper pantry drawer with dividers, slide-out huge pot and pan storage box, 2 stainless steel fold down tables – one on the rear door inside and a stainless steel prep table mounted on tailgate swing-out.
- Storage boxes are 0.125” aluminum and main compartment body sheeting 0.060” aluminum sheet powder coated.

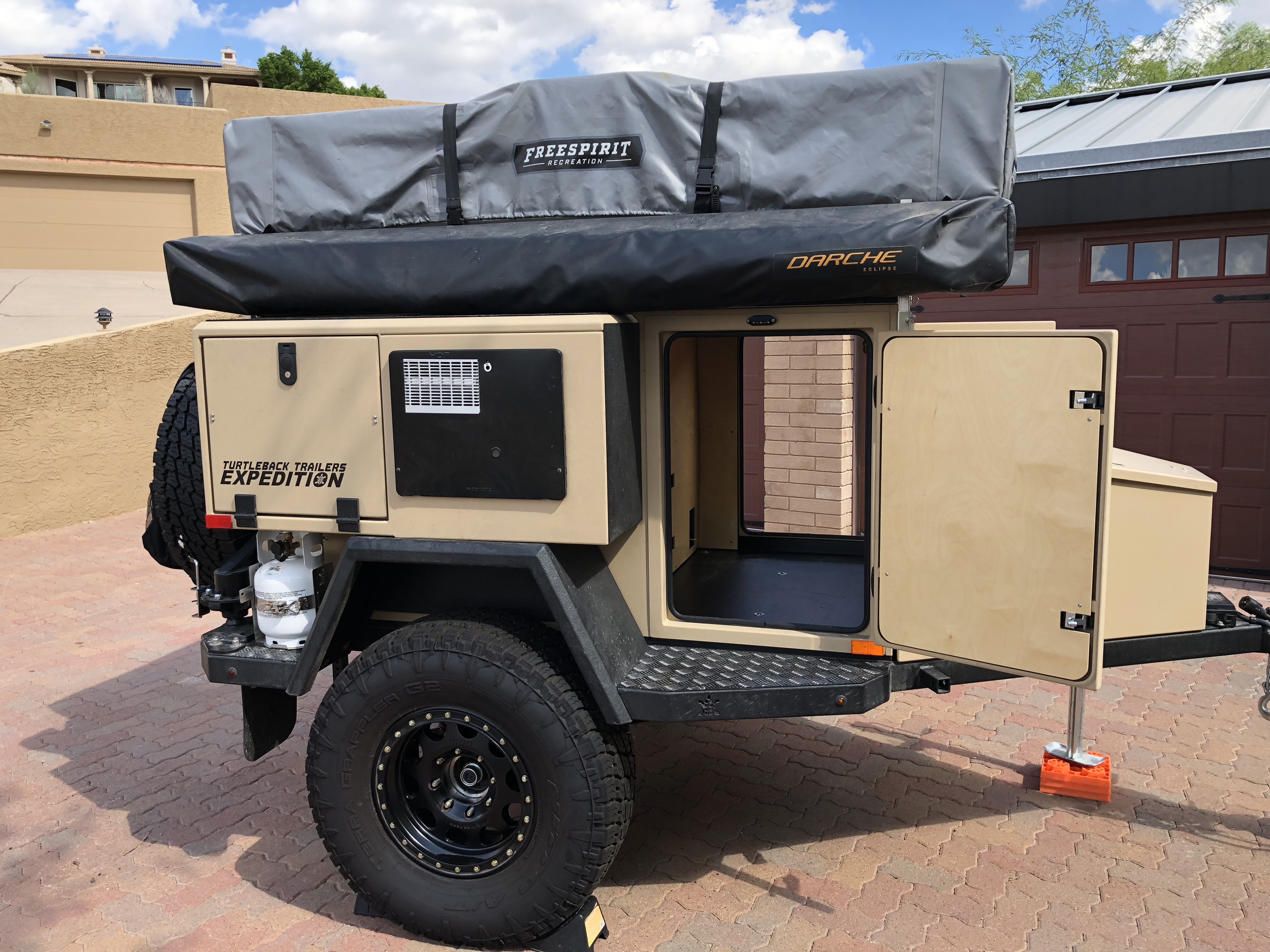

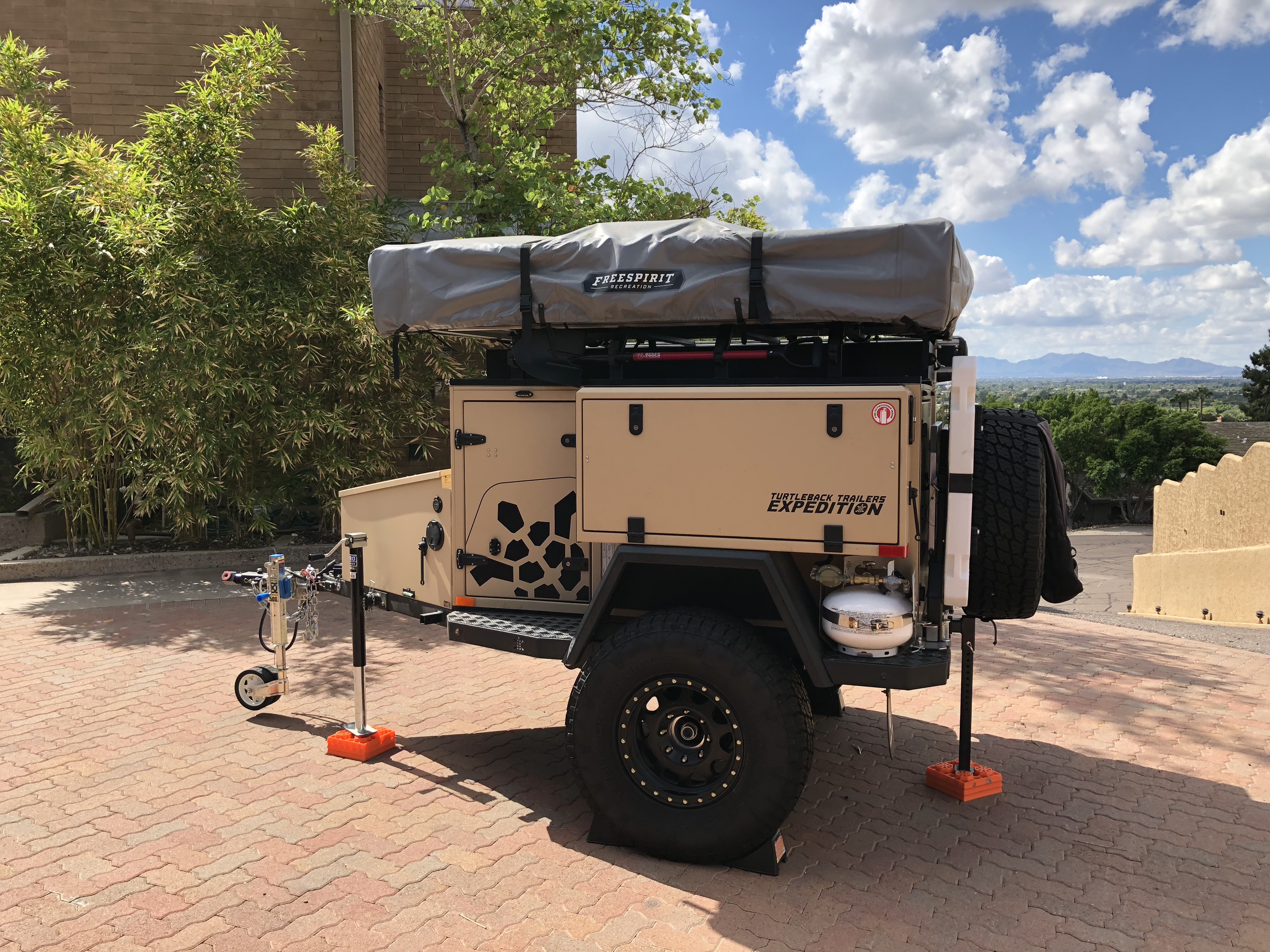

- 1 large main storage compartment, 1 nose box, 2 side storage boxes - all with locking flush-mount compression latches and LED lighting inside & out.
- Entire trailer is water tight
- Axle: 3500lb rated flex-ride rubber torsion axle system with 3500lb springs brakes – 10” self-adjusting electric drum brakes.
- 315/75 R16 Nitto Terra Grappler tires

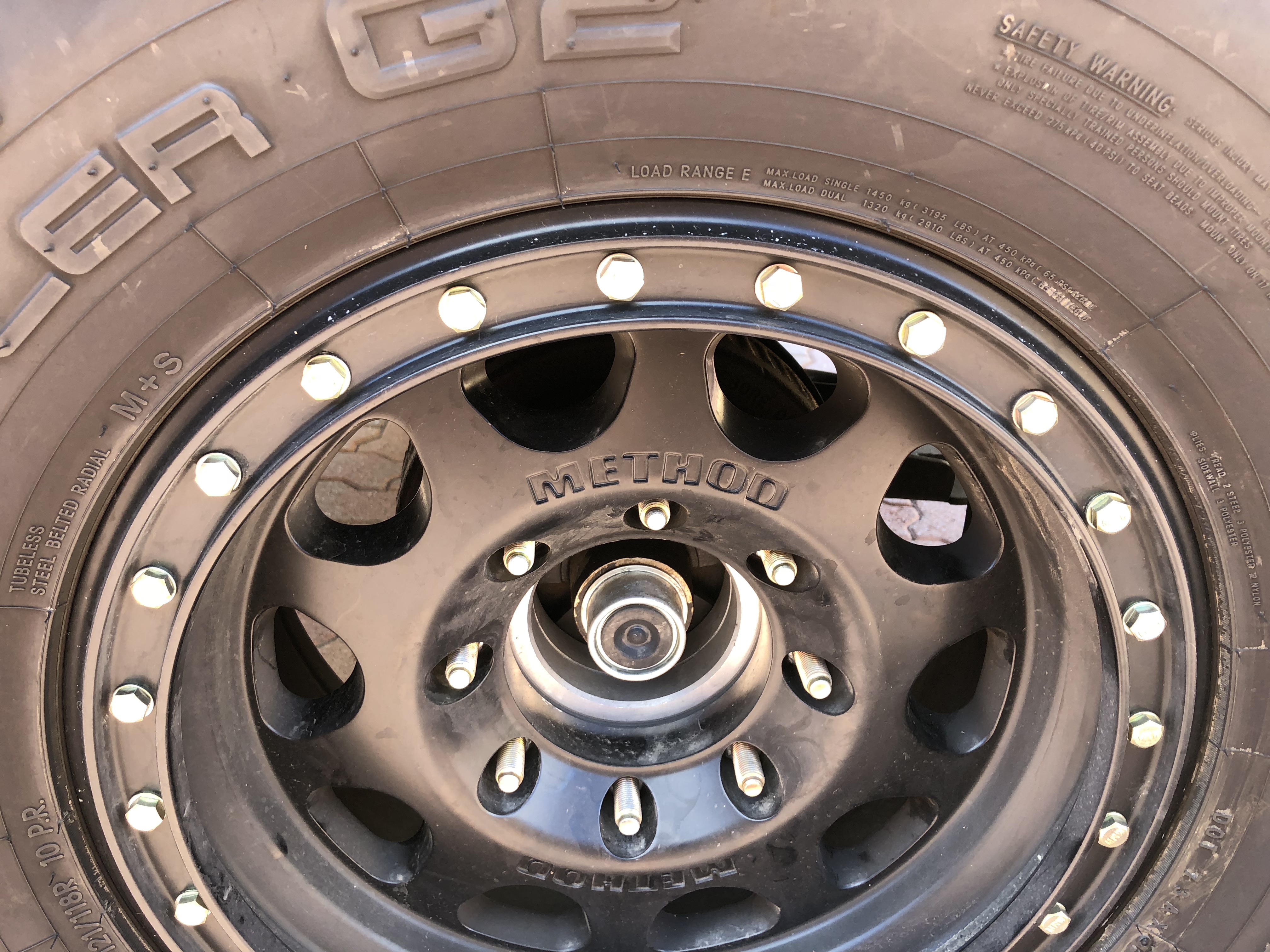

- 16” Method wheels

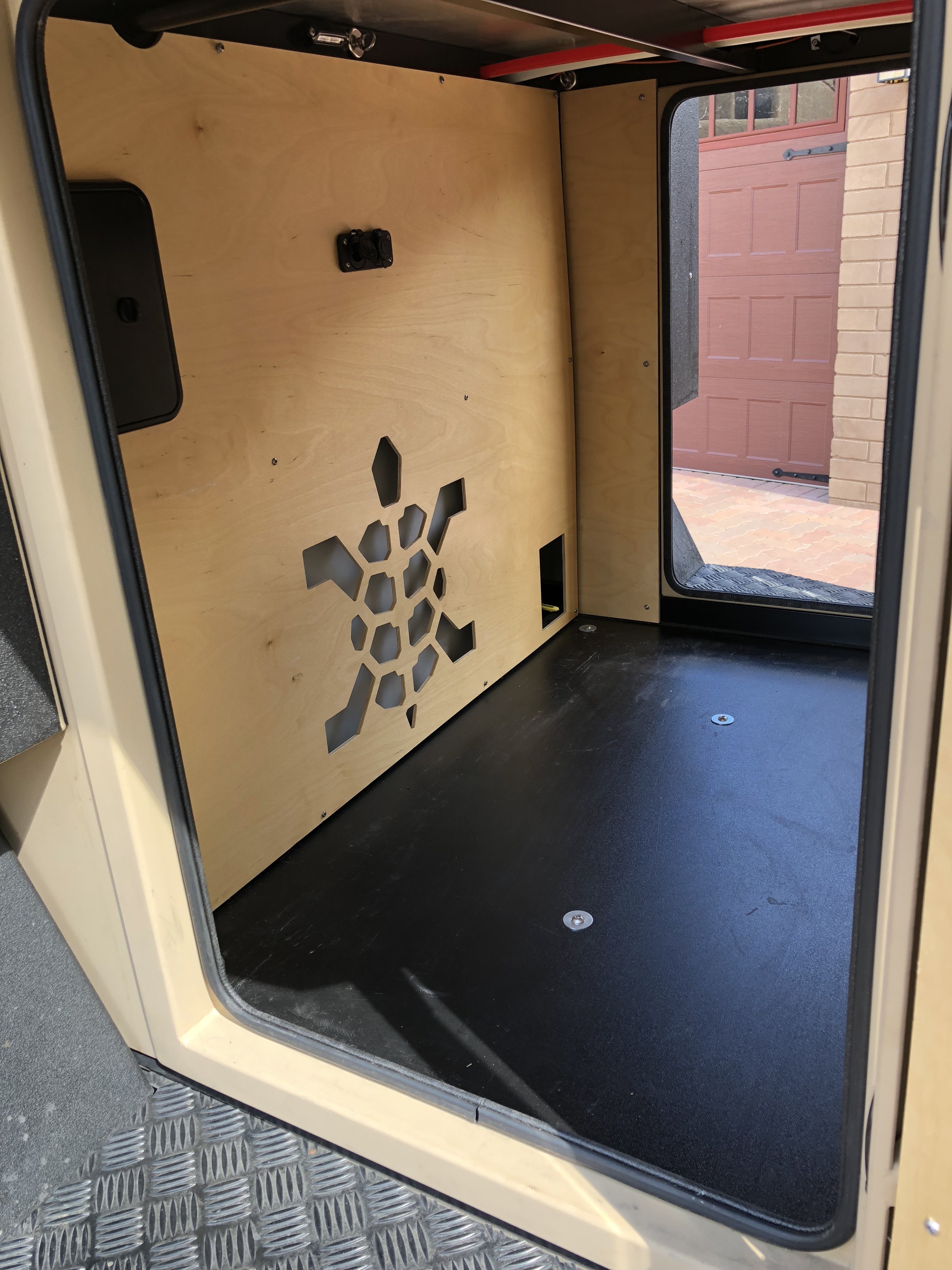

- 50+ cubic feet of storage in the trailer!
- Storage under the roof rack for two Lifetime folding tables (included)
- CNC cut chassis, fixture welded 2x3 galvanized tube steel box frame with 11 gauge aluminum floor system
- Inyati bedliner top and side coating of chassis.
- Hot-dip galvanized trailer frame for superior rust prevention.
- Expedition coil springs suspension with icon shocks, upgraded with reservoir shocks and coil spring system.
- Powder coated (dune beige)

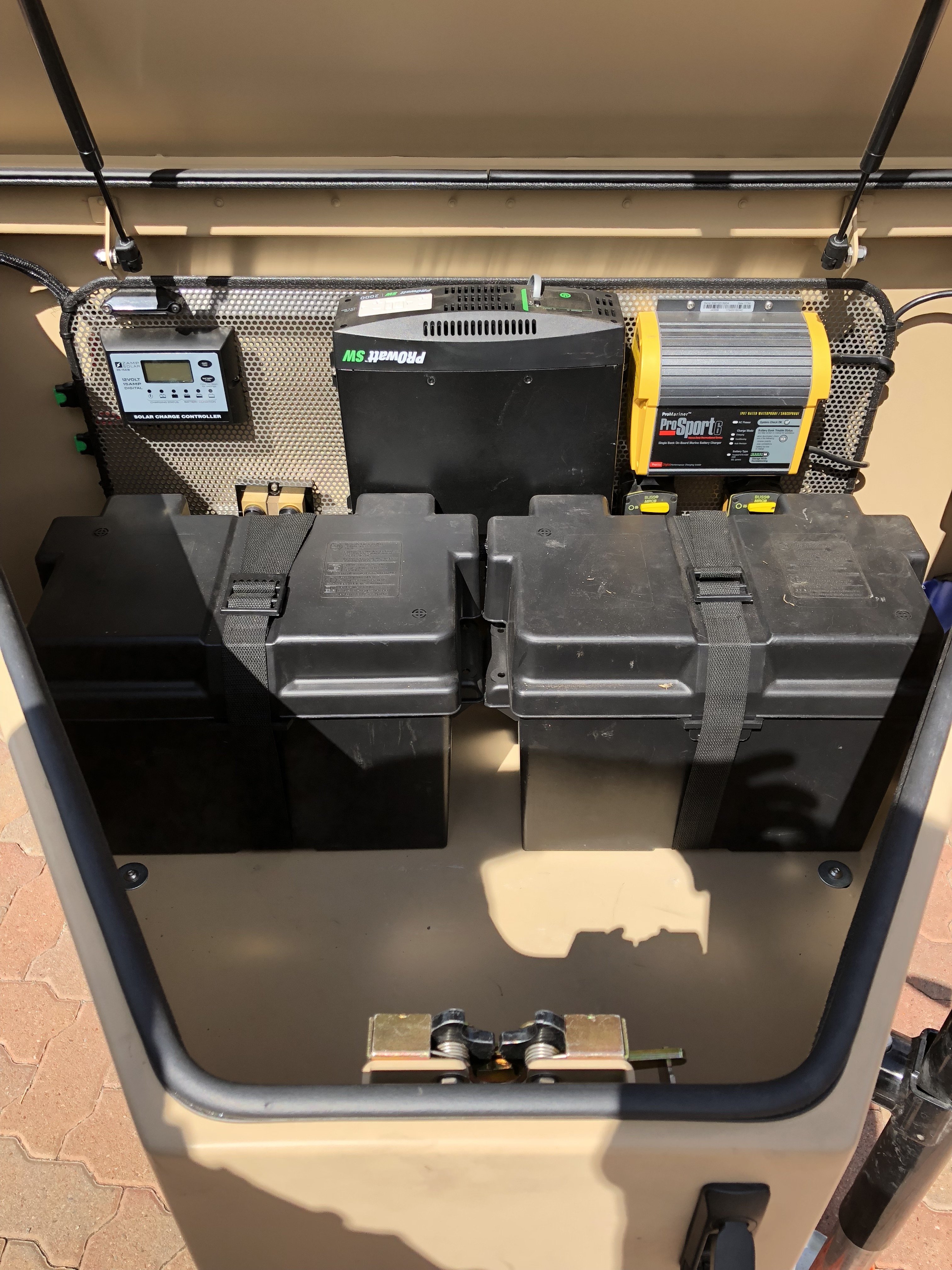

- Dual battery electrical system: GXL 125oC Automotive wiring, blue sea marine-grade components, dual Deka group 31 AGM deep cycle batteries for a combined 210 amp-hours of power.
- Battery boxes, blue sea 6 circuit fuse block, blue sea dual battery disconnect switch, 6 amp heavy duty battery charger (shore power)
- Expedition electrical control panel kit (SOC): upgraded to state of charge monitor for enhanced battery status information.

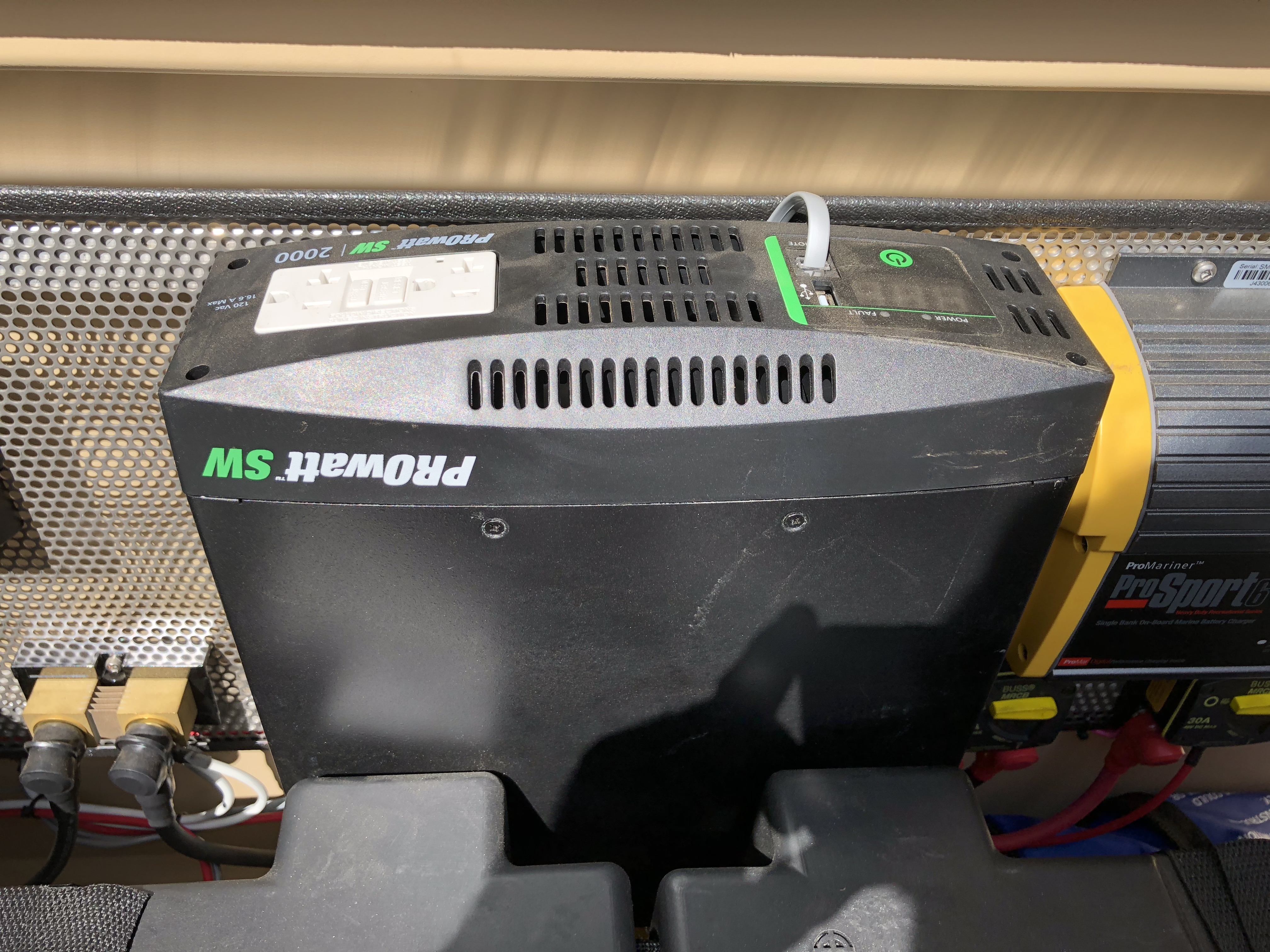

- 2000 watt pure sine wave inverter with blue sea 150 Amp breaker.
- Expedition solar-ready kit: Zamp 15 amp solar controller with battery status indicator, voltage meter, nose box mounted SAE connector ready for your solar panel

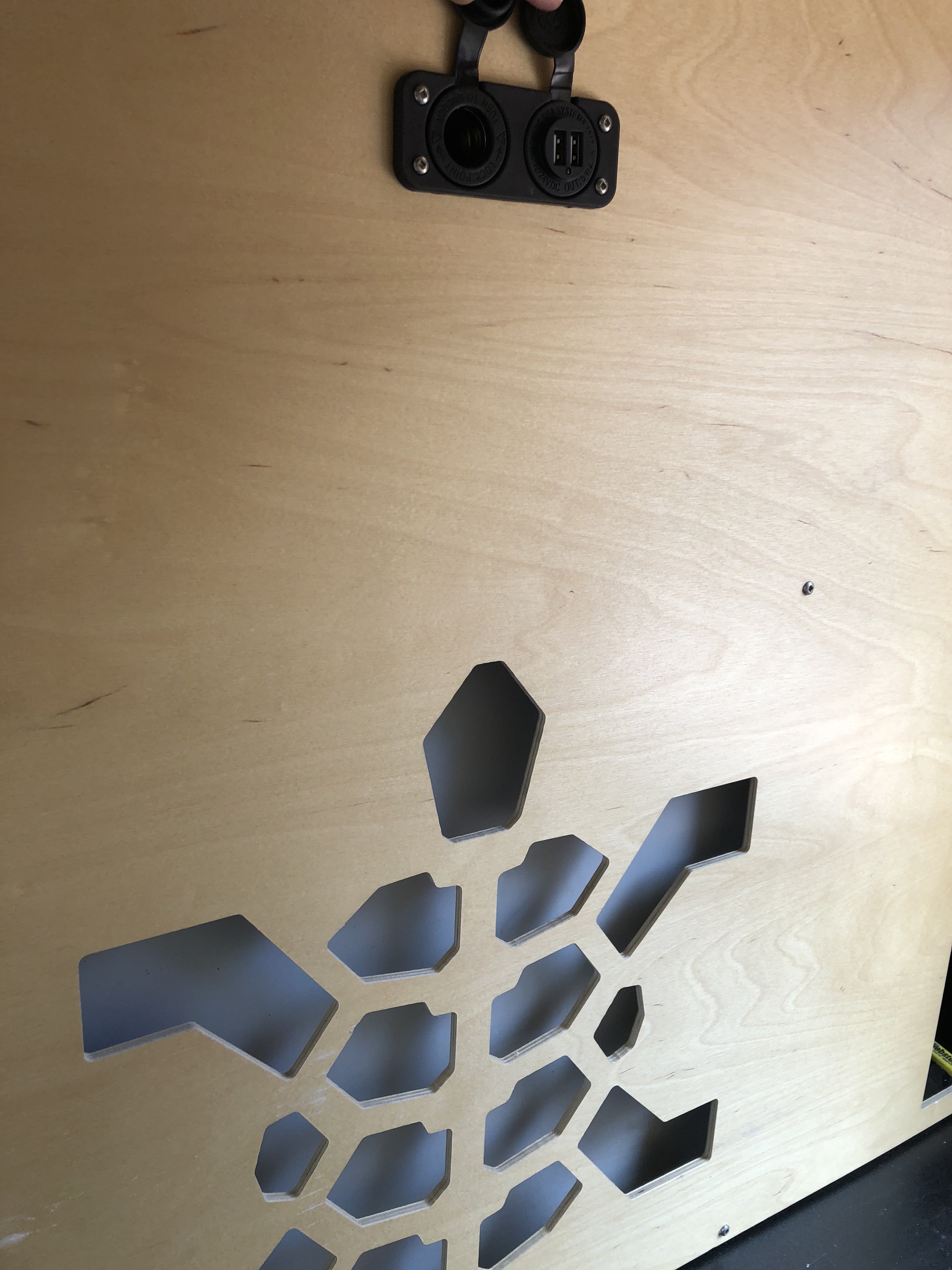

- Main storage charging ports, including USB and 12V sockets
- Upgraded roof rack: 4 rail Cargo/RTT powder coated steel rack with storage area for 30” wide picnic tables, chairs, etc with single rear door mounted on roof rack assembly.
- Expedition side box treadplate caps, black powder coated tread plate on top of side storage boxes.

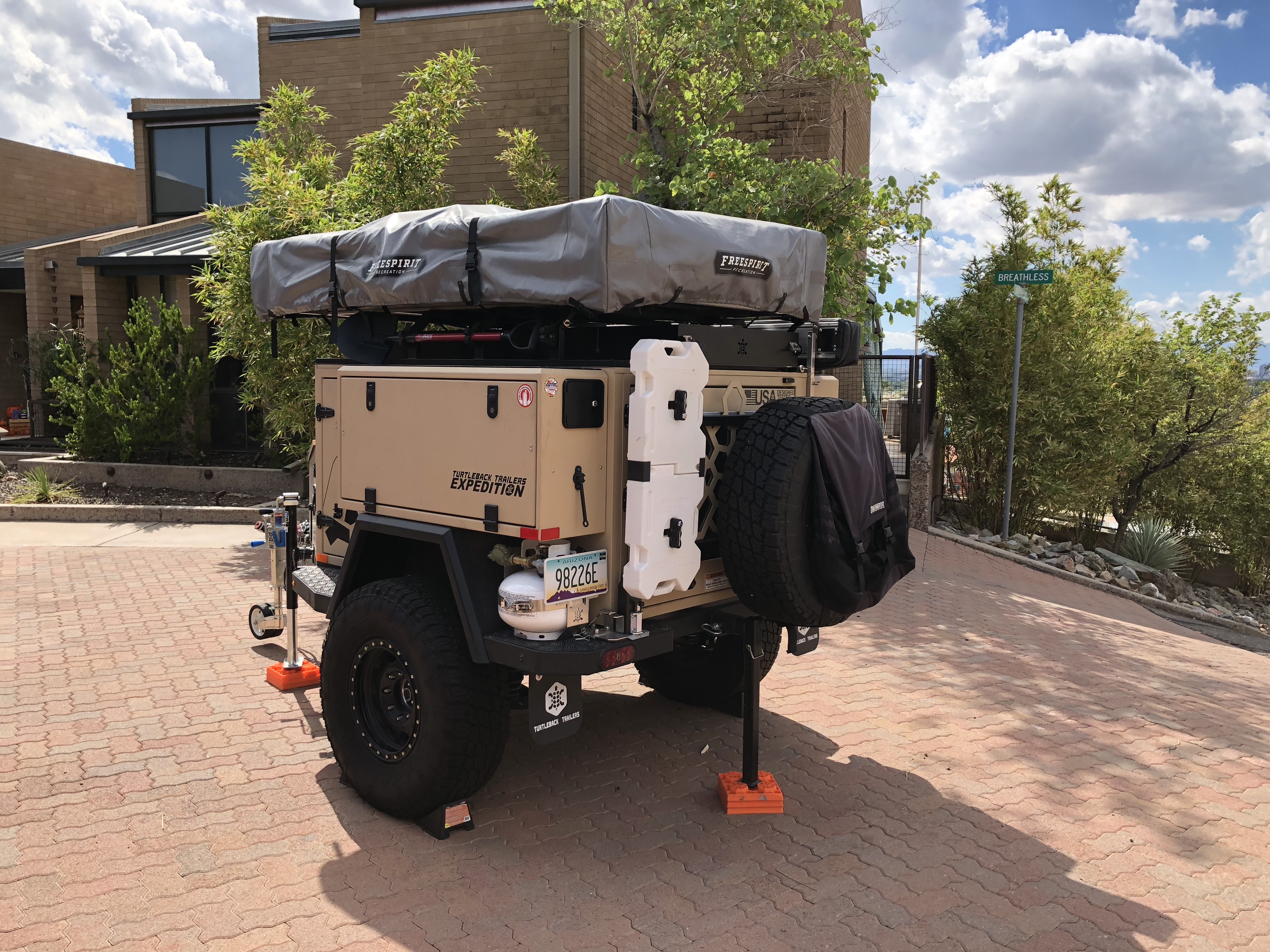

- Locking Rotopax DLX mounts on rear tailgate with 2x 2-gallon Rotopax water tanks.
- Max coupler articulating hitch (6,000lb rating)
- Front and rear 2 inch receiver hitches
- Expedition aluminum skin and box kit including front, sides, valances, doors, nose box, side boxes, and turtle tailgate emblem.
- Expedition slide-out kitchen includes partner steel stainless stove with dual 10,000 BTU 18” burners, lid, and adjustable sind guards.
- Dual pressure propane system
- Dometic deep well stainless steel sink and faucet with tempered glass lid prep surface

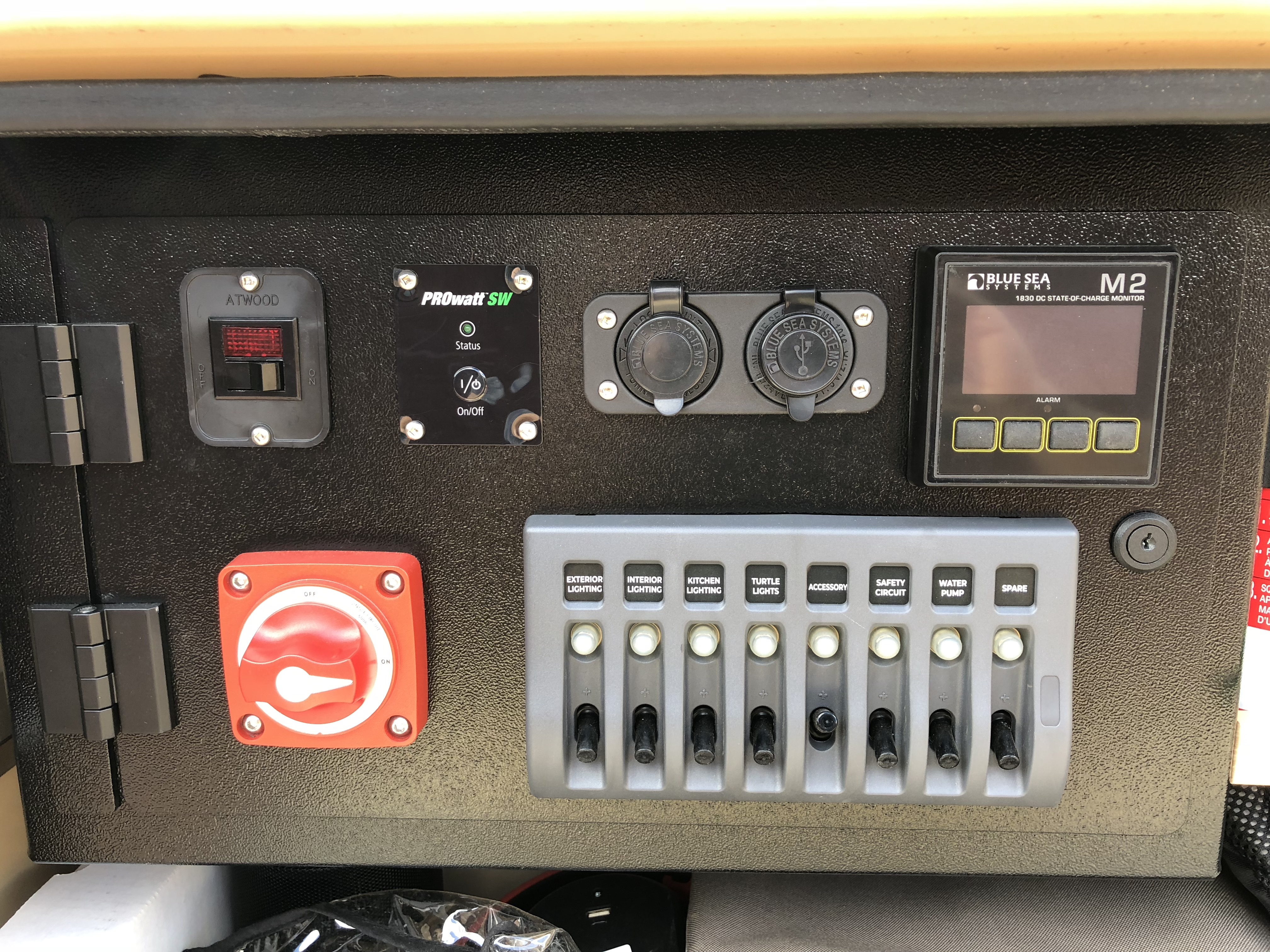

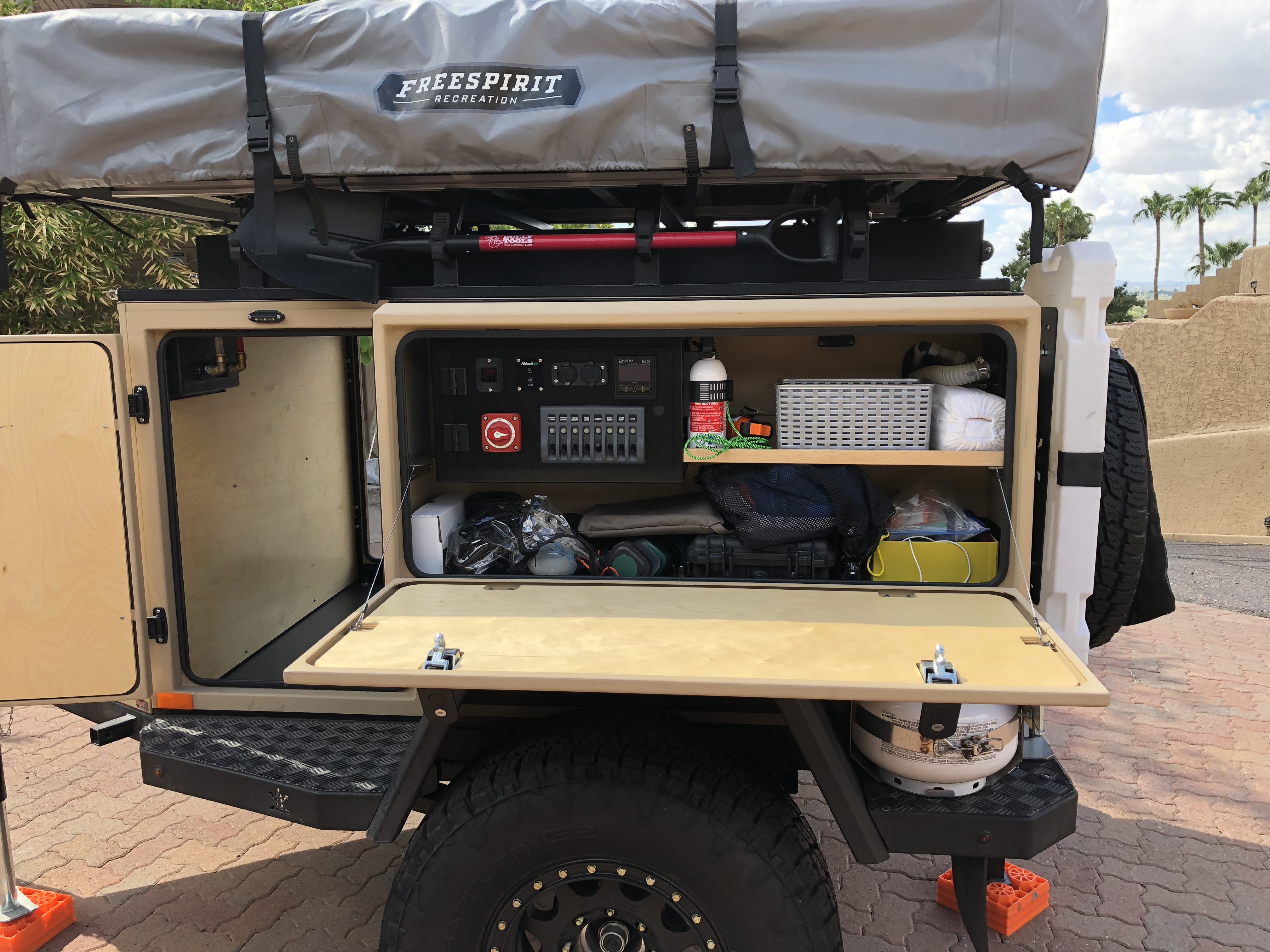

- On-board systems control panel: Interior sidebox mounted control panel with blue sea 8 circuit breaker panel, battery power disconnect, 2.1A USB charge port, 12v socket, OLED Volmeter, and water heater switch
- LED Lighting system: 4 exterior flood lights, 5 storage box lights, 1 main storage area light, 1 utility area light, 1 control panel light, 3 undercarriage green “turtle” convenience lights
- 7 pin trailer connection includes charge line, brake controller line, running lights, signal lights, and reverse lights.

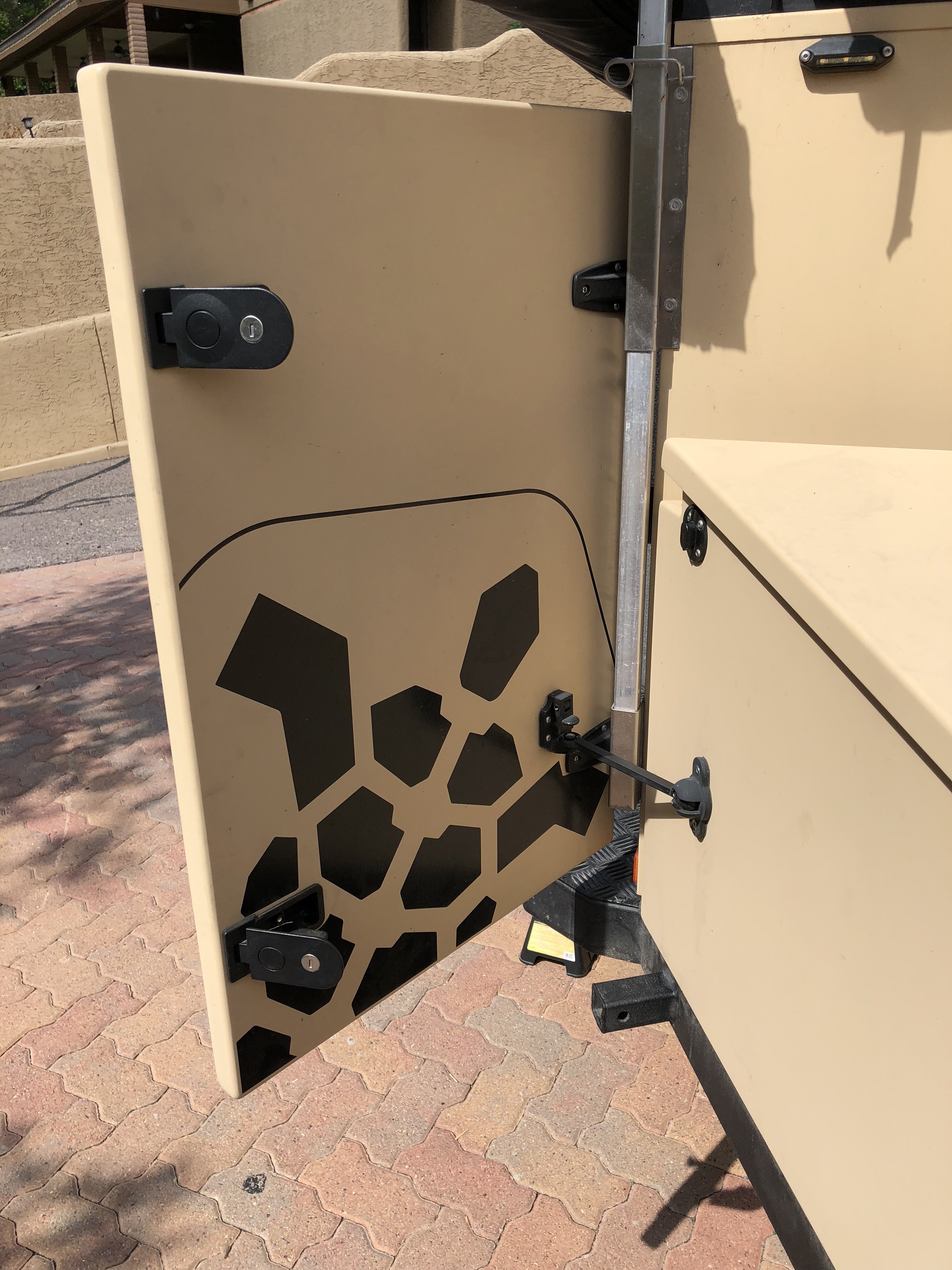

- Dual stainless steel fold down prep tables: 18”x36” stainless steel prep table mounted on tailgate swing-out and 16”x25” stainless prep table mounted on kitchen door.
- Water tank: 42 gallon, food grade, BPA free, water tank with external lockable fill door (Vented)
- Water pump: 12V on demand water pump 3GPM, 55PSI self-priming
- Water heater: Atwood 6 gallon direct spark ignition water heater
- Shower: lockable exterior use shower with dedicated valve control, upgraded 10ft stainless steel hose, and showerhead
- Primary propane tank: 11lb pancake type tank for primary on-board systems
- Additional accessory propane tank with stainless bracket
- Full size spare tire and wheel
- 2000lb swing-away tongue jack, and swing-away Extreme Offroad series 500 rolling tongue jack
- Trailer break-away brake activation switch
- LED yellow and red side marker lights, brake lights, signal lights, and running lights. Integrated reverse lights.
- Adjustable rear stabilizer
- Dual towing safety chains
