UNICAT TC52 Comfort

[avimeyers]

Built in Germany by UNICAT, the world's premier builder of expedition-grade vehicles. This vehicle has been used primarily as a compny demonstrator and show vehicle. It has 53K miles, is loaded, in excellent condition, and ready for some serious adventure travel. A rare opportunity for the individual who appreciates and demands the very best. $450K OBO.

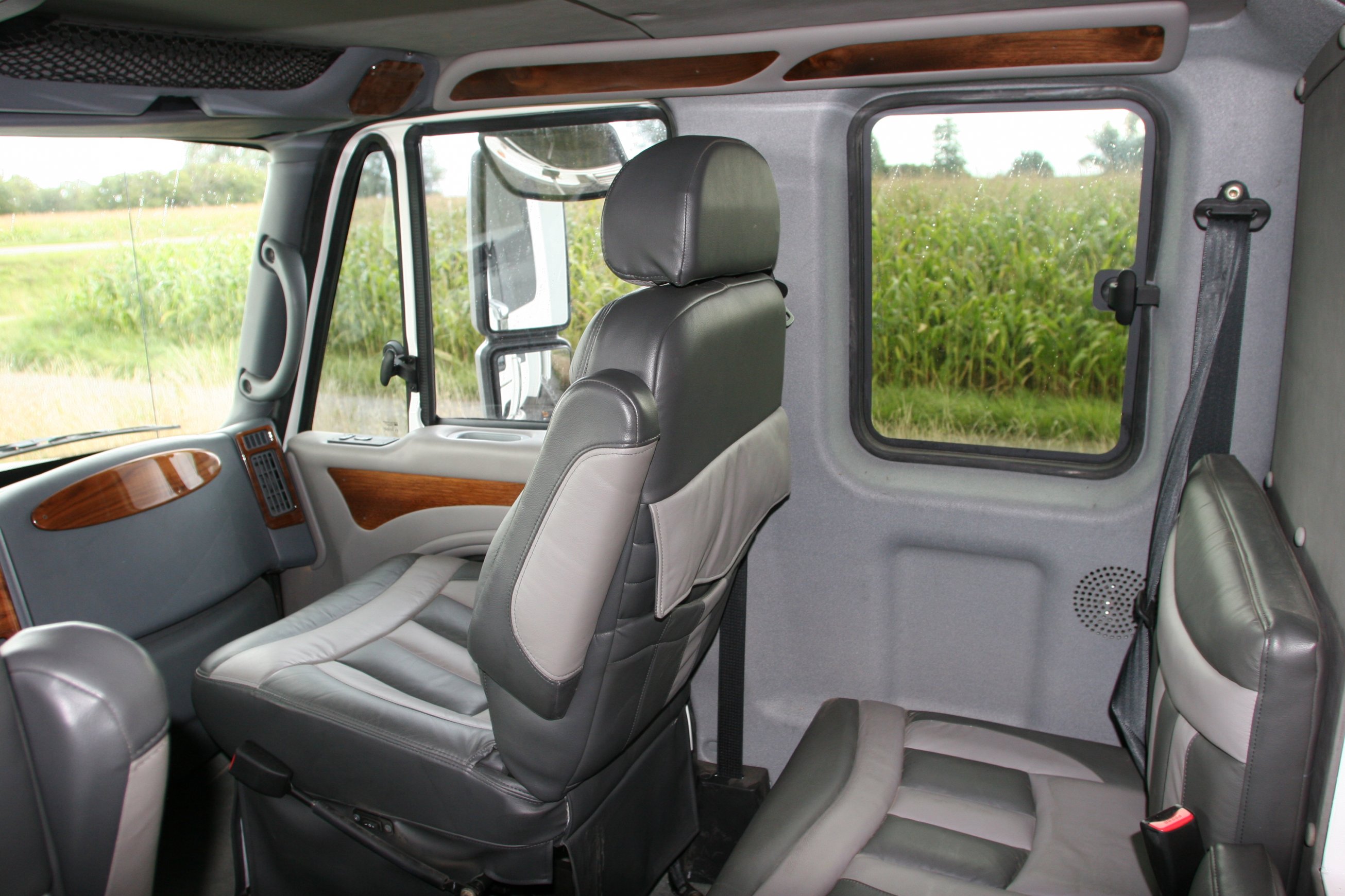

Cab
 Upgraded cab - leather & wood trim, additional insulation
 SS fire extinguisher at floor on left side of driver seat
 Seats - adjustable air suspension front
 Cab rear suspension air bag type
 Power windows & doors w/remote control
 Full gauges & instrumentation
 Cobra CB radio
 Alpine CDA-9857 AM FM XM CD Ipod stereo system
 GPS – Garmin 7500 w/rear view camera and weather fax
Chassis
 International 7400 4x4 (custom ordered off-road fire fighting truck chassis)
 Extended cab - Overall length – 372”, width – 98”, height – 144”
 GVWR – 33,000 lb, GCVWR - 80,000 lb
 Wheelbase – 213” (5410 mm), cab-to-axle – 112”, axle-to-frame – 75”
 DT570 50-state, 310 hp, 950 lb-ft torque @ 1200 rpm, #2 bell housing - will burn any grade of diesel
 Chassis batteries – 2 X 210 ah AGM marine
 Supplemental alternator – 90a with I-U charging regulator for body
 Engine block heater – Phillips 120v/1250w, located below driver’s door
 Air compressor – Bendix TU-FLO 550, 13.2 cf quick connects front and rear
 Allison 3000 RDS P close ratio, 6-speed w/overdrive
 Transfer case – Meritor T-4210, 2-speed, 10,000 lb w/provision for PTO
 All wheel drive, on demand
 Front axle - Meritor MX-12-120 single reduction, 12,000 lb
 Rear axle - Meritor RS-21-145 single reduction, wide track, 21,000 lb w/driver controlled main locking differential, 200 series wheel ends and ABS gear ratio: 5.13
 Air brake ABS – Bendix antilock brake system, 4-channel
 Front brakes – air cam, S-cam, 16.5” X 5.0” inc 20 sq in MGM long stroke brake chambers
 Rear brakes – air cam 16.5” X 7.0” inc MGM TR3030 long stroke brake chamber and HD spring actuated parking brake
 Exhaust brake – D Logic, electronically activated
 Air dryer – Bendix AD-IP with heater
 Military aluminum split rims with run flat capability
 Michellin XZL 395/R20
 Fuel tanks – 2 X 100 gal w/ 9mm skid plates (approximately 1,500 mi highway range)
 Racor fuel prefilters w/ water separators/heaters
 SS roof rack – generator cooling system, storage, work lights, and 4 X Hella 2100 HID lights
 SS wire mesh head lights brush & stone guards
 Winches – hydraulic 15,000 lb front & rear w/15 gal reservoir and PTO pump
 Rear bumper - SS fold-down under-ride protection
 Front bumper 2”X2” receiver for motorcycle carrier
 Water fording - all breather tubes raised to minimum 5’, positive pressure in generator compartment, sealed storage compartments
 Generator – 8kw Fischer Panda
 Spare - rear mounted w/manual hoist
 Rear rack storage – manual hoist

 Body Unit

Frame assembly
 3-point kinematic attachment with main and flex mounts for stress-free body coupling to the torsion elastic chassis frame

Body unit construction
 Body dimensions – length 205” X width 98” X height 83”
 Self-supporting UNICAT sandwich panels of fiberglass composite
 Panel connections made by adhesive bond to custom extrusions eliminates metallic heat conduction paths
 Matched thermal coefficients of expansion prevent distortion with changes in temperature
 Wall thickness 2.36" ( 60 mm ) with polyurethane foam insulation, 0.12" ( 3 mm ) FRP outer surface, 0.08" ( 2 mm ) FRP inner surface
 Insulation rating 0.078 btu/ft h degF ( 0.44 W/sqm K )
 Floor panel with integrated welded steel frame and surfaces of fiberglass reinforced polyester
 Teak flooring

Access to body
 Cab-to-body passage – 23” X 32” w/solid & soft panels
 Highly flexible waterproof bellows coupling
 Access to body – hydraulic stairs, 3 control locations

Entrance door and storage compartment doors
 UNICAT - entrance door and storage doors constructed of fiberglass composite panels and frames, 3-point stainless steel safety locks, mosquito net at entry door
 Thickness of doors 2.36" ( 60 mm )
 UNICAT double seals with heavy duty lock
 Stainless steel hinges throughout
 Additional retractable stainless steel bolts at middle, top and bottom of doors
 Safety cylinder locks all keyed alike

Windows
 Burglar-proof, scratchproof, double paned, thermally insulated
 Shutters and mosquito nets
Interior Lay Out
Inner dimensions of the cabin
 Length 200" ( 5080 mm )
 Width 92.9" ( 2360 mm )
 Height 76.8" ( 1950 mm )

Seating area
 Seating area for 2 - 4 people with adjustable swiveling table on pedestal in the front of the cabin
 Seating unit converts to double bed

Bed
 Queen-size bed with suspension, ventilation and comfortable mattress in the rear on pedestal
 Size: 60" x 80" ( 1524 mm x 2032 mm )

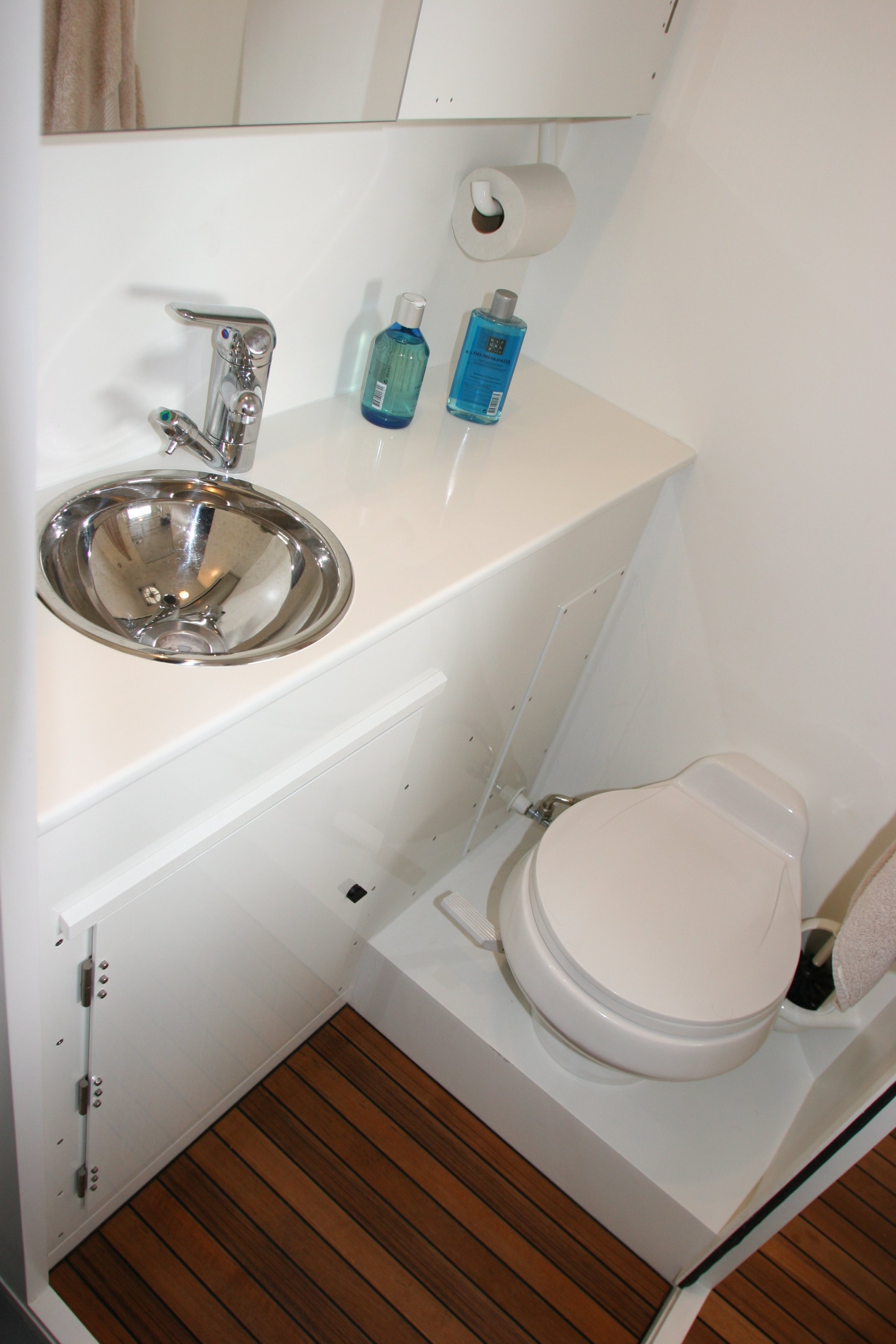

Sanitary room
 Sealed fiberglass door to isolate bathroom from living area
 SeaLand ceramic toilet system
 Bath sink – SS w/extra faucet for filtered water, soap dish, towel hooks

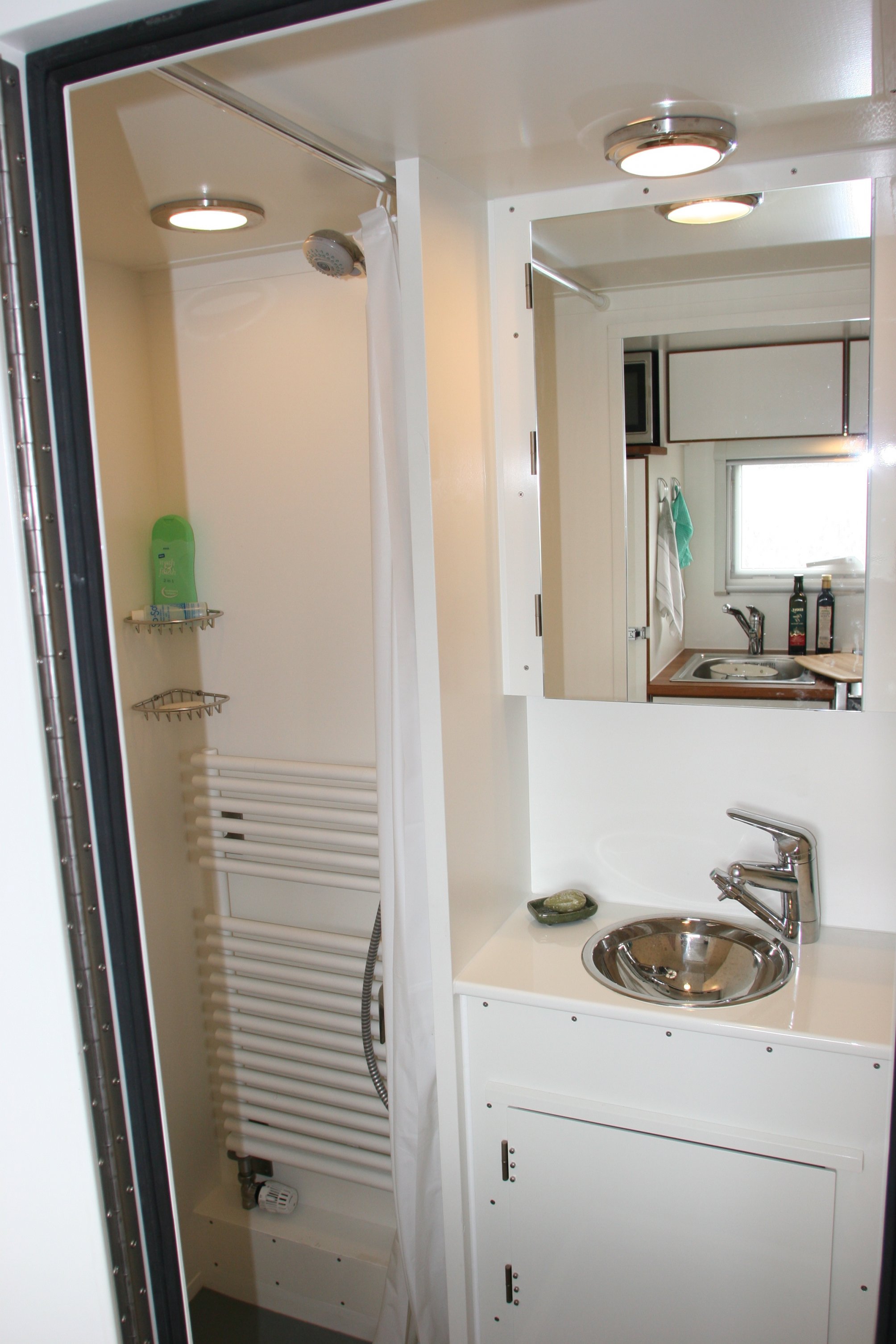

 Shower – full size w/adjustable height head, 2X soap/shampoo dishes, SS overhead drying bar
 Medicine cabinet and storage under sink

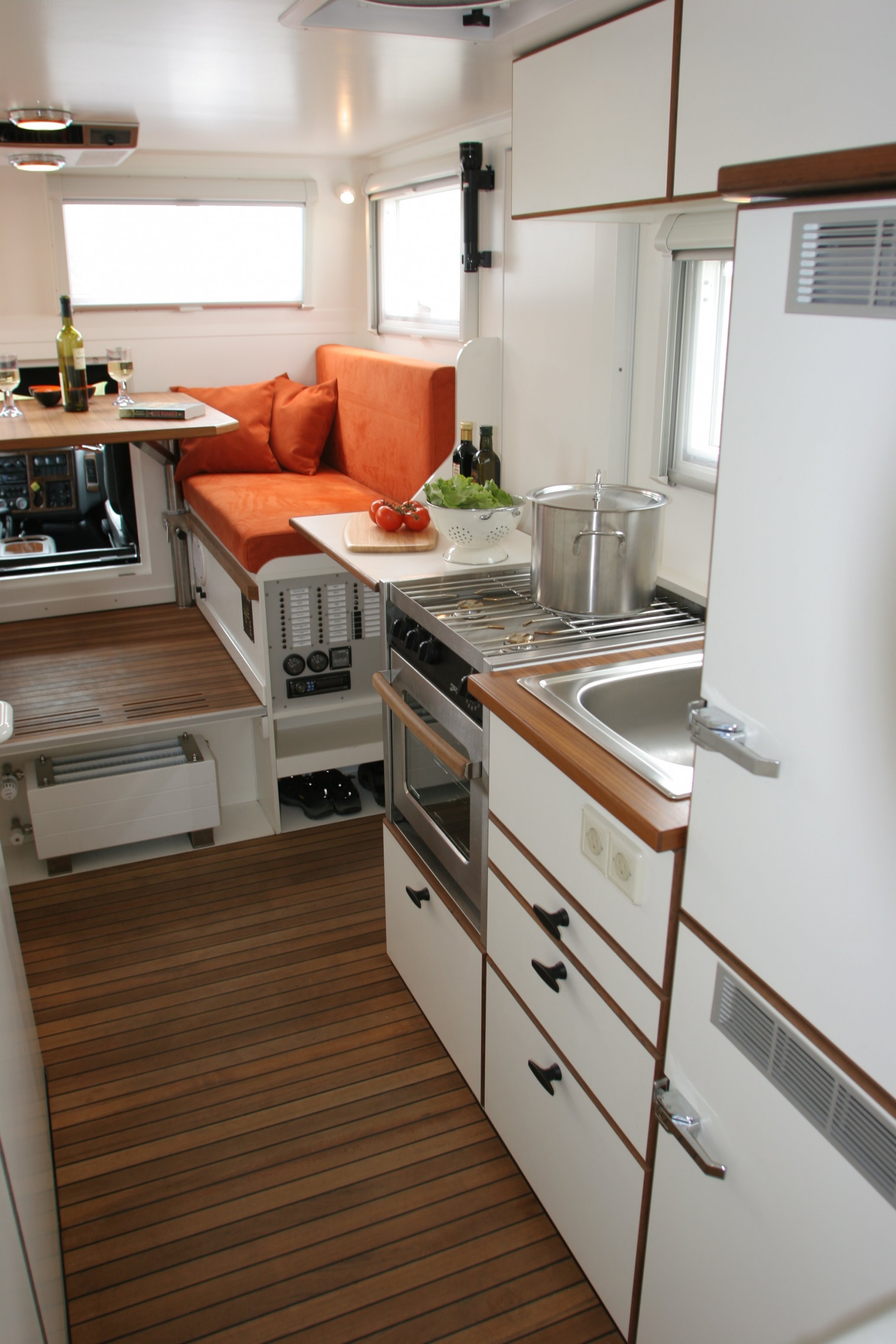

Kitchen
 Countertop with integrated SS sink
 Collapsible counter top leaf to left of oven/range
 Single handle faucet for warm and cold water, separate faucet for filtered water
 SS soap dispenser, soap dish, towel hooks
 Force10 LPG 3-flame range/oven
 Sanyo 1.2 cubic foot SS microwave oven
 Kitchen cabinets with locking drawers on ball bearings
 Built-in drawer organizers
 Overhead cupboards
 Refrigeration – 2 X 113 liter Kissman w/small freezers, 45 qt freezer and in under bed storage compartment

Storage
 Inside storage space in the seating area, kitchen and over bed
 Wardrobe for hanging clothes, pull-out storage boxes
 Large outside storage compartment under the bed pedestal
 Exterior storage - 2 X SS 24” X 24” X 24” 1 X SS 24” X 24” X 48” tool/utility boxes w/drawers and dividers, cab roof rack storage 18” X 30” X 54”, rear rack storage 46” X 44” X 23”

Workmanship
 All furniture is built to the highest cabinet making standard made of wood core plywood using heavy duty locks and hinges

Lay out

 Upholstery made of ALCANTARA
 Walls and ceiling are painted with multiple coats
Technical equipment
Electrical equipment
 Solar panels – 3 X 123w Sharp

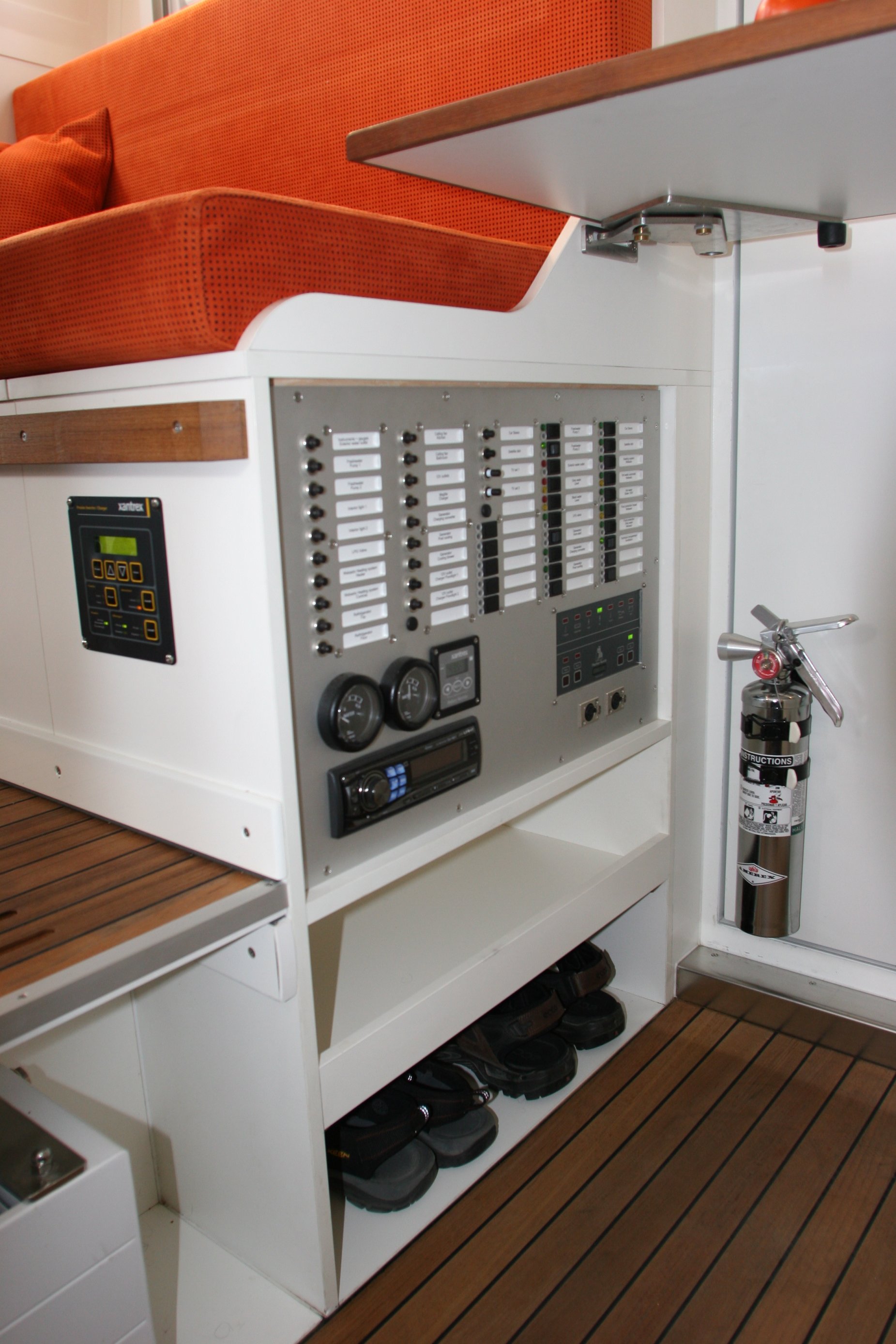

 Control panel for power management and monitoring of liquid levels
 Battery main switch, safety cut-out, residual current breaker
 DC power supplied by (4) AGM batteries bank, automatic regulated alternator and AC automatic I-U charger with cell temperature sensing for shore power hook-up
 Battery capacity: 12V 840Ah
 Shore charge rate: 14V 120A
 Inverter – Outback 12V / 115V, max output 3.0 kW
 Power plugs for 12V DC and 115V AC

Audio-visual system
 Alpine CDA-9857, CD changer, AM FM, XM sat radio, Ipod
 Sharp 21” LCD HDTV/DVD players at bed and dining area
 Brackets and wiring for outside speakers

Lighting
 Low voltage LED ceiling lights over the table, kitchen, bed and shower
 Lights for outside storage compartment
 Reading lights in bed and seating area

Water supply
 112 gallons ( 425 liters ) freeze-proof drinking water tanks
 8 gallons ( 22 liters ) hot water heat-exchanger
 15 gallons ( 60 liters ) waste water tank
 25 gallons (100 liters) gray water tank
 All plumbing is insulated to prevent freezing
 Outside shower at rear luggage compartment
 Water filtration system at both sinks

LPG supply
 2 x 30 lb. cylinders in sealed compartment
 Quick connect for barbecue at rear luggage compartment

Heating, ventilation and A/C systems
 Webasto diesel powered warm water central heating ( 5 kW )
 Redundant 120v hot water boiler
 Radiant heaters at shower, dining area, and coil under bed
 Anti-frost system
 2 X 13,500 BTU Penguin A/C roof units
 Maxxfan units above sink and in bath
Alarm system and emergency equipment
 Fire, smoke and carbon monoxide detector/alarm
 Mag-lite flashlight/charger at door
 SS fire extinguisher at door
