2018 FUSO FG 4x4 Expedition Truck

[GMCTPKOVRLND]

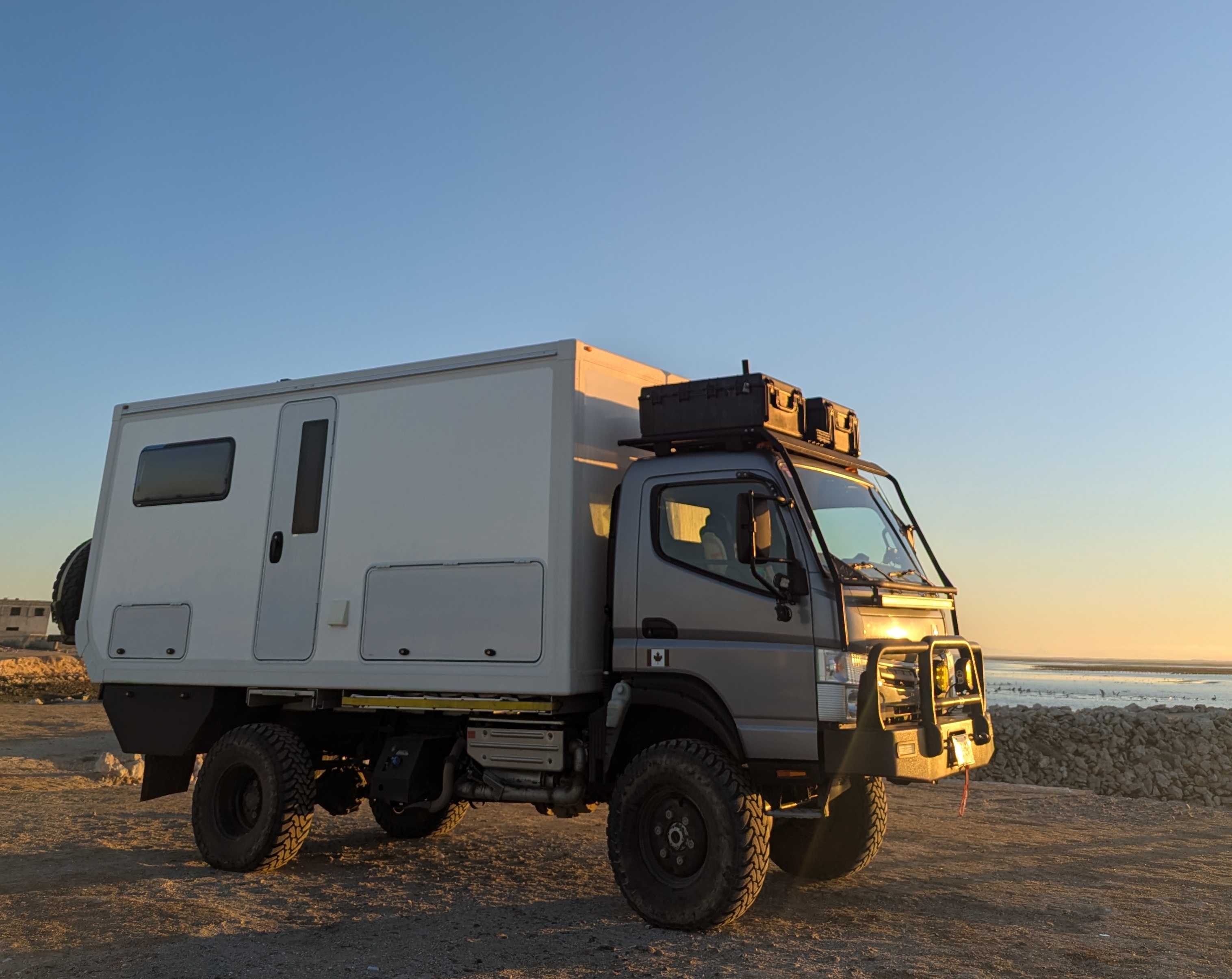

2018 FUSO FG 4x4 with Total Composites habitat

Location: Victoria, BC, Canada
Price: $175,000 USD
Kilometers: 45,000 KM / 28,000 m

Instagram and Facebook: TNR_Overland
Phone: 1 - 604 - 603 - 3872 (Travis)

Selling our recently (2023) completed expedition truck. We've done the shake down so you don't have to. A multitude of upgrades and smart features makes this the perfect home on wheels, on and off road. The foundation is a purpose purchased Mitsubishi FUSO FG 4x4 medium duty truck, that was bought new in 2019 specifically for this project; completed with a Total Composites 15' (4.5 m) habitat with departure angle. Supporting the habitat is an articulating subframe, engineered and installed by Intercontinental Truck Body (Vancouver, BC).

We have camped in +40C (104F) and we've camped in -10C (10F), the truck is equally as comfortable in both. We have also tested the handling, maneuverability, traction and overall ability. In two trips to Baja and many days and nights spent on the beach, we have never been stuck. It also handles well in snow. The truck has taken on Berdoo Canyon in Joshua Tree and the back road from La Ventana to Los Barriles.

Thinking you've seen this truck before? You have, it was sold as a partially complete project in 2022, since then we have spent more money than I can reasonably explain to my wife and 100's of hours honing every detail of the truck to make it an ideal full time rig or an ultra-luxurious weekender.

So what's inside and what's changed?

The Truck (+ Exterior and Subframe)​

• 2018 Mitsubishi Fuso FG 4x4.
• 3.0L I4 turbo diesel.
• DUONIC 6-speed dual clutch automatic transmission.
• Factory limited slip rear differential.
• Exhaust brake.
• 3.41m (134.4") wheelbase.
• Overall dimensions: 6.4m x 3.4m x 2.12m (21' x 11'2" x 7').
• Manuals, service records, original sale documentation.
• Service manual (6,000 pp PDF) included.
• 3M vinyl wrapped cab (factory white paint).
• Cab thermal and acoustic insulation.
• Wide fender flares from Fuso Offroad.
• Regular and routine maintenance:
  • Preemptive transmission fluid change at ~30,000 km.
  • Oil changed at regular intervals, most recent at ~42,000 km.
• All eligible warranty repairs and recalls completed.
• Powder coated steel subframe by Intercontinental Truck Body (Vancouver, BC).
• Subframe has integrated, insulated water tanks for lowest centre of mass.
• 45 degree departure angle.
• Transport Canada door sticker.
• Dragon Fly Tarps custom sized Haku tarp.

Updated:

• Android ATOTO A6 PF head unit with wireless Android Auto and Apple CarPlay (integrated with Renogy and Simarine systems).
• TravellerX 7,310 lumen 50 in light bar, with amber running lights.
• Two bumper mounted yellow spotlights.
• Mirror mounted ditch and rear facing lights (x 4).
• Two under-mounted LED back up lights.
• Higher load capacity Toyo Open Country MT's, 37 x 13.5 R17.
• DOT approval sticker for the change in wheel and tire.
• 8x Accessory switch panel wired completed to switch panel to control all lights.
• 17” super single wheels from Fuso Offroad including spare wheel and tire.
• Custom fabricated and professionally powder coated rear rack with winching mechanism for spare tire and fuel +.
• RecPro awning mount with rain gutter and sand anchors for the awning.
• Second ECU, programmed for countries where DEF is not available (bonus, small increase in horse power).
• Badlands Apex 12,000 lbs winch with synthetic rope and wireless remote.
• ECB aluminum winch bumper.
  • Original factory bumper available.
• AAVehicles scrub bars and roof rack.
• Two locking large capacity (huge) Pelican roof storage boxes mounted to rood rack.
• Deaver (Santa Ana, CA) reworked the rear spring package and shortened front bump stops for improved ride quality.
• Had the vehicle inspected and insured as a motorhome (RV) with ICBC (versus a commercial vehicle).
• Installed full length LED outdoor light under awning rail with central control and app control.
• Installed a WolfBox G840S dash camera, with maximum 156 GB storage, continuous recording, front and rear views, and more.
• Dash mounted WeBoost Drive Sleek OTR cellular booster.
• Mounted and hard wired a Viair air compressor.

Habitat Exterior:​

15’ (4.57 m) custom camper box from Total Composites

• Fibreglass foam composite panel construction.
• 4.68m x 2.12m x 1.12m.
• 45 degree departure angle.
• Tern Overland insulated door.
• 2 Tern Overland double pane, power sunroofs with integrated LED lighting.
• 2 small and one very large cargo access door.
• 2 large ROAD Overland cargo boxes with locking doors.
• ROAD Overland pull-out entry porch and stairs.
• All locking doors / hatches are key alike.
• 2x 900mm Tern Overland double pane windows (with bug screen and black out shade).

Upgrades:

• Habitat was removed and completely re-sealed preemptively to prevent any future issues.
• All seams were scraped and re-cocked using Sikaflex 221.
• All edges were then prepped and covered with Raptor Liner to ensure a lifelong seal.
• Door seals on ROAD Overland cargo boxes replaced.
• Kitchen window up sized to a Tern Overland 1100 mm.
• MaxxFan replacement CPU / motherboard available.
• Locking fresh water fill door installed.

Electrical Systems​

• Renogy 340 Ah LiFePO4 house battery bank (expanded to 680 Ah).
• Simarine Pico smart monitoring system with colour display.
  • Current shunt and voltmeter for house battery bank status.
  • Voltmeter for starter battery status.
  • 2x thermostats.
  • 2x water tank level senders.

Upgrades:

• Senville 9000 BTU mini-split system, compressor mounted to the rear rack.
• Added safety shut offs and ANL fuses to the house batteries.
• Renogy 3000W pure sine inverter/charger.
• Wired 30 amp shore power plug-in.
• Newer version of the Renogy 50A MPPT DC-DC charge controller.
• Renogy Rover 40 amp MPPT charge controller for second solar array.
• Removed 350W flexible solar panel.
• Installed 805W of monocrystalline solar panels.
  • Split 50/50 between charge controllers for redundancy.
• GL.iNet GL-MT3000 router re-flashed to ROOTer by Of Modems and Men.
  • Allows for load balancing between Starlink, cellular hot spot and USB SIM card modem.
  • Creates a single cohesive personal network.
• 12 volt converted, flat mounted, Gen 2 Starlink.
  • ROAD Overland flat mount.
  • Dishy Dually 12 volt conversion.
• Dimmable and colour temperature selectable cobb LED lighting.
• Central light control (4 zones) with app access.
• All electrical redone with marine wiring and individual fuses to an RV AC/DC power distribution panel.
• Added 3x 110 volt household outlets (kitchen outlet is GFI).
• Added a 100 amp sub-panel in the 'router cabinet' for convenience.

Plumbing:​

• 220L (58 g) fresh water tank and 90L (24 g) grey tank. insulated and heated.
• Planar diesel heater (connected to primary tank, consumes 100-250 ml/hr) and water heater.

Upgrades:

• Added 400W DC heating element to allow for electric water heating (installed as a solar dump to utilize excess power).
• Added a water thermostat and relay logic controller to efficiently heat water and/or cabin.
  • System allows you to prioritizes most efficient energy source.
  • Creates a fail safe against overheating hot water.
• Added dual 40 mm thermostatically controlled fans to cool mechanical area.
• Hot air diverter installed (allows for heating water without heating cabin).
• Upgraded 'silent' diesel dosing pump available (not installed).
• All plumbing replaced with household style Uponor PEX-A, done in single runs to each faucet to eliminate fittings where possible.
• Plumbing runs to a 'header' to keep pipes separate and prevent chafing.
• Added Guzzle H2O 2x10 Onboard Carbon + LED UV-C water filtration system. Filters replaced in past 30 days
• Custom built central control panel to display:
  • Cabin desired and set air temperatures.
  • Desired and set water temperatures.
  • Water pump on / off.
  • 12 volt hot water eater on / off.
  • Solar and state of charge bypass for 12 volt hot water heating element.
  • Simarine panel.
  • Planar diesel heater controller.'

​



[GMCTPKOVRLND]

Kitchen:​

• Oak look vinyl flooring.
• Mix of matte white and natural wood cabinetry.
• Grain-matched black walnut veneer cabinet fronts
• Isotherm Freeline 115L 12V compressor fridge/freezer (freezer door replaced in 2023).
  • spare compressor controller included.
• Panasonic combination microwave and convection oven.

Upgrades:

• Replaced wood subfloor with water proof high density foam backing.
• All interior woodwork re-stained and/or re-painted prior to sale.
• Double burned True Induction cooktop.
• Matte black residential faucet with integrated pull-out sprayer.
• New kitchen sink.
• Original countertop replaced with faux concrete finish laminate countertop.
• New countertop added depth and overhang to protect drawer fronts and inverter control.
• Underside of countertop was routed out to save weight and exposed edged were sealed with FlexSeal.
• Drawer latches modernized to locking black yacht style latches.

Bathroom:

• Compoost Toilets composting toilet, urine plumbed to grey tank.
• Marine ply teak cabinet fronts, refinished.

Upgrades:

• Diverting faucet for hand washing and showering.
• Shower head mounted, can be used as regular shower or hand held.
• Oxygenics RV shower head, good for water saving without compromising experience.
• Matching vanity mirrors.
• Built new shower base with 3/4" marine plywood.
• Replaced shower pan with Schluter Kerdi Board and linear drain.
• Finished with slate grey mini-hexagonal tile flooring.
• Installed a THEDour Tambour custom sliding tracked door.
• Framed bathroom opening with black textured ABS plastic.
• Heat ducted into bathroom and under the shower floor to warm it and remove 'dead' air space.

Dinette / Primary Bed:

• U-shaped dinette, converts into king sized bed (6’8” x 6’ / 2m x 1.8m).
• Custom 5” (12.5 cm) memory foam cushions/mattress with zippers.
• Sailrite Sunbrella fabric covers.
• Stable heavy-duty yacht style centre table leg with gas lift.

Upgrades:

• Kitchen matched walnut veneer one piece table.
• Finished all under dinette / bed supports to protect against humidity.
• Added 4 hooks in front entry way.
• Framed in and mounted a screen door.

Bunk / Laundry / Storage:

• Elevated bunk bed for a child (IKEA toddler bed size) --> could be modified, see below.
• Hanging locker (can be removed to extend bunk to adult length).

Upgrades:

• Installed a metal baby gate for child safety.
• Bottom drawer has 200 lbs drawer slides to be used as a step for access.
• Completed custom storage (+ 5 drawers).
• Boxes and drawers constructed from baltic birch with walnut plywood drawer fronts and soft close drawer slides.
• Matched with kitchen, black locking drawer pulls.
• Installed Splendide 2200 venting large capacity washer dryer combo unit.

Included with Sale

• 13’ tall extending ladder for roof access (now mounted and secured inside large cargo bay).
• Torque wrench, socket and extension bar.
• Recovery gear: kinetic rope, tow strap, shackles, pulleys, traction boards.
• 2x ABC fire extinguisher.
• First Aid kit.

Also included (if you want it) everything from camping gear to utensils and drawer organizers.

Potential Upgrades:

The bunk could be converted into additional storage, closet or coffee bar; creating full-height storage in the large cargo bay or bring your ideas, happy to work with a buyer to make this space their own.

Could recommend a local builder to work with to install a pass through from the cab into the habitat via the bathroom if desired.

Closing arguments for this truck:​

1. It's incredibly good looking.

2. It will take you more places than a Sprinter.

3. Your friends will be jealous.

Happy to do a video walk through with anyone interested and answer any questions you may have.



[GMCTPKOVRLND]

Some interior and exterior photos.



[GMCTPKOVRLND]

Bathroom.



[GMCTPKOVRLND]

Kitchen.



[GMCTPKOVRLND]

Dinette and Bunk area.



[GMCTPKOVRLND]

Systems.



[GMCTPKOVRLND]

Exterior.



[Megan_dfw]

Is it possible for a buyer to register this rig in the states?



[GMCTPKOVRLND]

Is it possible for a buyer to register this rig in the states?

I don't see any reason it shouldn't be allowed. It's insured and registered as an rv and was a North America domestic vehical. We would be happy to work with any prospective buyer to sort out the logistics.



[chillywilly]

2018 FUSO FG 4x4 with Total Composites habitat

Location: Victoria, BC, Canada
Price: $175,000 USD
Kilometers: 45,000 KM / 28,000 m

Instagram and Facebook: TNR_Overland
Phone: 1 - 604 - 603 - 3872 (Travis)

Selling our recently (2023) completed expedition truck. We've done the shake down so you don't have to. A multitude of upgrades and smart features makes this the perfect home on wheels, on and off road. The foundation is a purpose purchased Mitsubishi FUSO FG 4x4 medium duty truck, that was bought new in 2019 specifically for this project; completed with a Total Composites 15' (4.5 m) habitat with departure angle. Supporting the habitat is an articulating subframe, engineered and installed by Intercontinental Truck Body (Vancouver, BC).

We have camped in +40C (104F) and we've camped in -10C (10F), the truck is equally as comfortable in both. We have also tested the handling, maneuverability, traction and overall ability. In two trips to Baja and many days and nights spent on the beach, we have never been stuck. It also handles well in snow. The truck has taken on Berdoo Canyon in Joshua Tree and the back road from La Ventana to Los Barriles.

Thinking you've seen this truck before? You have, it was sold as a partially complete project in 2022, since then we have spent more money than I can reasonably explain to my wife and 100's of hours honing every detail of the truck to make it an ideal full time rig or an ultra-luxurious weekender.

View attachment 866295

So what's inside and what's changed?

The Truck (+ Exterior and Subframe)​

• 2018 Mitsubishi Fuso FG 4x4.
• 3.0L I4 turbo diesel.
• DUONIC 6-speed dual clutch automatic transmission.
• Factory limited slip rear differential.
• Exhaust brake.
• 3.41m (134.4") wheelbase.
• Overall dimensions: 6.4m x 3.4m x 2.12m (21' x 11'2" x 7').
• Manuals, service records, original sale documentation.
• Service manual (6,000 pp PDF) included.
• 3M vinyl wrapped cab (factory white paint).
• Cab thermal and acoustic insulation.
• Wide fender flares from Fuso Offroad.
• Regular and routine maintenance:
  • Preemptive transmission fluid change at ~30,000 km.
  • Oil changed at regular intervals, most recent at ~42,000 km.
• All eligible warranty repairs and recalls completed.
• Powder coated steel subframe by Intercontinental Truck Body (Vancouver, BC).
• Subframe has integrated, insulated water tanks for lowest centre of mass.
• 45 degree departure angle.
• Transport Canada door sticker.
• Dragon Fly Tarps custom sized Haku tarp.

Updated:

• Android ATOTO A6 PF head unit with wireless Android Auto and Apple CarPlay (integrated with Renogy and Simarine systems).
• TravellerX 7,310 lumen 50 in light bar, with amber running lights.
• Two bumper mounted yellow spotlights.
• Mirror mounted ditch and rear facing lights (x 4).
• Two under-mounted LED back up lights.
• Higher load capacity Toyo Open Country MT's, 37 x 13.5 R17.
• DOT approval sticker for the change in wheel and tire.
• 8x Accessory switch panel wired completed to switch panel to control all lights.
• 17” super single wheels from Fuso Offroad including spare wheel and tire.
• Custom fabricated and professionally powder coated rear rack with winching mechanism for spare tire and fuel +.
• RecPro awning mount with rain gutter and sand anchors for the awning.
• Second ECU, programmed for countries where DEF is not available (bonus, small increase in horse power).
• Badlands Apex 12,000 lbs winch with synthetic rope and wireless remote.
• ECB aluminum winch bumper.
  • Original factory bumper available.
• AAVehicles scrub bars and roof rack.
• Two locking large capacity (huge) Pelican roof storage boxes mounted to rood rack.
• Deaver (Santa Ana, CA) reworked the rear spring package and shortened front bump stops for improved ride quality.
• Had the vehicle inspected and insured as a motorhome (RV) with ICBC (versus a commercial vehicle).
• Installed full length LED outdoor light under awning rail with central control and app control.
• Installed a WolfBox G840S dash camera, with maximum 156 GB storage, continuous recording, front and rear views, and more.
• Dash mounted WeBoost Drive Sleek OTR cellular booster.
• Mounted and hard wired a Viair air compressor.

Habitat Exterior:​

15’ (4.57 m) custom camper box from Total Composites

• Fibreglass foam composite panel construction.
• 4.68m x 2.12m x 1.12m.
• 45 degree departure angle.
• Tern Overland insulated door.
• 2 Tern Overland double pane, power sunroofs with integrated LED lighting.
• 2 small and one very large cargo access door.
• 2 large ROAD Overland cargo boxes with locking doors.
• ROAD Overland pull-out entry porch and stairs.
• All locking doors / hatches are key alike.
• 2x 900mm Tern Overland double pane windows (with bug screen and black out shade).

Upgrades:

• Habitat was removed and completely re-sealed preemptively to prevent any future issues.
• All seams were scraped and re-cocked using Sikaflex 221.
• All edges were then prepped and covered with Raptor Liner to ensure a lifelong seal.
• Door seals on ROAD Overland cargo boxes replaced.
• Kitchen window up sized to a Tern Overland 1100 mm.
• MaxxFan replacement CPU / motherboard available.
• Locking fresh water fill door installed.

Electrical Systems​

• Renogy 340 Ah LiFePO4 house battery bank (expanded to 680 Ah).
• Simarine Pico smart monitoring system with colour display.
  • Current shunt and voltmeter for house battery bank status.
  • Voltmeter for starter battery status.
  • 2x thermostats.
  • 2x water tank level senders.

Upgrades:

• Senville 9000 BTU mini-split system, compressor mounted to the rear rack.
• Added safety shut offs and ANL fuses to the house batteries.
• Renogy 3000W pure sine inverter/charger.
• Wired 30 amp shore power plug-in.
• Newer version of the Renogy 50A MPPT DC-DC charge controller.
• Renogy Rover 40 amp MPPT charge controller for second solar array.
• Removed 350W flexible solar panel.
• Installed 805W of monocrystalline solar panels.
  • Split 50/50 between charge controllers for redundancy.
• GL.iNet GL-MT3000 router re-flashed to ROOTer by Of Modems and Men.
  • Allows for load balancing between Starlink, cellular hot spot and USB SIM card modem.
  • Creates a single cohesive personal network.
• 12 volt converted, flat mounted, Gen 2 Starlink.
  • ROAD Overland flat mount.
  • Dishy Dually 12 volt conversion.
• Dimmable and colour temperature selectable cobb LED lighting.
• Central light control (4 zones) with app access.
• All electrical redone with marine wiring and individual fuses to an RV AC/DC power distribution panel.
• Added 3x 110 volt household outlets (kitchen outlet is GFI).
• Added a 100 amp sub-panel in the 'router cabinet' for convenience.

Plumbing:​

• 220L (58 g) fresh water tank and 90L (24 g) grey tank. insulated and heated.
• Planar diesel heater (connected to primary tank, consumes 100-250 ml/hr) and water heater.

Upgrades:

• Added 400W DC heating element to allow for electric water heating (installed as a solar dump to utilize excess power).
• Added a water thermostat and relay logic controller to efficiently heat water and/or cabin.
  • System allows you to prioritizes most efficient energy source.
  • Creates a fail safe against overheating hot water.
• Added dual 40 mm thermostatically controlled fans to cool mechanical area.
• Hot air diverter installed (allows for heating water without heating cabin).
• Upgraded 'silent' diesel dosing pump available (not installed).
• All plumbing replaced with household style Uponor PEX-A, done in single runs to each faucet to eliminate fittings where possible.
• Plumbing runs to a 'header' to keep pipes separate and prevent chafing.
• Added Guzzle H2O 2x10 Onboard Carbon + LED UV-C water filtration system. Filters replaced in past 30 days
• Custom built central control panel to display:
  • Cabin desired and set air temperatures.
  • Desired and set water temperatures.
  • Water pump on / off.
  • 12 volt hot water eater on / off.
  • Solar and state of charge bypass for 12 volt hot water heating element.
  • Simarine panel.
  • Planar diesel heater controller.'

​

Is this still available?
