2023 Custom Built 7’x12’x7' Tandem Axle Camper Overland Trailer

[SpadeGrp]

Asking $39,500/OBO (less if optional equipment is not needed/wanted)
Located in Marshall, VA 20115
*Can share more/better pictures, etc via private chat

Platform – Towable with Midsize or Larger Truck​

• 7,000 lb Heavy Duty Aluminum Wrapped Trailer w/ new offroad Kenda ST235/75R15 Load Range D
• Over/under kit installed on axles for additional ground clearance
• Electronic disc brakes
• All trailer lights are LED & trailer hook-up is a 7 pin
• 2 ½” hitch receiver w/ 3,500 lb electric jack
• Tongue mounted generator platform, house battery, propane tank, & additional hose/cord storage
• Underside completely waterproofed with rubber membrane & PT plywood
• All joints sealed w/ caulk, spray foam, &/or Rustoleum
• 2” foam insulation installed throughout entire trailer (walls, ceiling, floor – built up to accommodate)/ 1.5” Foam in rear door (total of 30R value)
• ½” plywood on walls/floor for rigidity of trailer
• 200 watts of roof mounted solar

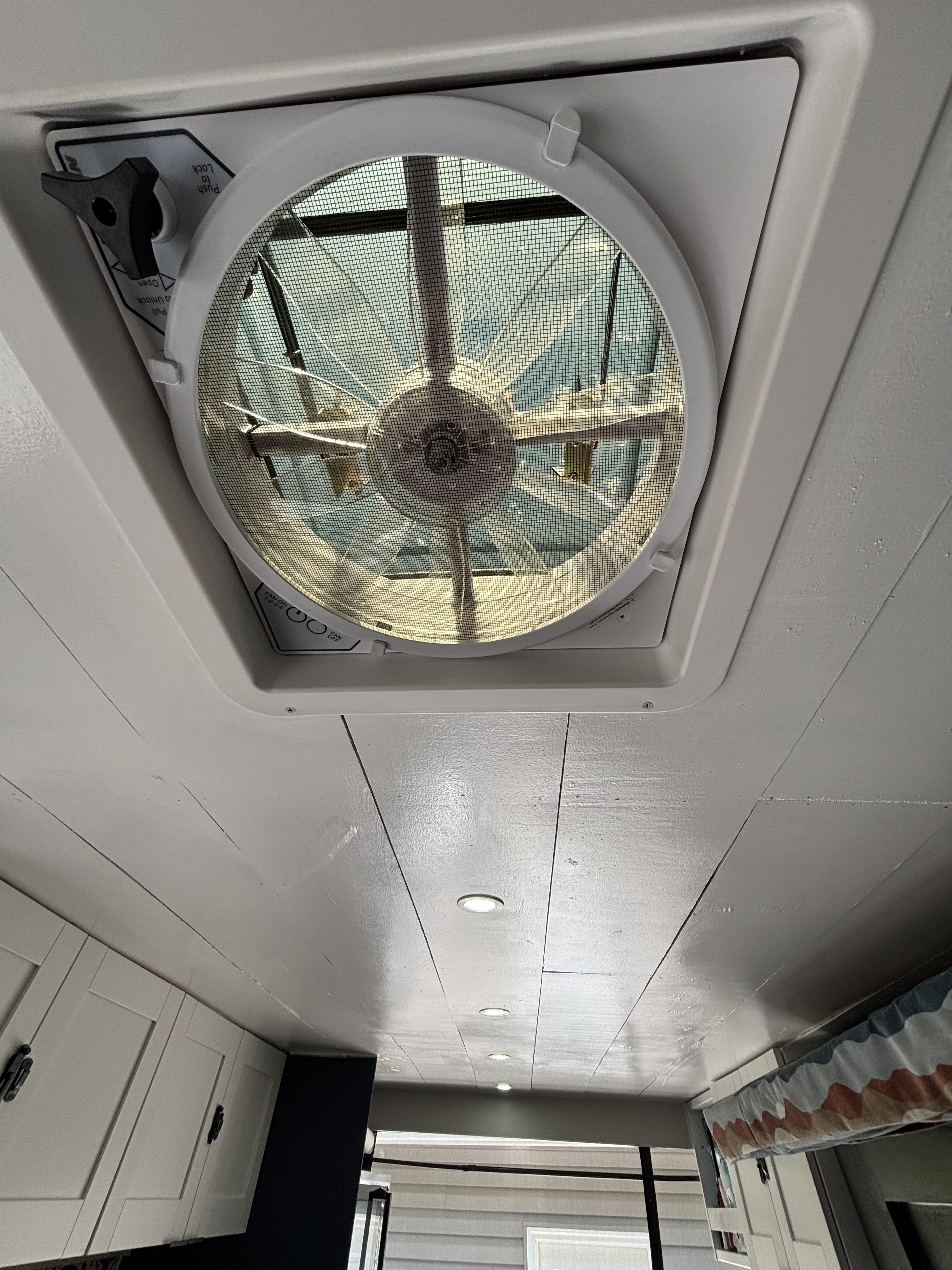

• Max Air fan

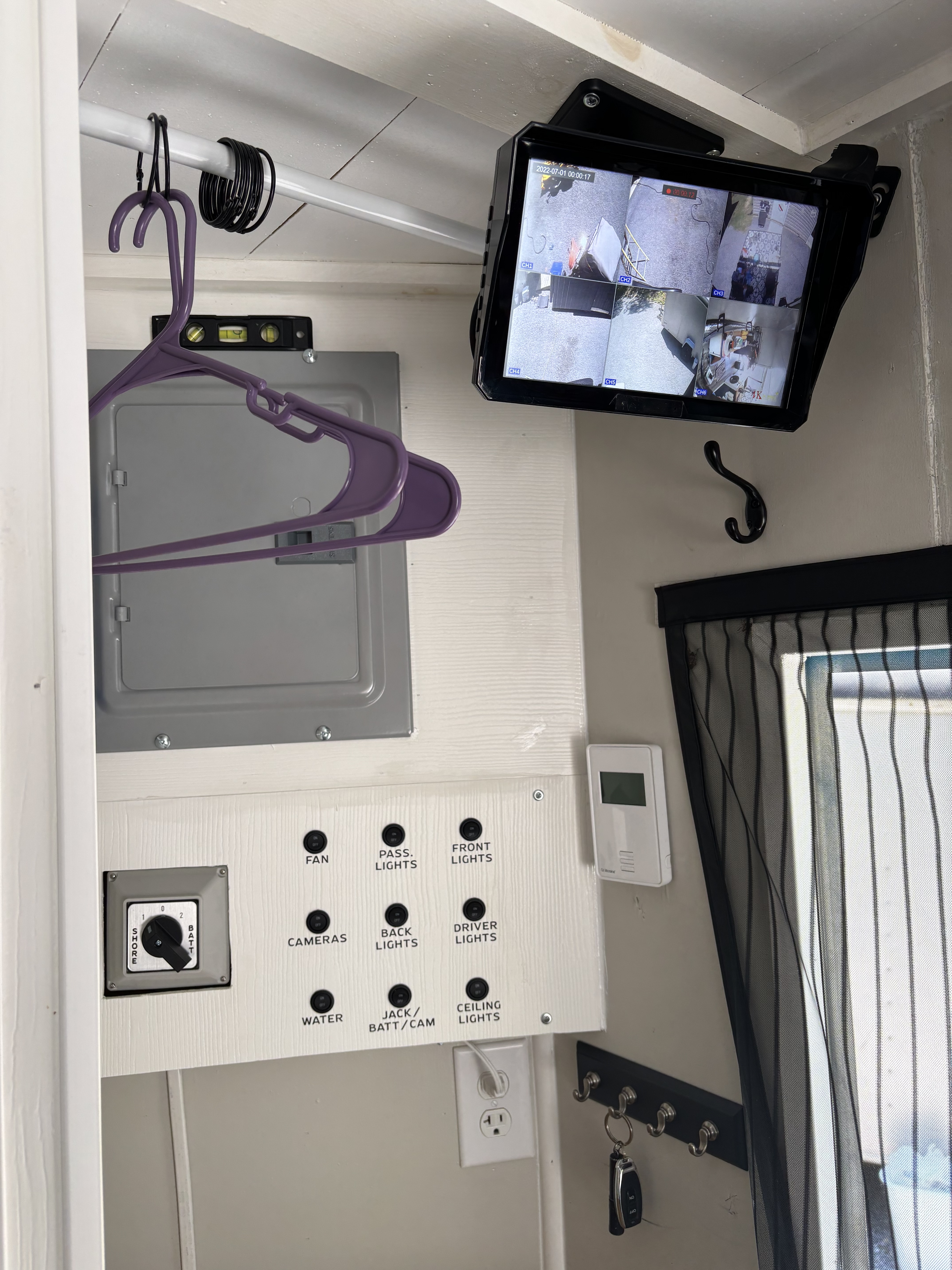

• 5 cameras providing 360 degree coverage that record to internal system w/ removable SD card
• 8 exterior LED mounted lights for 360 deg coverage
• Wireless back-up camera system for towing vehicle
• 4 – 5k scissor jacks installed for leveling
• 6 – modular racks for kayaks, bikes, spare tire, etc.
• Rear awning that opens to cover drop down door providing additional 49 sq ft of living space
• Rear door has 2 modular – 1k scissor jacks for leveling
• Propane remote to rear door for external grill

Electrical –​

• 30 amp fuse box installed with changeover switch
• Westinghouse iGen4500 AutoStart Generator (optional equipment- $800)
• Anker 767 Powerhouse 2048Wh Battery w/ 30 amp hookup (optional equipment- $1,000)
• All 110v done with 12 gauge

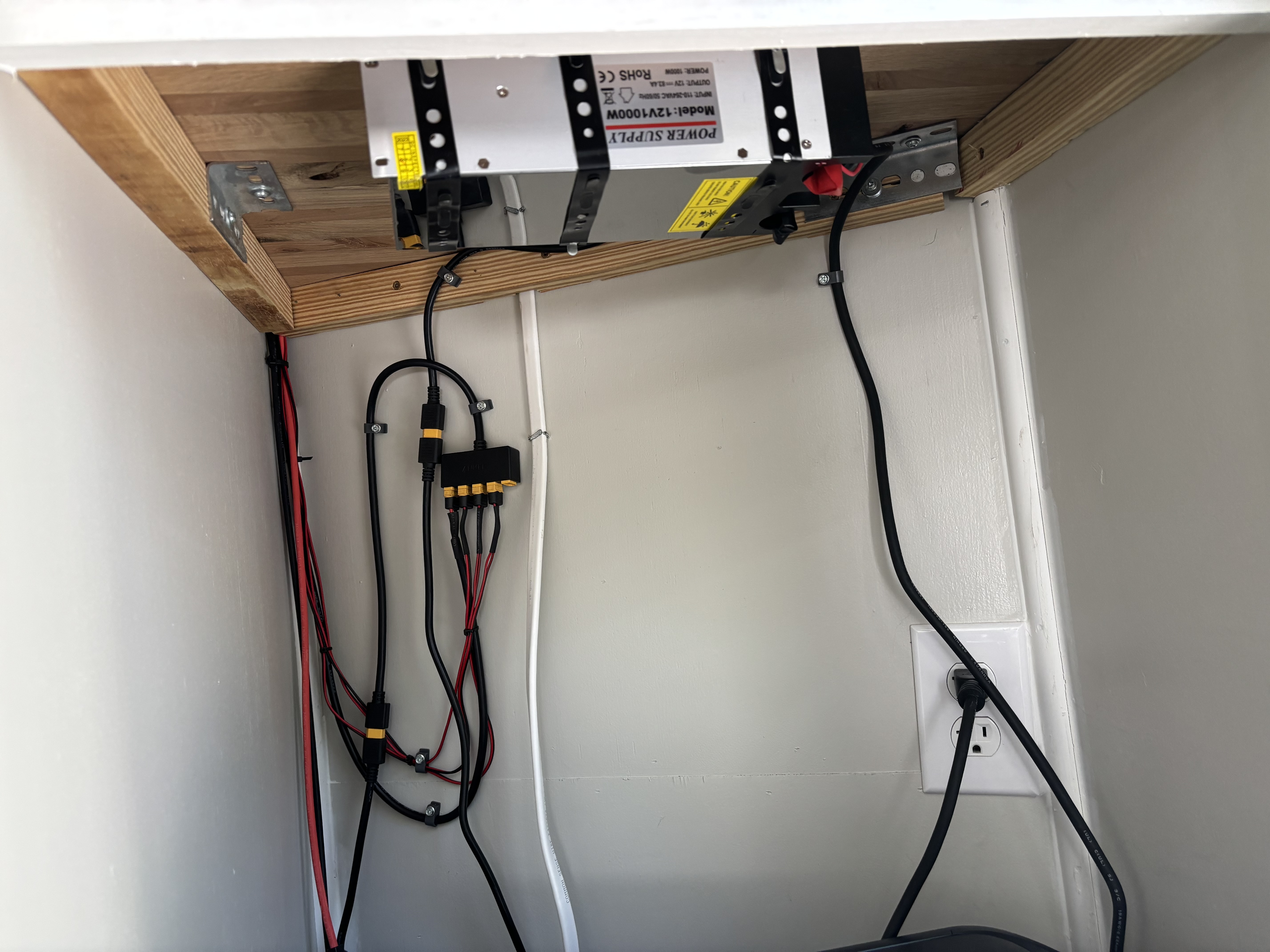

• 1000w AC to DC converter
• DC controls all LED lights, water pumps, fan, ext cameras, ext lights, trailer jack/battery/backup camera

Plumbing –​

• Pex lines used for anything under pressure
• Braided lines used for drains
• 20 gallon fresh water tank w/ tank gauge
• 20 gallon gray water tank w/ tank gauge
• No black water – Cassette toilet

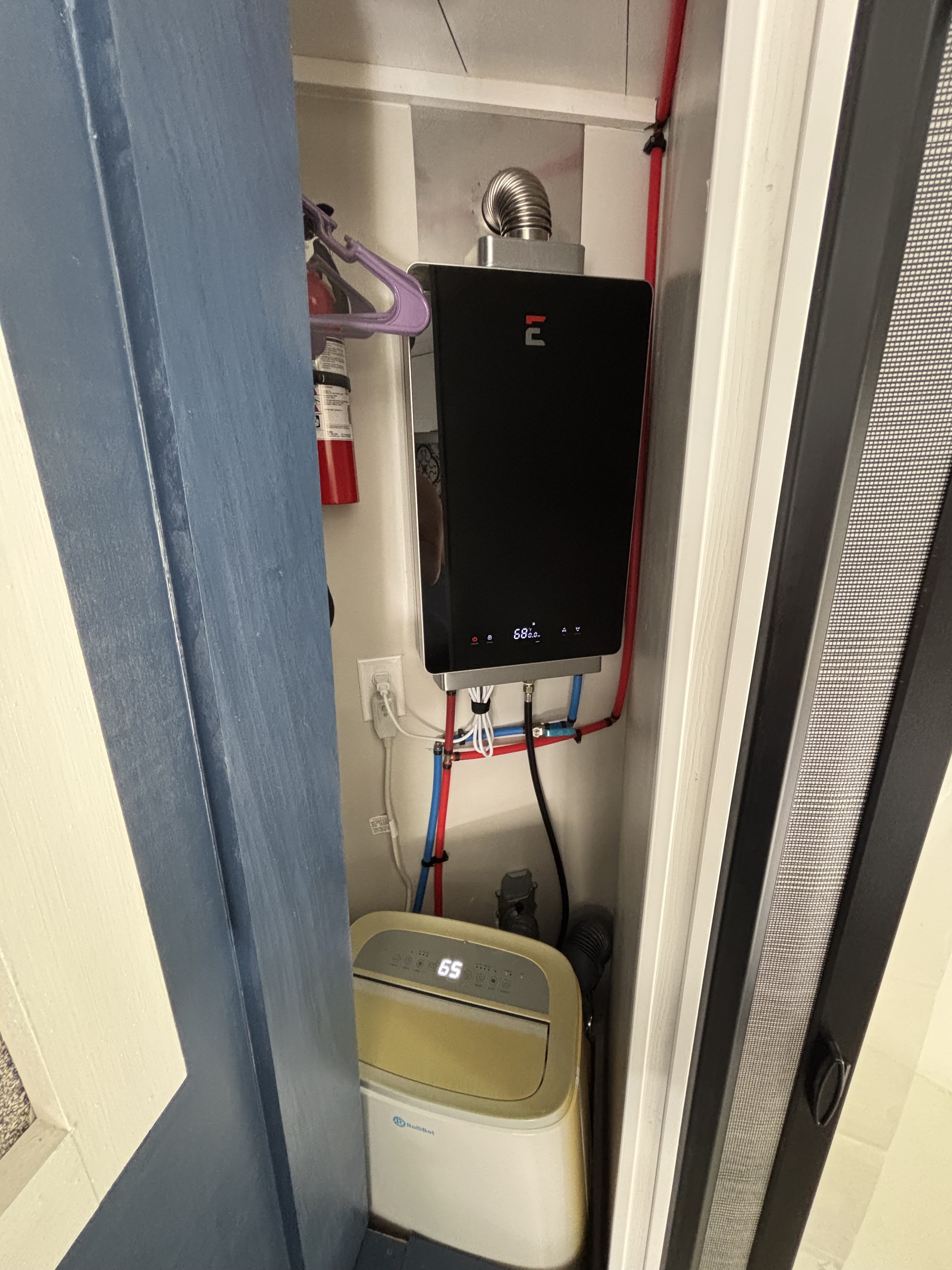

• 4 GPM Propane water heater
• 5.5 GPM (70 PSI) water pump
• Electronic touch on/off kitchen faucet
• Easy on/off shower head to conserve water
• Can be hooked up to city hook-up or can be filled with a hose/jug (fill located on side of camper)

Additional Details –​

• Full size murphy bed
• Bench seating with custom made cushions
• 14,000 BTU AC/Heat/Dehumidifier unit – WIFI/remote controlled, 55dB (ultra quiet)
• Heated Floor (electric)
• Luxury Waterproof Plank Vinyl Flooring

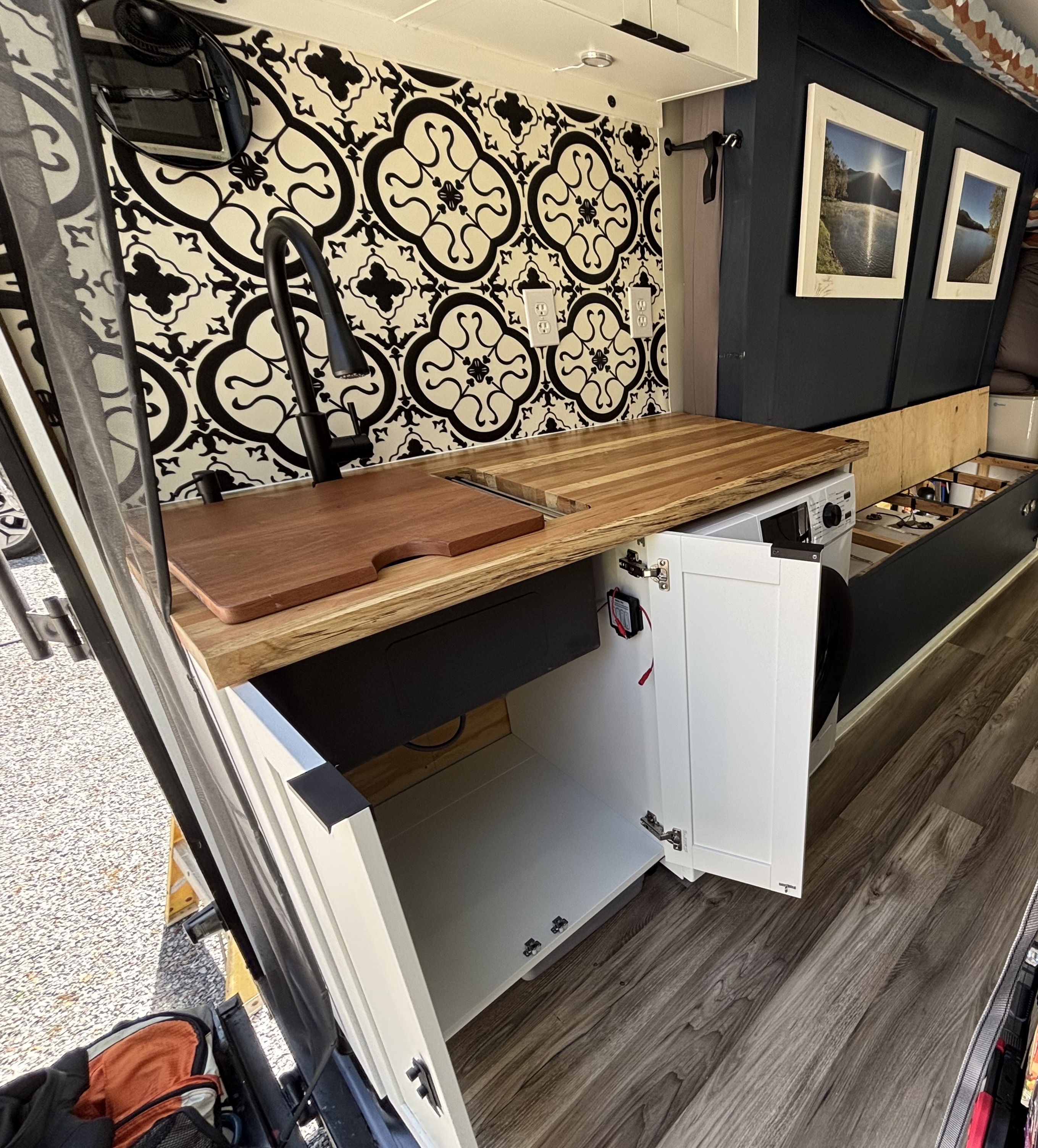

• Custom Butcher Block Counter Tops

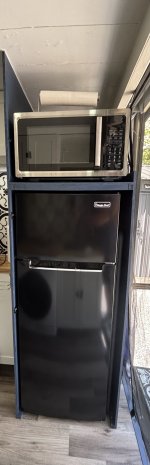

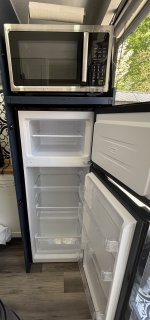

• 1.5 cu ft air fryer/microwave combo (optional equipment - $100)
• 7.3 cu ft fridge freezer combo (optional equipment - $200)
• 2.7 cu ft washer dryer combo (optional equipment - $900)
• Deep Black Stainless Steel Kitchen Sink

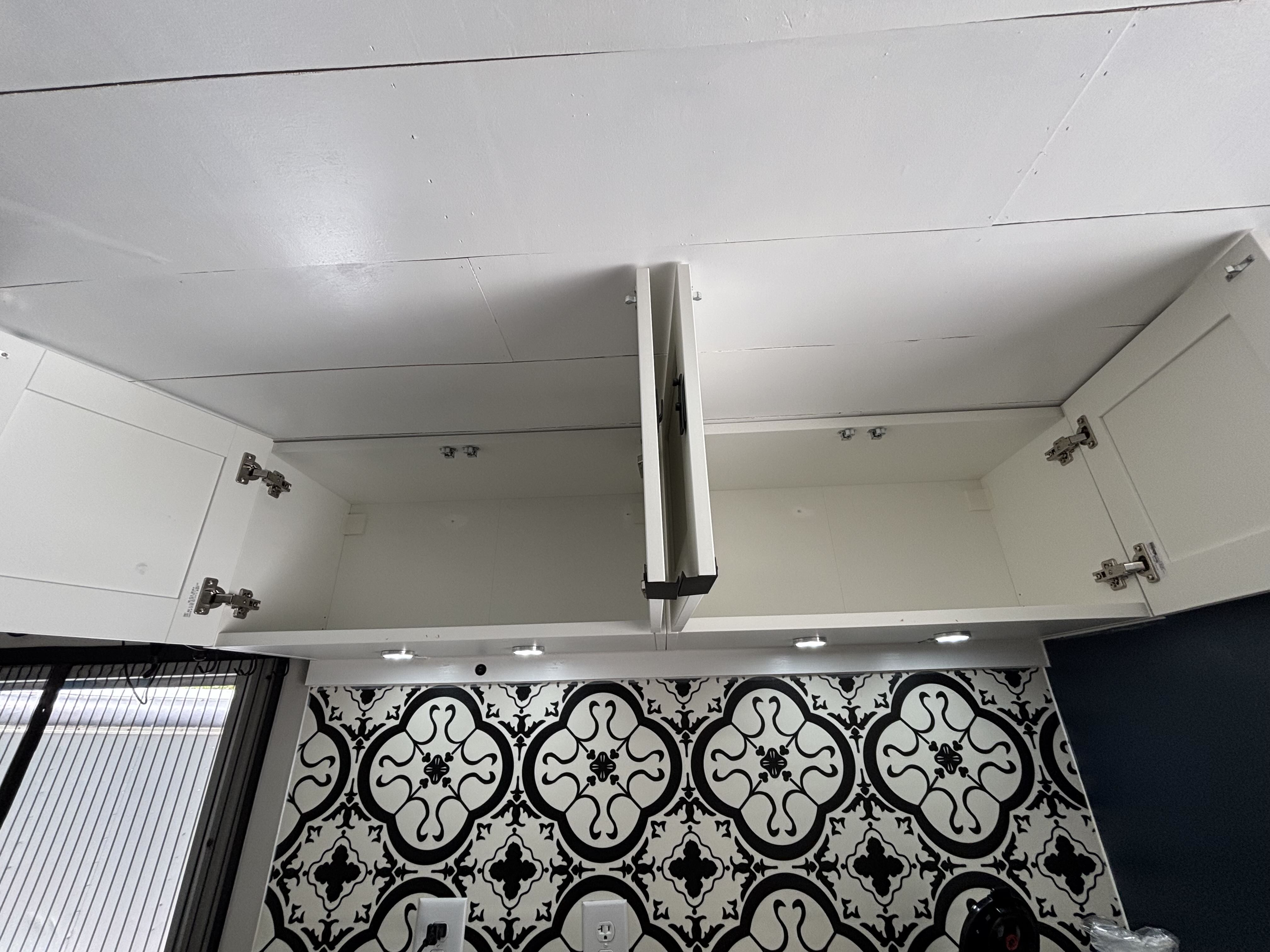

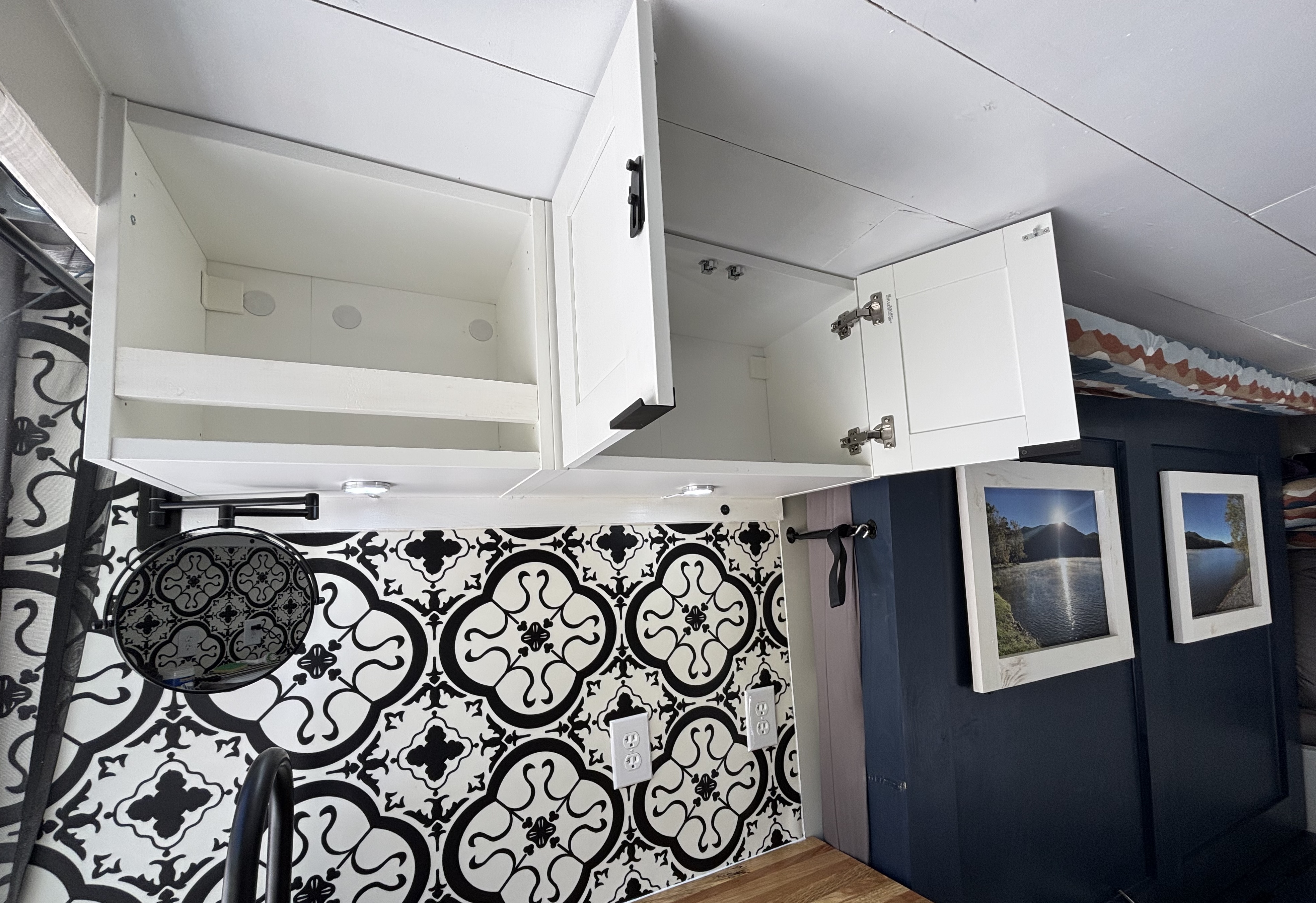

• Lots of built in cabinet storage with cabinet door locks to prevent opening during travel
• Hanging storage
• Magnetic screens on both doors
• Built in tie downs throughout for securing extra camping gear in trailer

This unit has been built to last! Pictures of the entire build process can be provided to show the quality of the build, ensuring you are getting a superior product over any standard camper purchase. With a solid aluminum exterior, built on a rock solid, heavy duty, tandem axle frame, this camper will last for decades with minimal upkeep. The size and weight of the camper makes it easy enough to maneuver just about anywhere with a midsize truck. The amenities inside make it feel like a $150k + class A; I mean you can do your laundry if you want! The level of insulation will keep you comfortable regardless of the temperature outside. Overall, this is a fantastic option for anyone looking to get completely off the grid or to camp with full hook-ups. We have done both with zero issues.
