Iveco Massif compared to the Land Rover Defender?
- Thread starter Oshkosh-P
- Start date
J!m
Active member
I know the Defender all too well. I’m am not however, familiar with this Iveco. Do you have a link to the model you have in mind?
But if it’s leaf sprung, that’s a mark against it already...
If you have specific Defender questions, I’m happy to help as best I can.
There are three frame types:
Standard
Military
Special
Standard us fully boxed and pretty damn tough.
Military adds plating top and bottom and a few reinforcements to key suspension attachment points. Also has a different rear crossnember.
Special is the one I didn’t know existed until I got my truck. I think it may have been an “a la carte” style out of Special Vehicles, but in my case, it is basically a standard frame, fully plated like a military, front and rear sway bars, and more gussets and reinforcements than the military. Mine was made for a UK power company and also has The concentric rear springs (making it a 1-ton).
But if it’s leaf sprung, that’s a mark against it already...
If you have specific Defender questions, I’m happy to help as best I can.
There are three frame types:
Standard
Military
Special
Standard us fully boxed and pretty damn tough.
Military adds plating top and bottom and a few reinforcements to key suspension attachment points. Also has a different rear crossnember.
Special is the one I didn’t know existed until I got my truck. I think it may have been an “a la carte” style out of Special Vehicles, but in my case, it is basically a standard frame, fully plated like a military, front and rear sway bars, and more gussets and reinforcements than the military. Mine was made for a UK power company and also has The concentric rear springs (making it a 1-ton).
Hello,
well i personally would not mind leaf springs, as they are tough&simple (even put less stress on the frame
). But the biggest bonus of the Iveco is always the engine.
However i am always gratefull for any informations about frames, because to this day they is very little information out there. People compare engines and axles of various offroaders, cars and trucks alike, all the time, but the very backbone is always never compared.
And what you say is also very interesting, because i looked into this myself a while back and got mixed answers.
As far as i know the Defender frame is 185x70x2mm in the mid section, making it the second largest of its class. (after the Toyo J200 with 185x90x3.2). But the very thin metal compromises the strenght and is of course a problem with rust.
So i too was thinking, that the Wolf Defender might have a stronger frame, but this answer from richards chassis made me doubt that:
This was always strange to me because i know there are Defender Version with a GWV of 4-4.5 tons and in that weight class frames are usually a LOT stronger.
Greetings
well i personally would not mind leaf springs, as they are tough&simple (even put less stress on the frame
). But the biggest bonus of the Iveco is always the engine.However i am always gratefull for any informations about frames, because to this day they is very little information out there. People compare engines and axles of various offroaders, cars and trucks alike, all the time, but the very backbone is always never compared.
And what you say is also very interesting, because i looked into this myself a while back and got mixed answers.
As far as i know the Defender frame is 185x70x2mm in the mid section, making it the second largest of its class. (after the Toyo J200 with 185x90x3.2). But the very thin metal compromises the strenght and is of course a problem with rust.
So i too was thinking, that the Wolf Defender might have a stronger frame, but this answer from richards chassis made me doubt that:
This was always strange to me because i know there are Defender Version with a GWV of 4-4.5 tons and in that weight class frames are usually a LOT stronger.
Greetings
Something to add: Isnt any 110 Pickup or 130 Pickup able to carry more than one ton?
Here is the IVECO by the way: https://suchen.mobile.de/fahrzeuge/...searchId=f4cf53bc-1e42-d9b5-54f8-fa86c00a1f28
Here is the IVECO by the way: https://suchen.mobile.de/fahrzeuge/...searchId=f4cf53bc-1e42-d9b5-54f8-fa86c00a1f28
J!m
Active member
Defender frames are pretty narrow scope.
110 frames are all the same material thickness yes, but once you fully plate top and bottom, you not only double thickness over the length, you also reinforce the seam weld of the original frame which is two C sections welded together to make the box. Series trucks were four flat plates welded at the corners to make the box. Those welds are crack propagation points as well. I won’t bore everyone with the corrosion...
110’s convert to “one ton” with concentric coils in the rear. 110s and 127/130 share the same springs. That surprised me as well when I wanted to up rate my suspension...
Rear axles are Salisbury on 110 and 127/130. Fronts are all Rover and 90 rears are Rover.
110 frames are all the same material thickness yes, but once you fully plate top and bottom, you not only double thickness over the length, you also reinforce the seam weld of the original frame which is two C sections welded together to make the box. Series trucks were four flat plates welded at the corners to make the box. Those welds are crack propagation points as well. I won’t bore everyone with the corrosion...
110’s convert to “one ton” with concentric coils in the rear. 110s and 127/130 share the same springs. That surprised me as well when I wanted to up rate my suspension...
Rear axles are Salisbury on 110 and 127/130. Fronts are all Rover and 90 rears are Rover.
So the standart 130 has the same rear axles as the 110 military or civil? How do the LR axles compare to Mercedes G/Nissan Patrol? And how does the Wolf Chassis compare?
What do you mean by narros scope? 8non Native speaker)
I guess special frames like yours are most likely to be found under a 130 with some sort of special purpose like tow truck?
What do you mean by narros scope? 8non Native speaker)
I guess special frames like yours are most likely to be found under a 130 with some sort of special purpose like tow truck?
LandCruiserPhil
Expedition Leader
Dont rule out Bremach IIRC is has the same power plant as the Iveco but a smaller cab and footprint
J!m
Active member
The 110 and 130 use the same rear axle, yes. Not much help if you are not from North America, but is is similar to a common axle here the DANA 60. Very strong design.
By “narrow scope” I meant not a lot of variety.
J!m
Active member

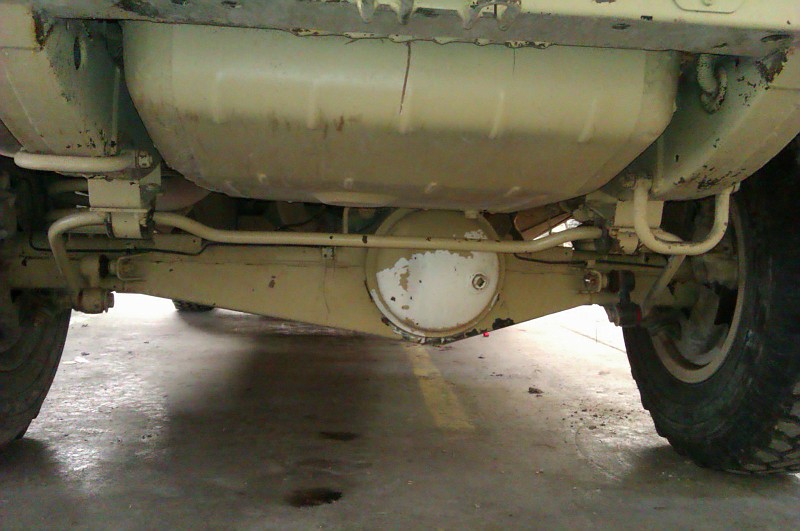

Is that a Wolf 90? That’s a Rover rear axle with stiffeners added. Old 109 1-ton trucks had that.
I thought all Wolfs were 110’s and they would have SAilsbury axles out back.
Those “jate rings” on the frame look familiar... I have them on my 110 as well. Simple but effective. Of course, they are always buried in the mud when you need them... I put a strap on and throw it in the back before I go out.
I have a Dixon- Bates rear recovery point I switch with a class III receiver as needed.
I thought all Wolfs were 110’s and they would have SAilsbury axles out back.
Those “jate rings” on the frame look familiar... I have them on my 110 as well. Simple but effective. Of course, they are always buried in the mud when you need them... I put a strap on and throw it in the back before I go out.
I have a Dixon- Bates rear recovery point I switch with a class III receiver as needed.
bear cub
New member
The Iveco is basically a Santana PS10?
They come up second hand here in the UK from time to time for no money: £3,500 for a '05 with 65k miles
https://www.ebay.co.uk/itm/Santana-...h=item26080068f0:g:zlcAAOSw9~5ZW6Ln:rk:3:pf:0
They have grown from Santana's historic relationship building export & european market landrovers. From what I undetrstand they're more of an updated Series 3 (leafs etc) than a Defender clone....
B
They come up second hand here in the UK from time to time for no money: £3,500 for a '05 with 65k miles
https://www.ebay.co.uk/itm/Santana-...h=item26080068f0:g:zlcAAOSw9~5ZW6Ln:rk:3:pf:0
They have grown from Santana's historic relationship building export & european market landrovers. From what I undetrstand they're more of an updated Series 3 (leafs etc) than a Defender clone....
B
