M1101 Military Trailer
Houston, Texas
$3000 or open to trades.
TRAILER CURRENTLY LOCATED IN HOUSTON.
Price negotiable based on pickup arrangements and open to trades.
Comes with Bill of Sale and all prior Government Titles and sales paperwork in my name to get TX Title.
----------------------

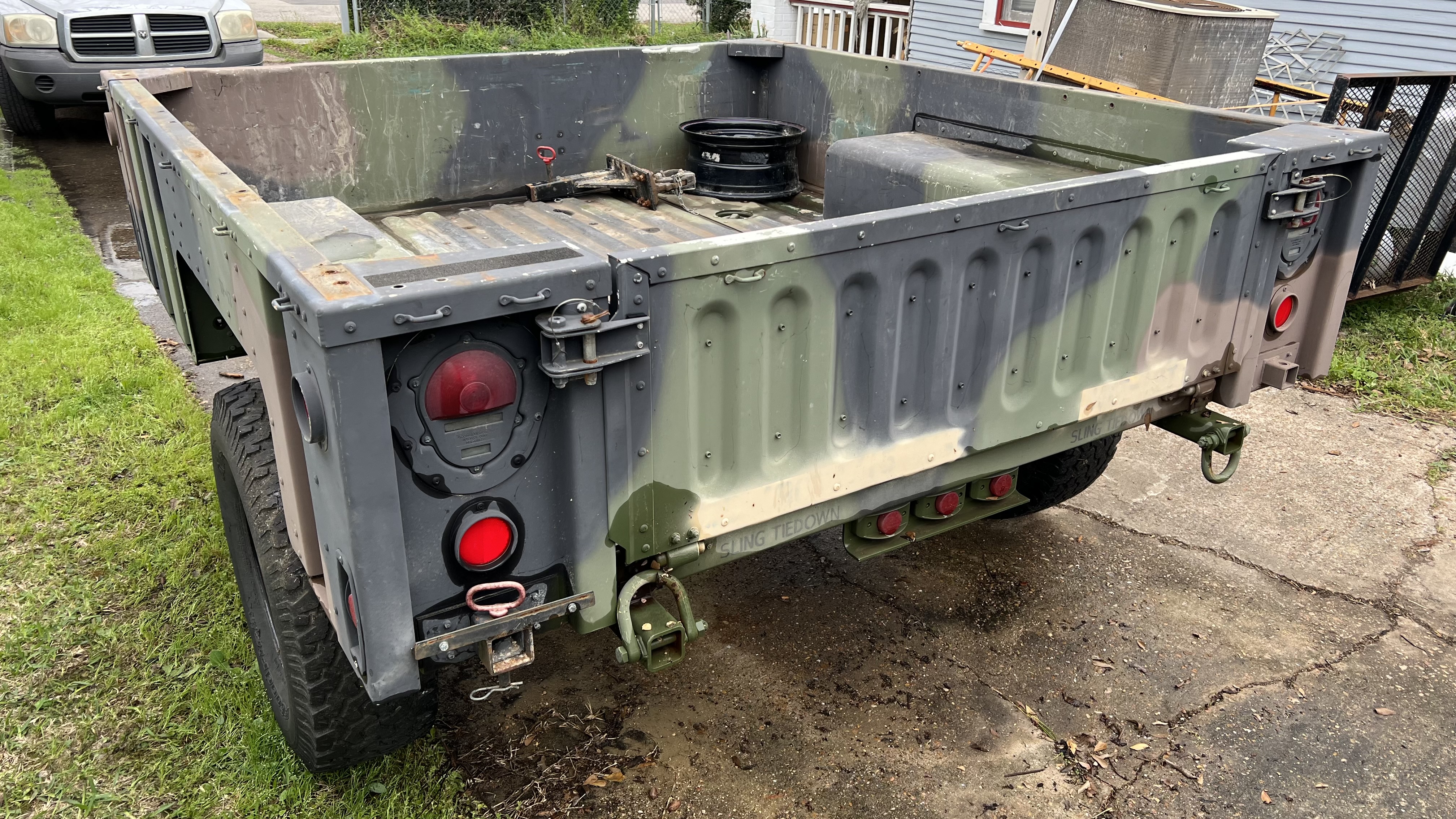

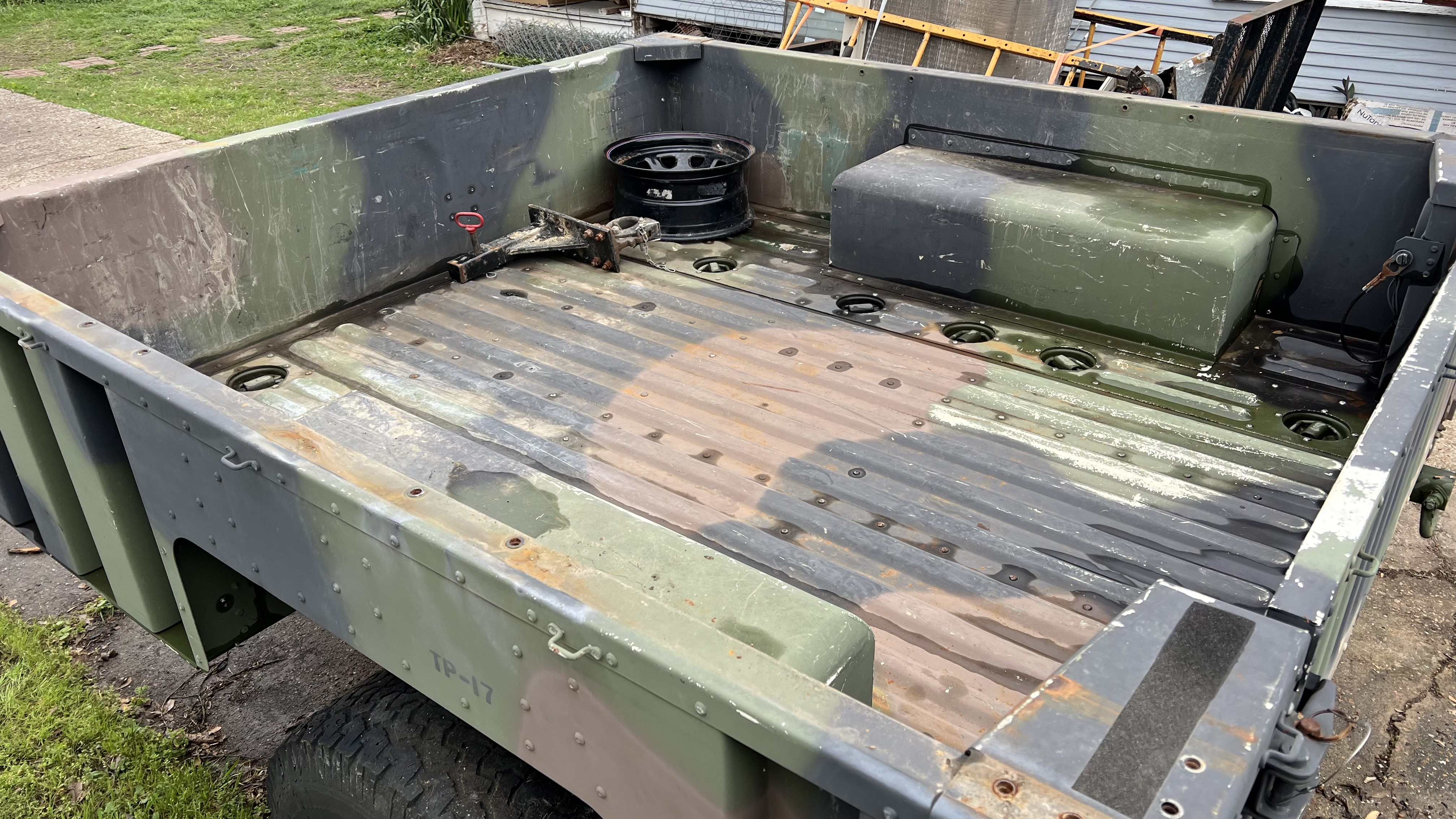

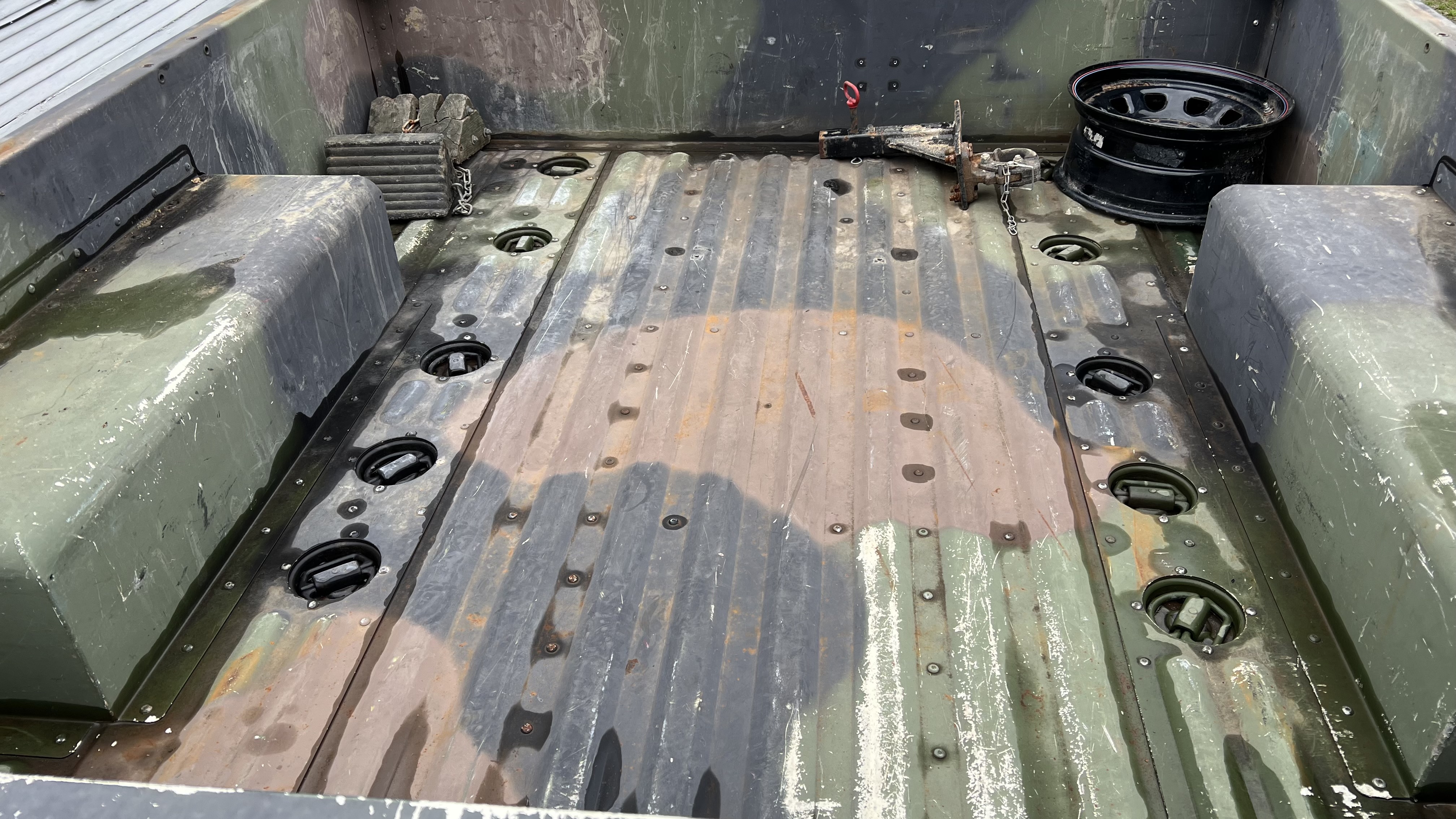

It's time to rehome our 2007 Schutt M1101. The M1101 is a steel frame, aluminum box trailer that pulls extremely well when loaded. It can be a little bouncy when empty but still pulls great. It has surge brakes which also work great.
I have replaced the mil-spec tires and rims to lower the overall height of the trailer by about 2-3 inches from spec. Trailer will come with one mounted spare, and one addition rim.
Brake lights have been changed to 12v LED and have a 4 way flat connection.
I have all paperwork, including original government title, and will provide a bill of sale as needed to obtain a title. Current tags are expired so temp plates or other arrangements will be required.
I'll post specs as found online below.
Thanks for reading.
NSN #:
2330-01-387-5443
M1101 3/4 Ton Aluminum Cargo Trailer HMMWV
M1101 Aluminum Cargo Trailer
Maximum Vehicle Weight:
M1101: 4200 lb (1905 kg)
Curb Weight 1460 lb ( 662 kg)
Maximum Payload Capacity
M1101: 2740 lb (1243 kg)
Hull Unitized body construction using aircraft grade aluminum and chromoly steel
Overall Length 132 inches (335cm)
Overall Width 85.6 inches (217 cm)
Overall Height 52.5 inches (133 cm)
Overall Height w/Soft Top Kit 99.5 inches (253 cm)
Track Width 72.5 inches (184 cm)
Drawbar Length 93.2 inches (237 cm) (from axle center to eye center)
Drawbar Eye Height 29.5 inches (75 cm)
Deck Height 34.5 inches (88 cm)
Ground Clearance (Laden) 16 inches (41 cm)
Suspension Type Fully independent progressive rate trailing arm suspension
Axle Tubular steel
Spring Media Progressive rate torselastic rubber chords
Shock Absorbers Telescopic, direct acting, one per wheel, HMMWV compatible
Wheels 16.5 X 8.25, two piece steel, HMMWV compatible, 8 on 6.5 inch bolt pattern
Tires 37X12.50R16.5 Goodyear Wrangler M/T, with 30-mile runflat inserts, HMMWV compatible
Brakes 12 inch x 2 inch free backing hydraulic surge brakes with automatic breakaway actuation. Independent lever-operated left and right side mechanical parking brakes.
Electrical System 24 Volt DC sealed lighting system with blackout convoy lights, 12 pin connector plug mates with HMMWV
Max Speed (Primary Roads) 55 mph (88 kph)
Max Speed (Secondary Roads) 35 mph (56 kph)
Max Speed (Off Road) 20 mph (32 kph)
Departure Angle 39 degrees
Turning Angle 80 degrees
Fording 60 inches (152 cm)
Trade options include:
dual sport, motorcycle, 4x4, 4wd, off grid, camping rig, adventure, offroad, off road, jeep, four wheeler, 4 wheeler, boat, sailboat, fishing,
