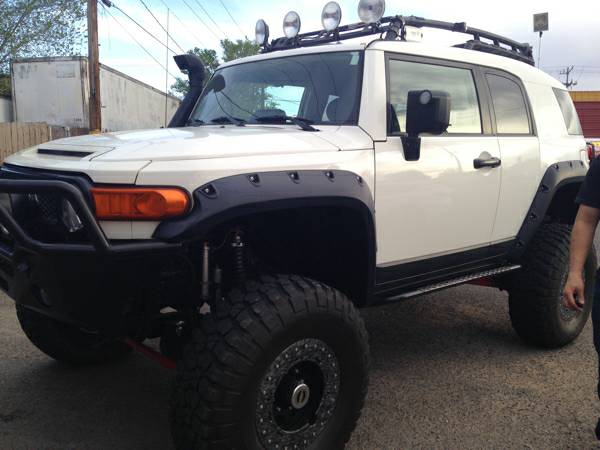

Supercharged 2008 Toyota FJC Trail Team Edition extremely modified. No expense was spared when building this beast. Featured in two magazines (Petersen's 4Wheel & Off-Road and 4x4 Garage). Appraised Value was $52,000. SELLING FOR 42,0000
47,000 miles not much put on since i bought it.
Drivetrain:
Toyota 1GR-FE engine with A750F 5 speed transmission with oil cooler.
URD Super charger with 80 mm pulley, under hood water 2 air intercooler, front mounted radiator and supercharger oil cooler. URD 7th injector kit and a URD 255LPH Walbro fuel pump. Doug Thorley Headers stock Precats, rear cat delet, custom routed hi clearance exhaust 2,5 inch. Magnaflow muffler, hi clearance tail pipe. There is also a painless dual battery setup, Optima red main and Optima yellow secondary.
Steering:
Links: Borgeson Gear: Howe IFS Steering box Valved, tapped Ram: Howe 2" x 8" hydro- assist ram Pump. Howie performance TC pump steering: Toyota IFS steering box tapped for hydro assist.
Brakes:
Stock 3500 excellent rotors and pads, remanufactured calipers stainless steel hoses. B&M super synthetic oil. Rockcrusher diferential cover, lube locker gasket, WFO 1350 YOKE
Suspension:

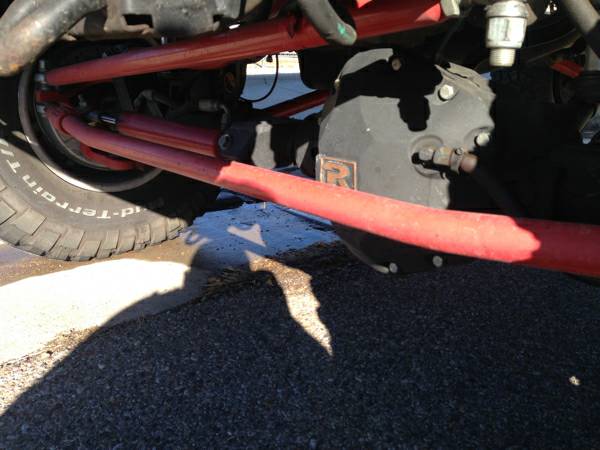

Axles: Front 35spl Dana 60, ARB, Warn Supreme locking hubs.

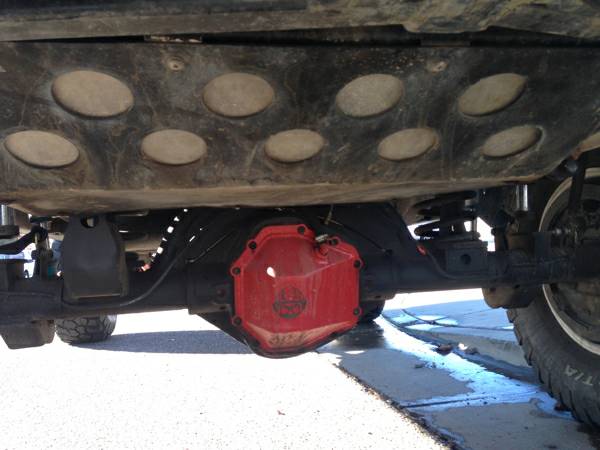

Rear FF Dana 70, ARB 5:86 R&P. Atlas 5.0 Transfer case and A/A ebrake off t-case
REAR
Type: 3-link with panhard
Coils: OME420 Landcruiser Competition Coils

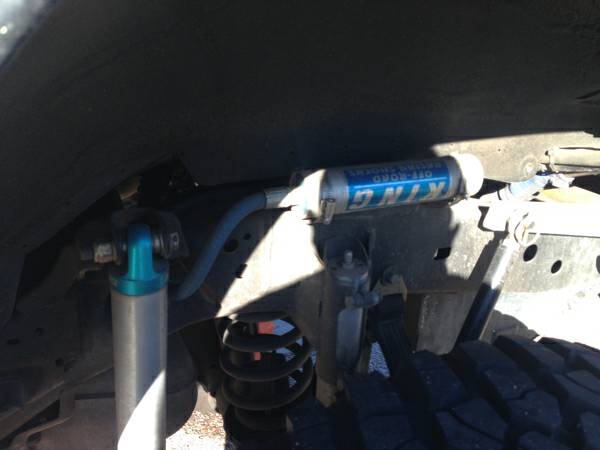

Shocks: KING 2.0 x 10" travel remote reservoir shocks (Custom built for this truck)
Bump stops: Fox 4" travel 2.0 air bumps (Set to 2.5in travel)
Shock mounts - Ballistic Fabrication coilover towers
Brackets: Ballictic Fabrication
Frame plates: 3/16 Frame Plating (front frame rails inner and outer, scab plates at upper link mounts)
Swaybar: Rock Equipment 'Rock Crawler' Swaybar (aluminum arms)
Limit Straps: Bears 13in
Body Lift : 4Crawler 1.25in
Transfer case
Tcase: Atlas 5.0
Adapter: Advance Adaptors FJ Cruiser Adaptor
Fr Output shaft: 32spl 1350 with Driveline Specialties Deep throat yoke
Rr Output shaft: 32spl 1350 CV Style
Shifters : Twin cable shifters w/Billet knobs
Crawl ratio: 205:1
Speed sensor: GM VSS wired to Digital Dakota Speedo Calibration Unit.
Other: Advance Adaptors rear output disc brake parking brake setup
Driveshafts:
Coast Driveline rear CV 1350
Coast Driveline front 1350
ARMOR

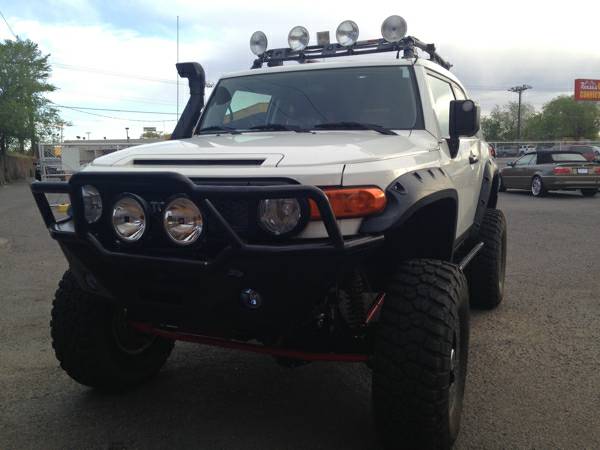

Front Bumper: Man-A-Fre "OzBogan" Front winch bumper
Rear Bumper: Man-A-Fre Kaymar Swingout with tire carrier modified to fit 40in tire, and swingout with ladder/quart crate.
Sliders: Man-A-Fre Wide
Skid plates: Budbuilt gas tank skid
Belly pan: Flat belly cross member Laser cut
Flares: Bushwacker Pocket Style Fender Flares
ELECTRICAL:
Horns : Hella
Auxillary fuse boxes : primary battery - under hood
: secondary battery - under hood and under dash
Inverter : Stock rear 400w.
: Secondary under seat 400w
B : Uniden 40ch CB radio/ Firestick cable/antanna
:Secondary hand held on bar.
FRS : Cobra FRS pr
Cameras : Front and rear cameras hooked up to toggle switch and screen mounted above center console on cage.
Interior Lighting : 30LED pods in both roof lights.
: Hella Adjustable Red roof light

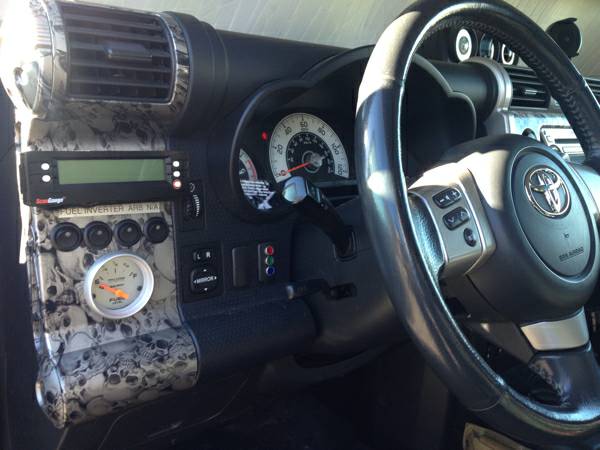

Instruments : Scanguage 2 xguage
: Stealth boost guage install
12v power outlets : one extra in center console, two in rear. Also has 12v direct power for ARB (etc) refrigerator in rear.

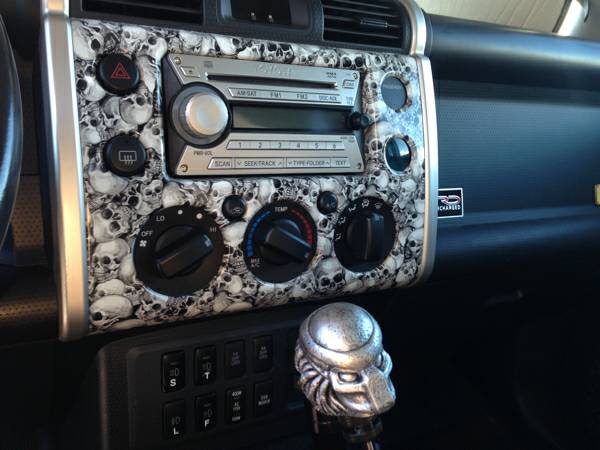

All Fog/Spot lights / Lockers operated by factory toyota labelled switches in the center console.
LIGHTING:
2x Hella 4000's on the front bar.
4x Hella 500s on roof Defender light Rack
2x Hella 550 Fogs on side of roof rack
Front 4in fog lights on bumper.
Hella Worklight on Kaymar rear bar (hooked to reverse and a seperate switch for camping)
Hella Headlight Upgrade bulbs
Vision X Tantrum LED Remote Rock Lights (8)
Aeroflow HLC Covers
underhood LED bar
OTHER/MISC
ARB Safari Snorkle
Man-A-Fre Long Range Auxillary 19gal extra fuel tank (increased fuel capacity to 38gallons), hooked up for car-to-car transfer to help your buddies out!
Stock roof rack, defender roof light bar, hi-lift mounts, extra crossbars, roof storage bag.
Mag Lights front and rear, Fire extinguisher in the rear.
Wheelbase: 107"
Frame Height: 24.5"
Width : 85in
Height (roof) : 85in (not inc rack)
Cold A/C, Hot heat, All Airbags functional, no warning lights on dash, Cruise control works, Speedo is accurate. Tracks nice. Doesn't drive much different from a modified IFS vehicle.
Engine: Toyota Supercharged v-6
Front Axle: Dana 60, ARB Air Loker, 5.86 Gears
Rear Axle: Dana 70, ARB Air Locker, 5.86 Gears

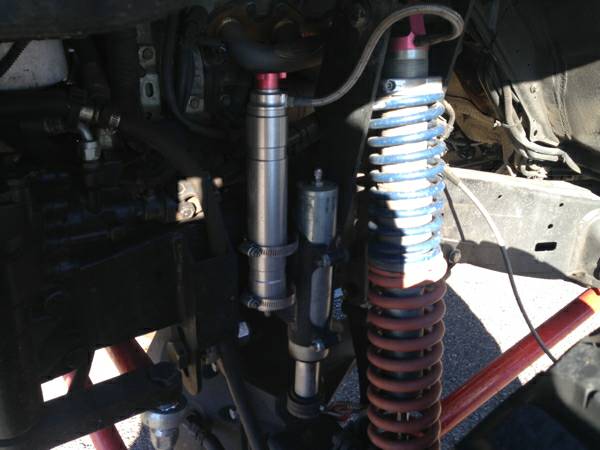

Springs: Walker Evans 2.0/14-inch Travel coilovers, Fox 4 inch air bums, custom 3 link in front; Fox 2.0/10 travel remote reservoir shocks, Fox 4 inch air bumps, Old Man Emu Land Cruiser Comp coils, custom 3 link in rear
Tires & Wheels: BFG Mud Terrain 40x13.5R MTR R17, Allied steel D-window, Staun internal beadlocks
So much more... Call or text Aaron 5059748080
