K&N isn't opinion. They filter worse than paper filters.
Nikson's '01 XJ Build
- Thread starter Nikson
- Start date
Nikson
Explorer
So, K&N is pretty much waste of money???
Nikson
Explorer
Rear Bumper...
as everything else in life... builds never stop...
So the build continues on to the rear bumper...
I've configured it to be similar to the front, so this way XJ looks very neat in its appearance. Bumper is configured to use winch on its receiver, as well as consideration for the rear tire carrier setup (that is yet to be done).

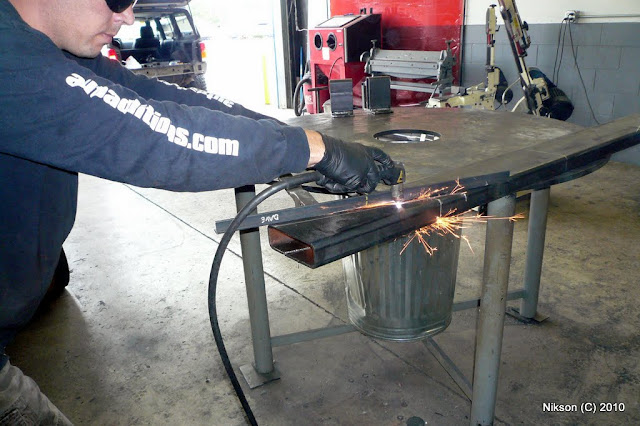

LETS CUT 'ER...
SIDE VIEW
PRE-WELDS / PRE-CUTS

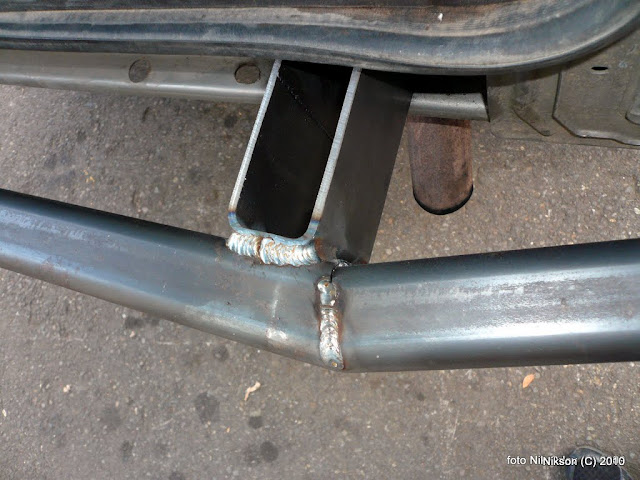

MOUNTS (from left overs of the beam)
HITCH SETUP
Something like this...
as everything else in life... builds never stop...
So the build continues on to the rear bumper...
I've configured it to be similar to the front, so this way XJ looks very neat in its appearance. Bumper is configured to use winch on its receiver, as well as consideration for the rear tire carrier setup (that is yet to be done).
LETS CUT 'ER...
SIDE VIEW
PRE-WELDS / PRE-CUTS
MOUNTS (from left overs of the beam)
HITCH SETUP
Something like this...
Nikson
Explorer
Rear Quarter TRIMS
Had to get rid of some extra's on the bottom of the quarter.
After putting on the bumper, bottom pieces just didnt fit right as they were.
Cutting them on sides and folding inside (as some have done)... wasn't my ideal plan. Had a buddy custom fab / laZer cut out of some 12ga. metal. Came out just as good as I've hoped.
With spring rolling around, will finish them up with welding some plates on the front/rear sides to finish the look of it...
Pictures worth 1000 words... as they say... so I think you'll get a basic idea on this mod.
LOVE TO TRIM...
WARNING: METAL CUTTER / BENDER in use...
FINISHED PRODUCT
Removing Extras...
IDEA WE WERE GOING AFTER...
SET IN PLACE
Had to get rid of some extra's on the bottom of the quarter.
After putting on the bumper, bottom pieces just didnt fit right as they were.
Cutting them on sides and folding inside (as some have done)... wasn't my ideal plan. Had a buddy custom fab / laZer cut out of some 12ga. metal. Came out just as good as I've hoped.
With spring rolling around, will finish them up with welding some plates on the front/rear sides to finish the look of it...
Pictures worth 1000 words... as they say... so I think you'll get a basic idea on this mod.
LOVE TO TRIM...
WARNING: METAL CUTTER / BENDER in use...
FINISHED PRODUCT
Removing Extras...
IDEA WE WERE GOING AFTER...
SET IN PLACE
Canadian Moose
Adventurer
Looks great!
Nikson
Explorer

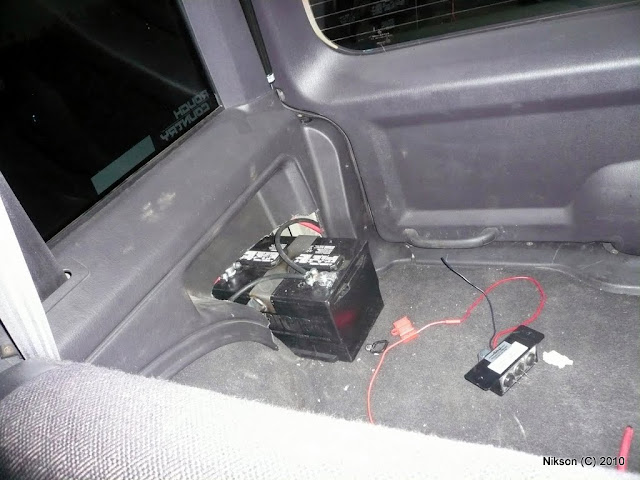

2nd (REAR) battery
With WARN been considered as a hitch receiver type, power needed to be ran into the rear part of vehicle.
Ran positive from the switch under the hood and connected it to the one in the rear. Not sure how / why / what / when... as far as all the "breakers" & monitors that others install.
I understand that my setup might be done in a very simple and not-very-thought-through way, but it works. I dont consider myself an expert electrician by any means, but believe to have common sense on most of things that I install. Feel free to ask questions...
As of now (almost 12mo. later), everything works and both batteries seem to operate just fine, keeping the winch running as well as other electrical things in the XJ. I have a LED flashlight that is connected into a cigarette plug which is connected directly to the rear battery.
Winch runs great both front / back, without any issues with electrical or charging system.
As always, pictures...
Rear Winch plug...
Just a quick "trim" and all done. Will have a panel made at a later time to cover it all up.
BATTERY SWITCH...
Find it very simple and easy to use... in case anything goes wrong, the breaker will turn off connection between batteries...
On previous trips, disconnected the batteries, and RAN everything off the rear battery - all 3 plugs on the connections were taken up by charging batteries on cellphones, laptop, DSLR, video, flashlights... Battery never went dead. In the morning, I would just start up the engine, turn on the breaker, and keep driving... next night would be same "charging" process of all accessories...
With WARN been considered as a hitch receiver type, power needed to be ran into the rear part of vehicle.
Ran positive from the switch under the hood and connected it to the one in the rear. Not sure how / why / what / when... as far as all the "breakers" & monitors that others install.
I understand that my setup might be done in a very simple and not-very-thought-through way, but it works. I dont consider myself an expert electrician by any means, but believe to have common sense on most of things that I install. Feel free to ask questions...
As of now (almost 12mo. later), everything works and both batteries seem to operate just fine, keeping the winch running as well as other electrical things in the XJ. I have a LED flashlight that is connected into a cigarette plug which is connected directly to the rear battery.
Winch runs great both front / back, without any issues with electrical or charging system.
As always, pictures...
Rear Winch plug...
Just a quick "trim" and all done. Will have a panel made at a later time to cover it all up.
BATTERY SWITCH...
Find it very simple and easy to use... in case anything goes wrong, the breaker will turn off connection between batteries...
On previous trips, disconnected the batteries, and RAN everything off the rear battery - all 3 plugs on the connections were taken up by charging batteries on cellphones, laptop, DSLR, video, flashlights... Battery never went dead. In the morning, I would just start up the engine, turn on the breaker, and keep driving... next night would be same "charging" process of all accessories...
Nikson
Explorer
Hid install
with time going by, IPF lights didnt seem to do the job I was hoping to get out of the headlights. Now days everyone seem to be taking the HID route, at times a bit extreme with (8500k + bulbs)... and not properly configured headlight units.
from what i've been told, the VISION-X aluminum housing headlamp units are perfect candidates for such job. Cool a lot faster then others (aluminum), and glass is clean with reflector having the design of light dispersion rather then the glass itself.
Here are the install pictures...

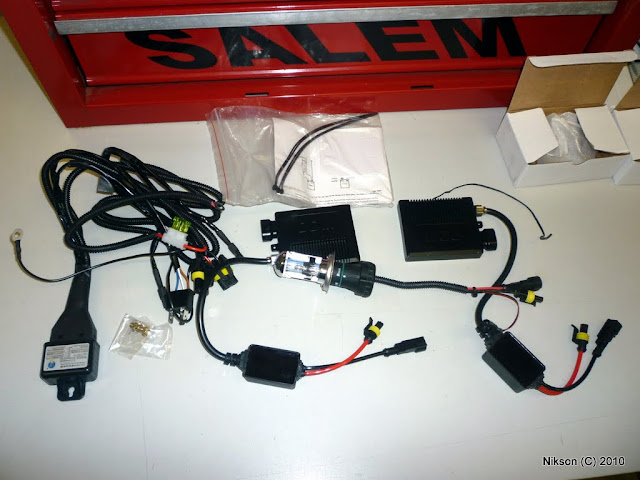

KIT COMPONENTS (DDM TUNNING)
HEADLAMP UNITS
OLD IPF UNITS

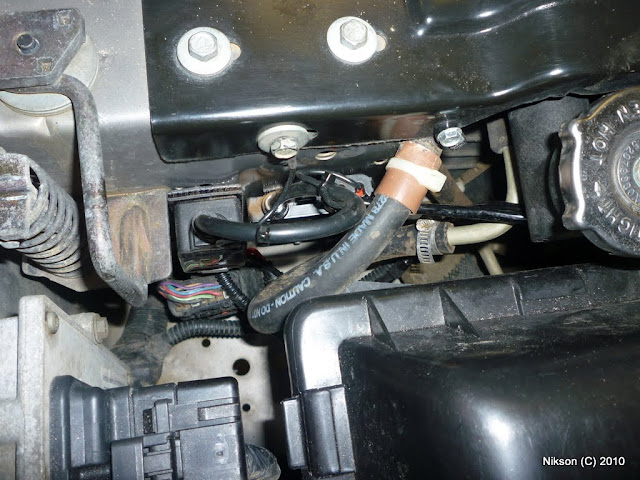

Drilled about 1 1/2 hole to run wires from headlamp to the ballasts (under hood)
THE SETUP
FINAL STAGE :ylsmoke:
with time going by, IPF lights didnt seem to do the job I was hoping to get out of the headlights. Now days everyone seem to be taking the HID route, at times a bit extreme with (8500k + bulbs)... and not properly configured headlight units.
from what i've been told, the VISION-X aluminum housing headlamp units are perfect candidates for such job. Cool a lot faster then others (aluminum), and glass is clean with reflector having the design of light dispersion rather then the glass itself.
Here are the install pictures...
KIT COMPONENTS (DDM TUNNING)
HEADLAMP UNITS
OLD IPF UNITS
Drilled about 1 1/2 hole to run wires from headlamp to the ballasts (under hood)
THE SETUP
FINAL STAGE
:ylsmoke:
Nikson
Explorer
SWbySWesty
Fauxverland Extraodinaire
I like the rear lower quarter panel pieces! Nice to have that shop and tools!
Nikson
Explorer
It tends to be a bit heavy, but I think its actually well worth it.
Honestly, I always hated that "carrier" look, but after winching myself out few times from the rear, I just "love" it now...
Nikson
Explorer
I'll consider mass production on that stuff...
They are pretty hard core, being that is isnt a thin metal... I would think they'll stand up to some "rock" beating...
Travelmore
Adventurer
Can we see a shot of the bumper with the hoops and lights on it? Also what make and model breaker/relay did you use for the dual battery?
Nikson
Explorer
Bumper update
Here is a little update on some gusset work & extra support on bumpers...
I guess I might be overkilling it, but I dont think extra "security" hurts...

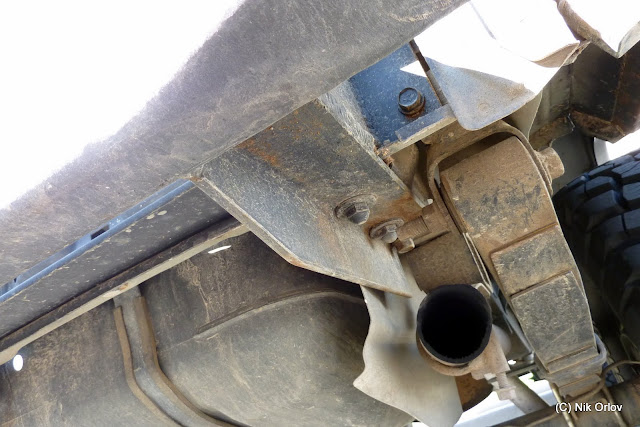

FRONT HITCH support on clip
UPPER VIEW of the REAR bumper...

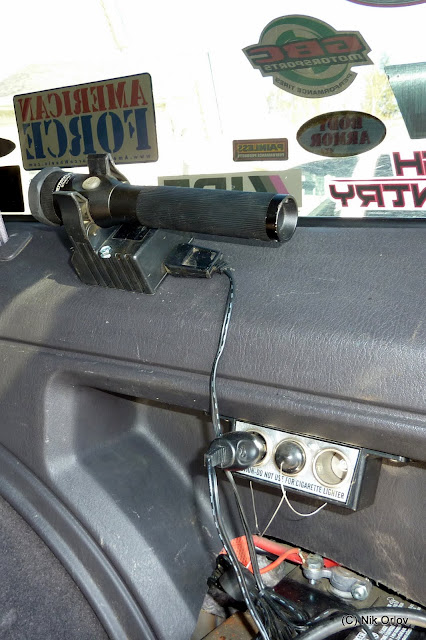

Second battery hook-up & flashlight charge station...
Here is a little update on some gusset work & extra support on bumpers...
I guess I might be overkilling it, but I dont think extra "security" hurts...
FRONT HITCH support on clip
UPPER VIEW of the REAR bumper...
Second battery hook-up & flashlight charge station...
