SOLD: 2014 Toyota Tundra/FWC Expedition Vehicle

[sjoertling]

SOLD
2014 Toyota Tundra 112,xxx miles
2018 Four Wheel Camper (FWC) Hawk, slide-in, front dinette w/ silver spur interior
Many upgrades, additions, and extras as detailed below
Location: Danbury, CT
Price: $65,000

Key points:

• This is a package sale. I will not be splitting the truck and camper as separate sales.
• I am the second owner of this build, purchased from the original owner and builder at 99,xxx miles.

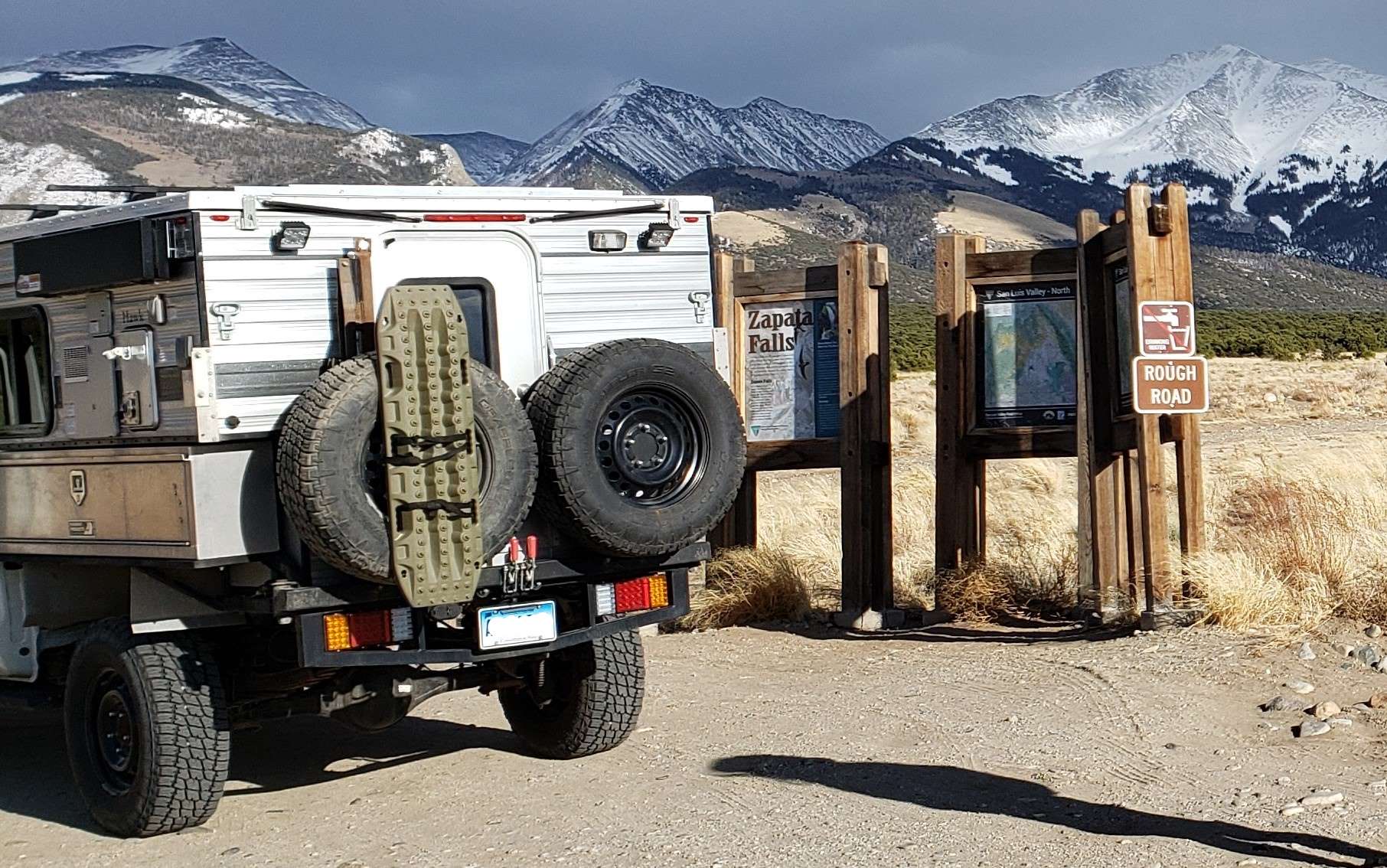

• The FWC sits on a custom powder-coated steel "flat-bed" with duel spare tire swing-outs.
• The flat-bed allows for full articulation of rear suspension unlike standard flatbeds.
• Weather-sealed "Highway Products" aluminum storage boxes run the length of the camper on both sides.
• The Tundra's suspension, brakes, and gearing have been upgraded for the full-time duty of carrying your loaded camper.
• This vehicle has been to the Arctic Circle and back and just returned from a 6-month 10,000 mile trip around the U.S. It is a tested setup.
• This sale includes many extras to make this a "turn-key" adventure rig. Stock the fridge and go!

Here are the details of the build. I will split the description into two parts; the truck and the camper.

2014 Toyota Tundra SR5 TRD Off-Road

• 112,000 miles, Zero engine/transmission modifications (i.e. no messing with intake, exhaust, tune, etc...
• Re-geared with 5.29 Nitrogears to account for 35" tires and weight of camper
• 35" Nitto Terra Grappler G2 295/70 18" (E Rated) on Toyota steel wheels w/ 2 full size spare tires

Suspension (~2.5" lift)

Front:
Old Man Emu (OME) BP-51 shocks w/external reservoirs
SPC adjustable upper control arms
Welded Spindle Gussets
Rear:
2.5” Arizona Desert Shocks (ADS) w/ external reservoirs
OME Leaf Springs with add-a-leafs
Firestone airbags

Protection/Recovery
RCI Aluminum skid plates
Slee Rock Sliders (double as steps)
ARB front bumper
Warm Zeon 12-S winch with synthetic line
Factor 55 Superhook
Factor 55 recovery ropes, shackles (never used)
ARB snatch block
Hi-Lift Jack
Powerbuilt 6000lb Unijack
Collapsible jack stand
Tire patch/plug kit
Sand recovery anchor system

Brakes:
DBA Slotted Rotors all four corners
DBA Pads. Fronts ¾ life, Rear pads are new as of 112K miles

Other
45 gallon Transferflow fuel tank
POR-15 frame coating
Custom steel "flatbed" powder-coated and Herculined
Highway Products custom aluminum storage boxes
(These boxes provide much needed storage for tools, recovery gear, and sporting equipment.
We were able to fit two pairs of skis, poles, and snowshoes with room to spare in one side.
The other side is recovery gear and tools as pictured below.)
Husky custom molded front floor liners
Front and rear OEM carpet floor mats
Marathon custom fit seat covers for front seats (removable/machine washable)

Lights/Electrical
Odyssey Battery PC2150 (with link switch to jump-start off camper batteries)
Full LED headlights (2018 OEM Toyota)
Baja Designs LP9s (x2) up front
Rigid Lights Flood lights on each side

Included Extras:
ARB Duel compressor mounted under rear seat to protect from the elements
(Connected to 3 air chucks at front, rear, and drivers side of vehicle for easy tire inflation)
ARB air hose and digital gauge
INDEFLATE duel tire inflation/deflation tool
ARB 60L fridge w/tie-downs
Kenwood communications radio
Plywood rear floor and wall platform cut and drilled to fit in place of rear seats
(Rear seats currently installed)

All New Spare Parts:
SPC upper ball joints
Alternator
Starter
1 front axle
Inner and Outer tie rods
1 front unit bearing

Recently Replaced:
New rear unit bearings (both sides) as of 112K miles
New Moog lower control arms, bushings/ball joints as of 108K miles
New inner and outer tie rods as of 99K miles
New windshield at 99K miles

2018 FWC Hawk Front Dinette in Mesa Silver

Factory Options:
Silver Spur Interior Upgrade
8’ Fiammia Awning
Aluminum Jack Brackets
Camper Jacks (4)
Rear Flood Lights
Roof tracks
2 Vent Fans
Forced Air Furnace
85L Fridge/Freezer (AC/DC)

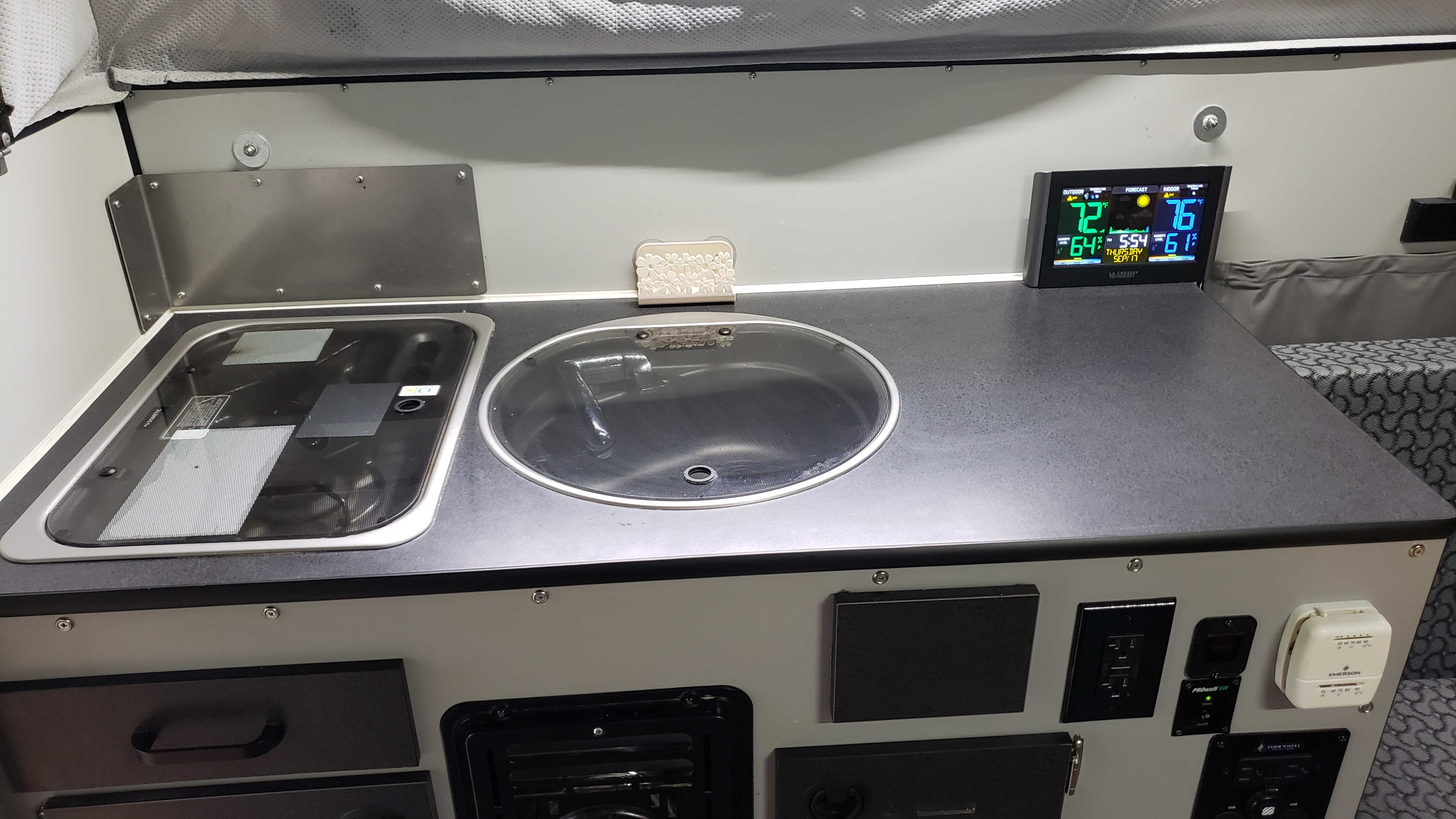

Flush mount/glass top stove and sink upgrade
roof access steps
2 propane tanks
Thermal Pack
6-gallon hot water heater with outside shower
CleanWaste portable toilet

[Optioned similar in 2020 this Hawk would be $31,670 new before Non-Factory Upgrades]

Non-Factory Upgrades:

Power:
Xantrex ProWatt 2000 inverter wired to built-in 110V interior duel outlet and 1 exterior outlet
(110V power without needing a shore connection! Stock FWC require shore power for 110V outlets)
Duel 6-volt Centennial CB6-250 AGM batteries (250 amp hours)
(Charge from alternator, solar, and shore power.
Battery Link switch in cab allows jump starting of truck from the camper batteries)
275 Watts of solar from 2 fixed roof panels (175W + 100W panels)
Victron MPPT 100/30 solar controller
Victron MPPT smart gauge
Victron BMV-712 smart bluetooth battery monitor

Quick Pitch "Quick en-suite" outside shower curtain system
(mounted to side of camper)

Other Misc:
Lacrosse Technology C85845 weather station
Aluminum folding steps
Wall to wall carpet with insulating foam base layer
Original grey table and DIY plywood/polyurethane finished table
Portable 9 gallon grey water tank
Hoses for grey water and freshwater filling
DIY wooden shower platform (pressure-treated wood)
Leveling block set
Thule roof cross bars

Thanks for looking!



[crazysccrmd]

• Weather-sealed "Highway Products" aluminum storage boxes run the length of the camper on both sides.
• The Tundra's suspension, brakes, and gearing have been upgraded for the full-time duty of carrying your loaded camper.
• This vehicle has been to the Arctic Circle and back and just returned from a 6-month 10,000 mile trip around the U.S. It is a tested setup.
• This sale includes many extras to make this a "turn-key" adventure rig. Stock the fridge and go!

The truck looks like an awesome setup for touring in comfort. I just have to poke fun at that though - a Toyota Corolla can make it to the Arctic Circle and back with no problems on either of the North American roads.



[sjoertling]

@crazysccrmd Thanks! You make a good point, though I am not sure how the Corolla would do with the camper on the roof



[Salty42]

Got any more photos? Also what MPG are you getting? is the 46g tank on top of the stock tank so 72g total?



[sjoertling]

@Salty42 Thanks for the questions. I have tons of photos. Would you like to see anything in-particular?
MPG is around 12mpg. If you are pushing 75+mph on the highway it will be 10-11mpg.
You will get 15-16mpg cruising at 45-50mph.
The 46g Transferflow tank replaced the stock tank so that is the max.
I have thought of replacing one of the spare tires with jerry cans to carry another 20g of either water or gas depending on the trip. That would be an easy swap since the spare tires mounts are bolted through the swing arm and just tack welded.



[Overdrive]

This looks to be a very well thought-out build with tons of worthwhile extras. A great price--you couldn't come near duplicating it for that.



[mk216v]

Still sale pending, sold, or available?



[Jessd]

I am definitely interested if still available!



[sjoertling]

Still sale pending, sold, or available?

Still pending sale. 95% sure it will be sold by 10/31 but keeping the listing up for next in line if sale falls through.



[sjoertling]

I am definitely interested if still available!

Replied to DM
