Spare Crank —Maggiolina Grand Tour Roof Top Tent - Need help finding a Crank or two.
- Thread starter GOLA
- Start date
Corey
OverCamping Specialist
80t0ylc
Hill & Gully Rider
You must not have noted his location. He's in India - Bangalore. I think he needs to contact Maggiolina's Asia or international office. Also might help to put a tether on the new crank when it arrives...lol
Last edited:
Corey
OverCamping Specialist
Ha ha, you are right, I never looked at the location.
I only have one crank, and I always pull it out afterwards and put the plug back in, but there was this time...
Yeah, left it up there, but underneath the roof rack.
Good thing I saw it.
A tether is a great idea!
Herbie
Rendezvous Conspirator
Is this what the business end of your lift crank looks like?

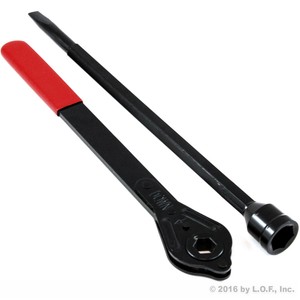

If so, a workable (but admittedly less than ideal) solution, at least for the short-term, would also be a Chevrolet lug/spare tire ratchet:
I'm pretty sure Ford and Dodge trucks with underbody spares use a similar tool. The flat-end of these is used to raise/lower the underbody spare tire. You slide the ratchet onto the hex-portion of the shaft and slide the flat into a tube. The one thing missing vs. the Autohome tool is the outside tube to keep the flat on the nub of the shaft you're turning. Should be easy to find if there are old trucks, junkyards, or tool recyclers in your area.
A somewhat crafty welder could probably also build you an adapter using some rod-stock and a spark-plug socket:
Hammer or grind a flat into a piece of round stock; weld the rod into the center-bore of the socket at the appropriate depth; then drive the socket on the outside hex with a larger socket and your favorite ratchet. (Or weld a handle directly onto the socket body...) A socket-adapter like this would also be small enough that keeping it as a spare wouldn't be as space-inefficient as a complete 2nd handle.
If so, a workable (but admittedly less than ideal) solution, at least for the short-term, would also be a Chevrolet lug/spare tire ratchet:
I'm pretty sure Ford and Dodge trucks with underbody spares use a similar tool. The flat-end of these is used to raise/lower the underbody spare tire. You slide the ratchet onto the hex-portion of the shaft and slide the flat into a tube. The one thing missing vs. the Autohome tool is the outside tube to keep the flat on the nub of the shaft you're turning. Should be easy to find if there are old trucks, junkyards, or tool recyclers in your area.
A somewhat crafty welder could probably also build you an adapter using some rod-stock and a spark-plug socket:
Hammer or grind a flat into a piece of round stock; weld the rod into the center-bore of the socket at the appropriate depth; then drive the socket on the outside hex with a larger socket and your favorite ratchet. (Or weld a handle directly onto the socket body...) A socket-adapter like this would also be small enough that keeping it as a spare wouldn't be as space-inefficient as a complete 2nd handle.
