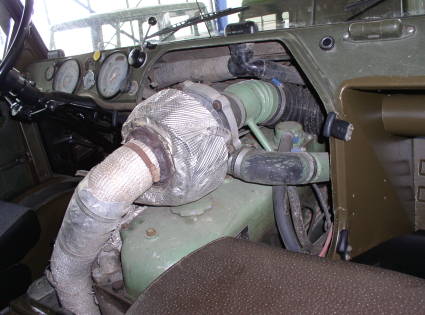

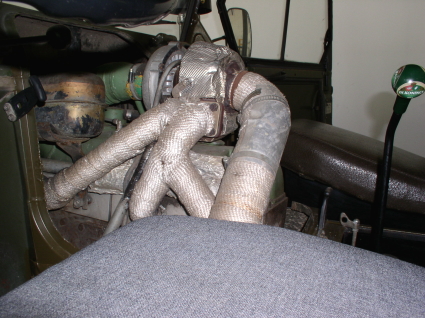

Here is an example of re-engineering the manifold, and a good view of a stock 416's tight confines. This was a turbo'd 416 Sold by Ziggy and Lisa, back when they were selling mogs.

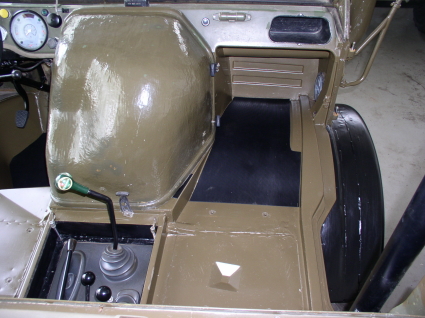

You can see this cab was also lifted, note the shifting area, is now recessed lower:
Another dead give-away is the PTO hole in the front will be higher than the PTO, and the bumper...well...further away from the grill
Lifting the cab has another benifit, it allows more cool air to circulate around the engine, keeping the cab cooler, also quieter. Those alone are worth the lift.
I can't speak for this unit (The Ex-NZ rail mog) but as Mike says, very common procedure on a turbo swap. Some aluminum blocks, re-route the hand throttle or extend the cable, few other minor things, and your off.
You can see this cab was also lifted, note the shifting area, is now recessed lower:
Another dead give-away is the PTO hole in the front will be higher than the PTO, and the bumper...well...further away from the grill
Lifting the cab has another benifit, it allows more cool air to circulate around the engine, keeping the cab cooler, also quieter. Those alone are worth the lift.
I can't speak for this unit (The Ex-NZ rail mog) but as Mike says, very common procedure on a turbo swap. Some aluminum blocks, re-route the hand throttle or extend the cable, few other minor things, and your off.
