Mercedes 1117A chassis with 2+1registered seats
First registered in 1994
Approximately 371,000 KM (230,000 Miles)
Truck was completely overhauled and converted in 2018 by Twiga Travel of the Netherlands
$350,000 USD
Call or Text Scott @ 813.928.4690
Located In Tampa Bay Area FL.

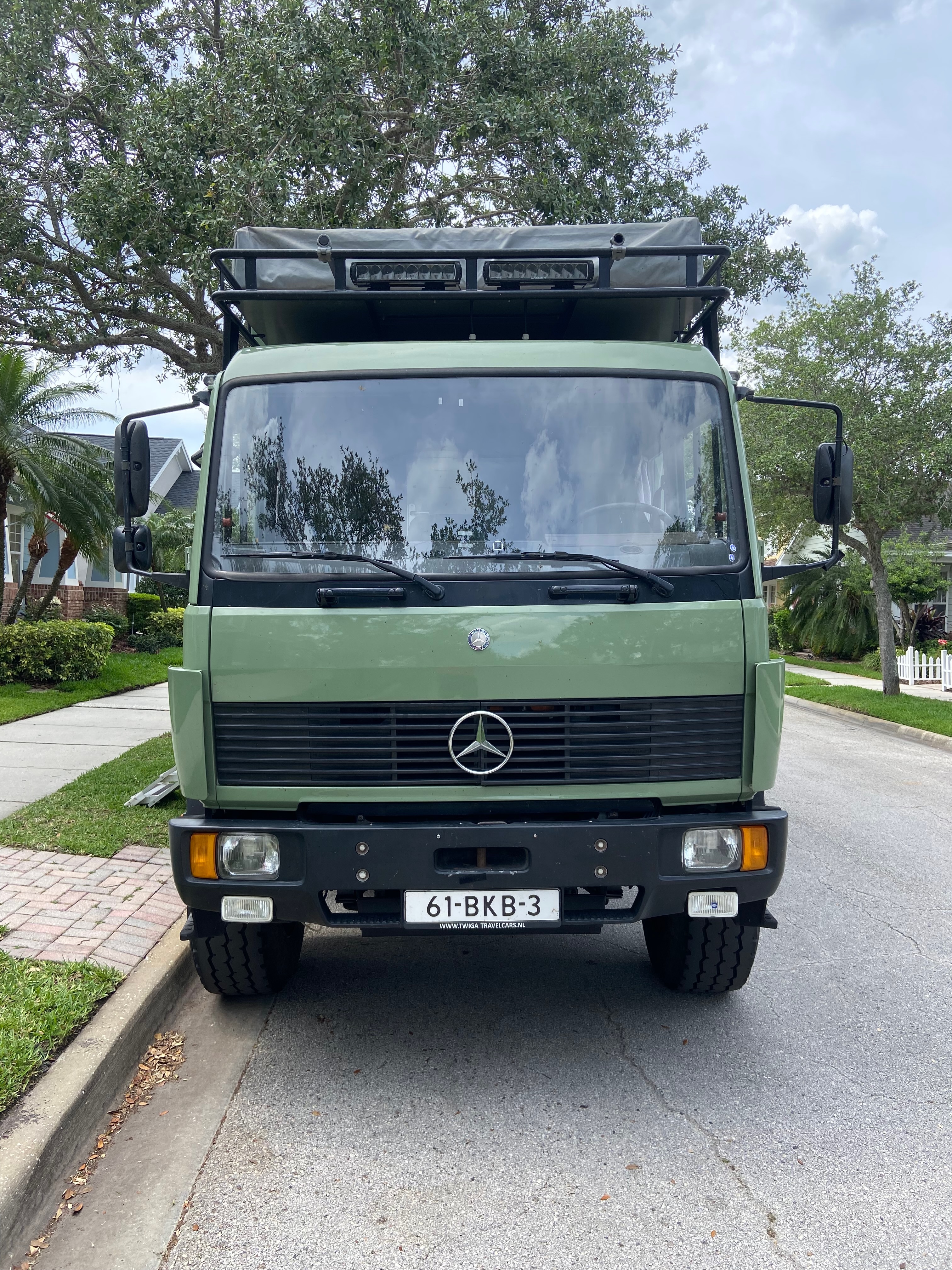

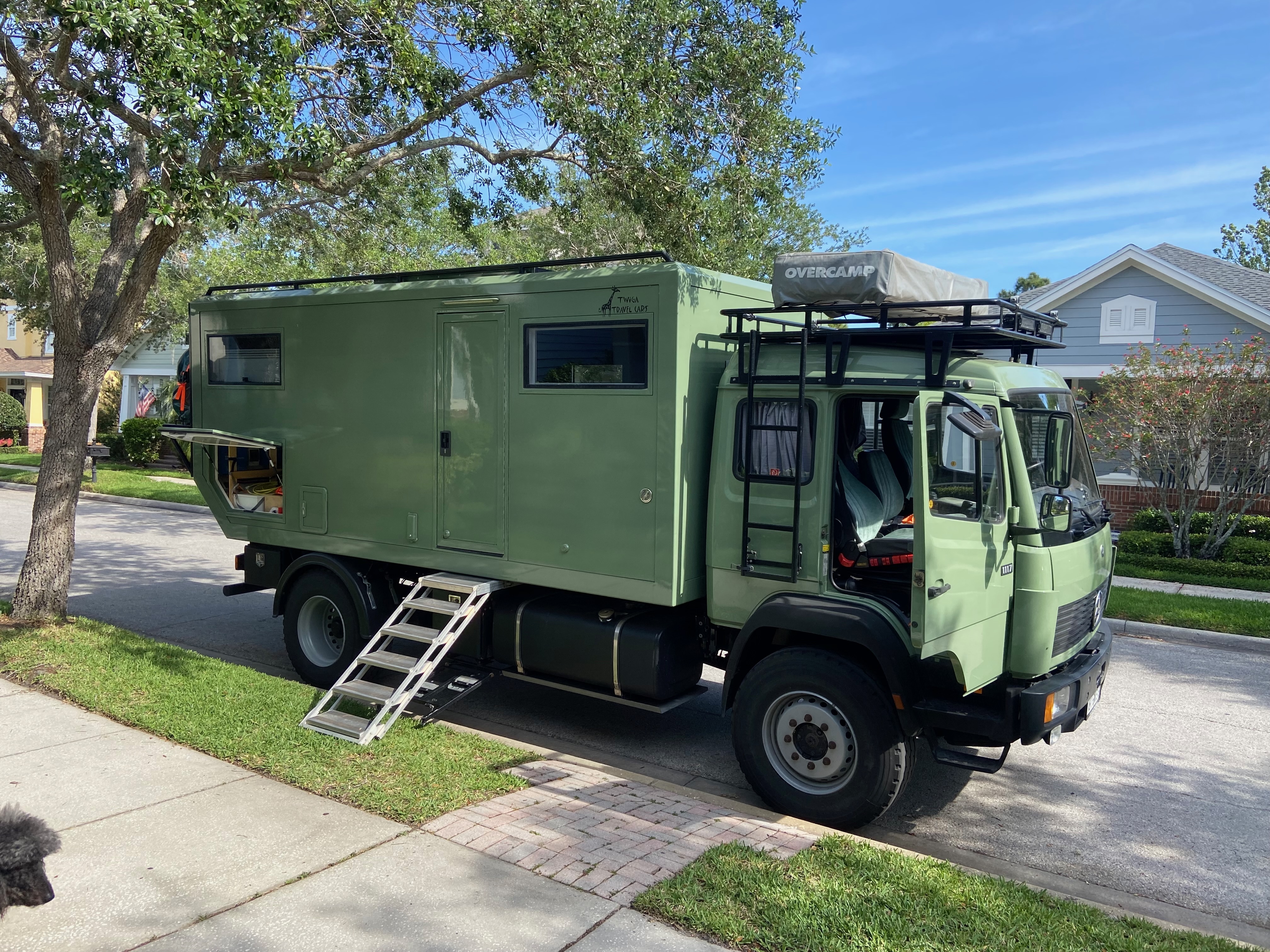

Mercedes 1117A 4x4 truck chassis
- Turbo Diesel Engine
6 Cylinder engine from the OM366 Daimler
5.959 Liter Turbo Diesel Engine (Fuel Efficient)
170 HP @ 2100 RPM / 580 Nm @ 1600 RPM
OM356.947 Engine Baumuster (engine type) - Driveline & Transmission
Wheelbase 4.25 meter (Prof. Extended from 3.64 meter)
Permanent 4x4
Mercedes 6 Speed G3-55/6-8,5 Gearbox
6 Forward gears, 1 Reverse gear
ZF VG500 Transfer case
Crawler gear
Front and Rear Differential lock
Leaf springs Front & Rear
Koni Shock Absorbers
4.7 Ton Front Axle
9.2 Ton Rear axle (Registered 7.4 Ton - Tires
Pirelli 385/65R22,5 tires
Custom made 8 lug steel 22,5 inch rims
2 spare tires including 1 rim (see living unit exterior) - 4-point torsion frame
Front & Rear central bearing
Central Left & Right torsion bearing - Diesel Fuel system
105 gallon diesel tank
Fuel tank Bashplate / Protector
SEPAR Water / Diesel separator - 20 liter Diesel tank for 2 Webasto Diesel heaters (See Living Unit)
- Webasto Air Top + Liquid heater
- Under chassis boxes
Left Center – Spare parts & Gear
Left Rear – Gas bottles
Right Center – Spare part & Gear
Right Rear - Spare part & Gear - Full Air-Brake system (no hydraulics)
- Fog lights in front bumper

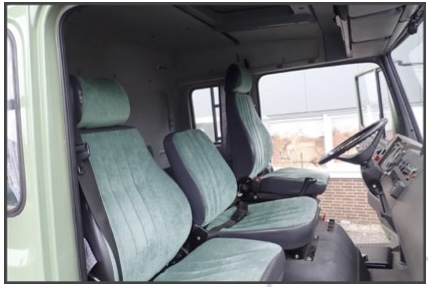

- Driver's cab Inside
ISRI Drivers & Passenger seat both Air-Suspended
Both seats with Head rests
2018 Custom upholstery
3rd centre console seat with seat belts (registered)
Rear box storage system with 3 hatches
Custom made Cushions cover the storage system
Eberspächer Cab heater with timer control (diesel line not connected)
Longhaul AC system
Ceiling curtain railing separating rear / front
Curtains for rear Left / Right windows

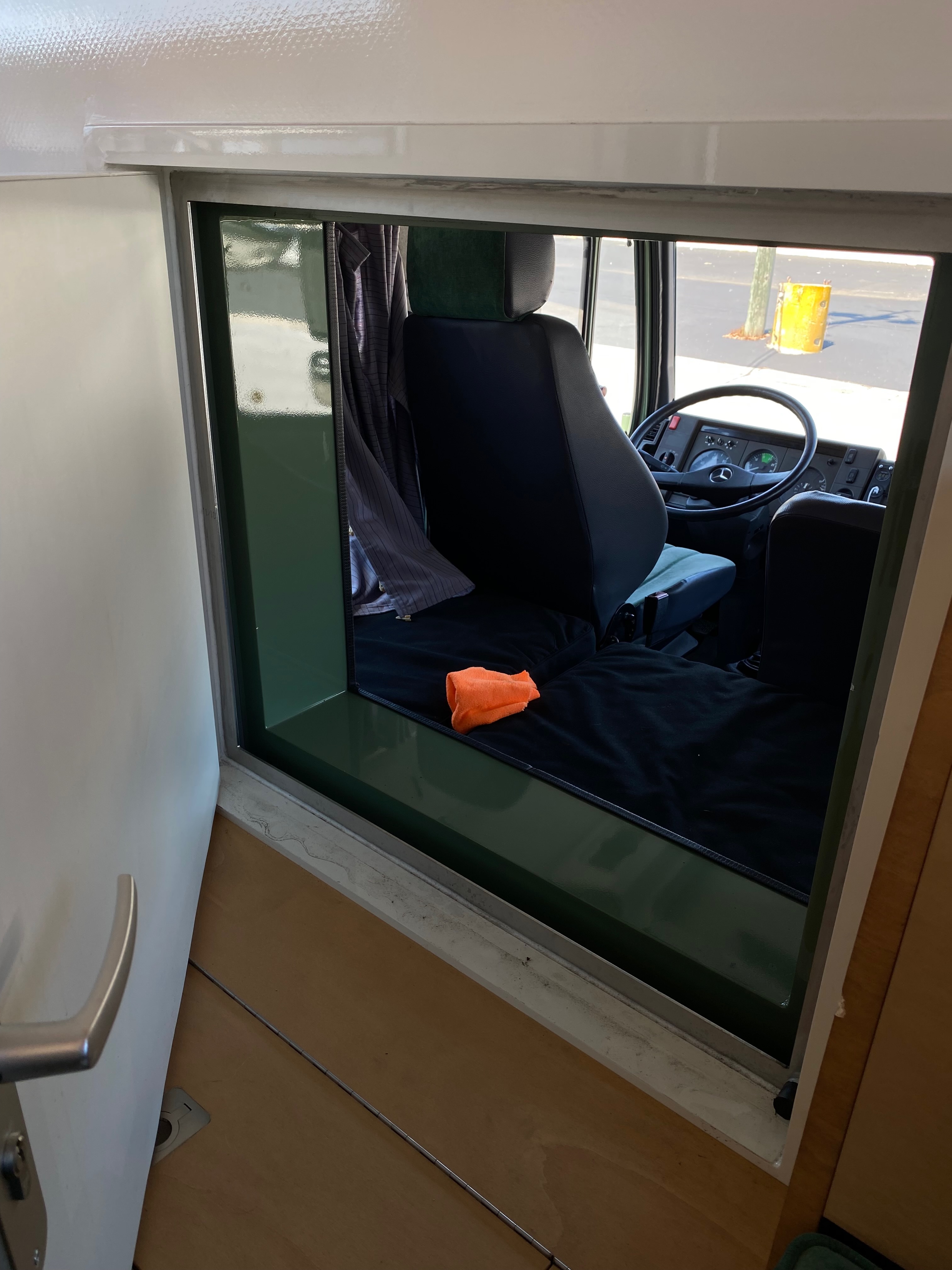

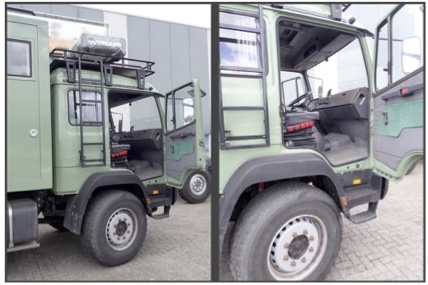

Crawl-Through door passage - Drivers cab outside
Large powder coated Roofrack
Staircase to Roofrack at Left & Right, Folds outward for easier climb
2 forward facing LED flood lights
Rear cab windows (for passengers) - Tow hook at the rear side (for towing the truck when stuck, not registered)
- Rear LED flood lights at Tow Hook height

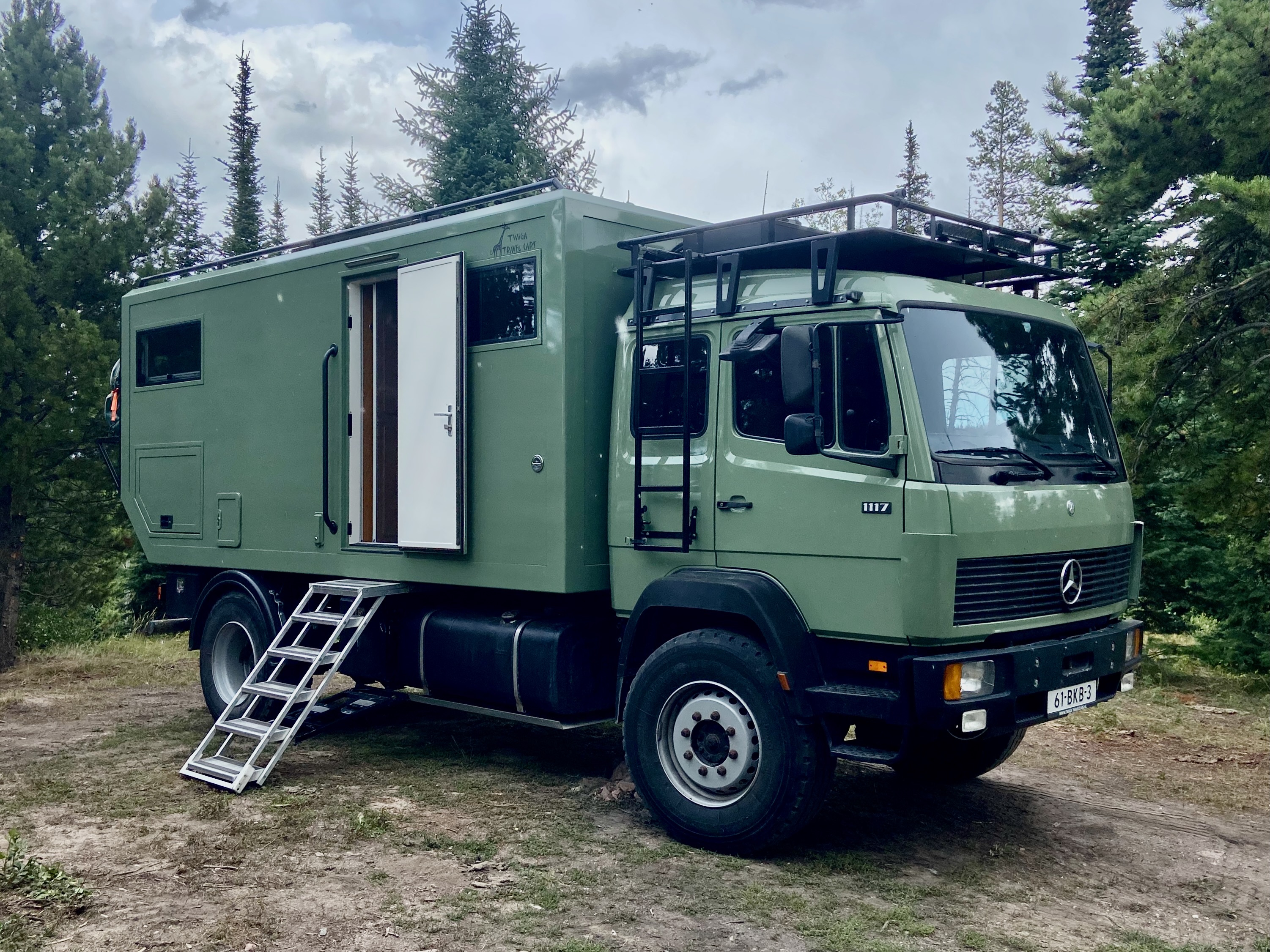

- Aluminium Living Unit exterior cage (See page 24 for impression)
- 60 mm Sandwich panel Walls & Ceiling
- 57 mm insulation + 2x 1.5 mm GFK walls
- 60 mm roof panel is walkable, access through stairs at drivers cab & access through roof hatch in master bed room
- 100 mm Insulated floor
- Internal steel frame for connection to Sub-Frame
- Outbound Entrance door 62 cm wide with fly-screen and 3-point locking
- 4 Outbound Real Glass windows with night blinds & insect screens
- 2 rear storage hatches

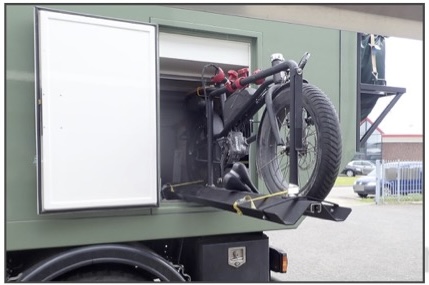

- Right Storage Hatch 98 x 59 entrance (See Garage Living Unit Interior)
- Left Storage Hatch 57.5 x 86 cm entrance (square)
- Cassette Toilet hatch – Mid Right side
- Outside shower - Mid-Right (left of entrance door)
- Water filler opening - Front right (to water tanks in sitting corner)
- Landline socket – Rear right side
- Roof branch guards Left & Right

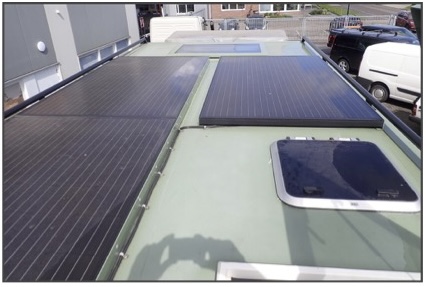

- 3 Solar panels (300 Watt each)
- GEBO Bathroom roof hatch
- Outbound Roof Hatch above Sitting corner and in Master bedroom
- Floating Retractable Staircase (2 quick steps at under chassis box), Does not touch the ground through support rack
- Wide steps 50 x 20 cm (suitable for dogs
- 4 Mud-plates mounted at the slanted rear side of the Living Unit

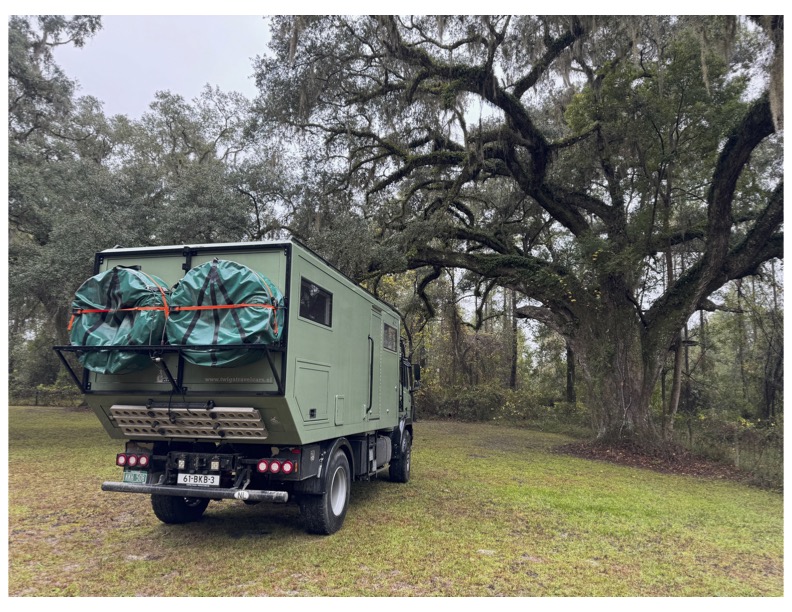

- 2 spare tires in rear tire rack including 1 steel rim (Mounted to Exterior cage)
- Manual Hoist pole (Davit Style) stored in Garage

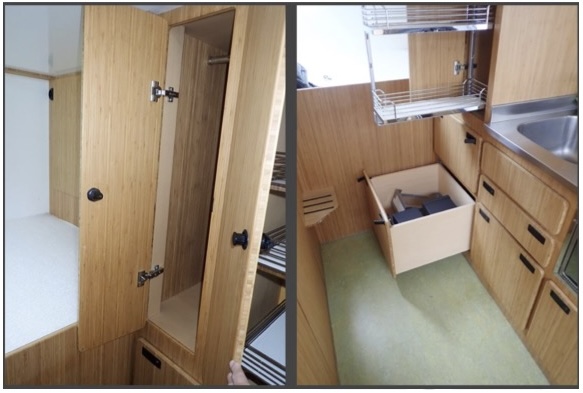

The robust interior is professional made in 2018 with a bright High Quality Bamboo
finish. The interior is in pristine condition with little to no signs of use.
The kitchen has a large working space, the sitting corner can be converted to a
spacious bed.

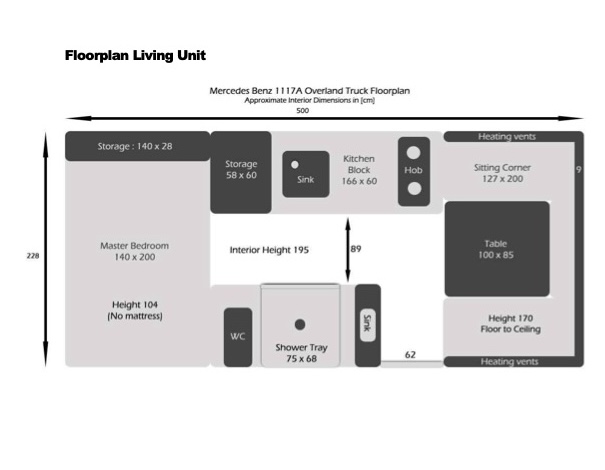

- Interior height 195 cm (2.01 in the bathroom shower)
- Vinyl quality flooring
- High Quality Bamboo Furniture
- Truma Saphir Air-Conditioning Unit with remote control
- Table 85 x 100 cm
- Table feet can be lowered for bed conversion
- Table can slide Left / Right for better entrance
- Bed space 127 x 200 cm when converted
- 3 storage hatches under Left / Right / Central bench
- Left bench hatch: water & heating system
- Central hatch: storage + water tank service hatch
- Right side hatch: storage + Truma AC system
- Ventilation hatches in the backside of the benches
- Left & Right overhead lockers
- 4 Overhead LED lights

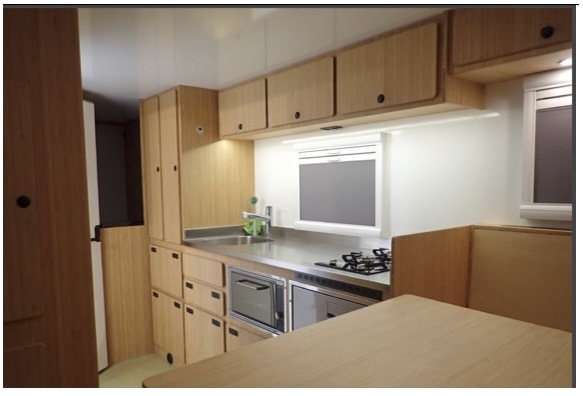

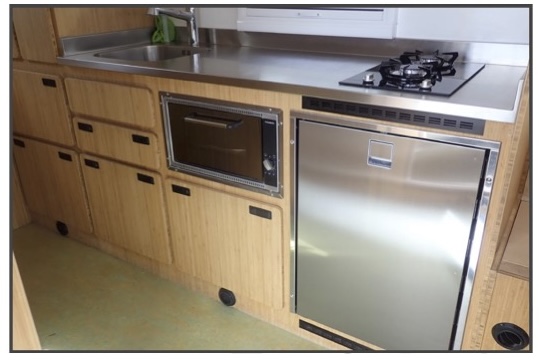

- Large Kitchen block with stainless steel top – 94 cm height
- Thetford gas hob with 2 burners, with burner-rings off-road proof.
- Dometic gas oven
- 130 liter Webasto compressor fridge + freezer compartment
- Large sink with hot / cold water mix water tap with retractable head
- Large storage spaces
- 3 overhead cabinets
- 4 large drawers
- 1 pharmacy drawer
- 1 clothes closet (same size as pharmacy drawer)
- 2 AC sockets above kitchen block
- 1 110 outlet in garage wall

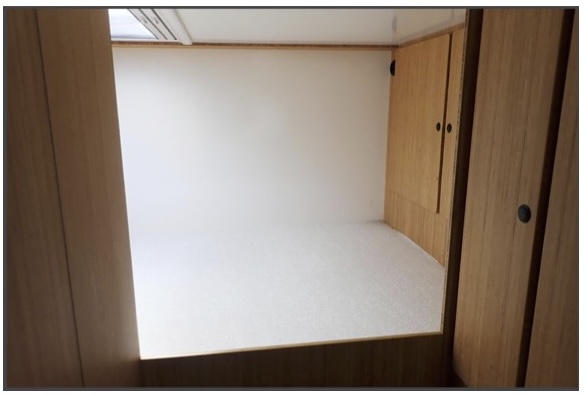

- 140 x 200 cm bed space. (queen size)
- 2 overhead storage cabinets on feet side.
- 2 LED reading slights at the bottom side
- 2 large head side storage lockers
- 1 Outbound Window at feet side (with night blinds & insect screen)
- 1 Outbound roof hatch with night blinds & insect screen
- Akwamat 2 natural fibre - under matrass - ventilation

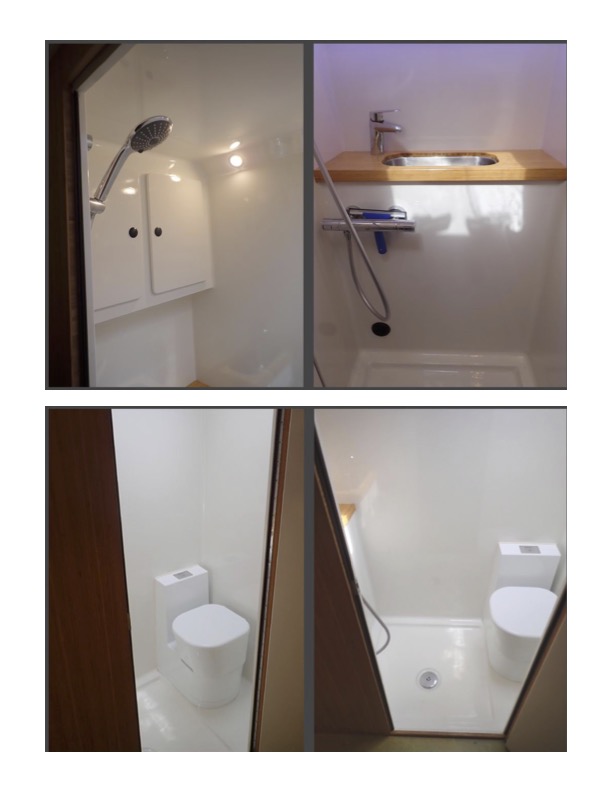

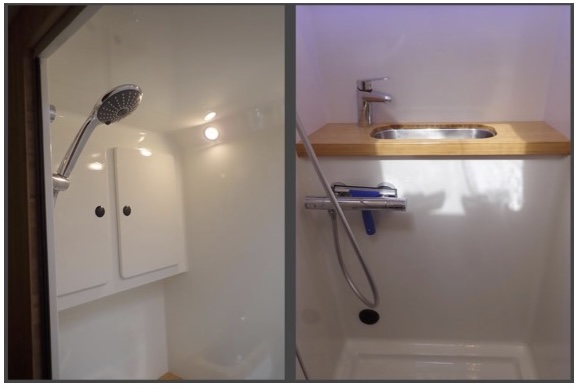

- Dometic Cassette toilet with electric flush
- Sink with hot / cold water mix water tamp
- Thermostatic shower faucet
- Bathroom storage locker, 2 doors with mirror & separate light
- Shower floor 75 x 68 cm
- GEBO bathroom ventilation hatch
- 300 Liter Water tank
- Located under sitting corner floor (frost protected)
- Manual flush in the floor (storage)
- Service hatch in sitting bench
- Jabsco 24 volt membrane pump
- Pre-filter at suction side
- 24 liter Webasto boiler electrical / diesel heated
- Wykomar 3 stage Water filtration system, Fine + Carbon Filtration stage
- UV purification tube
- 75 Liter Grey Waste water tank (outside), Frost protected by Liquid Diesel heater
- 4 kW Webasto Air Top Evo 40 heater
- Heater Ring system
- 5 kW Webasto D5W Liquid heater
- Heats the water boiler
- Frost protects the waste water tank
- 24 liter Hot Water boiler
- Electrical heated (220 VAC)
- Diesel Liquid heater
- 1800-Watt Truma Saphir Air Conditioner with remote control
- Separate Drivers cab Diesel heater (See cab interior)
- Battery bank 800 ah @ 25.6 Volt (20.5 KWH)
- 4 Victron Lithium Phosphate 25.6 V 200 AH Smarth Batteries (installed 2023)
- Victron energy Centaur Battery charger 24/3000/70 Inverter/charger (110v)
- Victron Energy MultiPlus
- 70 Amp Battery charger
- AC Mains 90 -230 Volt
- Victron energy MPPT Solar Panel charger 150 / 35
- 900 Watt Solar Grid (3 panels @ 300 Watt)
- SAMLEX BS160 battery separator from Alternator / Starter battery
- Victron Phoenix 3000 Watt (210)
- Victron energy Orion 24 to 12 Volt - DC-DC inverter
- Victron BMW-712 Battery Bank capacity monitor
- Battery bank safety switch

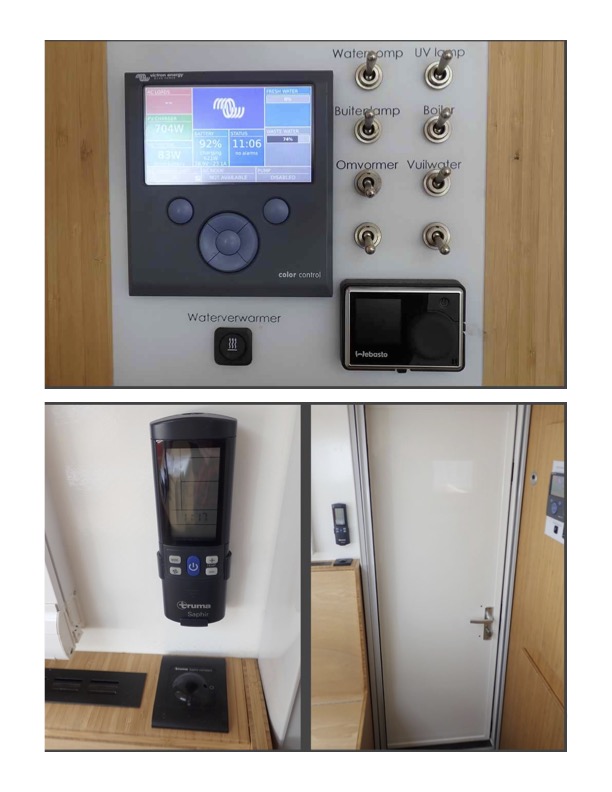

- Victron Energy Color Control GX Panel with VE Bus
- Switch panel & Group fuses
- LED lights with 3 button remote control switches
