2020 Northstar Liberty Truck Camper - 875W Solar - Lithium - 40G H2o - Filtration - Off Grid Dialed - Kingman, AZ!

[montypower]

We custom ordered this truck camper in 2020 and modified it to function off grid for extended periods of time. This camper has no slides. It has many features found in Expedition Campers for a fraction of the weight and cost. 4 Season / Cold Weather Ready. Ideally suited for 2 people. Capability of a Four Wheel Camper with comfort of a expedition rig.


General Specifications:
7ft width. 6’5” Interior Height. 7’8” Exterior Height. 14’5” Overall Length. 7’ Floor Length. Queen Bed 60x80”. Center of Gravity = 24” From Front Wall. Dry Weight ~ 2,000lbs. Estimated loaded weight ~ 3,000lbs.

Features:
875 watts of Solar Power!
Lithium Battle Born 200ah batteries
50amp DC to DC (Alternator Charger)
Victron Battery & Solar Controllers
40 Gallon Fresh Water Tank
Tank Fill Water Filters 2 Stage w/ Siphon Pump (fill tank from mtn streams)
Water Filter w/ UV Light (from tank)
Thetford Cassette Toilet (flexible dumping like pit toilets)
And more (see additions list below)!

2020 NorthStar Liberty – Custom Order Build List:
Glass Top SS Sink
Dometic CR110 12V Compressor Fridge
Insulation Upgrade
Driver Side Closet (bed area)
Delete Exit Vent in Cabover
Delete Stove Hood Vent
Delete Half Wraparound Rear
Delete Pop Out Pass through Window
Delete Gray Tank & Vent Pipes

Additions (partial list):
+ Torklift Fast Gun S9526 (Set of 4) (2022)
+ Happijac 4220 w/ Electric Motors + Wireless Controller
+ Happijac Dually Swing Bracket
+ Torklift Glow Steps – Six Step w/ Landing Gear (2022)
+ Propane 20lb tank w/ Gauge
+ Delta Soap Dispenser
+ Shurflo Water Siphon Pump 3GPM
+ RV Water Filter 10” Dual Canisters Tank Fill
+ WaterSafePro 10” Filter w/ UV Light Canister DC Power
+ 40 gallon Ronco Water Tank B-309HD w/ 6” Inspection Plate
+ Sink & Shower Drains to exterior

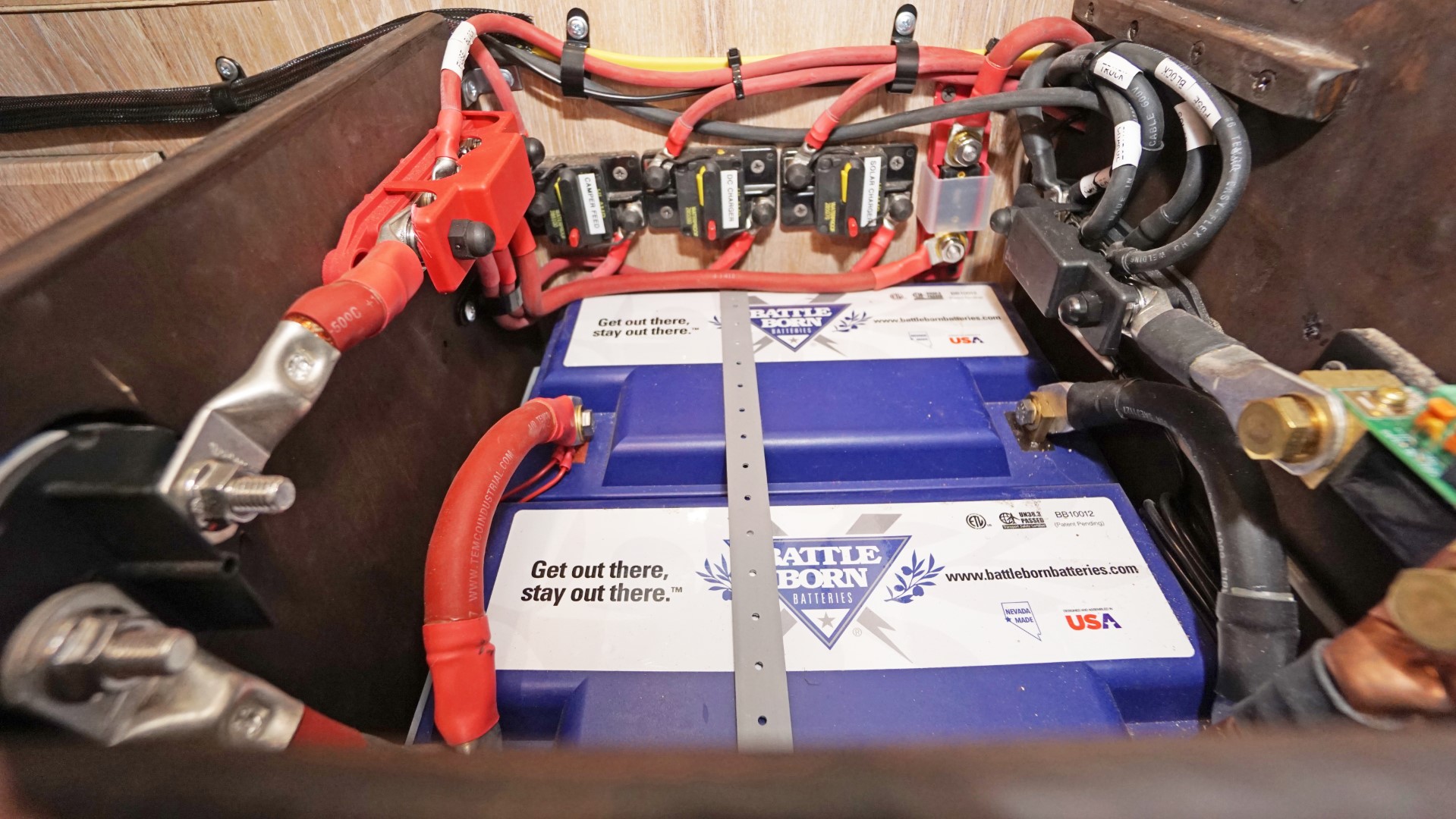

+ Battle Born 100ah Lithium Batteries (2)

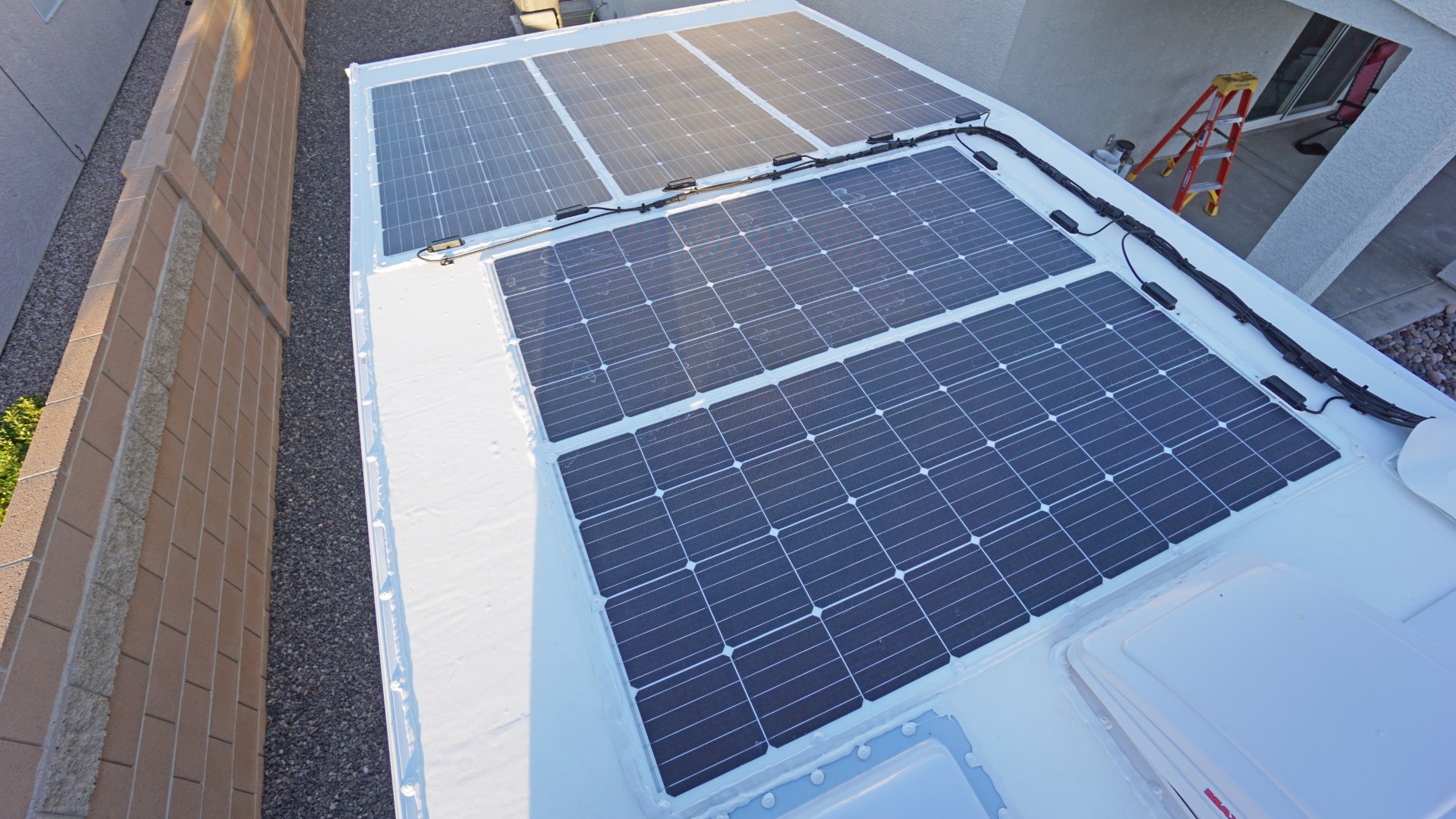

+ Renogy Flexible 175W Solar Panels (5) (2024)

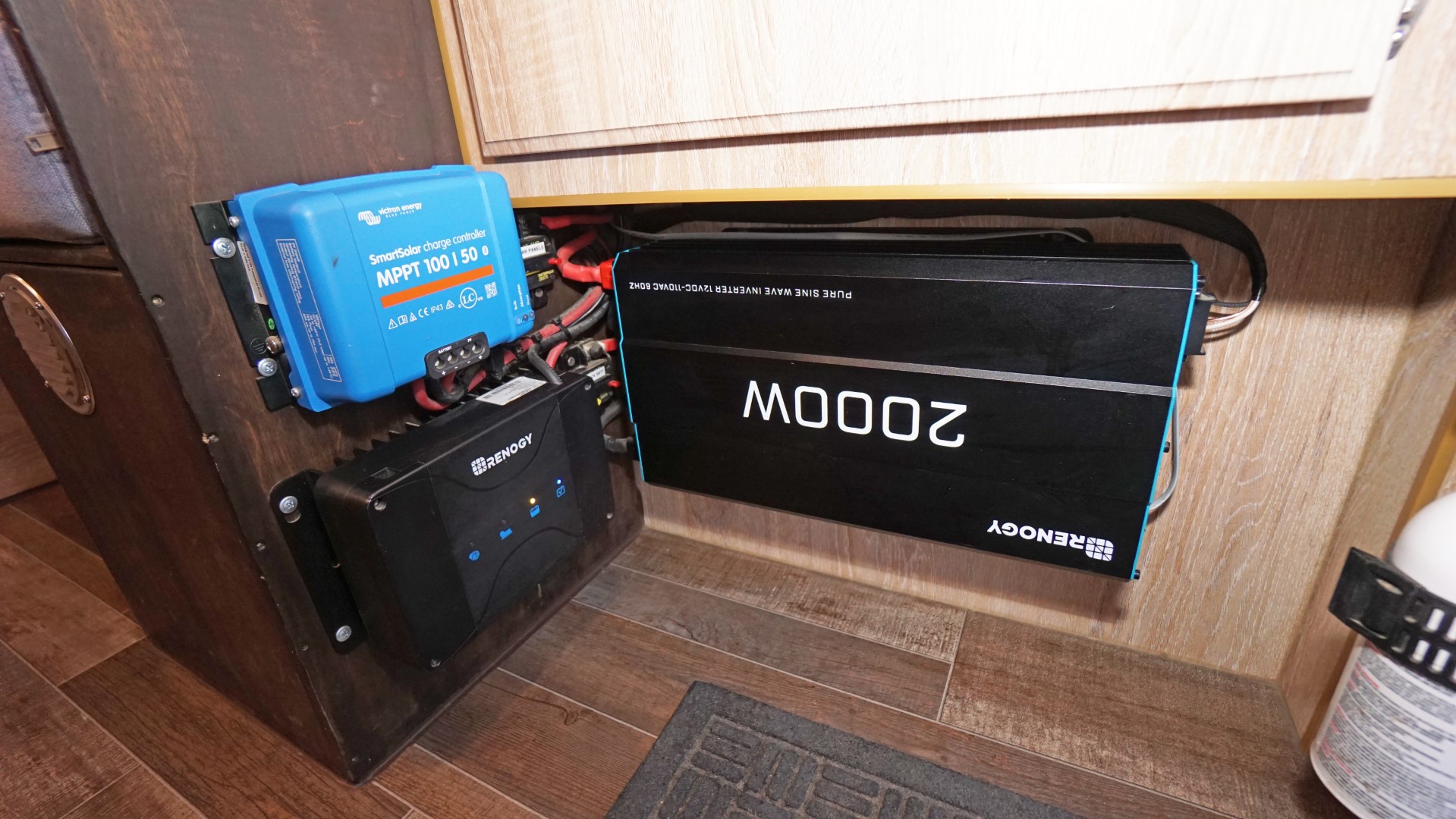

+ Victron MPPT Solar Charge Controller 50amp
+ Victron BMV-712 Battery Monitor
+ Victron MPPT Solar Monitor
+ Renogy 50amp DC to DC Charger
+ Renogy 2000w Inverter (2023)
+ Weboost Drive Reach Cell Booster w/ grounding plate
+ Dinette Table
+ Dinette Conversion w/ power box
+ Basement Conversion Storage w/ Drawer
+ Cabinet Shelving Kitchen + Both Closets
+ Roof Edge Protection Trim (branch deflection)
+ Quickfist Mounts for shovel & pole saw
+ 5 gallon collapsible grey water
+ 5 gallon collapsible fresh water
+ Maxxair Fan Replacement 5100k (2021)
+ Propane Detector (2022)
+ Thetford Cassette Toilet Tank Replacement (2022)
+ Froli Bed System (2022)
+ Camper Door Replacement (2023)
+ Bathroom Skylight Replacement (2024)
+ Fridge Vent Replacement (2024)
+ Dicor Diflex II TPO Roof Material (2024)
+ Dewalt Pole Chain Saw

Upgrade Part Cost (excluding labor): $19,645
Estimated Labor 1,000 hours @ $50/hr: $50,000

Camper is ready for travel. New roof replacement (see video). Fully re-sealed. Exterior buffed and sealed. Windows polished. Fully detailed. Water system sanitized. New Water Filters. All systems functioning properly. Fly out, add food/clothes and travel.

Yes! It can be purchased with the 2020 Ford F250 truck. We will be posting details on it soon!

Additional 76 Pictures:
https://www.dropbox.com/scl/fo/2kqm...yrURx57c?rlkey=mb8h1n4df550nnatb48u8b5fh&dl=0

Peter @ 503-888-6967 - Kingman, AZ
$37,500 Cash



[montypower]



[montypower]



[montypower]

More Videos: https://www.youtube.com/channel/UCjepIeVh9oRFkDg23Y9HfBA



[montypower]

We've taken the Liberty truck camper to many more off road locations than our previous Four Wheel Truck camper. At times we needed the Dewalt pole saw to cut branches (camper height) but always made it through. This has to be one of the most fun destinations:


We have a great collection of videos if curious where a truck camper can go. Including driving the Idaho BDR route.



[montypower]

This was a great destination. Sign read "Jeep Only" - difficult route. We met a SxS coming down; they looked surprised. Adventurous spirit with proper experience can open a massive world of near limitless exploration.



[montypower]

Here's the listing for the Truck Camper Combo:

Expedition Ready! 2020 Super Duty Built + 2020 Liberty Truck Camper - 875W Solar - Lithium - 40g H2o + More! Arizona

Offering our Truck Camper Combination! Completely dialed and ready for travel. We spent an absorbent amount of time prepping this combination to be truly turnkey. The camper is the perfect paring for this truck with modifications to function off grid and off road. 37" Tires + Front & Rear...

forum.expeditionportal.com



[montypower]

Here are some Truck Camper Tips:

+ Remove camper jacks while traveling. Decreases wind drag. Reduces weight. Makes the truck more stable as the jacks are heavy and mounted on the outside of the camper.

+ DC to DC charger using Anderson plug provides an excellent camper charging solution in situations of no/low solar (think snow).

+ Torklift camper steps make easy camper access. + Camper truck roof clearance is good to consider especially on older trucks with C Channel frames.

+ Torklift FastGuns are the fastest and most secure way to attach the camper to the truck. They maintain spring load tension that allows some movement and maintains tension.

+ Dewalt Pole Saw is an excellent solution for tall hard wall campers traveling in areas with low tree branches.

+ Quick access to a shovel is ideal for camping and recovery situations.
