Swap of the xfer case is pretty much complete. I still need a shifter knob a console to hide the cut up carpet and replace connectors to match for the 4HI and 4LO senosrs. Here are some pics of the swap.
Starting on the left: tundra stock xfer case, taco xfer case i recently acquired, rebuilt xfer case with bad shifter.
Beer break, Great White from Lost Coast Brewery.
Bearing puller tool I used to separate the coupler from the input shaft.

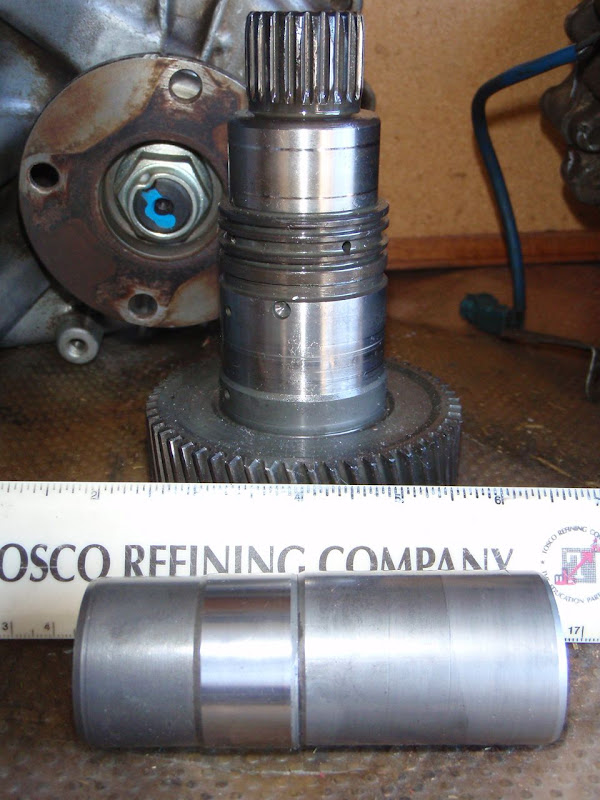

Tundra auto coupler left, taco auto coupler right.
Drilled a hole to locate the start of the shifter opening. Used a sabre saw and a sawzall to cut the opening.
Speed sensor. Tundra auto on the left.
Shifter access complete.
Manual xfer case mounted
Everythin bolted up from underneath. 4LO, 4HI and ADD connectors hanging. Need to replace the connectors to allow the connection to the taco sensors. ADD setup will later be removed.
Shifter installed. Need to find a shifter boot and knob to complete the swap.
Otherwise, everything works. Need to get use to shifting gears in park and/or nuetral. No longer have "on the fly" shifting of 4WD.

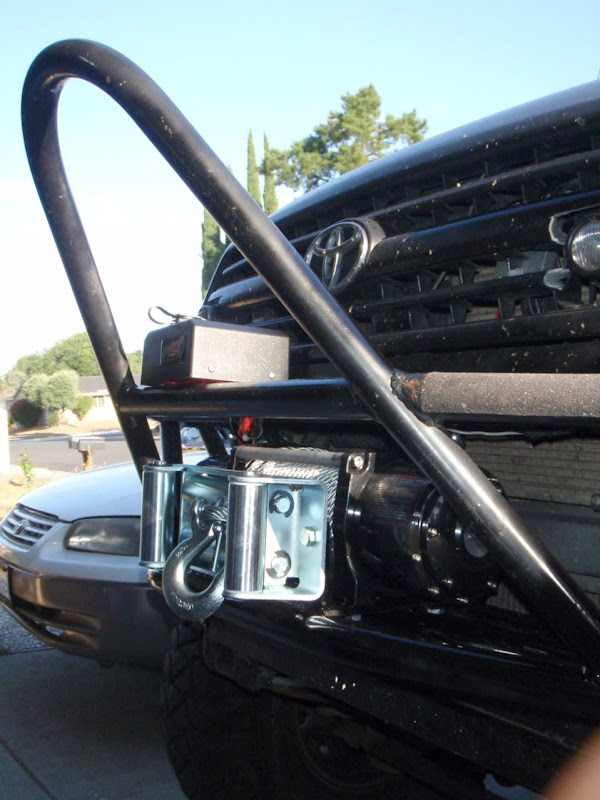

Now I need to test everythin all long with the winch. :devil:
