Jeaninne needed her Sprinter for a few days, and I had another project (four, large, really cool cedar entry columns) that I was able to make progress on while the Sprinter was away...Then I was knocked flat on the couch for a few days with that cold that's been going around...All that is history now, back to work...

(above) The lower walls in the Sprinter will be cedar, selected from several big stacks of 5.5" x 72" fence boards... Only clear and knot free made it into my shop... It all was run through a surfacing planer to ensure consistency and remove the rough sawn texture... The grey thing on the floor is the factory plastic panel from another Sprinter I converted and it will be used as a pattern for the wheelwell cutout...

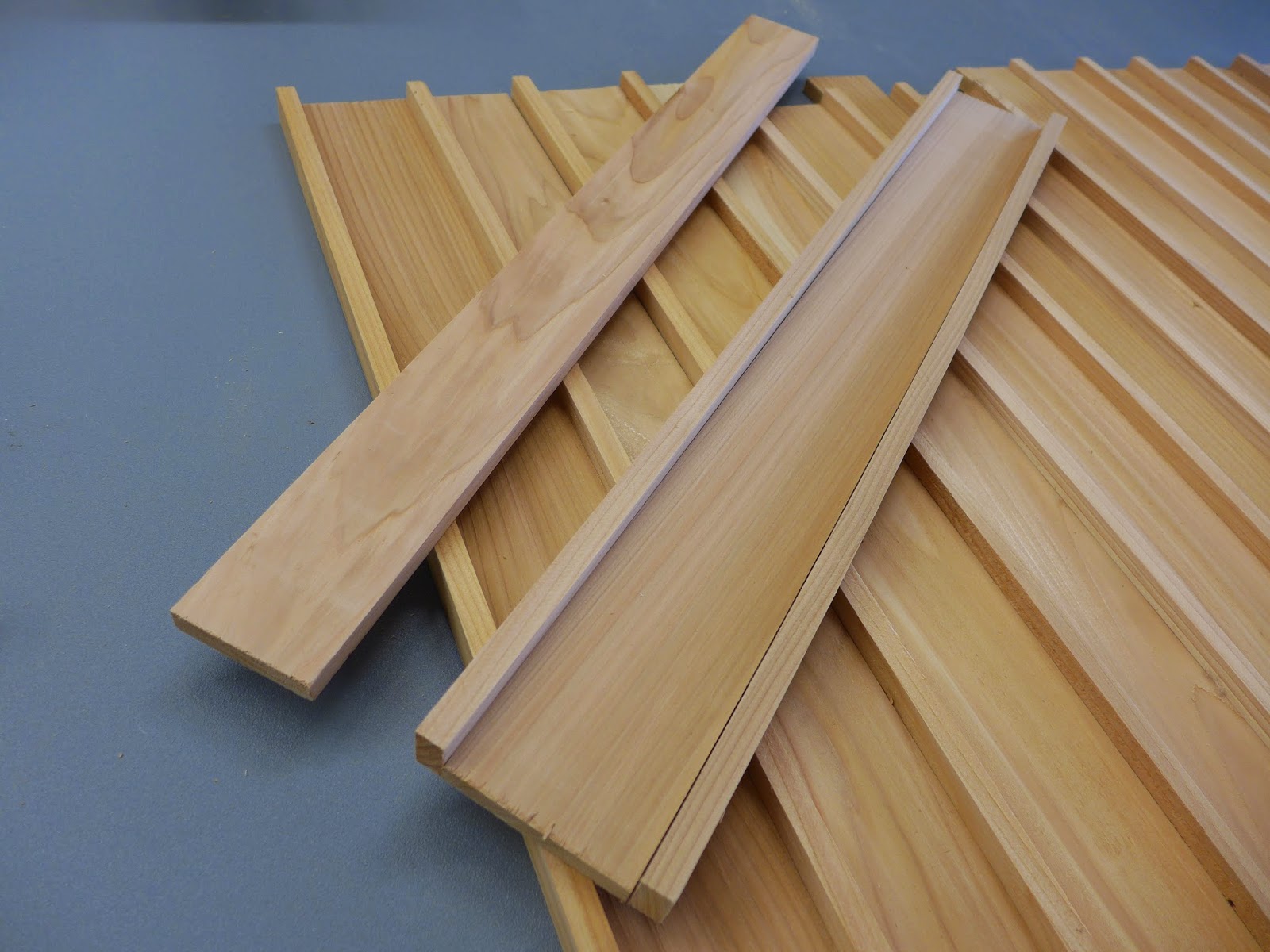

(above) A pair of 1" wide strips were ripped from each board then side nailed to the remaining piece...

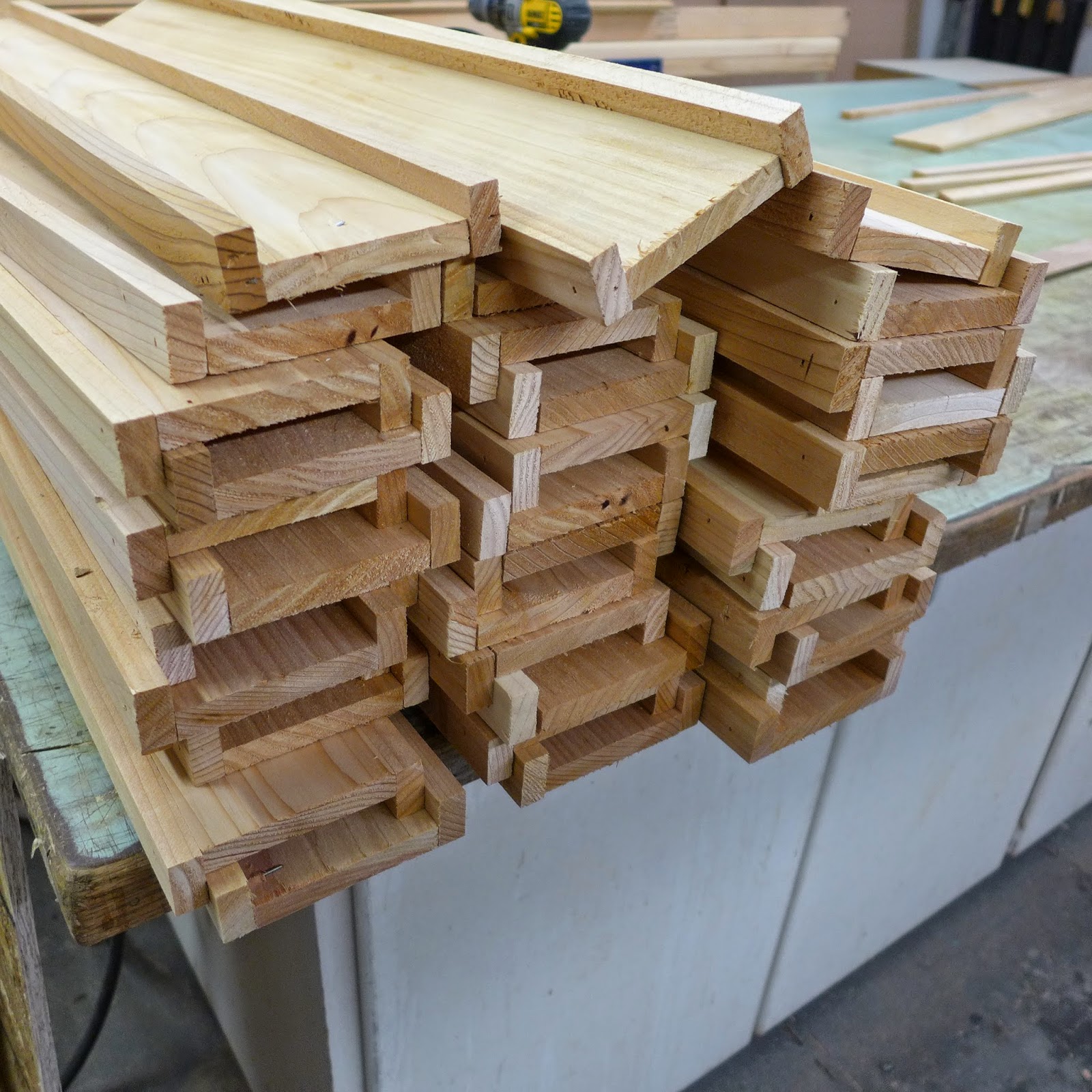

(above) Another set of boards were ripped right down the center to create the filler pieces that will fit between the edge nailed boards...

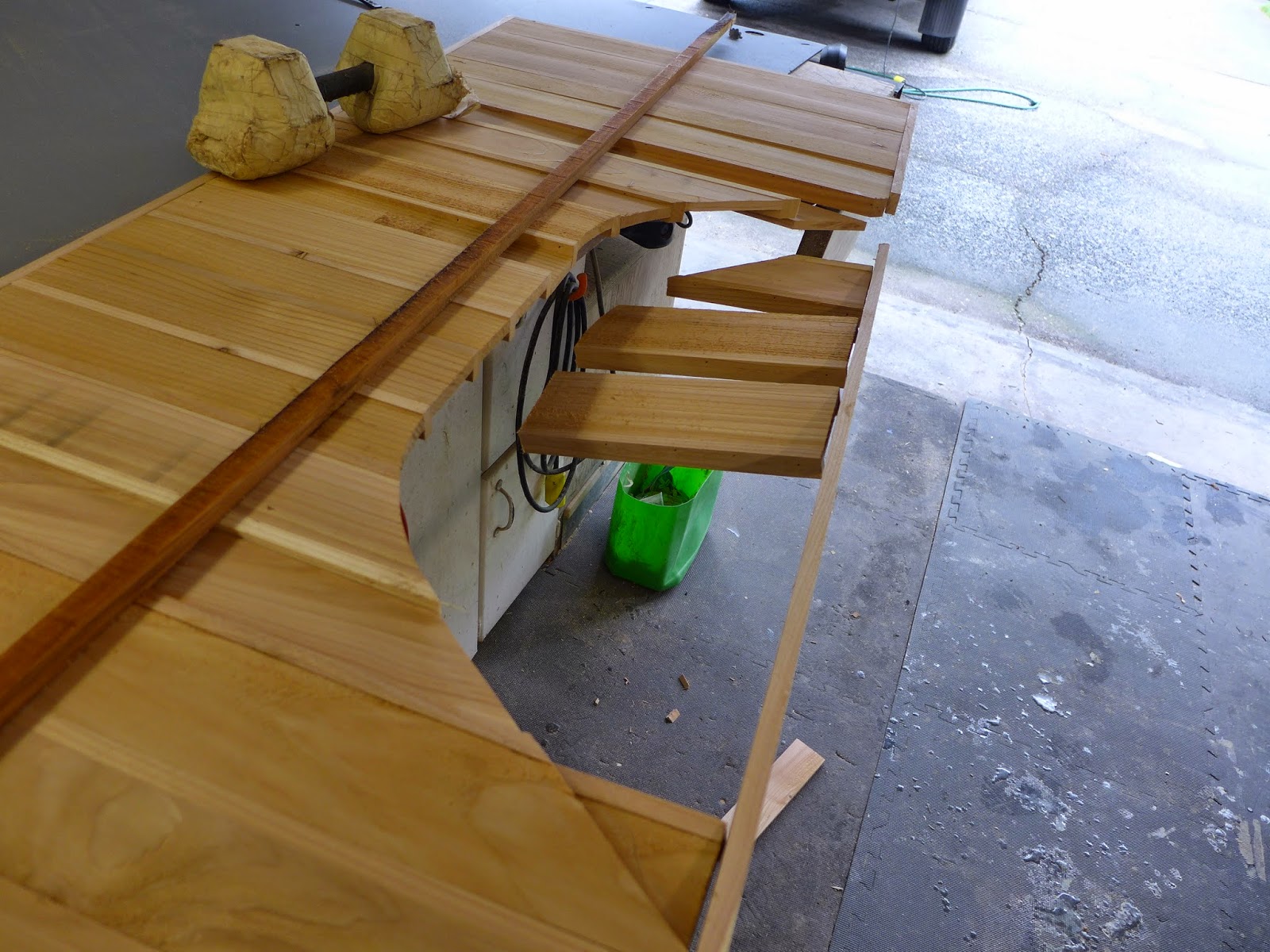

(above) The boards are nailed top and bottom to another pair of cedar strips...A full length wall panel can be build on the shop table this way...

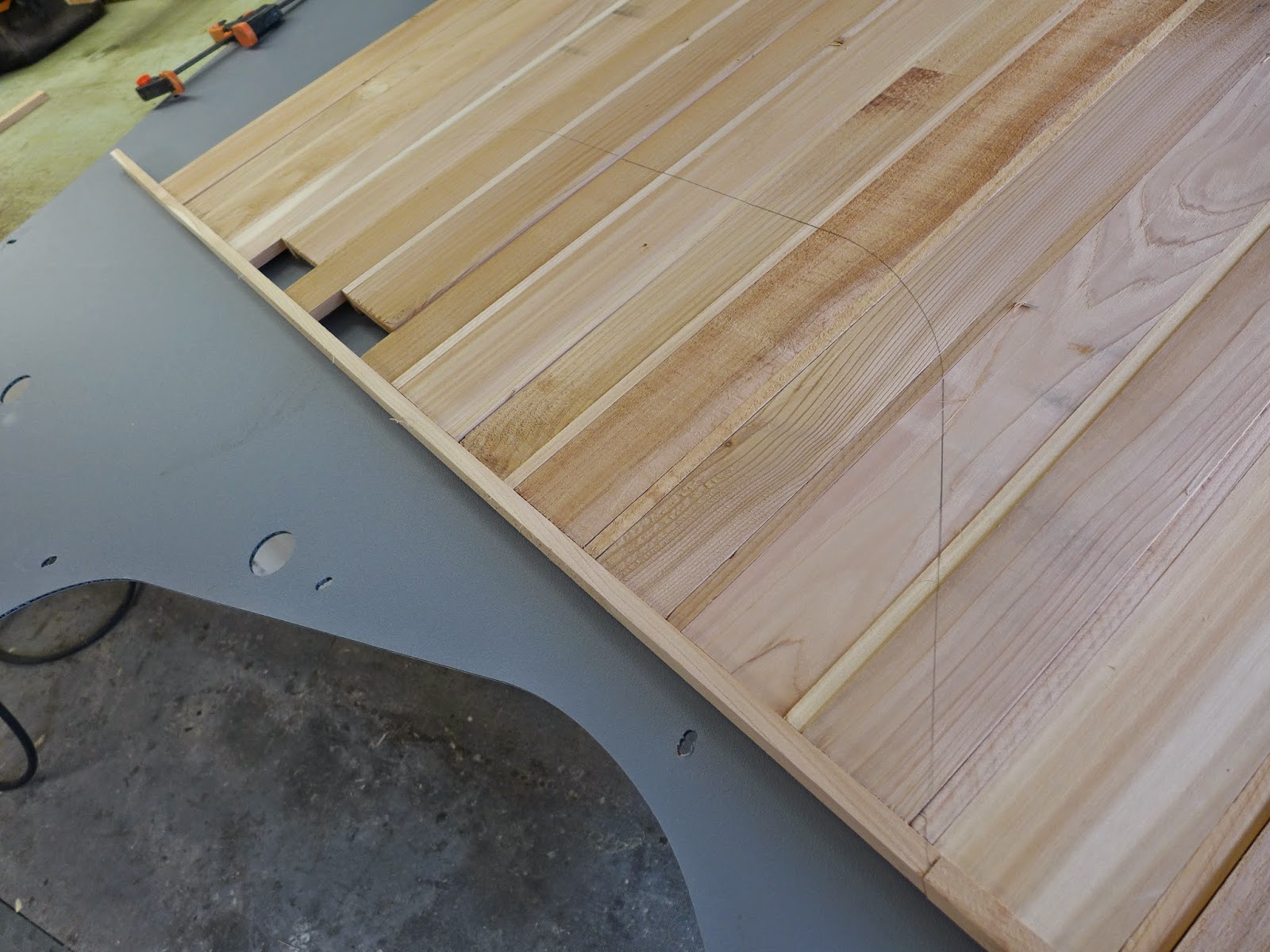

(above) The wheelwell pattern is traced to the cedar panel...

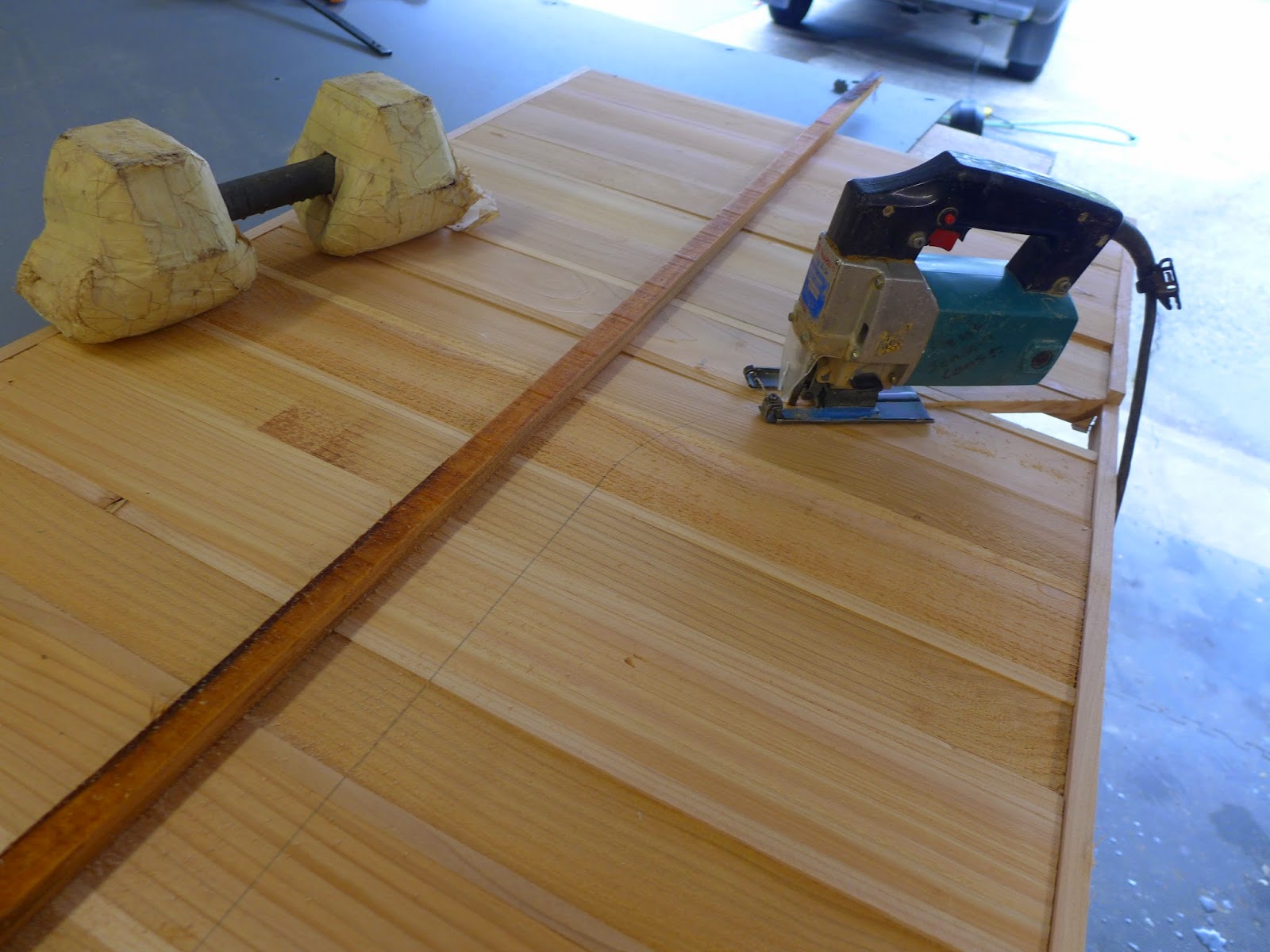

(above) The cutout was simple with a jigsaw...

(above) So easy this way...

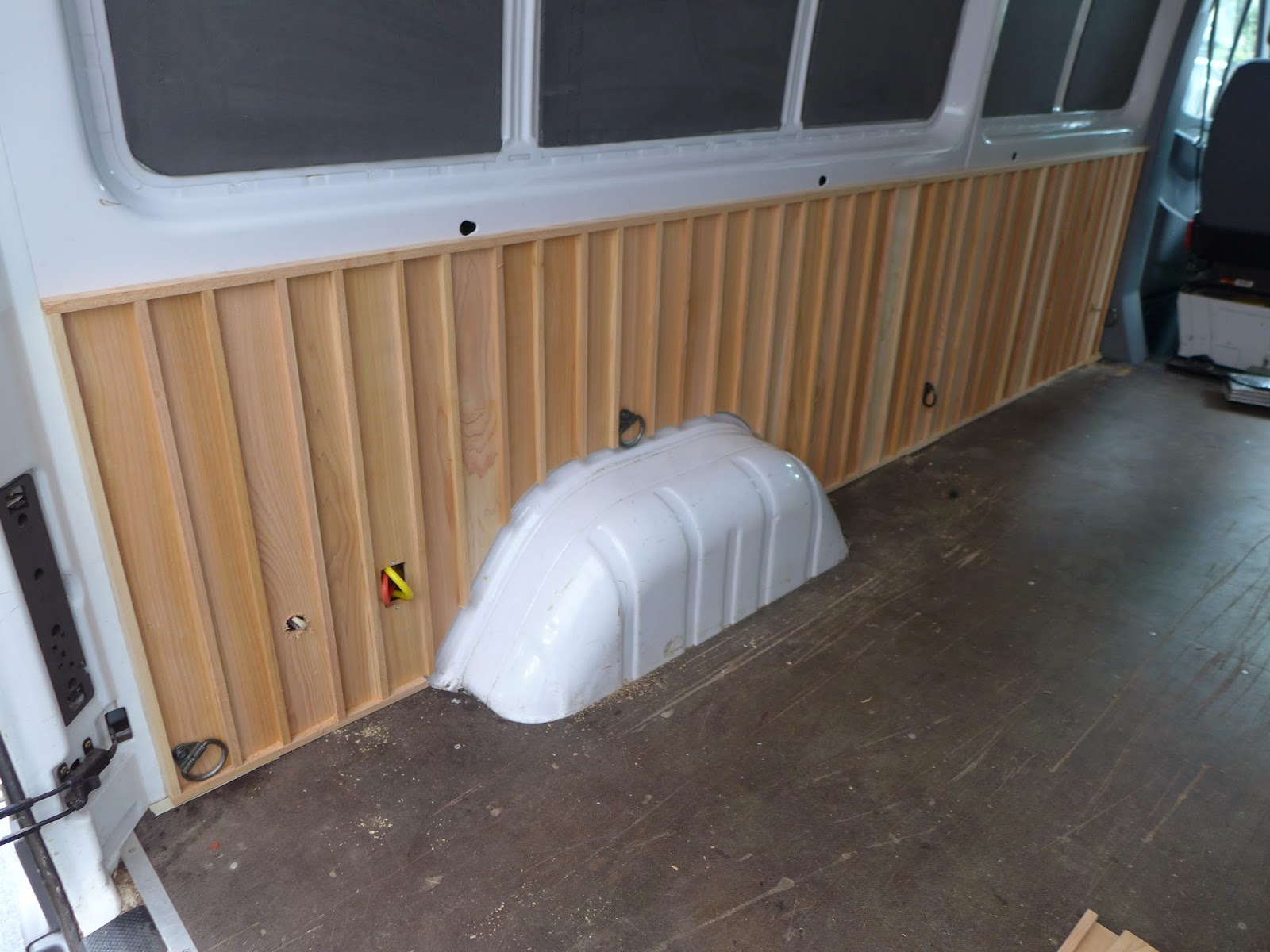

(above) After a few electrical cutouts and holes for the factory hold-downs, the panels were installed...

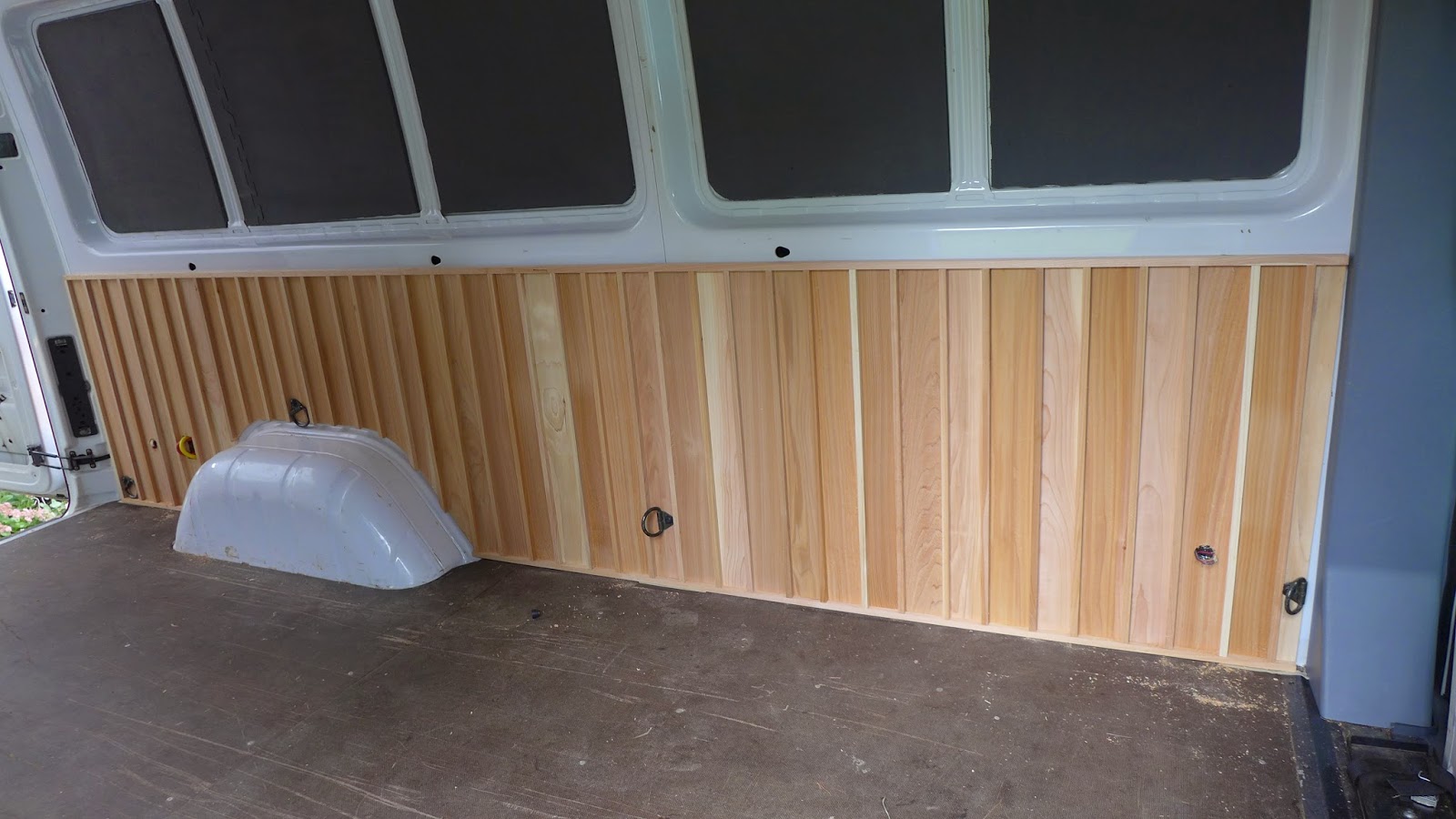

(above) Another view from the side door... The Sprinter is going to be a dual purpose vehicle, a bedroom for "camping out" and a pallet hauler for transporting fruit from Eastern Washington... Jeaninne prefers to keep the wheelwells as they are... Covering them over later would be pretty simple...

(above) The cedar will get a penetrating oil finish... It's going to look rich...



[spencyg]

Jeesh....the bar just inched up a bit higher.

Fantastic as usual. The interior of this thing is going to be so very nice.

SG



[jerdog53]

That's Lovely!



[Rbertalotto]

Contact cement on the roof?

Will this adhesive resist the heat that will be on the roof? What if the van was black? I love the idea of using adhesives for these builds but just don't know enough about them.

Nice build BTW



[Stitebunny]

I would love to drive that around with a permanent cedar smell! Mmm!



[PaulJensen]

maybe we could get the six-month report from Alex as to how the cork is holding on?

see post #67 http://www.expeditionportal.com/for...version-for-Alexander?highlight=alex+sprinter

I'm not sure how often Alex checks in here, and I can't answer for him, but I can report that my van has the same ceiling insulation, adhered with the same adhesive, and it shows no signs of sagging... I put mine up at least a year before Alex's and I'm pretty sure it's been through temperature swings at least as great as his...I see no reason to look for a substitute for Wilsonart 751...

I did have adhesion issues with some pressure sensitive adhesive (peel and stick) when subjected to unsupported horizontal loading... Not so much on a vertical load... The pressure sensitive sheeting is also unforgiving if the mating surface is in any way dusty... Aerosol contact cement is way more forgiving that way too...



[PaulJensen]

Contact cement on the roof?

Will this adhesive resist the heat that will be on the roof? What if the van was black? I love the idea of using adhesives for these builds but just don't know enough about them.

Nice build BTW

If I had a black van, I'd probably paint it white because a black roof doesn't make sense unless you live in a place where you want the roof to be a heat magnet...As far as using an industrial strength contact cement, I wouldn't hesitate to use it on a black van ceiling... The stuff seems to get stronger over time...



[PaulJensen]

06

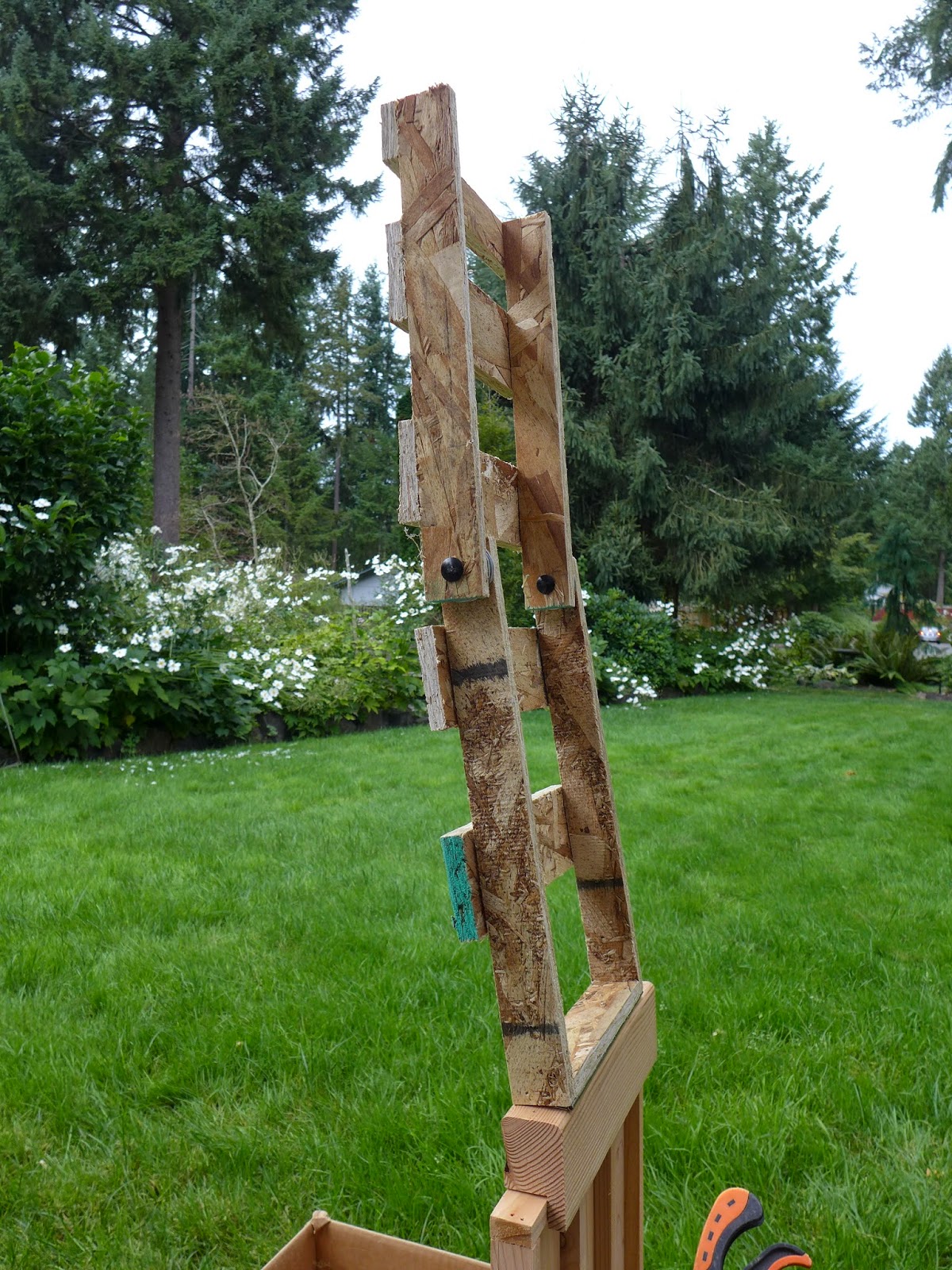

(above) With the lower wall design built and roughly in place, a folding bed platform, that fits flush to the walls was mocked up from scrap strandboard and hardware...

At the bottom is a wall section, capped with a rabbeted piece of fir...Piano hinged to the fir is the folding bed section... The platform will be wood slats...

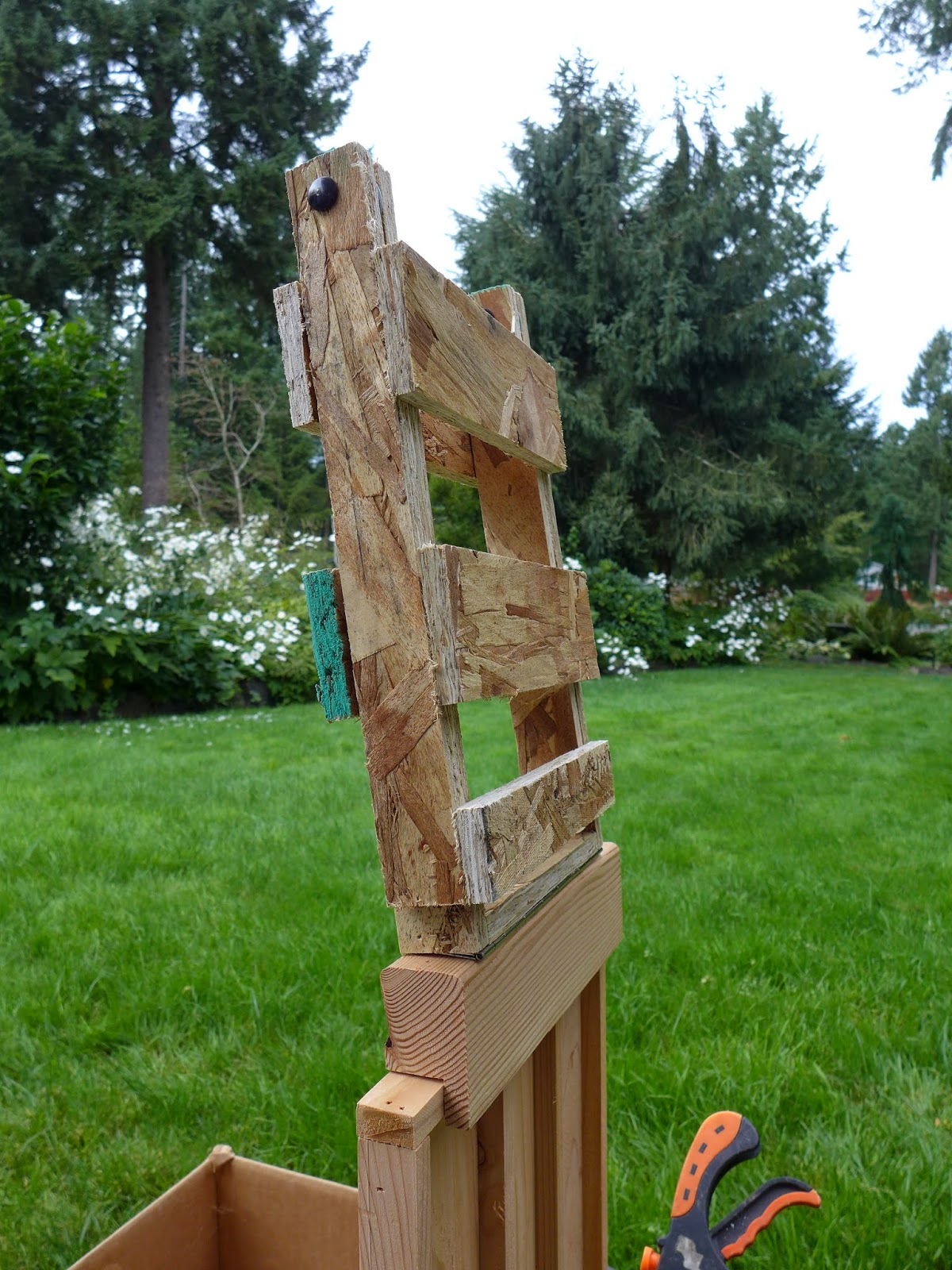

(above) The slat sections will be middle hinged with bolts, nuts and washers...

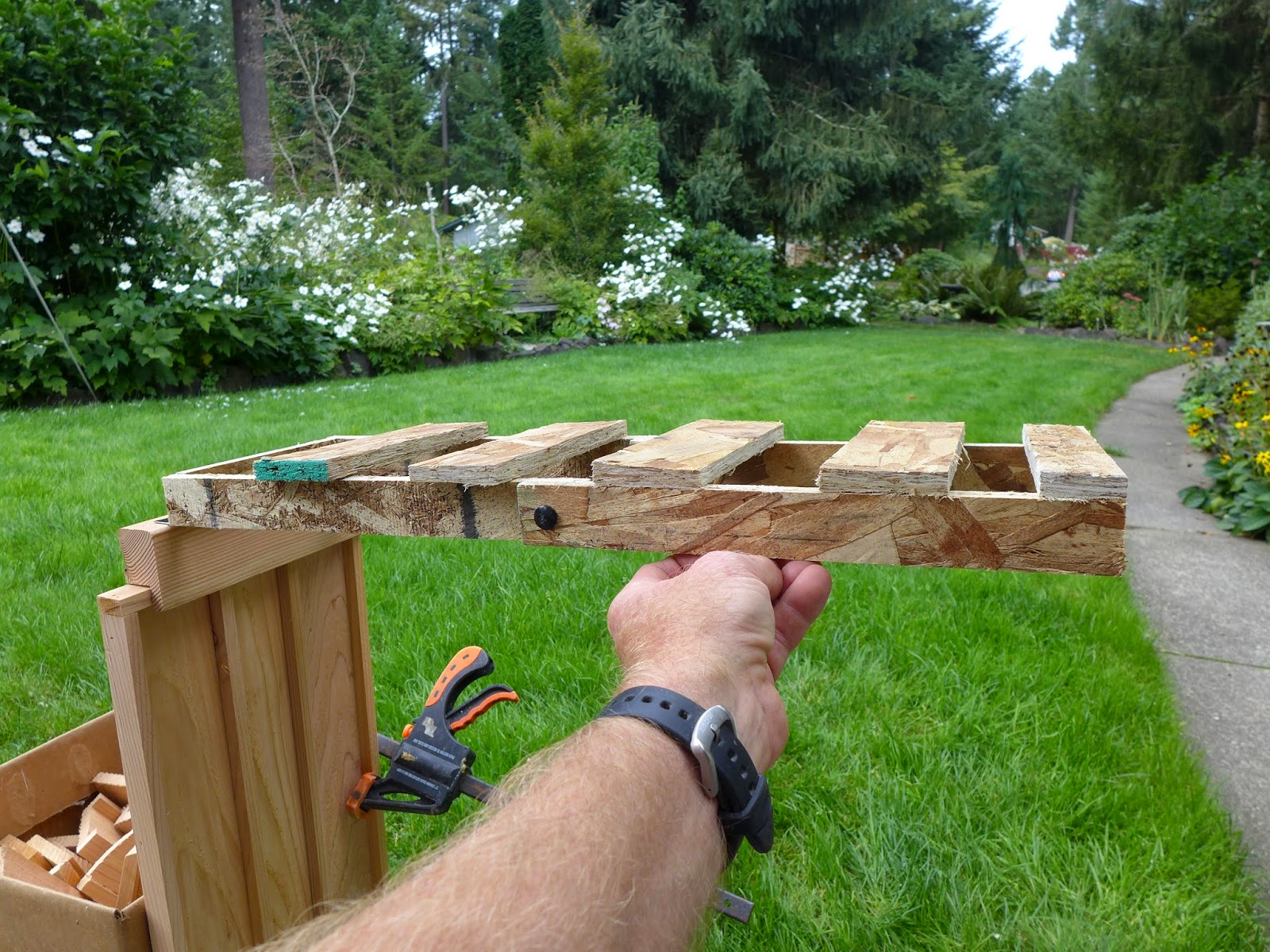

(above) With the platform lowered it will drop down horizontally like this...There will be matching folding bed platforms on both the driver side and curb side walls, meeting in the middle...
