Pro-Rig V2.0 - Home Built Compact Composite Pop-up

[CoyoteThistle]

Well, progress got delayed by the good ol' USPS. I couldn't find the VHB tape primer I needed (Primer 111) locally so I tried the one vendor on Amazon who had it. It said a week to receive it. Fine. Well, within five days it made it to LA, an hour or so away. Next tracking update three days later notified me it had successfully arrived in Denver! Three days back to LA, then right past my house up to Santa Barbara then back down to coast for a total of 13 days. Criminy.

Anyway, that gave me plenty of time to prep things and wonder if I should have kept it simple and light weight and just added foam board. First I gave the big panels that would go on the ceiling two strips of fiberglass. The idea is to spread the load on the panel material out. These are the heaviest panels and are to be adhered to the roof.


In hindsight I don't think I needed to do this. I learned later that the VHB tape sticks very well to the panel material (better than epoxy resin) and that the material is plenty tough.

Also made up some 1" thick edges that will hold the new ceiling in place and leave a small gap between the new ceiling and the VIP's. These will be glued in with 5200 with some wood screws to hold things in place while the glue dries. These are just primed to protect the wood mostly as the only part that will show is the 45-degree angled part which allows access to the Velcro where the tent material attaches.


With wider walls on the slide-up now, I need extra clearance with the door to the propane compartment. I never liked the old one (poly board boat hatch) so this was a chance to make it look better too. I used the latch and hinge from the old hatch and 1/16" aluminum sheet. Finished the edge with some trim-loc rubber edging. It doesn't need to be water tight as it is below the slide up when traveling and in the end, it's just propane tanks and other stuff that can get wet that goes in there. Came out nice I think. Just under 1/4" thick instead of just over 1/2" for the old one was the difference I needed.


Then today, the VIP's went in.

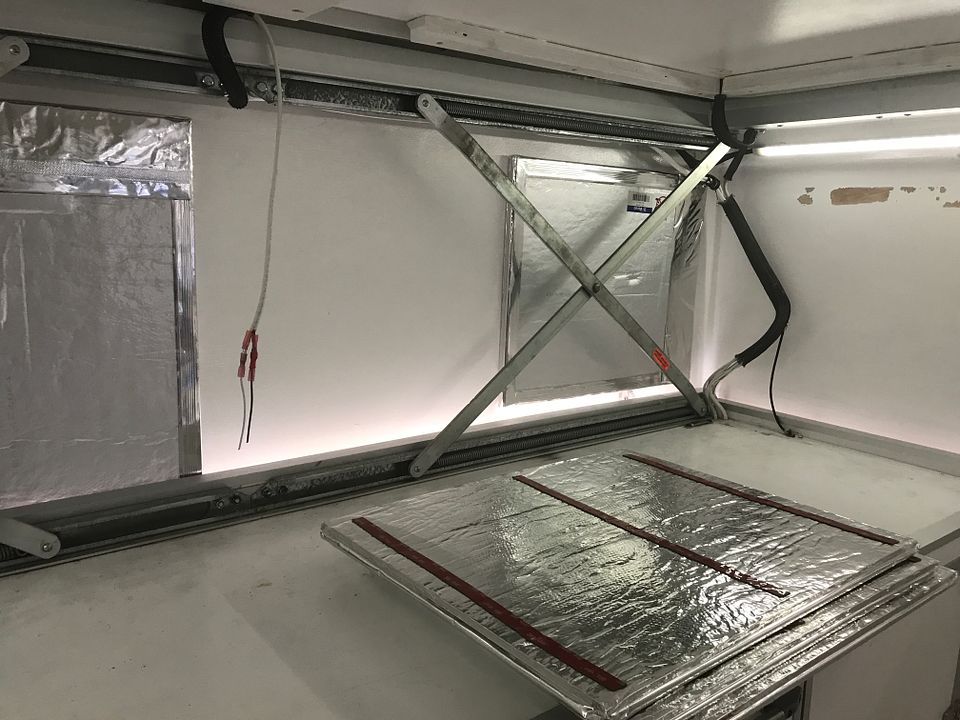

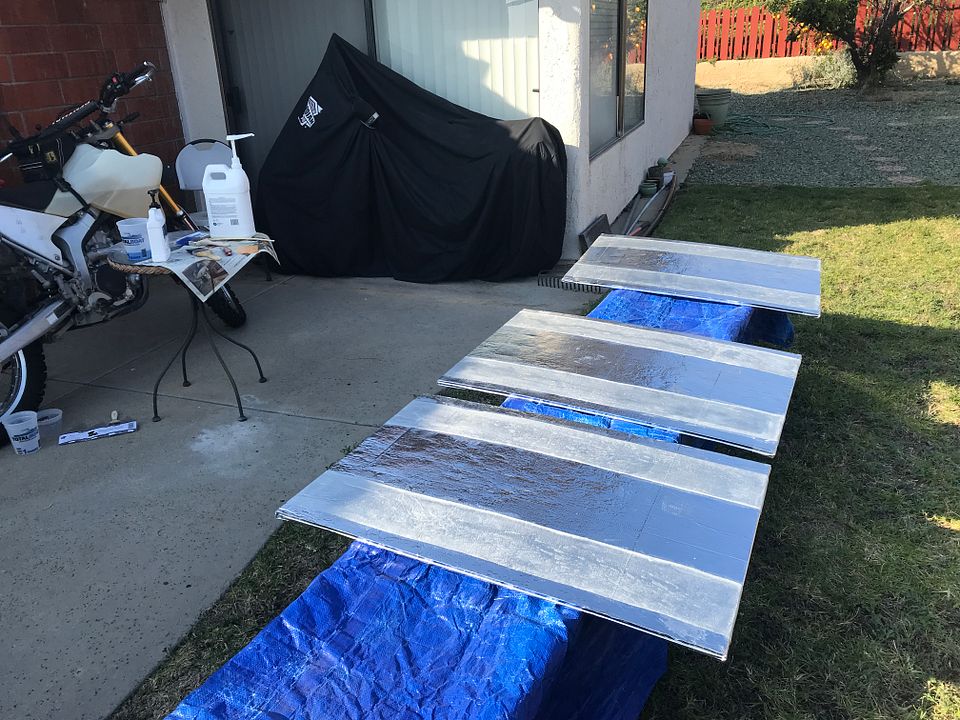

For the walls, I used ~18"X15" panels. Each got three strips of tape in the vertical orientation.


I think the choice to use tape was good. They seem very well adhered, zero worries. Pretty good coverage.


I'll add foam board around the edges where there is space and the new wall panels will be stuck to that with tape. Cutting out the holes for the window in the new walls is giving me anxiety. I want the edges to be nice and tight so I can just add a bead of caulk to finish it off. Any tricks for getting it just right? I'm thinking cardboard template.

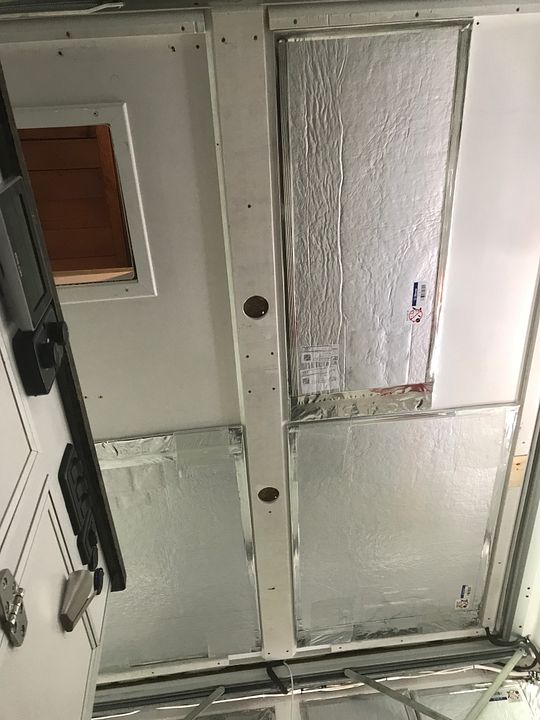

And then came the roof panels where things got a little unhinged. Eventually got two of the three big ones up there.


The other one died. My first TWO attempts to stick it were misaligned and I had to rip the thing off. This is how I learned how strong the tape bonds. I had to really yard on the panel to get it off. I figured this would puncture the panel but I had no choice. This is how I learned 1) that the paint is bonded very well to the original ceiling, 2) the bond between the VIP and the epoxy resin isn't as strong (it failed first but not catastrophically), and 3) the panels are tougher than I thought. I had to bend the panel out of the way to get a putty knife in there to chisel at the tape in one stubborn spot. Even with all that, the vacuum held. That panel is beat up so I set it aside.

The passenger side was supposed to get two big panels which would just barely fit. Well, the fiberglass around the edges made the panels just long enough that the second one didn't fit by about a mm. (yes, much more cussing). I have no other use for the big panel and it's misshapen now from all the earlier drama, so I took a chance on grinding down the glass on the ends to see if I could get my mm back. Well, overdid it a bit and I heard the hissing of air getting in. It wasn't going to fit anyway so, well, there you have it. I had an extra panel that was about an inch shorter and narrower that fills the space pretty well.


So, that's where she sits tonight. Progress, but relatively hard earned.



[ITTOG]

I'll add foam board around the edges where there is space and the new wall panels will be stuck to that with tape. Cutting out the holes for the window in the new walls is giving me anxiety. I want the edges to be nice and tight so I can just add a bead of caulk to finish it off. Any tricks for getting it just right? I'm thinking cardboard template.

Have you considered a router?



[CoyoteThistle]

Have you considered a router?

Good call, hadn't thought of that. Maybe even the dremmel with the little router attachment.



[Ramdough]

Good call, hadn't thought of that. Maybe even the dremmel with the little router attachment.

You could also make a wood template for your router to follow. Make the wood template perfect…. May take a few try’s…. Then use a bit with a roller to follow the wood template.


Sent from my iPhone using Tapatalk



[CoyoteThistle]

Been making some progress. Passenger side wall was easy, no VIPs.


No VIP's on this side because whoever built this thing only left 1" of space between the slide-up wall and the main wall instead of about 1.5" around the rest of the camper. With the VIP's, I'm adding 15/16" of an inch so it was just too tight. Also, the water filler is on this side and it sticks out a bit, decreasing clearance even more. I may have to modify that, but with just the foam board and new inner wall, this side will be at 3/4" of new material (I used spray adhesive to not add width as well). It's all gonna be tight.

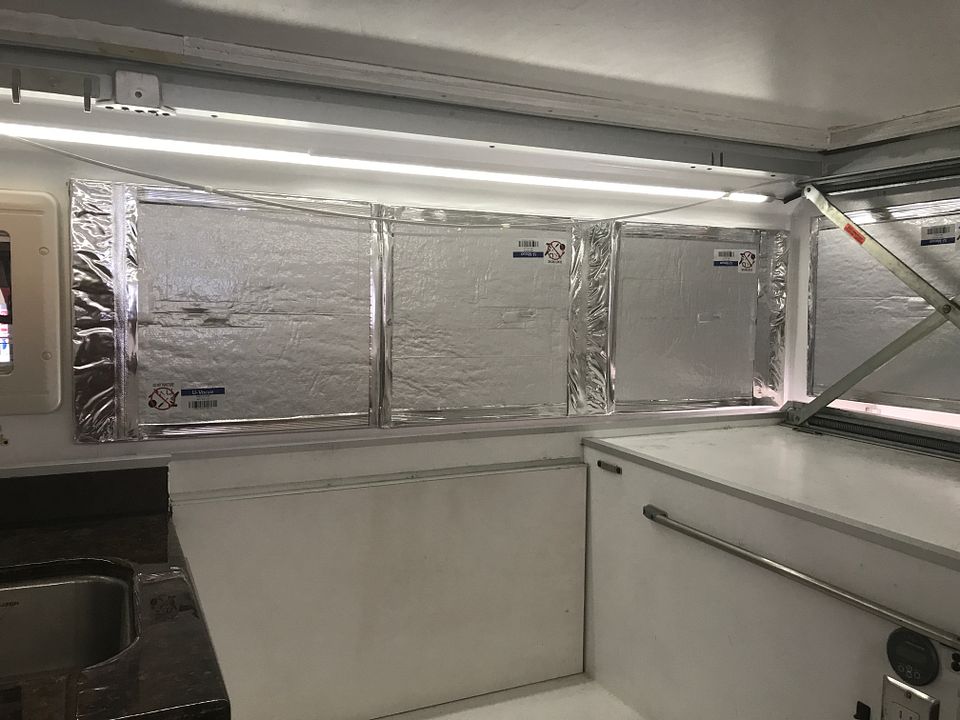

The gaps between the VIPs was filled with foam board.
