Canadian Made Metal Pop-top Trailer
- Thread starter swamper
- Start date
R_Lefebvre
Expedition Leader
Ah... somebody else using Princess Auto axles.
May I ask where you got those latches and hinges? Princess as well?
May I ask where you got those latches and hinges? Princess as well?
R_Lefebvre
Expedition Leader
Darn, I was hoping those were from Princess too. Oh well. Gotta find a source out here.
Oh well. Gotta find a source out here.Darn, I was hoping those were from Princess too.
Check out Faucher Industries, we buy tons of stuff there.
lifting
the lifting systemis off of a 60's erra tent trailer, it is madeup out of a 4 piece slider that used pullies and cables, all the cables are an even lenght and run to a centered point where they are attached to a winch for easy lifting. when lifted I will have a room with a height of 6'6". I works realy slick, I did see these at princess auto.
the lifting systemis off of a 60's erra tent trailer, it is madeup out of a 4 piece slider that used pullies and cables, all the cables are an even lenght and run to a centered point where they are attached to a winch for easy lifting. when lifted I will have a room with a height of 6'6". I works realy slick, I did see these at princess auto.
R_Lefebvre
Expedition Leader
What are you doing for tenting?
tenting material
I was able to purchase a old tent trailer with new zippers curtians and canvas, my whole trailer is based on the dimensions of the doner, the tent will pull out to the sides to cover two single beds, while the table folds down for a twin bed. their was also a awning attachment for out the back. I hope to build some type of out door kitchen with that although i so not quite have it figured out in my head.
I was able to purchase a old tent trailer with new zippers curtians and canvas, my whole trailer is based on the dimensions of the doner, the tent will pull out to the sides to cover two single beds, while the table folds down for a twin bed. their was also a awning attachment for out the back. I hope to build some type of out door kitchen with that although i so not quite have it figured out in my head.
Thanks... my goal is to also be able to stand up...
I want lift system picts. !!!
Curt
update

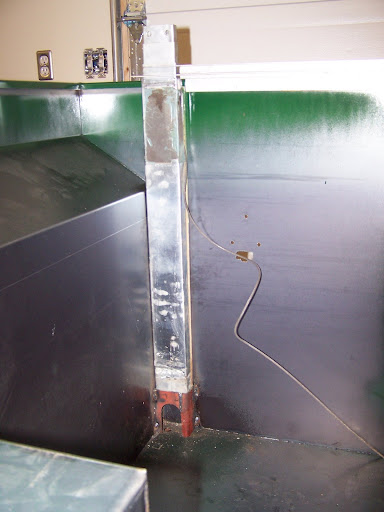

Lifting Mechanism
Rebuilding a 10,000lb winch
Motor Mount with protector guard
support for a slide-out bed
mount with motor in place
slide on the floor showing pullies and cables

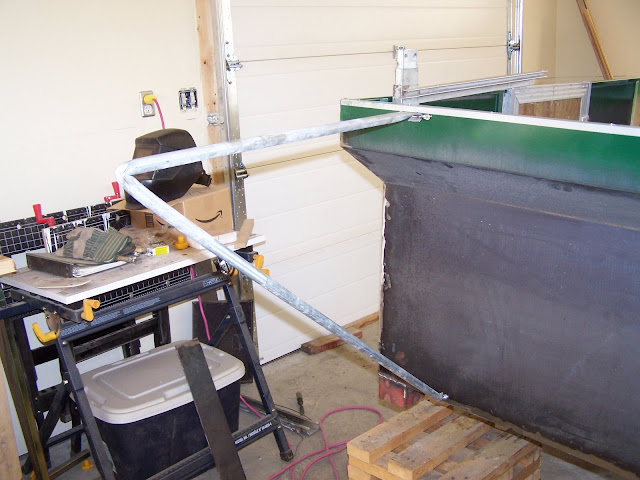

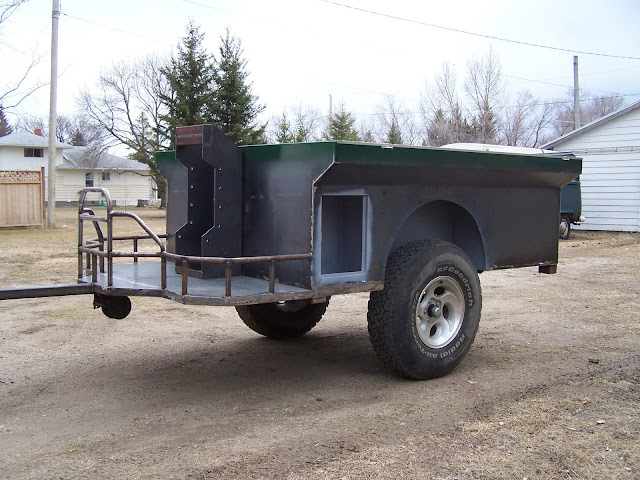

torque flex axles did not work - I could not get enough approach angle. went with a drop axel from Princess Auto, reversed the arch in the tube, put the drop up, and sprung under with the springs

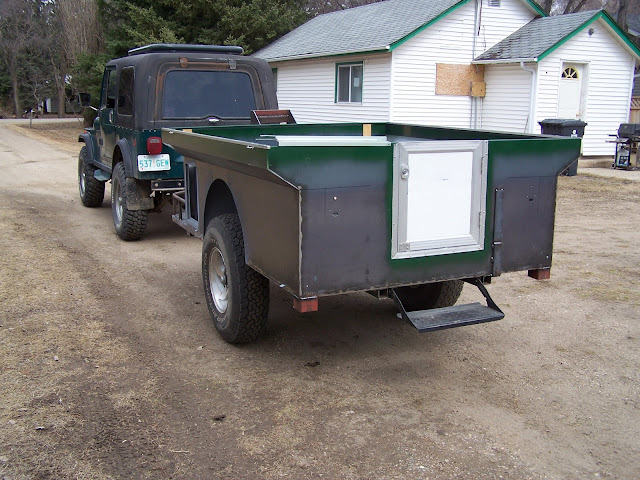

finally hooked on behind towing vehicle - `85 Jeep CJ
Lifting Mechanism
Rebuilding a 10,000lb winch
Motor Mount with protector guard
support for a slide-out bed
mount with motor in place
slide on the floor showing pullies and cables
torque flex axles did not work - I could not get enough approach angle. went with a drop axel from Princess Auto, reversed the arch in the tube, put the drop up, and sprung under with the springs
finally hooked on behind towing vehicle - `85 Jeep CJ
R_Lefebvre
Expedition Leader

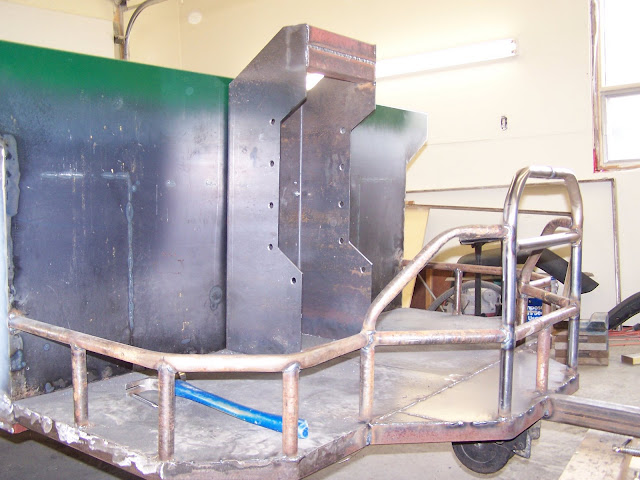

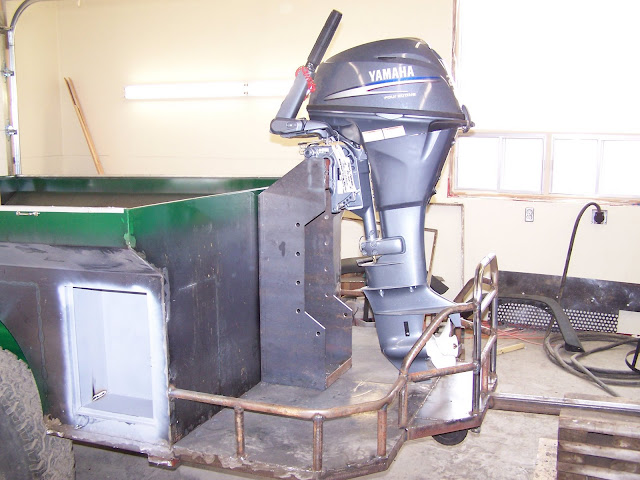

Wait, I must have missed something... are you making this thing amphibious?
Titanpat57
Expedition Leader
I think the lift, axle change was asuperior improvment....the suspense is killing me for the rest
