Topo.Ranger
Adventurer
What I was leaning towards is similar to what you mentioned. 2.5" springs up front and 3.5" springs in the rear. Im hoping that will work. But thank you for that information.
EarthRoamer XV-JP "Northwest Edition"
- Thread starter WhereTheHellIsJames?
- Start date
What I was leaning towards is similar to what you mentioned. 2.5" springs up front and 3.5" springs in the rear. Im hoping that will work. But thank you for that information.
Jeep or Tacoma
Explorer
ome
I run ome and I have a 3inch lift. I am running the heavy duty springs I find them much better than stock. with my stock springs the weigh of my warn bumper 155lbs and a 10k winch collapsed the front springs to the point where they only1/2inch travel . The ome springs solved that . give them a second look there are longer versions.
I run ome and I have a 3inch lift. I am running the heavy duty springs I find them much better than stock. with my stock springs the weigh of my warn bumper 155lbs and a 10k winch collapsed the front springs to the point where they only1/2inch travel . The ome springs solved that . give them a second look there are longer versions.
PaulJensen
Custom Builder
32 - Exterior bolt-ons...
Whew, what a month...!!!... The wedding was amazing and so was Barcelona... Good to be back and continuing to make progress on the Jeep...
(above) Handicap grab bars were bolted on to the curb side cabin... Primarily to be a stand-on bar to access the roof rack and vertical bars are for hand holds to get up to the rack... As you can see the horizontal bar doubles as a traction-pad tie-down... The vertical bar nearest the propane locker will also have a detachable shower head mount...
(above) Off the back an aluminum box was bolted to the door... It will likely be the dry food locker...
(above) The box lid will also function as a food prep area when opened up...
(above) On the driver side the hi-lift jack is mounted forward of the spare wheel... The jack base will fit inside the spare wheel rim...
(above) The jack has aluminum backing plates to disperse the pressure points on the shell... An all-steel post hole shovel (acquired from a toothless, Asian man who barely spoke English, on Route 66 in the California desert, for $5.00) , is mounted to the jack...
Whew, what a month...!!!... The wedding was amazing and so was Barcelona... Good to be back and continuing to make progress on the Jeep...

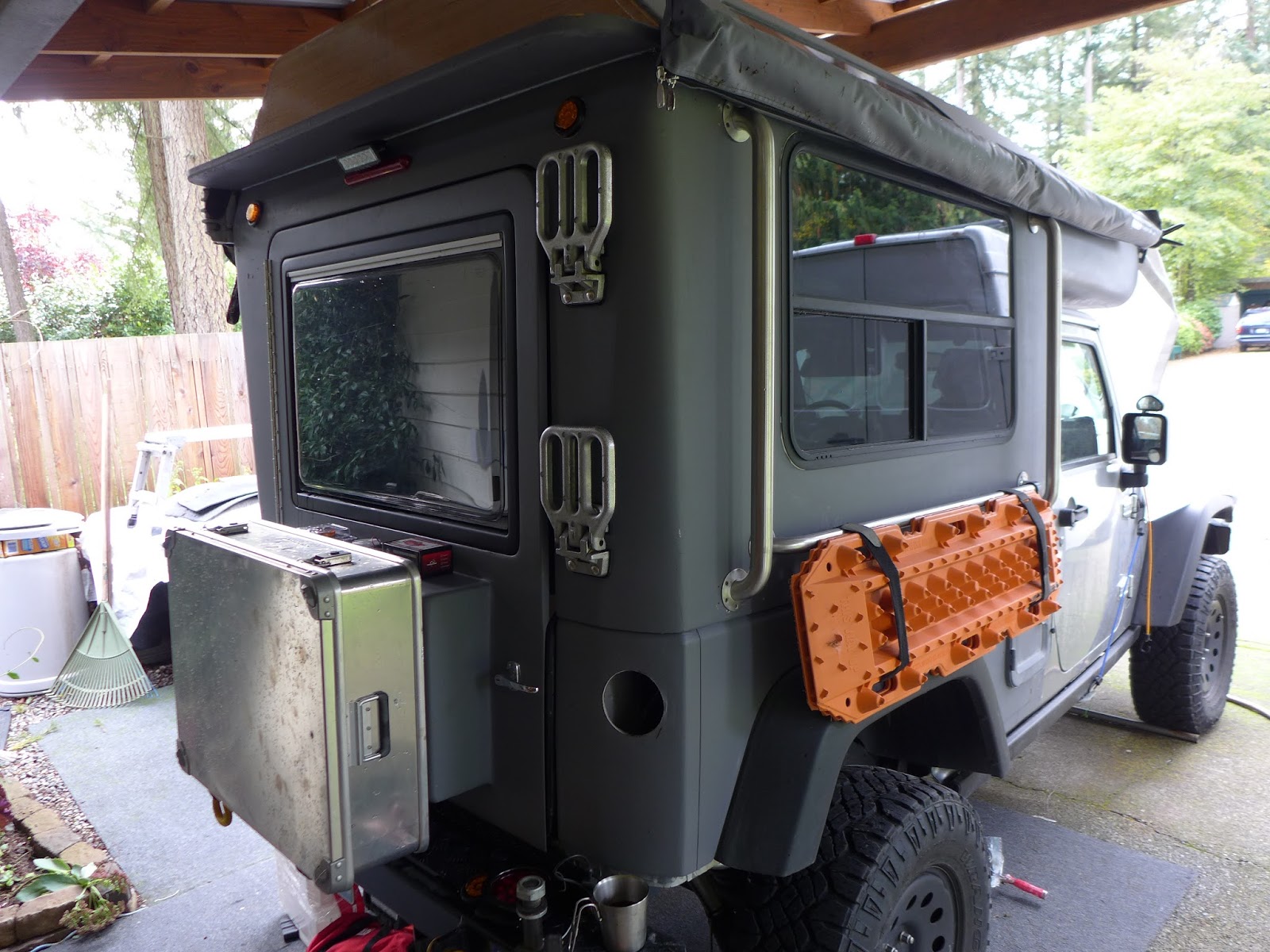

(above) Handicap grab bars were bolted on to the curb side cabin... Primarily to be a stand-on bar to access the roof rack and vertical bars are for hand holds to get up to the rack... As you can see the horizontal bar doubles as a traction-pad tie-down... The vertical bar nearest the propane locker will also have a detachable shower head mount...

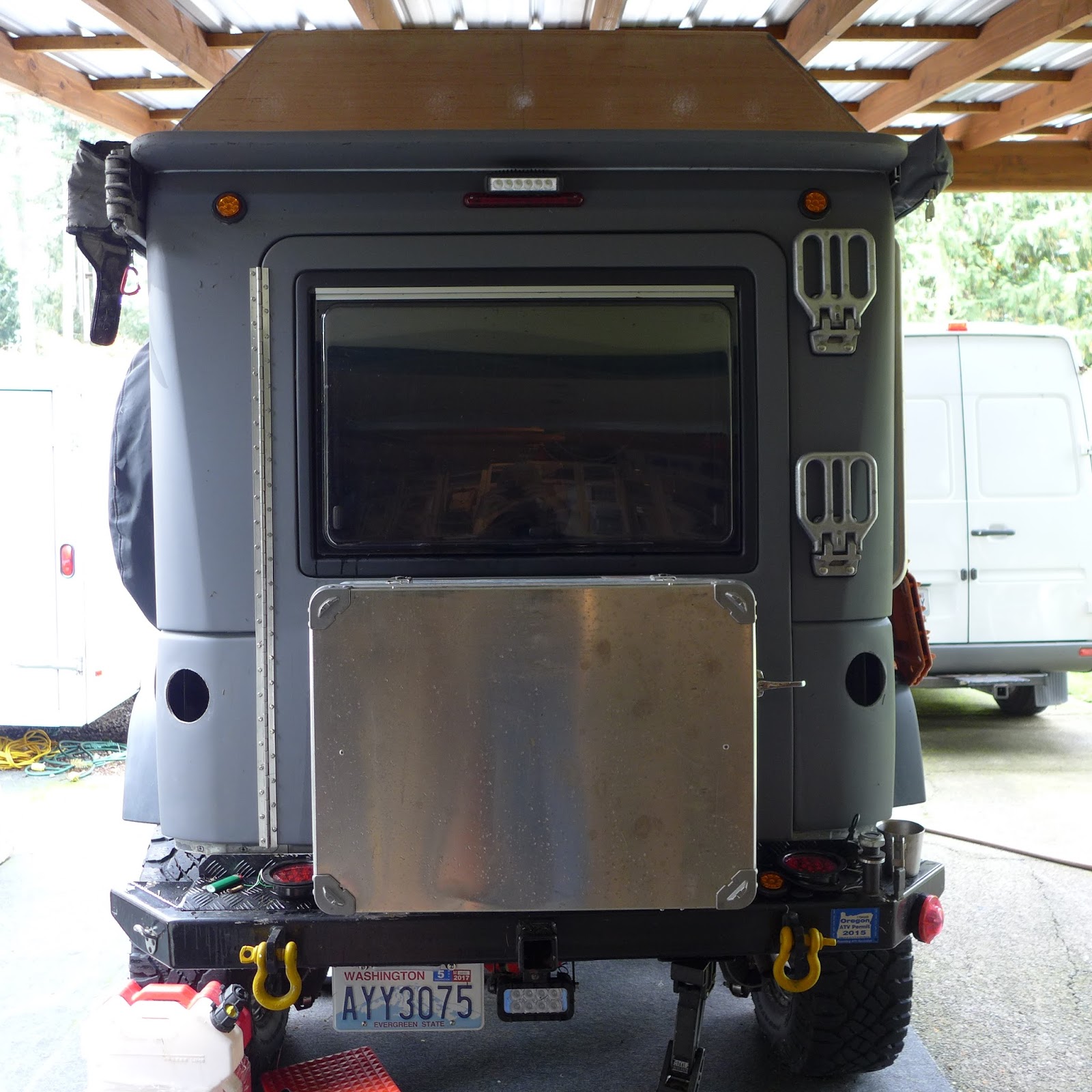

(above) Off the back an aluminum box was bolted to the door... It will likely be the dry food locker...
(above) The box lid will also function as a food prep area when opened up...

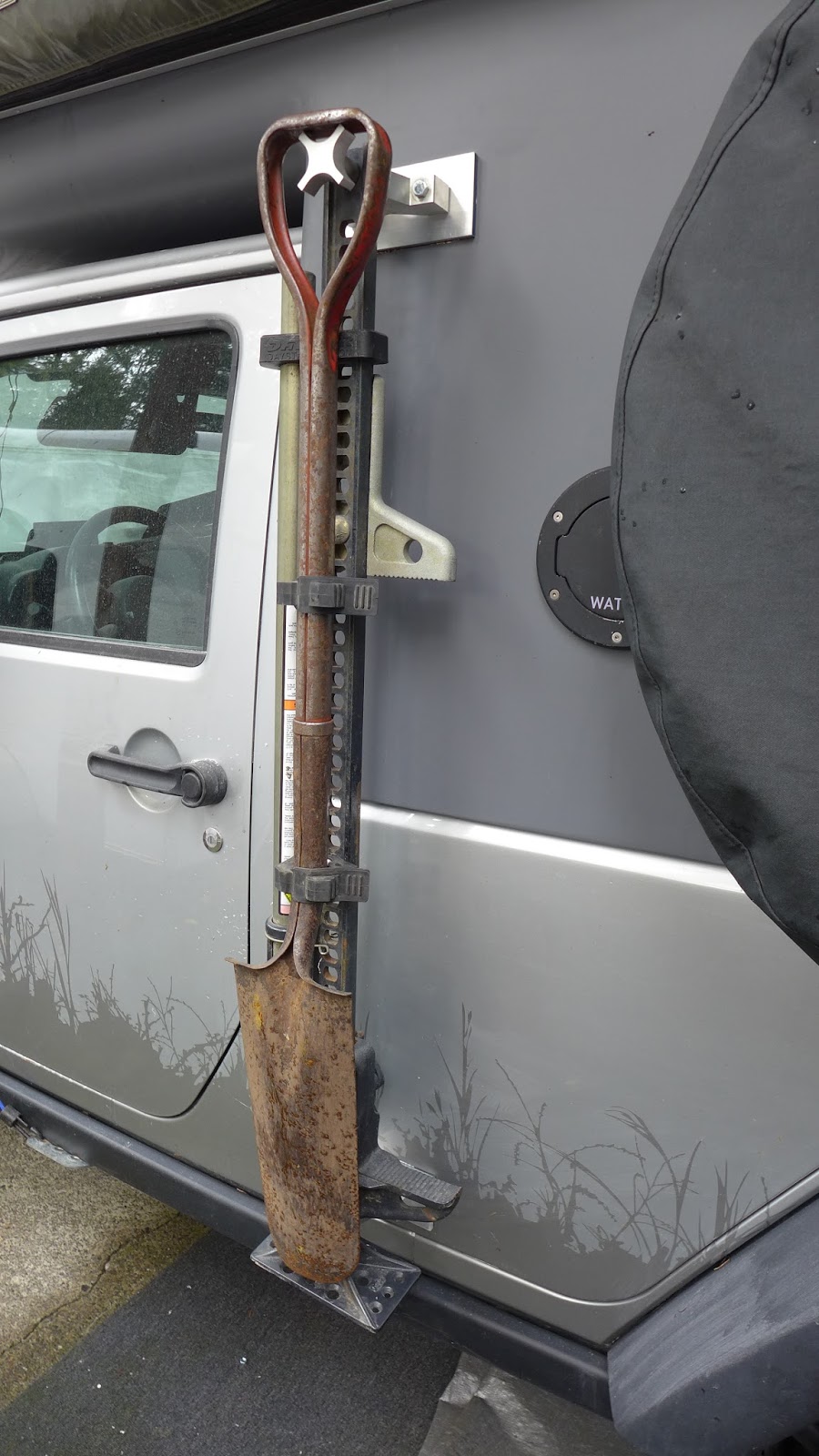

(above) On the driver side the hi-lift jack is mounted forward of the spare wheel... The jack base will fit inside the spare wheel rim...
(above) The jack has aluminum backing plates to disperse the pressure points on the shell... An all-steel post hole shovel (acquired from a toothless, Asian man who barely spoke English, on Route 66 in the California desert, for $5.00) , is mounted to the jack...
PaulJensen
Custom Builder
Over the weekend the new water tank was connected to the pump, accumulator tank, water heater and the angle stops... Lots of hoses, lots of connections...The tank was filled, the pump turned on ant it ran leak free for a half hour... Yessss...!!!...
Moving on to the inside next...
What sucks is I am on Jury Duty on a two to three week trial and need to do day-job work over the weekends... Grrrr...!!!!...
Moving on to the inside next...
What sucks is I am on Jury Duty on a two to three week trial and need to do day-job work over the weekends... Grrrr...!!!!...
PaulJensen
Custom Builder
Yes it is... Sturdy... I need to figure out some shelving for it...
PaulJensen
Custom Builder
Just a quick note to say that progress on the Jeep is all mental right now... I am on a two to three week jury duty obligation... I am playing catch up on paying work on weekends... Sorry for so little to show lately... Hang in there...
PaulJensen
Custom Builder
33 - Water System Finalization
(above) Most of it fits under the passenger seat...
(above) A lot in a tight space, as usual...
(above) Propane locker on the left, water tank on the right...
(above) Shower hose coming out of the side...
(above) Propane locker with hot/cold shower...
(above) Locker door...
(above) Nothing to look at, keep moving...
(above) Added an amber turn signal light...
The roof got primed too... It's good to be back...

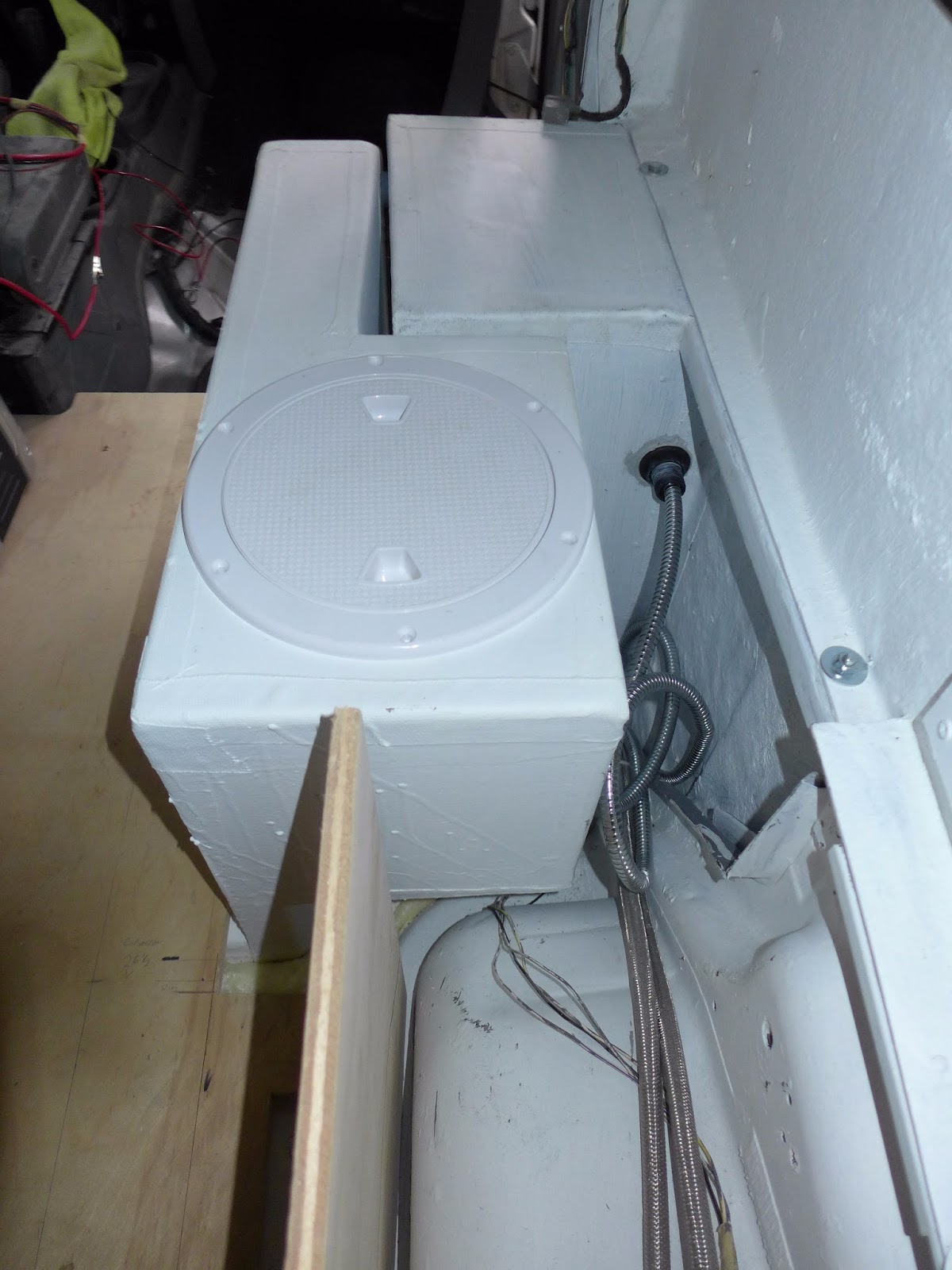

(above) Most of it fits under the passenger seat...

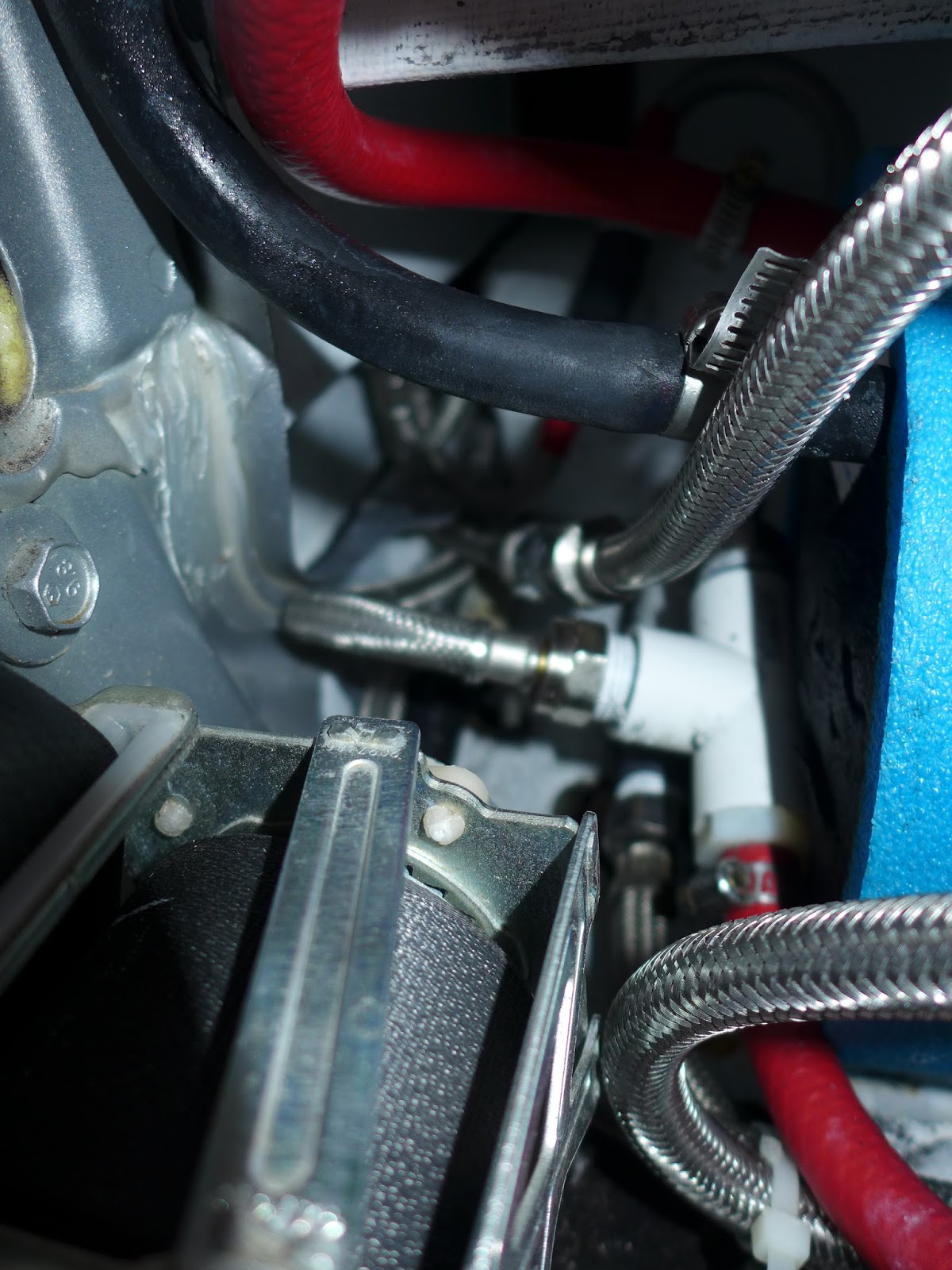

(above) A lot in a tight space, as usual...
(above) Propane locker on the left, water tank on the right...
(above) Shower hose coming out of the side...
(above) Propane locker with hot/cold shower...
(above) Locker door...
(above) Nothing to look at, keep moving...

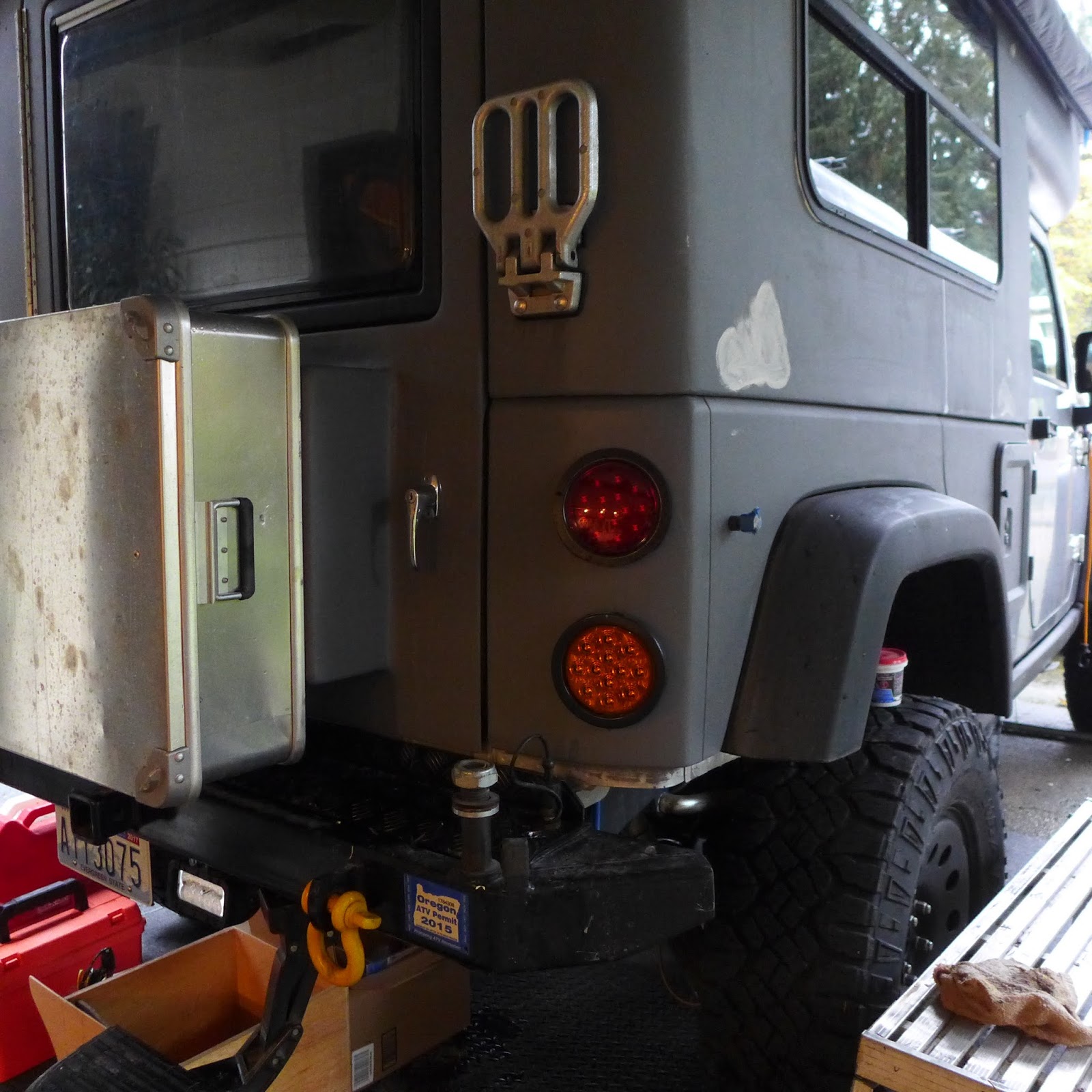

(above) Added an amber turn signal light...
The roof got primed too... It's good to be back...
PaulJensen
Custom Builder
34 - Electrical Component Placement

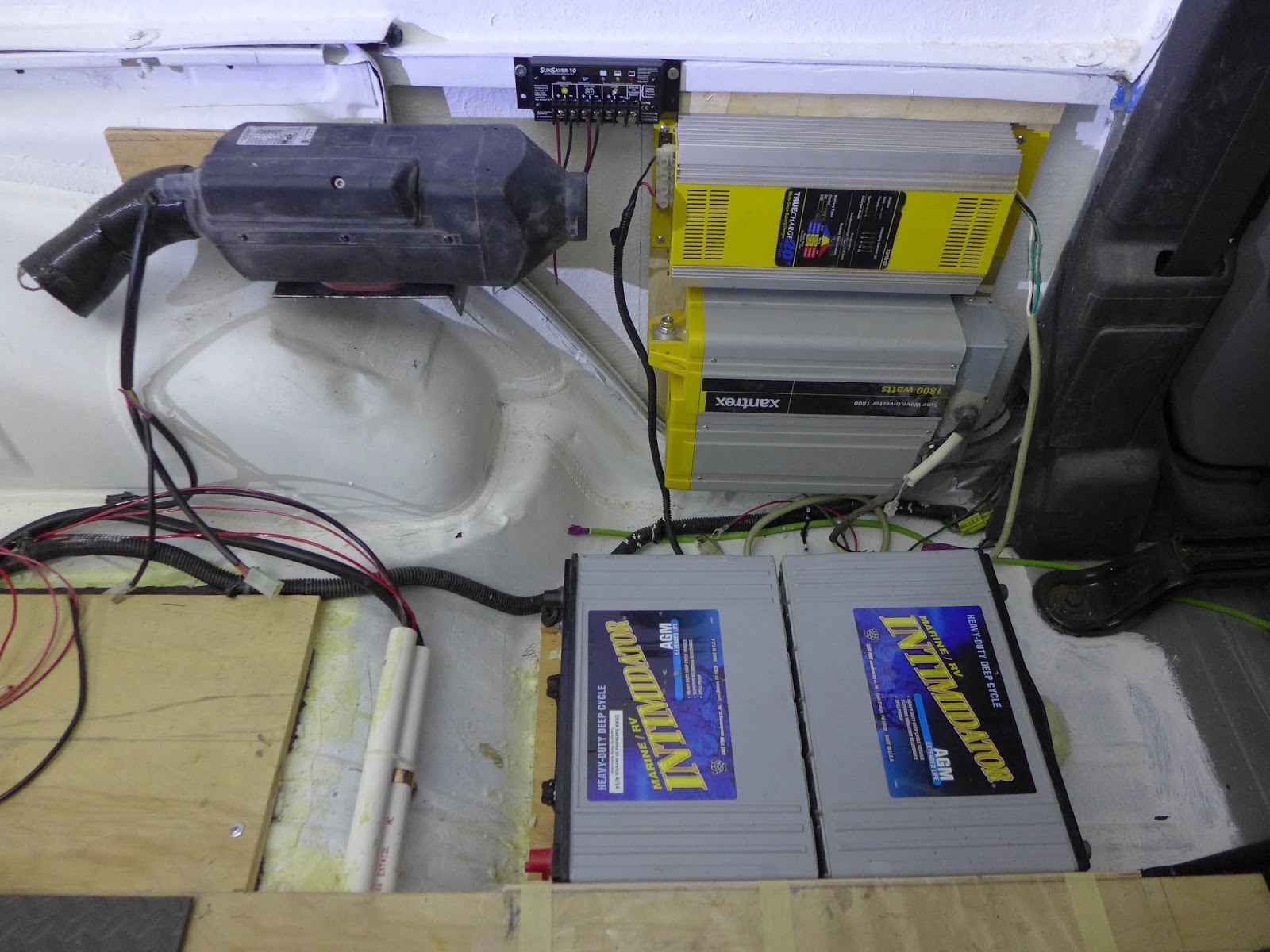

(above) Major progress on some important issues: Placement of Batteries, Battery charger, Inverter, Air heater, and Solar controller...
(above) This shows how things will fit within the area under the bench seat/bed... The larger black hose on the right side of the floor will be a secondary propane lead for the rear door kitchen...

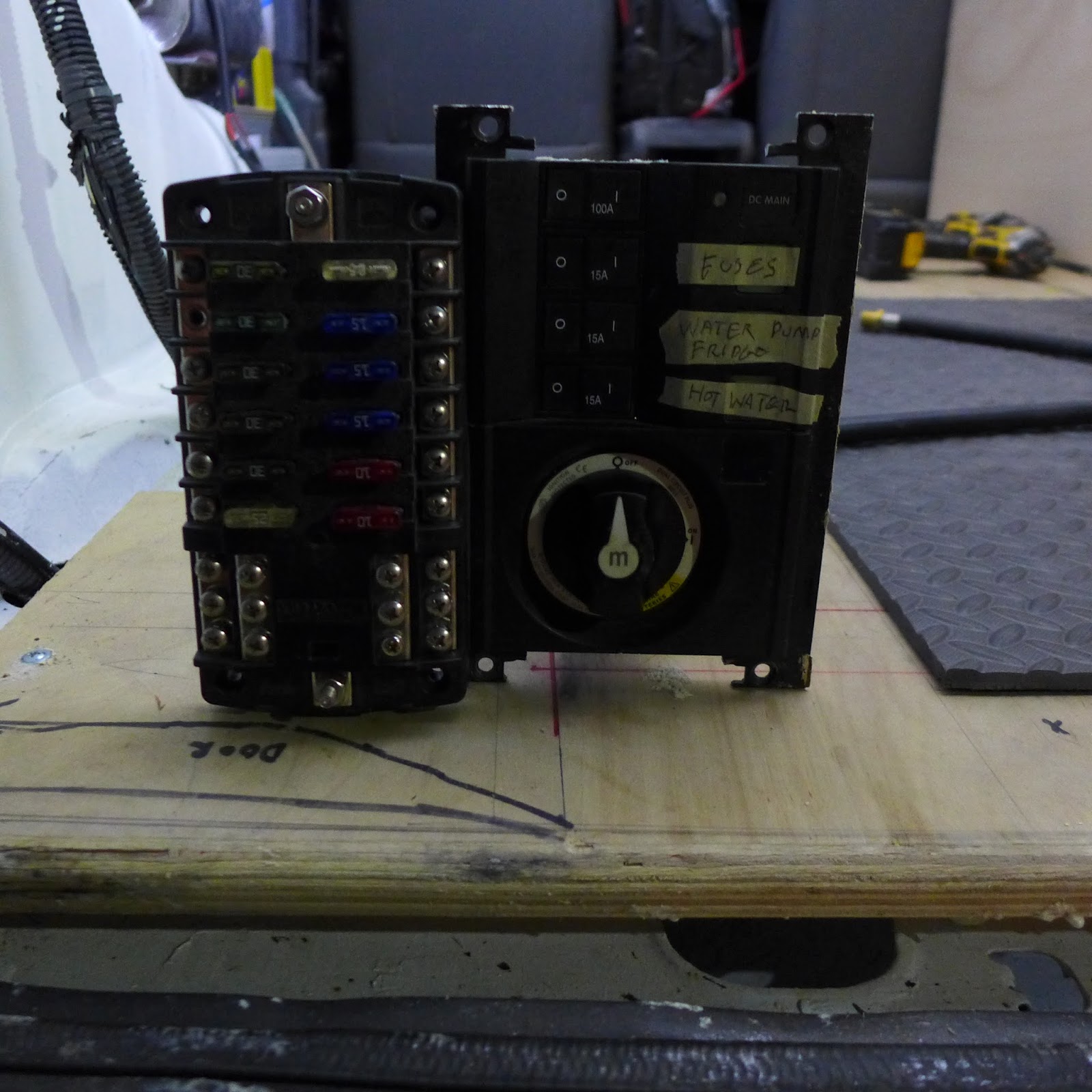

(above) The fuses / breakers will be within a custom wood panel just inside of the rear door on the hinge side...
More to do, but getting these things located was a big deal to me...
(above) Major progress on some important issues: Placement of Batteries, Battery charger, Inverter, Air heater, and Solar controller...
(above) This shows how things will fit within the area under the bench seat/bed... The larger black hose on the right side of the floor will be a secondary propane lead for the rear door kitchen...
(above) The fuses / breakers will be within a custom wood panel just inside of the rear door on the hinge side...
More to do, but getting these things located was a big deal to me...
screwball48
Explorer
So I understand you worked as a designer on the game Tetris? Work on the jeep is looking good.
Sent from my iPad using Tapatalk
Sent from my iPad using Tapatalk
PaulJensen
Custom Builder
What is Tetris...???... Seriously...???...
screwball48
Explorer
https://youtu.be/keeSEJG4XzU
Sorry if that is an obscure reference. I intended it as a complement on your ability to nicely fit odd shapes into a tight compartment.
Sent from my iPad using Tapatalk
Sorry if that is an obscure reference. I intended it as a complement on your ability to nicely fit odd shapes into a tight compartment.
Sent from my iPad using Tapatalk
PaulJensen
Custom Builder
I am so clueless... Never, ever played a video game... I could be a champion at Tetris I figure...
Every Miles A Memory
Expedition Leader
The Tetris comparison is a big compliment and I thought the exact same thing
