Heat Recovery Ventilators

[Trail Talk]

Really appreciate hearing from someone having experience with Lunos in an RV application. Your covers are slick! Could the Lunos cover rotated to a similar cant back?



[Victorian]

Really appreciate hearing from someone having experience with Lunos in an RV application. Your covers are slick! Could the Lunos cover rotated to a similar cant back?

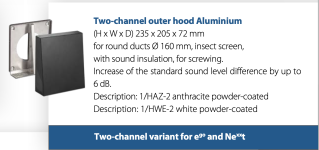

View attachment 867111

The outside vent cover/baseplate has to line up with the internal (insulated) ducting. I believe the direction/angle of down facing exhaust can not be changed.



[yamaha225]

I've used the LUNOS HRV a bunch & think they are a non-negotiable item for anyone 3+ season camping. I don't but if you have any sort of combustion happening inside the envelope of your camper perhaps even a critical safety item in the winter.

Biggest plus to the LUNOS for me is it's modular so I can make my own plenums and its 12vDC.

They work great but need a bit of modification to work properly on a mobile application IMHO.

The inside air exhaust / fresh-in outlet is ok if you have a dead ended cabinet. The exterior in/out cover isn't optimized for road speed in the rain as they are meant for a stationary application. I disassemble them and print my own interior and exterior plenums. On the outside it's pretty simple, a basic cover splitting the intake/exhaust airs & canted to the rear so wind underway doesn't venturi rain water back in. On the inside I print an end cover with a magnetic plenum for ease of assembly and that directs the intake fresh air through an adjacent bulkhead. The cabinets are vented so the exhaust air is pulled from inside the camper away from the fresh in. Hard to separate the two flows outside but you can't win them all.

Happy to share the STL files with anyone who wants to print their own. I use ASA for strength and UV stability but if you sanded and painted the exterior plenum PLA would be just fine too. Tree supports to avoid warping the flat surfaces.

View attachment 867091View attachment 867092View attachment 867093View attachment 867094View attachment 867095View attachment 867096View attachment 867097

Is that the Lunos E2 or EGo?



[Trail Talk]

The outside vent cover/baseplate has to line up with the internal (insulated) ducting. I believe the direction/angle of down facing exhaust can not be changed.

As Blackdogvan noted, would there be anything in the way of rotating the entire unit?



[yamaha225]

As Blackdogvan noted, would there be anything in the way of rotating the entire unit?

That’s why I asked whether he was using the E2 or EGo. I have the E2 in my house and there’s nothing stopping you rotating them however you want. It looks like that’s the EGo though which has two sides and I could see it being more important which way it’s oriented. Still not sure it would matter much though.



[Blackdogvan]

I use the EGo version. No reason I can see why it can't be rotated +- 45 degrees.
