Post up your drawer/storage system

[blackohio]

I built this to take advantage of existing bedslide. Has platform and the slide functions as the lower drawer. platform has single center support that rides on the bedslide itself on a rollerblade bearing. Rear of platform behind fridge is where the solar set-up is. Overall it meets my needs but I will be making changes that maybe doesnt utilize the bedslide itself.



[s.e.charles]

some pretty rugged slides on that



[MCX]

I just finished up a rear cargo drawer system for my Xterra. Lots of great inspiration from so many awesome builds on this site and others. But, the main area I drew inspiration was from: https://theadventureindex.com/shop/

Here's the basics on my setup:
-- 1/2" birch
-- Cut the bottom of each drawer so I could still access the underneath rear cargo tray by folding the back seats forward
-- 400 lb full extension drawer slides
-- 333 lb D-rings bolted with 5/16" pronged tee-nuts and bolts on the top (so I can still strap things down, when needed)
-- Side "wings" are removable, so I can use the space under them, too
-- 12" interior hieght
-- Driver-side drawer is 2-feet deep
-- Passenger-side drawer has a "drawer within a drawer" and a spring loaded prep table. There's room under the prep table to store silverware, spices, spatula, tongs, etc. (or anything else that's no taller than 4")

Pictures...



[Rezarf <><]

Great idea, very creative in a thread that has nearly everything already shown... awesome man.



[Johncmng]

Where does one get these draw sliders? What are they called and does amazon have them?



[dmwhiteman]

Where does one get these draw sliders? What are they called and does amazon have them? View attachment 459727

I got mine from cabinetparts.com. a Google search for heavy duty drawer slides showed them as the best price

Sent from my SM-G955U using Tapatalk



[Lucky j]

http://truck-hardware.orrorr.com/viewitems/drawer-slides/heavy-duty-full-extension-slide?

This is where I got mine.



[Hawk136439]

http://truck-hardware.orrorr.com/viewitems/drawer-slides/heavy-duty-full-extension-slide?

This is where I got mine.

When you ordered from that site was the price shown per pair or per single slide?



[Hillbilly Heaven]

Usually slides are priced each.
Those linked are non-locking. If you want a locking slide, which I would recommend, here is the link to the locking slide. You will need one of each.
http://truck-hardware.orrorr.com/vi...vy-duty-lock-in-lock-out-full-extension-slide



[Lucky j]

From what I remember, they were by pair. I purchased a set that was locking and a set that was not and mixed them when I did my installation.

And in the pics, they do show a set in the pics. And I have just found my last order, and it said sold in pair.

Product Number: H-8434
Product Name: Heavy Duty Full Extension Slide 250 and 500 lbs
Items Per Package: 1
Package Typeair
Price: 120.50
Quantity:1

That was in the fall of 2015



[Lmg]

I am on the Fine Homebuilding daily tip list. This is todays tip:

HOW-TO
The Big Drawer

Issue 189

I know truck-bed extenders are available commercially, but I decided to make my own to demonstrate my carpentry and problem-solving skills to my clients. It seems to have worked. My truck’s Big Drawer never fails to be a great conversation starter.
The Big Drawer is made up of two parts: the drawer and the support-roller system. Neither is attached to the truck bed, so it’s not difficult to remove the rig if I need to haul a load of material.

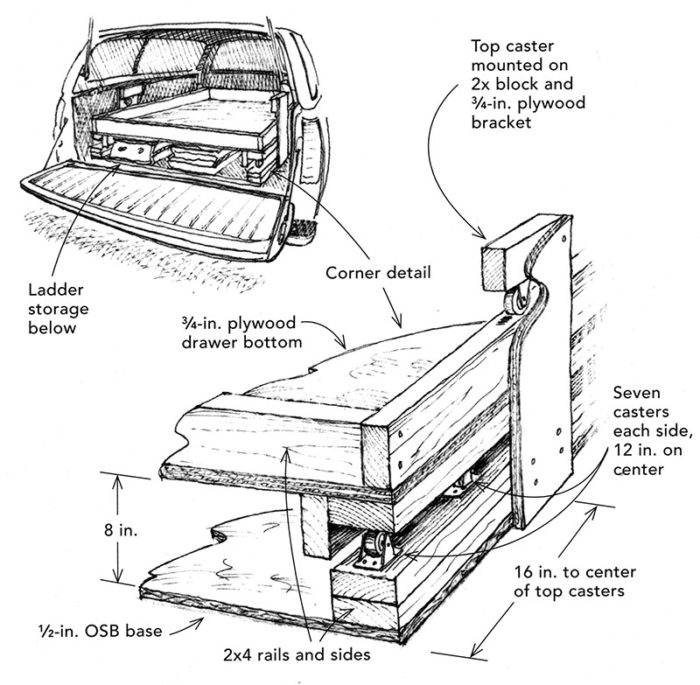

The drawer measures 4 ft. by 8 ft. and is raised about 8 in. above the base to allow room for stepladders or folding sawhorses. As shown in the drawing, the drawer rides on casters affixed to 2×4 rails. To prevent the drawer from tipping when it’s extended, I attached a couple of overhead casters on plywood brackets 16 in. from the tailgate. The weight of the drawer, in addition to the tools in it, gives the drawer enough friction to prevent it from sliding out. When fully extended, the drawer is 5 ft. past the truck’s bumper, allowing for easy access to items stored near the cab.

Brad Moritz, Charlotte, NC
Sign up for eletters today

Thought that this may be inspiring to someone.

The 2x block which the upper casters are mounted on could be extended to the full length of the drawer to allow crossmembers and a stationary plywood platform to be added.



[Hillbilly Heaven]

Very nice idea and handy work. Those drawings remind me of the old drawings that use to be Popular Mechanics during the 70's.



[s.e.charles]

youngsters …. http://todaysinspiration.blogspot.com/2008/11/hints-from-model-garage-by-rouse.html



[Hawk136439]

I am on the Fine Homebuilding daily tip list. This is todays tip:

HOW-TO
The Big Drawer

Issue 189

I know truck-bed extenders are available commercially, but I decided to make my own to demonstrate my carpentry and problem-solving skills to my clients. It seems to have worked. My truck’s Big Drawer never fails to be a great conversation starter.
The Big Drawer is made up of two parts: the drawer and the support-roller system. Neither is attached to the truck bed, so it’s not difficult to remove the rig if I need to haul a load of material.
The drawer measures 4 ft. by 8 ft. and is raised about 8 in. above the base to allow room for stepladders or folding sawhorses. As shown in the drawing, the drawer rides on casters affixed to 2×4 rails. To prevent the drawer from tipping when it’s extended, I attached a couple of overhead casters on plywood brackets 16 in. from the tailgate. The weight of the drawer, in addition to the tools in it, gives the drawer enough friction to prevent it from sliding out. When fully extended, the drawer is 5 ft. past the truck’s bumper, allowing for easy access to items stored near the cab.

Brad Moritz, Charlotte, NC
Sign up for eletters today

Thought that this may be inspiring to someone.

The 2x block which the upper casters are mounted on could be extended to the full length of the drawer to allow crossmembers and a stationary plywood platform to be added.

Did you add any stops or something to keep the drawer from sliding all the way out of truck? Say on a hill?



[Lmg]

Brad Moritz , who submitted this to Fine Homebuilding said in the description: "The weight of the drawer, in addition to the tools in it, gives the drawer enough friction to prevent it from sliding out." He also states that the drawer is not attached to the truck. So yes, you certainly do want to add a stop.
