Phase IV Goose Gear/Tembo Tusk Updated 12-21-2017
Phase IV you say?
As you could see from the previous pictures, when the chuckbox was pulled out there was not much room to stand when its door/table was in the down position.

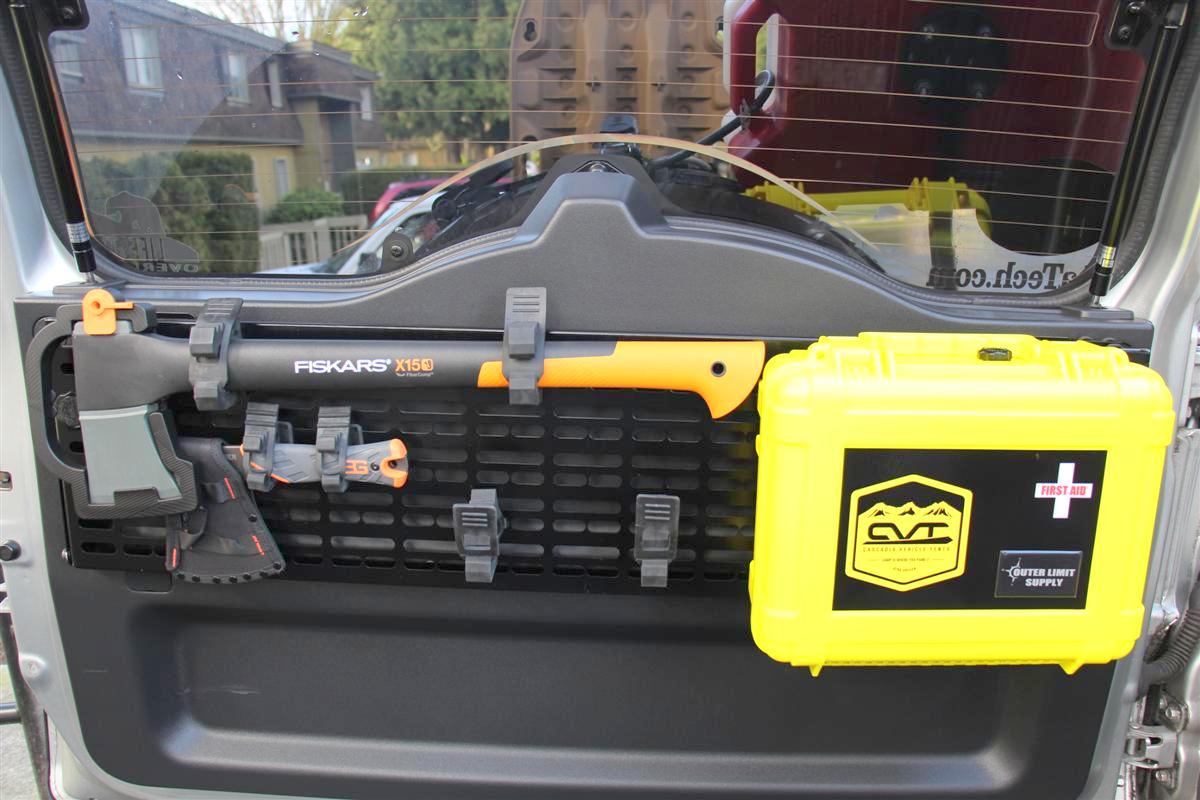

I would have had to dis-mount the Outer Limits Weekender first aid kit to stand there, and it would still be tight.
Rotating the chuckbox 180 degrees so it opens on the passenger side the door would not drop down due to it hitting the rig inside by the tail light area.
I got a hold of Jerry at Tembo Tusk and asked if they had longer Accuride slide tracks, and why yes they do.
He had to order in a pair of 35" ones for me, drill a few new locating holes. and ship them out to me.
He had detailed instructions for removing the original ones, and mounting up the new ones, so it was a very easy job.
Now when I pull the chuckbox out, I have room to drop down the door and use it as a prep table facing it from the passenger side, very nice.
I started removing the stock rails yesterday, and they are around 28" long, and the new ones are 36" long.
Ooooops, I thought they might have to hang out the back, and that would require me not having a rear door
I got a hold of Jerry, and the extended length actually comes into the cab, I was unaware as I thought these were tripped stacked rails instead of double like the stock ones, but Jerry informed me on the phone triples would reduce the weight handling capability of them.
This would mean loosing some cargo space inside, but I can work with that.
Remember, I am on a reduction diet of the gear I take, and I have already cut back to two Alu-boxes instead of the three I have now
It turned out very nice, and it was below 30° this morning, but very sunny.
Usually not doing work on the rig when it is cold out there.
I did have to cut the tray on each side with a hacksaw, as the ends of the rails butt up against a lip, and the longer length of the new rails would not work, unless I wanted to use the upper mounting holes, but that would raise the tray the chuckbox sits on about 1/5" higher, so I opted to notch the lip.
Pics:
Showing the door/table not being able to drop down all the way due to the stock shorter slide rails
New 36" rails in place
Shot of the chuckbox tucked away, same as before
Shot of it from the rear closed, it comes out about 8" more than before
With the door/table in the down position
Rear shot with the Camp Chef Denali stove on top
Side shot with the stove setup
Inside shot showing how the rails protrude into the cargo area, and you can see the two notches I had to cut in the lip
Down to just one Eezi-Awn K9 table now, with the rails extending into the cargo area, the rail was hitting a second table
I may have a solution to rectify that at a later date
Now I need a food truck license
