Obsessed2findARuggedHybid
Well-known member
Dwellers are to reasonably priced to hype anymore. Plus they only have two wheels. Not hearing to much about the 4 wheeled 19 these days
OBI Dweller Review and Discussion
- Thread starter gendlert
- Start date
Obsessed2findARuggedHybid
Well-known member
Testing a rv in traffic and taking your hands off the wheel while you chat at the camera . Then say it's ridiculous to drive under 70 mph and go around a curve at 85 mph. Crazy man someone is drinking to much diet mountain do
Chasingopenspaces
Active member
Seems like a nice mod that potentially could be done at home with some basic metal working skills. I wonder what it does for the hitch weight though, I thought they were a little heavy up front already
Obsessed2findARuggedHybid
Well-known member
Did any D 15 owners do this mod? One spare should be all you need.
RJWB
Member
I'm a dweller 15 owner, It's all about balance you can accomplish the exact same thing that Shane did in this video by filling the front water tank i.e. adding weight to the front of the trailer I'm curious the first dweller that Shane tested did it even have propane tanks upfront? Was it a brand-new dweller right off the lot with no weight in it whatsoever? I did upgrade my shocks to Monro heavy-duty. I like to tow with water in my tanks. I don't drive at 80 miles an hour but I've definitely been very comfortable on the interstate slightly over 65 mph. It all depends on the road conditions. I do like the looks of the trailer without the spare tires hanging out the back. Can't imagine what this upgrade costs. Just my two cents.
nemesisnight
Member
I have considered this as well, I personally would have kept the bottom portion of the tire carrier to act as a slider, I have scraped mine already since the D15 already sticks pretty far back past the wheels and it's pretty easy to scrape that departure angle.
Obsessed2findARuggedHybid
Well-known member
Could the wheel position be part of the sway problem?
I replaced the stock shocks with the Monroe 66440 and removed the rear tires. I placed a generator in the front cargo box and I placed a spare tire in the front. I tested the Dwellar without water and got it to 65 with no sway. I started to notice sway at 70. I need to get a longer hitch receiver. The tire rubs slightly at the extreme turn radius of the truck. I found a receiver that can add 5 inches to the hitch length. I will take a picture of it when it comes in.
Plan is to get a cargo carrier and place the very light items in the back.
Sent from my Pixel 7 Pro using Tapatalk
Plan is to get a cargo carrier and place the very light items in the back.
Sent from my Pixel 7 Pro using Tapatalk
Last edited:
RJWB
Member

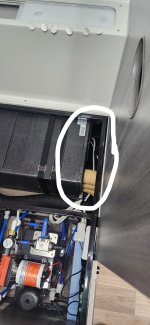

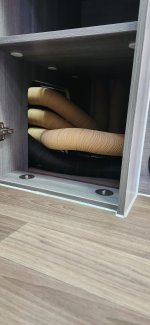

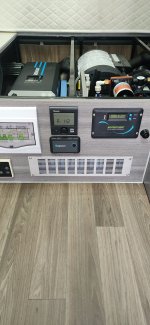

With the hot summer months quickly approaching us I know many folks are trying to find ways to improve the air conditioning on the dweller. Specifically I'm looking at the dweller 15 and feel there needs to be an improved system to recirculate the cold air. The current air intake found on the end of the AC unit itself is underneath the bed. The recirculating air intake should be set up so that the air comes 100% from the passenger compartment of the dweller not from under the bed. This way the air-conditioning unit continues to recycle cold air making it colder each time it goes through the system. Just like the air conditioner in your house. The grill on the control panel wall is too far away from the air-conditioning unit intake and very inefficient. The AC unit is drawing air from under the bed not from the Passenger compartment. Here are a few pictures of the air intake. For the dweller 15 opening the lower cabinet door on the driver side would actually improve the air intake. I'd like to hear other people's thoughts and any ideas of a better way to improve the return air into the air-conditioning unit. I'm not sure how the dweller 13 is configured. Thanks
Attachments
Obsessed2findARuggedHybid
Well-known member
I was referring to Chasing's comment that the rear end hangs far off the axel quite a bit. Just was asking if possibly the axel is to far north on the box and causes some sway. I have no idea if this is the case or not.
Obsessed2findARuggedHybid
Well-known member
For example on the two attached pictures if one measured the center line of the axel of the D 13 to the center of the tounge would it be the same distance as the D 15. Probably not but if they are the same measurement that extra foot + ( with extra weight) of the D 15 is hanging south of the axel line which could cause different degrees of sway regardless of mods. I am sure you all have considered this so I apologize if that's the case
Attachments
Obsessed2findARuggedHybid
Well-known member
Wonder if they use the same chassis for both lengths?
Obsessed2findARuggedHybid
Well-known member
That's what I figured but I was getting excited to have found something that was causing the huge difference in sway for a trailer that is only 1.5 feet longer.
Could it be possible the D15 axel centerline is to far forward then the D13?
Also website says the Dwellers have 24" of ground clearance? That is awesome for off roading buy hight then most off road trailers
Obsessed2findARuggedHybid
Well-known member
Oops. Meant to say 24" ground clearance is on the high end even compared to other off road trailers.
When we first purchased our D15 last summer, I removed one of the spare tires. It helped a little.
The most significant sway improvement was upgrading the D15's 4 shocks as WillySwan previously posted. Also, my tow vehicle had significant sag and I also added airbags and new shocks, which leveled the vehicle and transfered steering authority back to the front wheels. I've made multiple trips with these upgrades, one spare tire, and both fresh water tanks full. I've had no sway issues passing semi trucks going 65mph on 2 lane highways. I'll still encounter a little bit of sway if crosswinds increase or the road undulates causing a harmonic sway, but both have been minor and easily corrected with minor tap of the brakes.
