GXV has produced a PDF that has lots of information about the new "Patagonia" model, built on the Freightliner M2 chassis. Click here to request the brochure
http://www.globalxvehicles.com/contact-us/

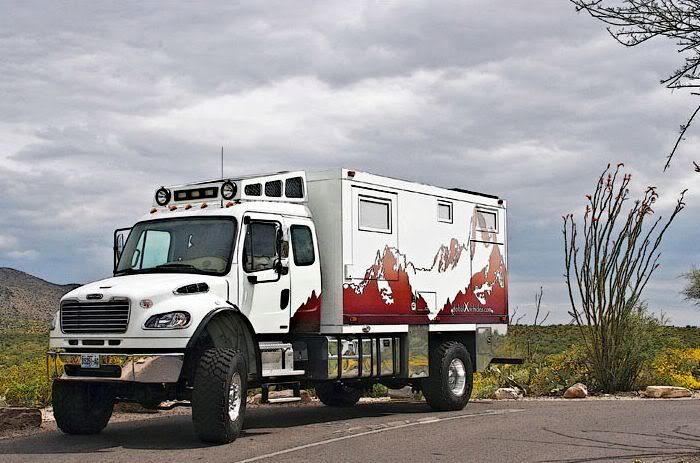

Here are some details about the truck chassis as built for the first Patagonia. There are many options available, such as a crew cab, 6x6 chassis, and so on.
2010 Freightliner M-2 106, 4x4
--Extended Cab (two doors)
--Overall length – 31', width – 8', height – 12' 8" (9448mm x 2438mm x 3860mm)
--GVWR – 33,000 lb
--Top highway speed: 85 mph (137kph)
--Wheelbase – 230" (5842 mm)
--Frame rails – heat treated alloy steel 120,000 lb psi, 11-1/8" x 3-9/16" x 7/16"
(282mm x 93mm x 11.1mm)
--Engine - Cummins ISC 315hp, 1000 lb-ft torque @ 1400 rpm
--Transmission - Allison 3000 HS, Automatic 6-speed / Overdrive
--Alternator - DR 12v, 160 amp, 28-SI Quadramount
--Air compressor – Cummins, 18.7 cf / min. with quick connects
--Transfer case – 2-speed, air shift
--All wheel drive, engageable
--Front axle - Single reduction, 12,000 lb
--Rear axle - Single reduction, 21,000 lb, axle ratio: 5.29
--Suspension – Airliner 23,000 lb. with snow chain clearance
--Brakes – Air Brakes with ABS
--Meritor main Driveline
--Air dryer – Meritor 1200 with heater
--Alcoa 22.5" aluminum wheels
--Michelin XZL 445/65, R22.5
--Fuel tanks – 300 gallons total (1135 liters). 2 @ 50 gallon and 2 @ 100 gallon
--Gasoline tank (for ATV/motorcycle) – 75 gallon (283 liters)
--Aluminum Roof Rack with 3-Soltek LED Driving Lights (2,880 lumens) and 2-Soltek HID Race Lights
(3,200 lumens)
--Winch – 16,500 pound Electric SuperWinch
--Heavy-Duty Off-Road Front Aluminum Bumper, Equipped for Winch, Black Powder Coat
--Heavy-Duty Aluminum Adjustable Rear Bumper– Black Powder Coat
--Spare Tire mounted on rear with manual hoist
--Extraction Mats mounted on rear, qty. 4
Mike Van Pelt emailed a few more photos of the Patagonia:

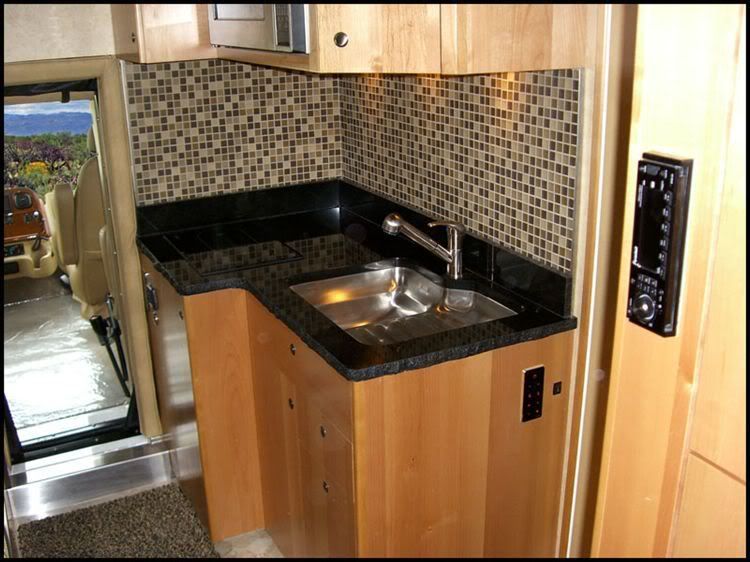

The galley, with pass-through to the truck cab visible in the background

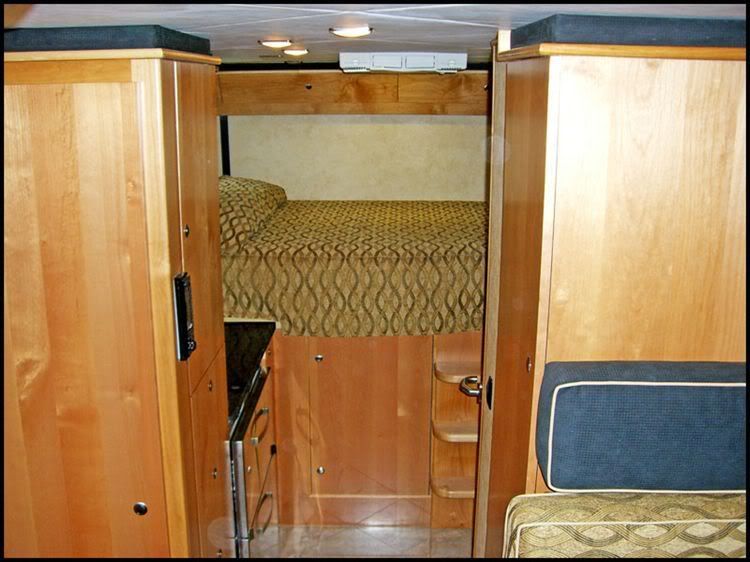

The view in the other direction, showing the raised bed and storage
The view out the "Natura" window is spectacular!
The Patagonia has a very large storage area under the bed area, big enough to carry an ATV, or a couple of small motorcycles, or lots of additional gear.
Everyone who sees the GXV vehicles remarks about the high quality of the camper construction, and the consideration given to the details. Sometimes you pay more, and you get more, too.
